EP1D

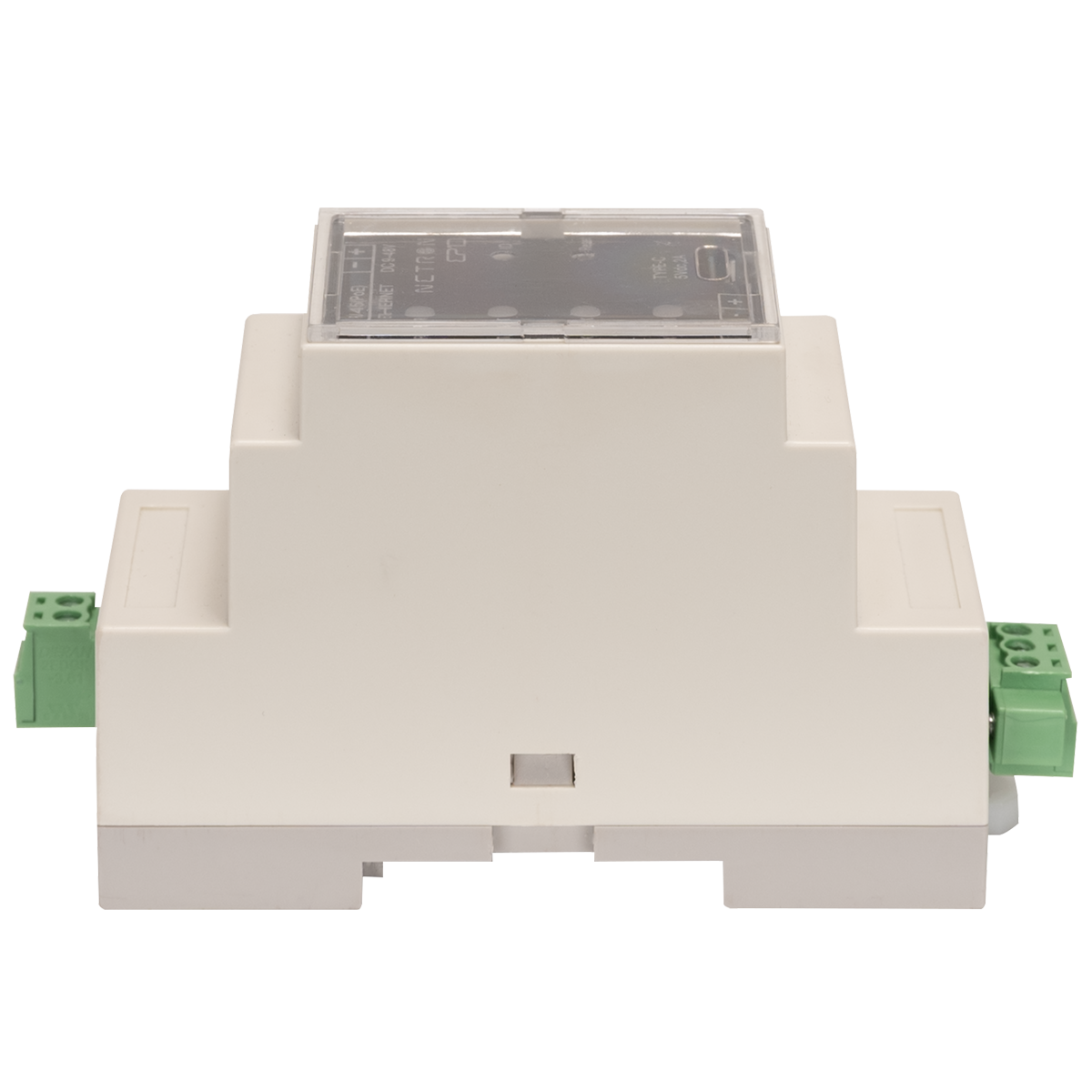

The NETRON EP1D is a DIN-Rail Ethernet to DMX gateway with a single RDM compatible port.
EP1D
Sale price$0.00
EP1D
The NETRON EP1D is a DIN-Rail Ethernet to DMX gateway with a single RDM compatible port.
It is configurable via the internal web remote or the NETRON CLU tool. EP1D is powered over Ethernet or via the convenient USB-C connection.EP1D is a powerful and convenient single port node that is ideally suited to distribute sACN and Art-Net traffic across any type of facility or building network.
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setup
- POE or USB-C powered
- Remote configuration via internal webpage
- Unlocks ONYX NOVA 4-Universe License
Specifications
Mounting

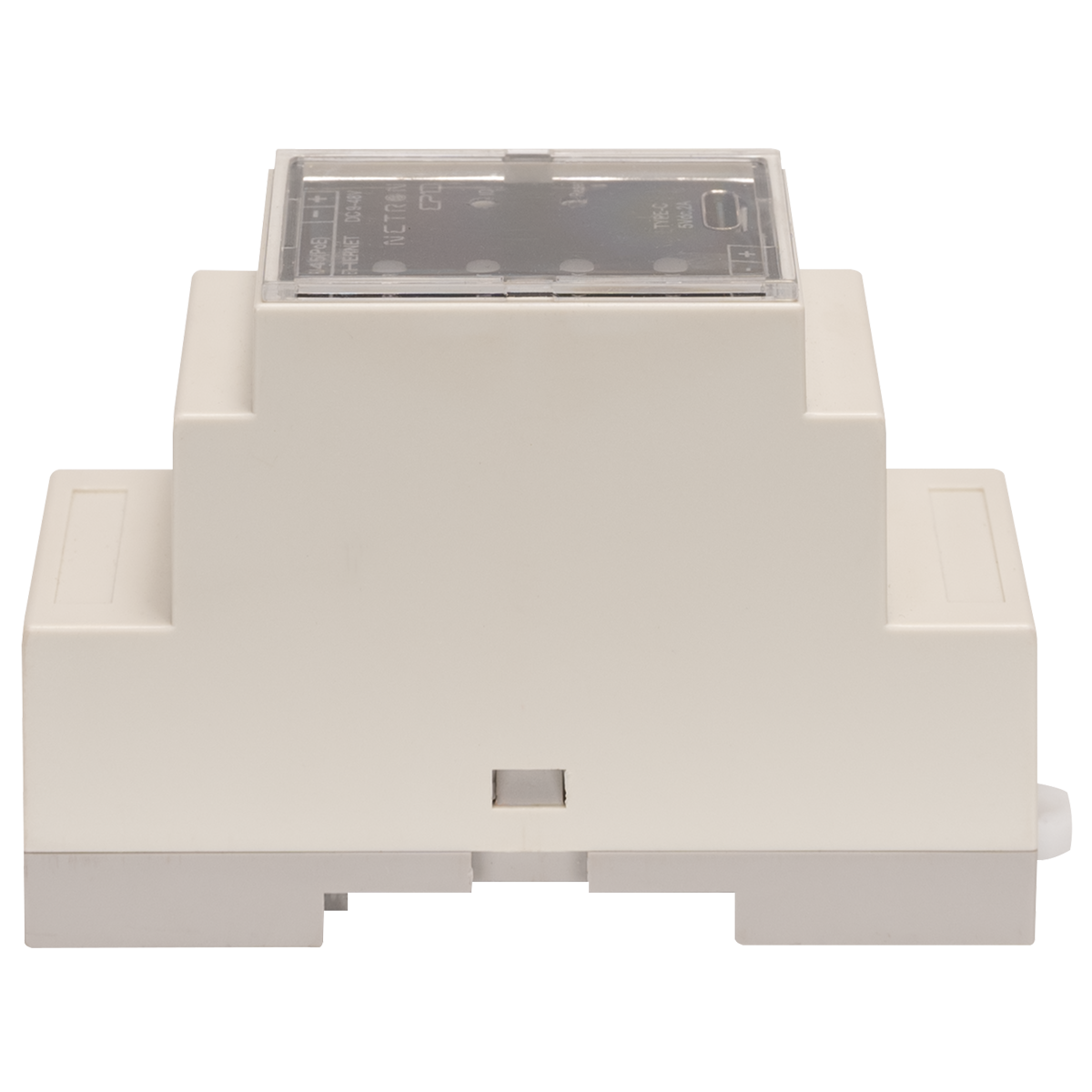

- DIN Rail
Connections

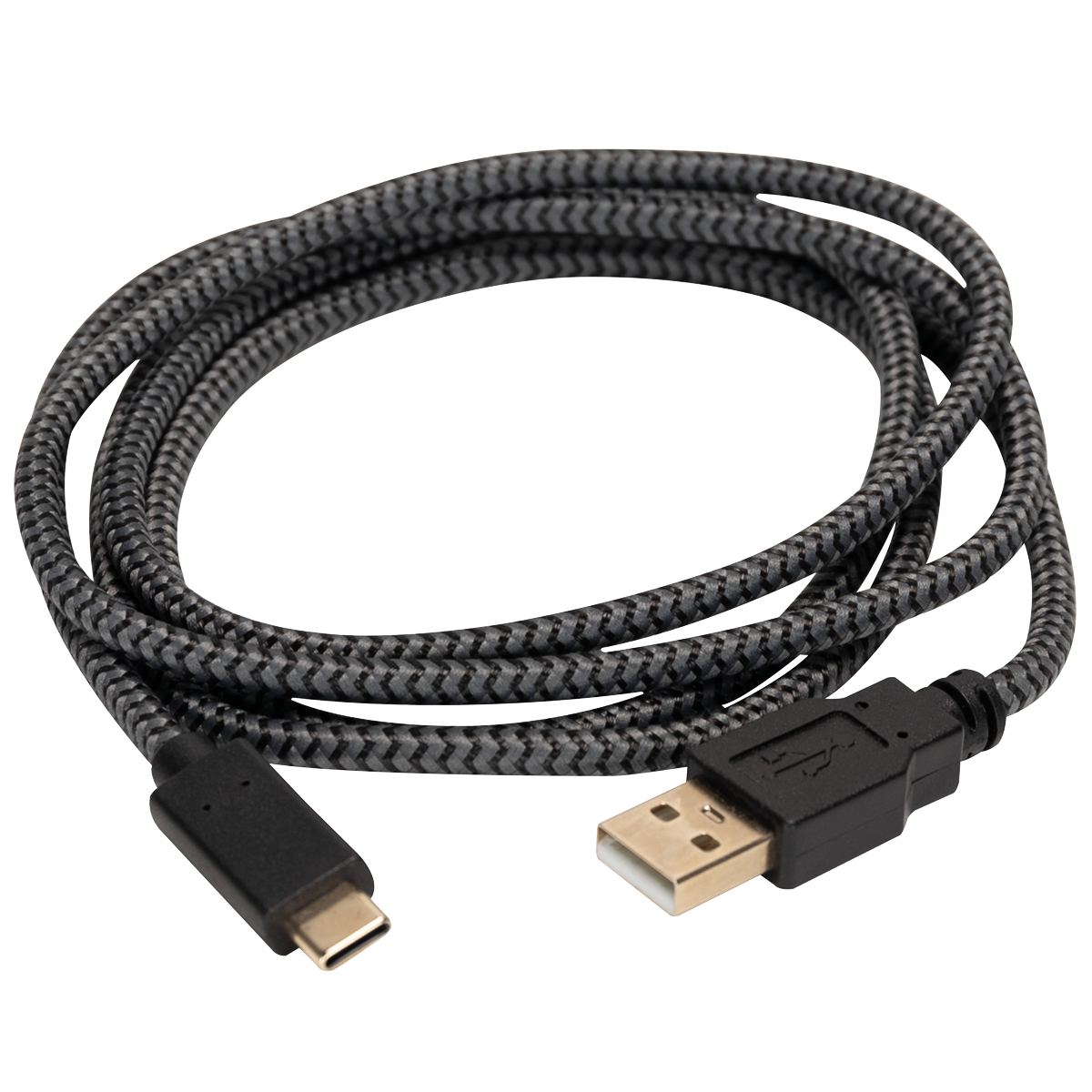

- USB-C Temporary Power (5V/2A)

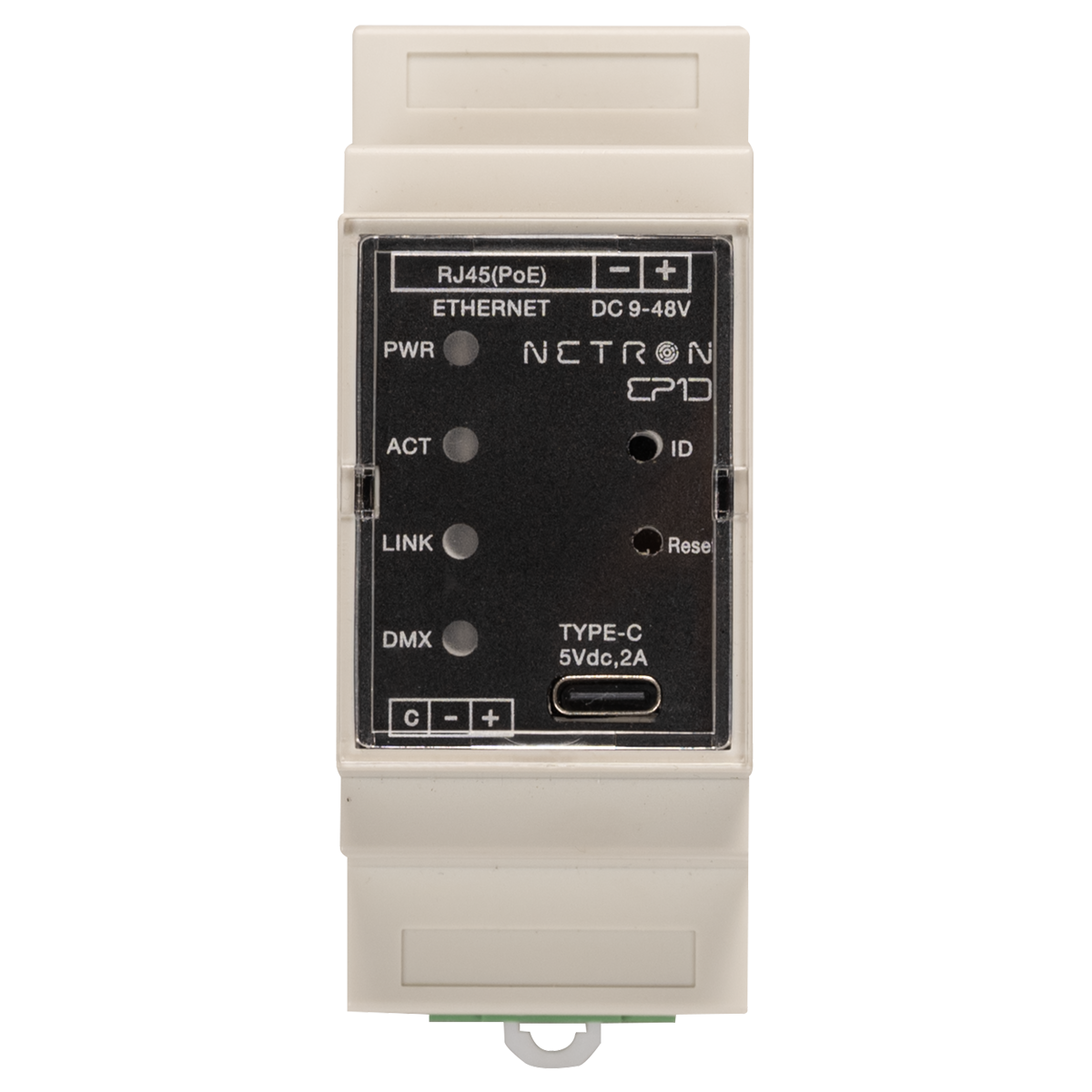

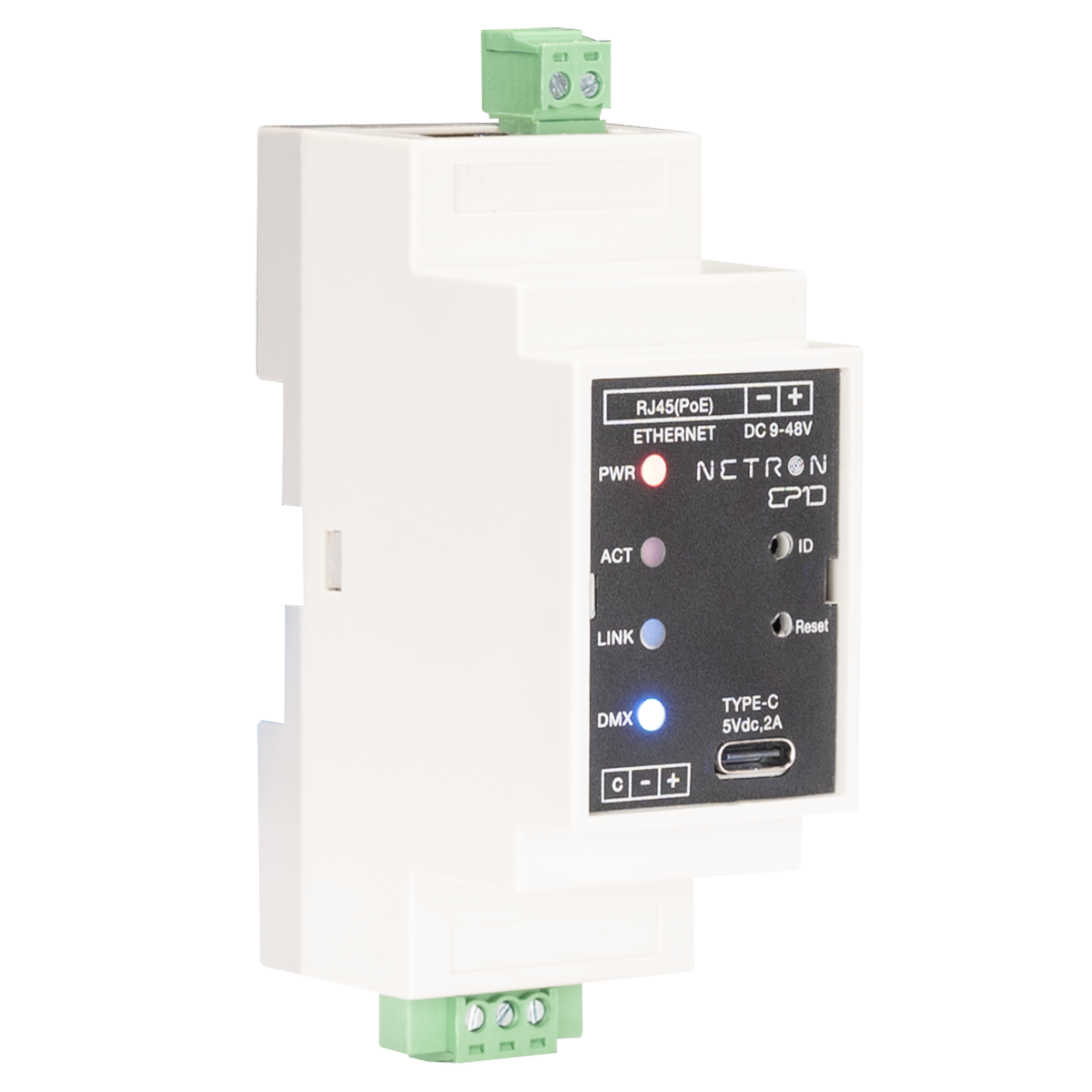

- (4x) LED Status Indicator

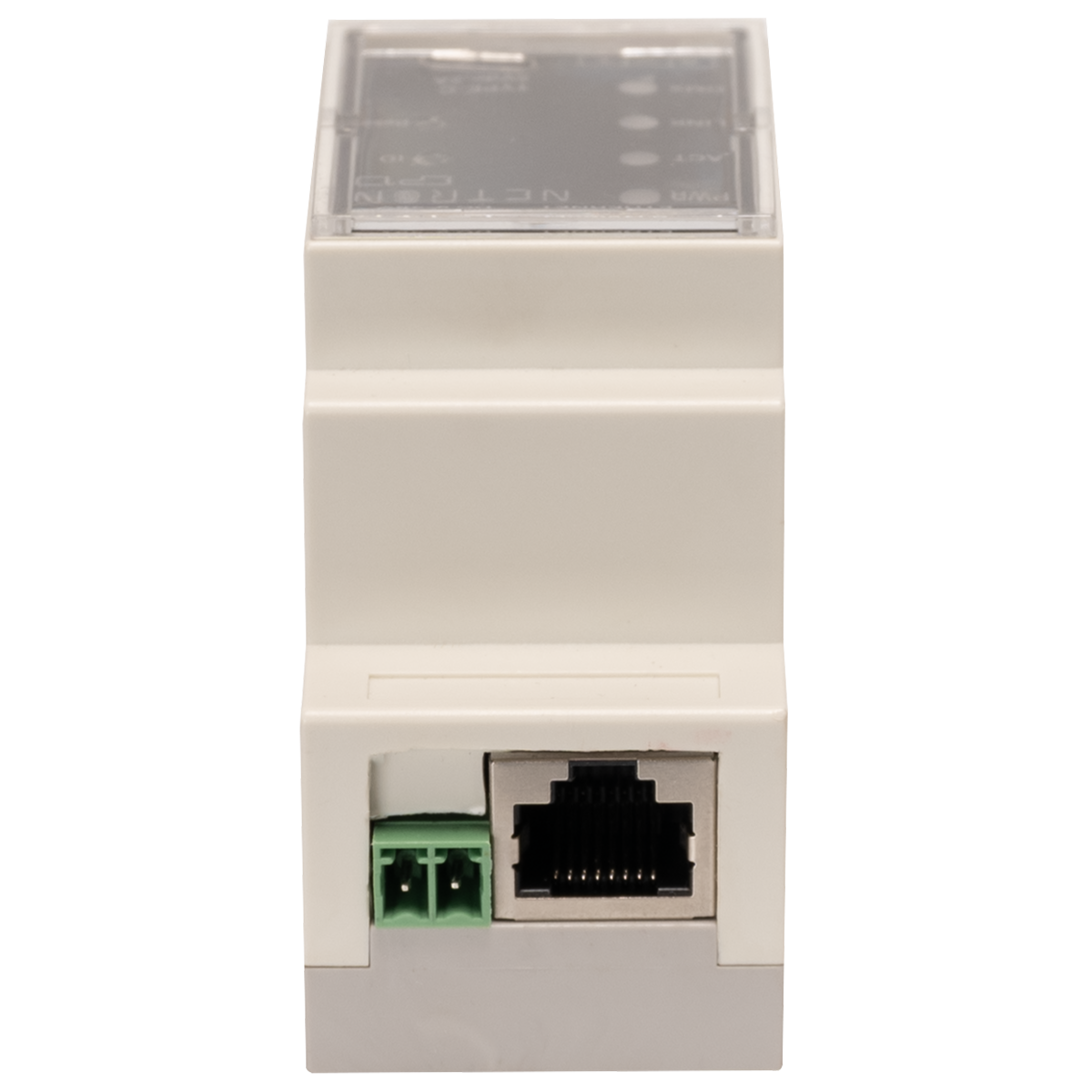

- RJ45 Gigabit Ethernet (POE)

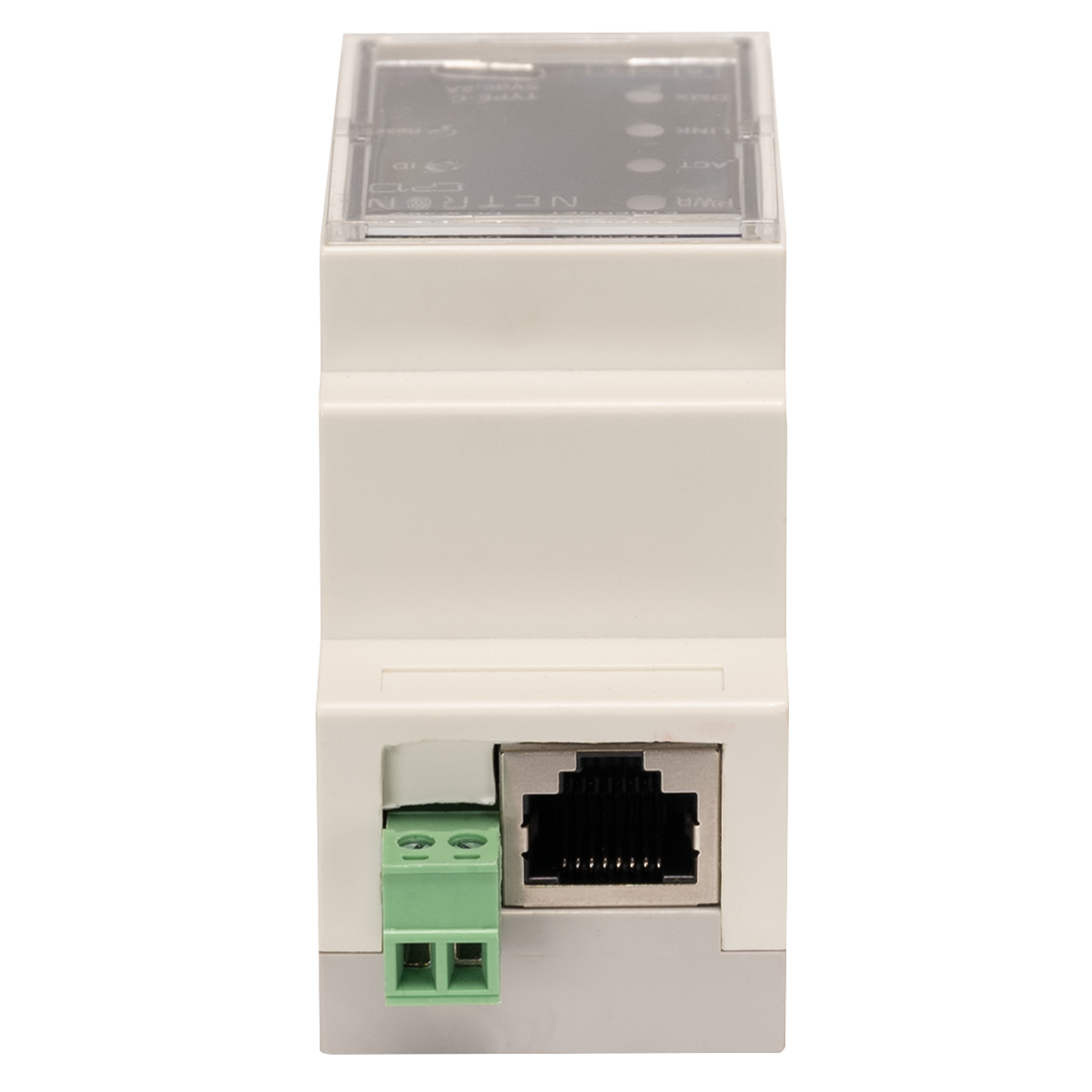

- DC 9-48V In (2pin Terminal Block)

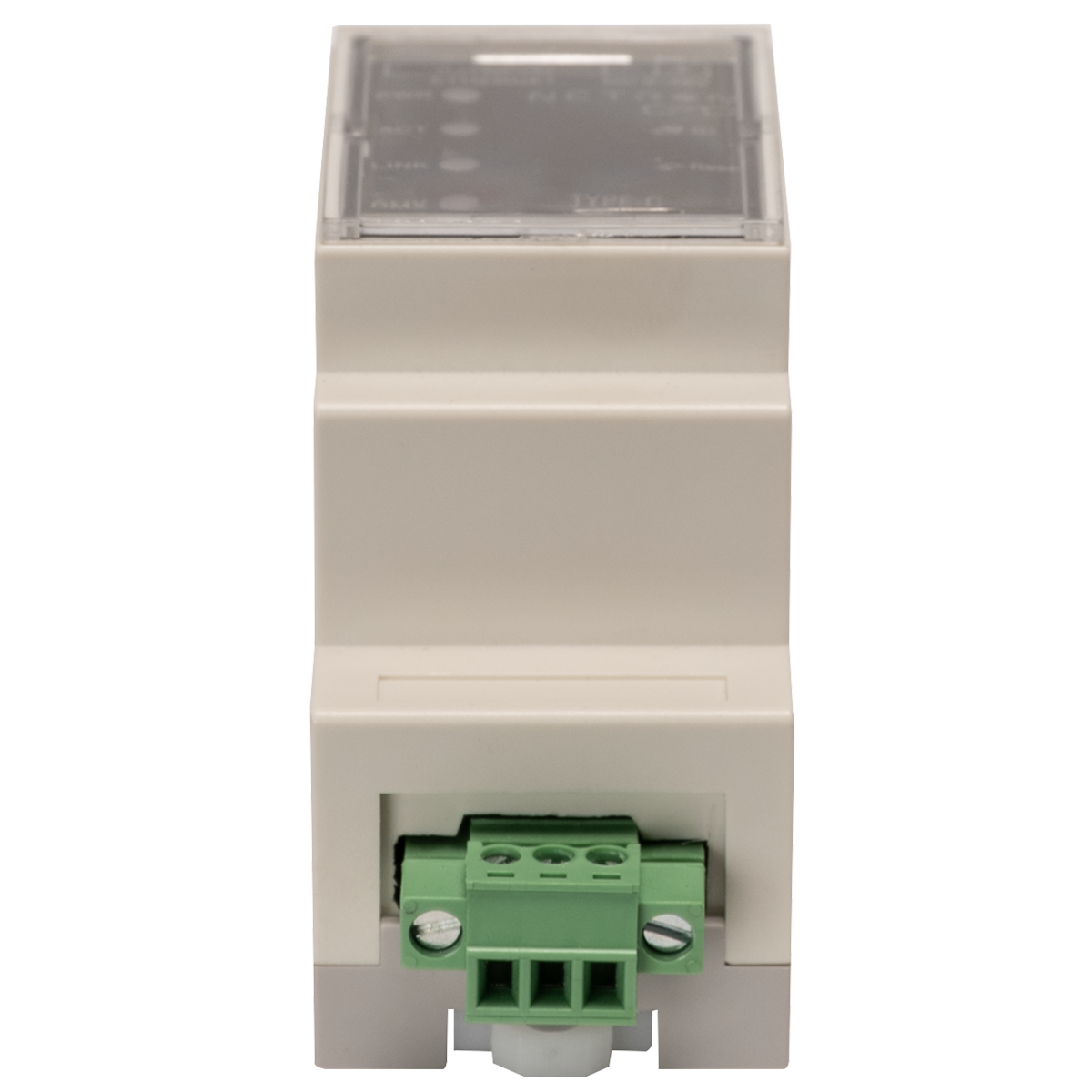

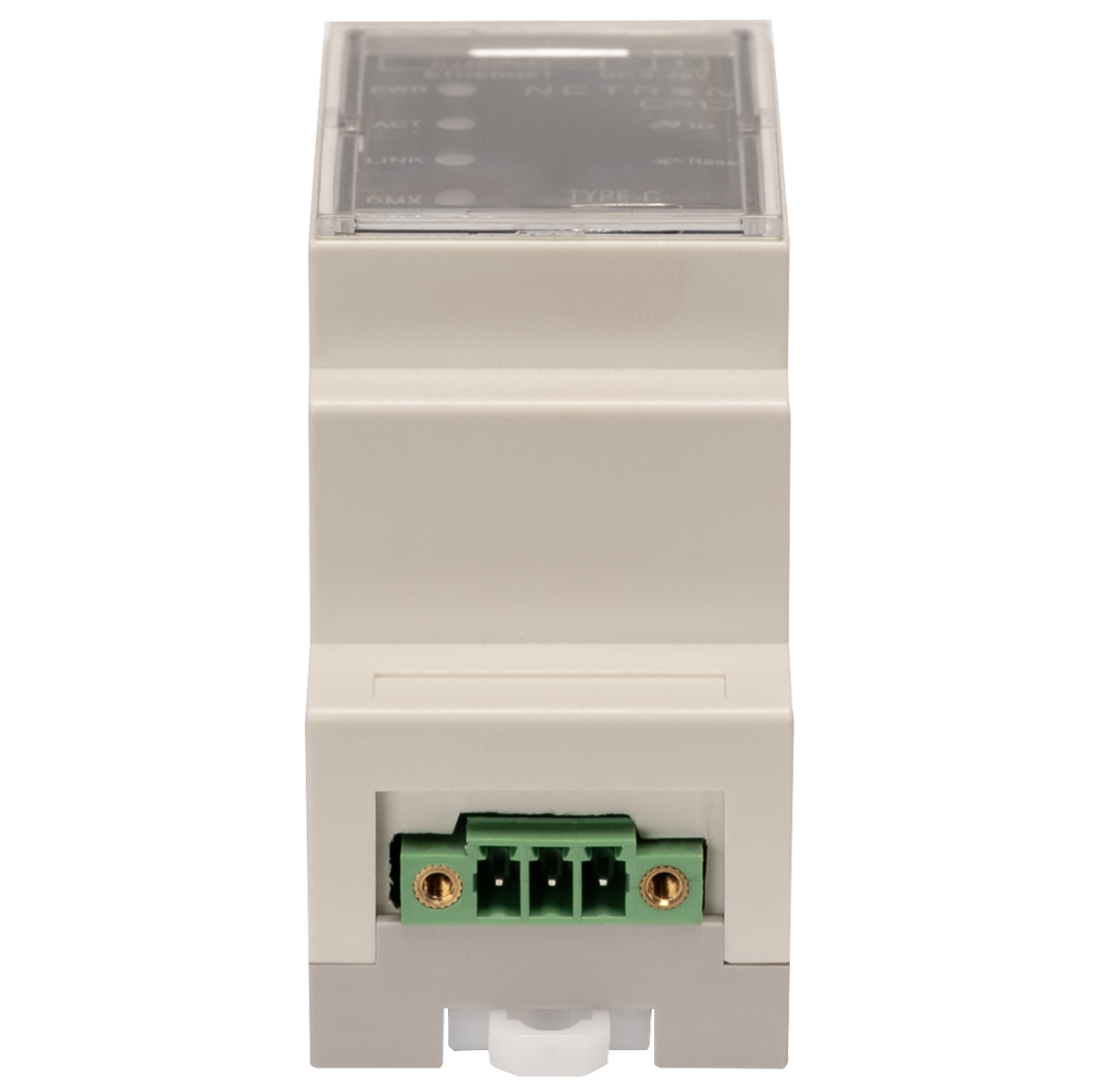

- 3pin Phoenix Terminal Block DMX/RDM optically isolated port
- Bidirectional DMX In / Out
Specifications
- Length: 87mm (3.4 in.)
- Width: 36mm (1.4 in.)
- Height: 60mm (2.4 in.)
- Weight: 0.2 kg (0.44 lbs)
- POE 802.3af
- DC 9-48V
- USB-C (5V/2A)
- Power Consumption 1.6W
- CE/ cETLus
Ordering
- 2-pin Terminal Block
- 3-pin Terminal Block
- US #: NRE136
- EU #: 1330000097
- DIN Rail
- USB-C Temporary Power (5V/2A)
- (4x) LED Status Indicator
- RJ45 Gigabit Ethernet (POE)
- DC 9-48V In (2pin Terminal Block)
- 3pin Phoenix Terminal Block DMX/RDM optically isolated port
- Bidirectional DMX In / Out
- Length: 87mm (3.4 in.)
- Width: 36mm (1.4 in.)
- Height: 60mm (2.4 in.)
- Weight: 0.2 kg (0.44 lbs)
- POE 802.3af
- DC 9-48V
- USB-C (5V/2A)
- Power Consumption 1.6W
- CE/ cETLus
- 2-pin Terminal Block
- 3-pin Terminal Block
- US #: NRE136
- EU #: 1330000097
Downloads
| Filename | Document type | File type |
|---|---|---|
| EP1D - 2D Cad Drawing | CAD Drawing | DWG |
| EP1D - Dimensional Drawing | Dimensional Drawings | |
| EP1D - Installation Guide | Installation Guide | |
| EP1D - Specification Sheet | Specification Sheet |
