WP1DO-EU
The NETRON WP1DO-EU provides a 5pin DMX Output connector with a square cover plate, compatible with EU 50mm in-wall boxes. Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators.
WP1DO-EU
Sale price$0.00
WP1DO-EU

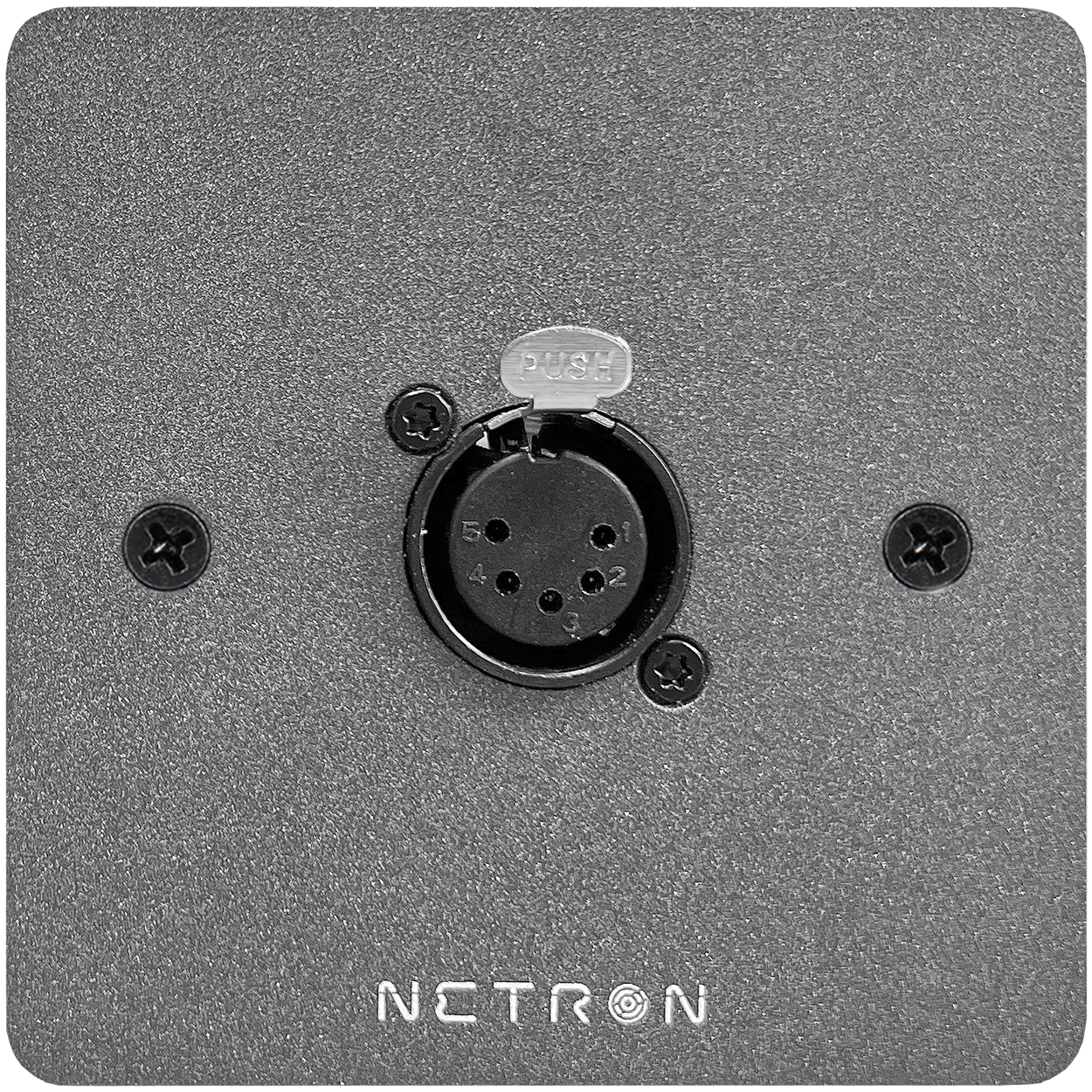

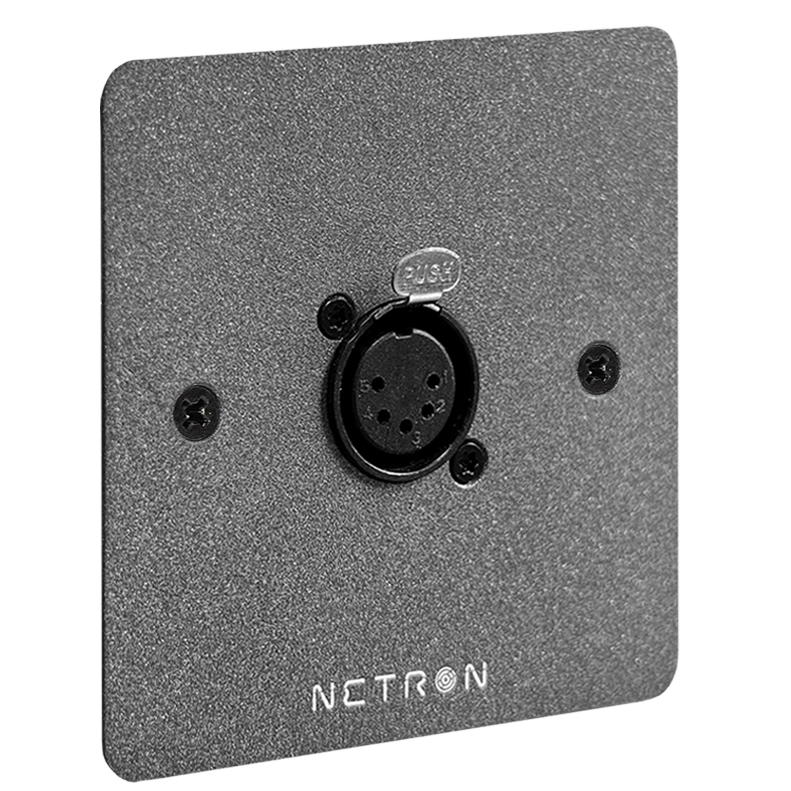

The NETRON WP1DO-EU provides a 5pin DMX Output connector with a square cover plate, compatible with EU 50mm in-wall boxes.
Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators.
- 1-Gang DMX Output connector

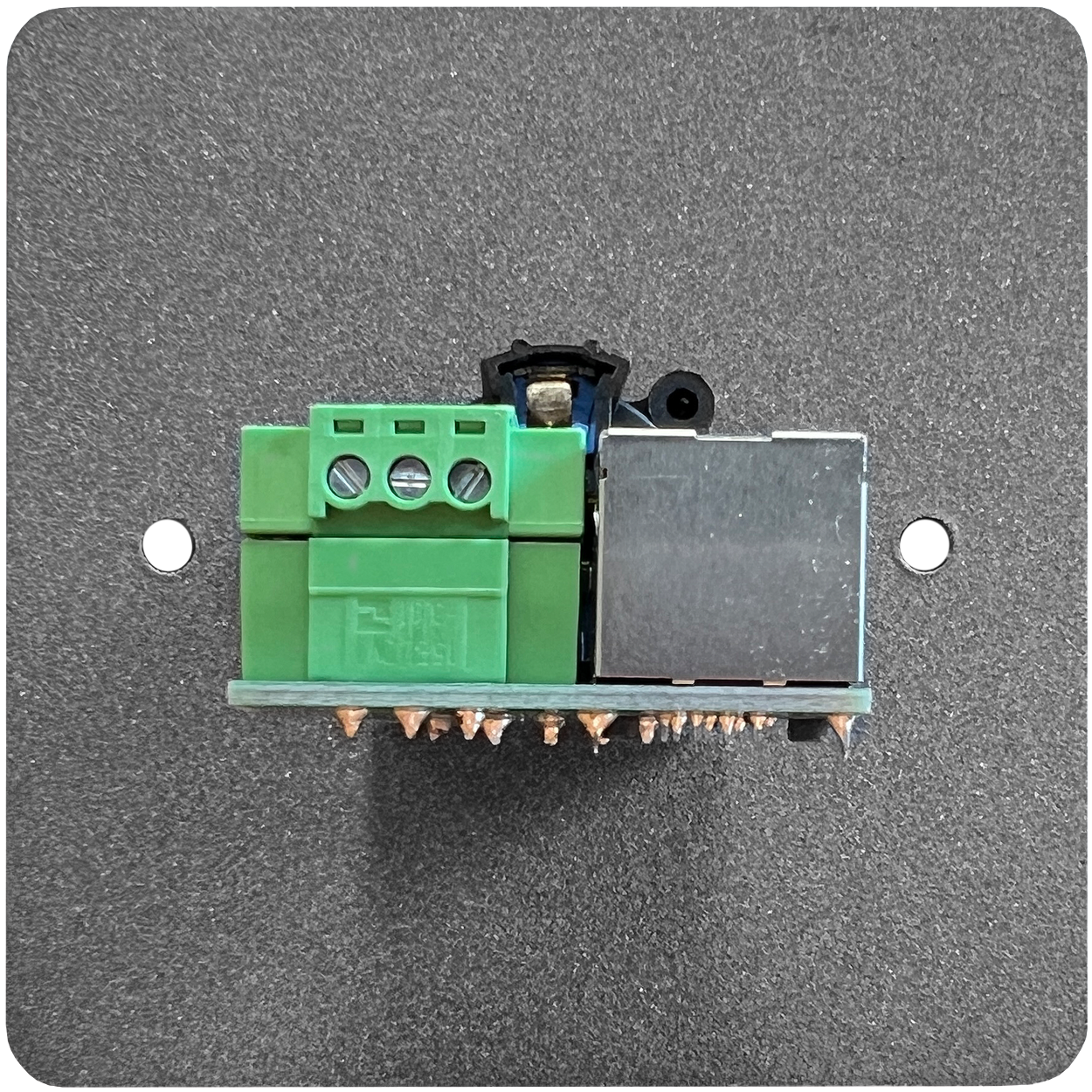

- Terminal and RJ45 DMX input
- Powder-coated aluminum
Specifications
Mounting
- In-Wall 50mm (EU)
Connections
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
Specifications
- Length: 1.34 in. (34mm)
- Width: 3.39 in. (86mm)
- Height: 3.39 in. (86mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
Ordering
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- EU #: 1330000089
- In-Wall 50mm (EU)
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
- Length: 1.34 in. (34mm)
- Width: 3.39 in. (86mm)
- Height: 3.39 in. (86mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- EU #: 1330000089
Downloads
| Filename | Document type | File type |
|---|---|---|
| WP1DO - Installation Guide | Installation Guide |
