WP1DO

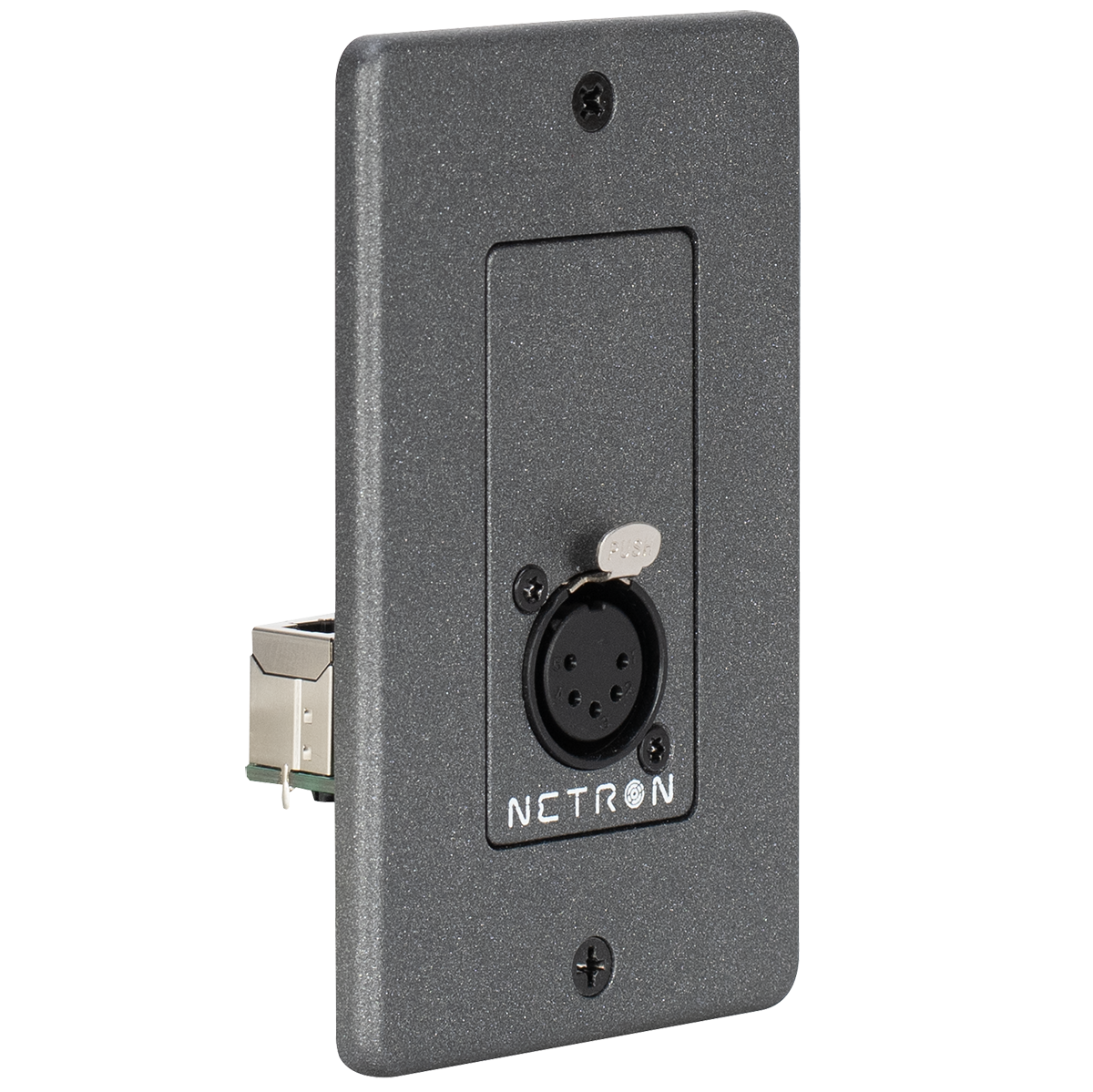

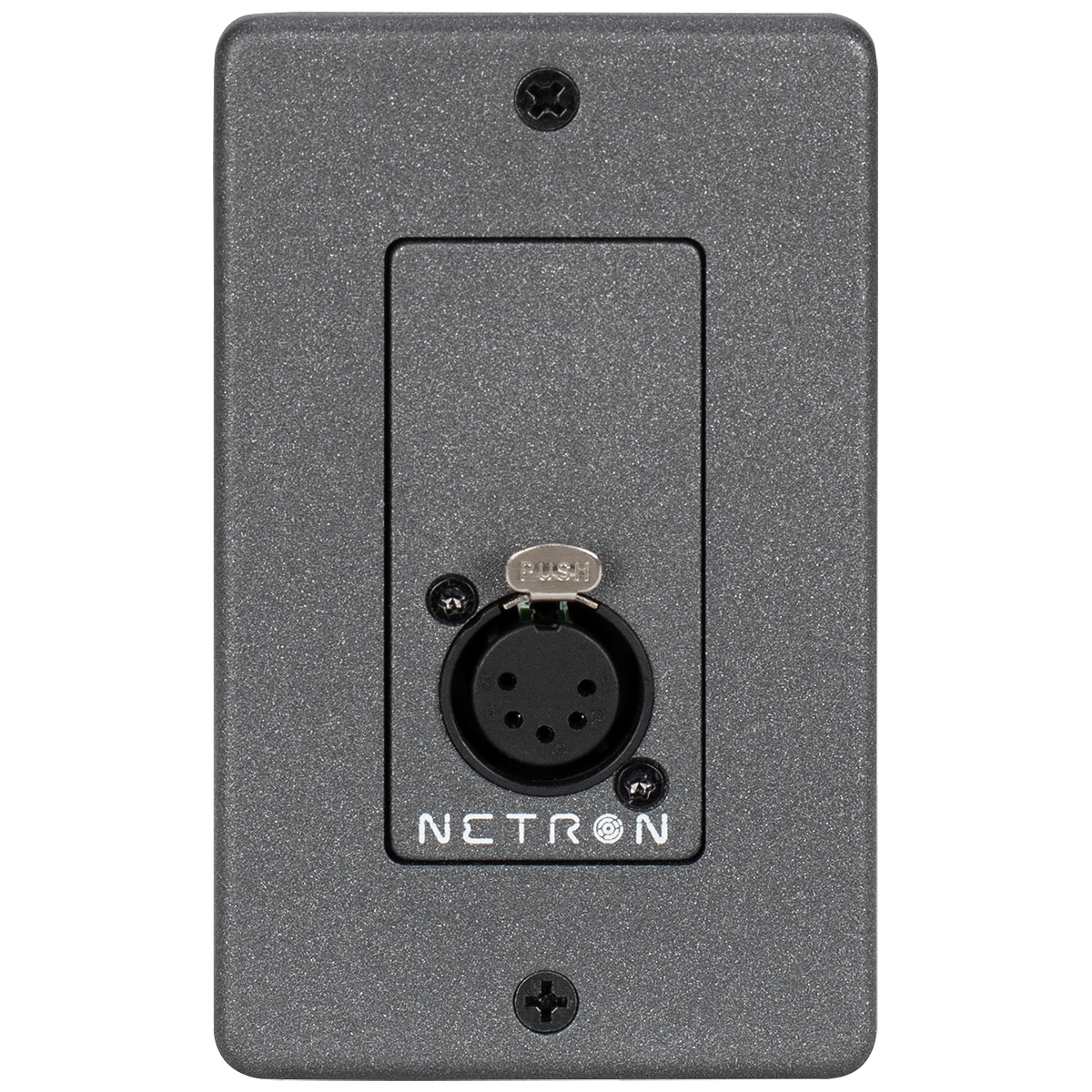

The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate.
WP1DO
Sale price$0.00
WP1DO
The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate.
Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators.

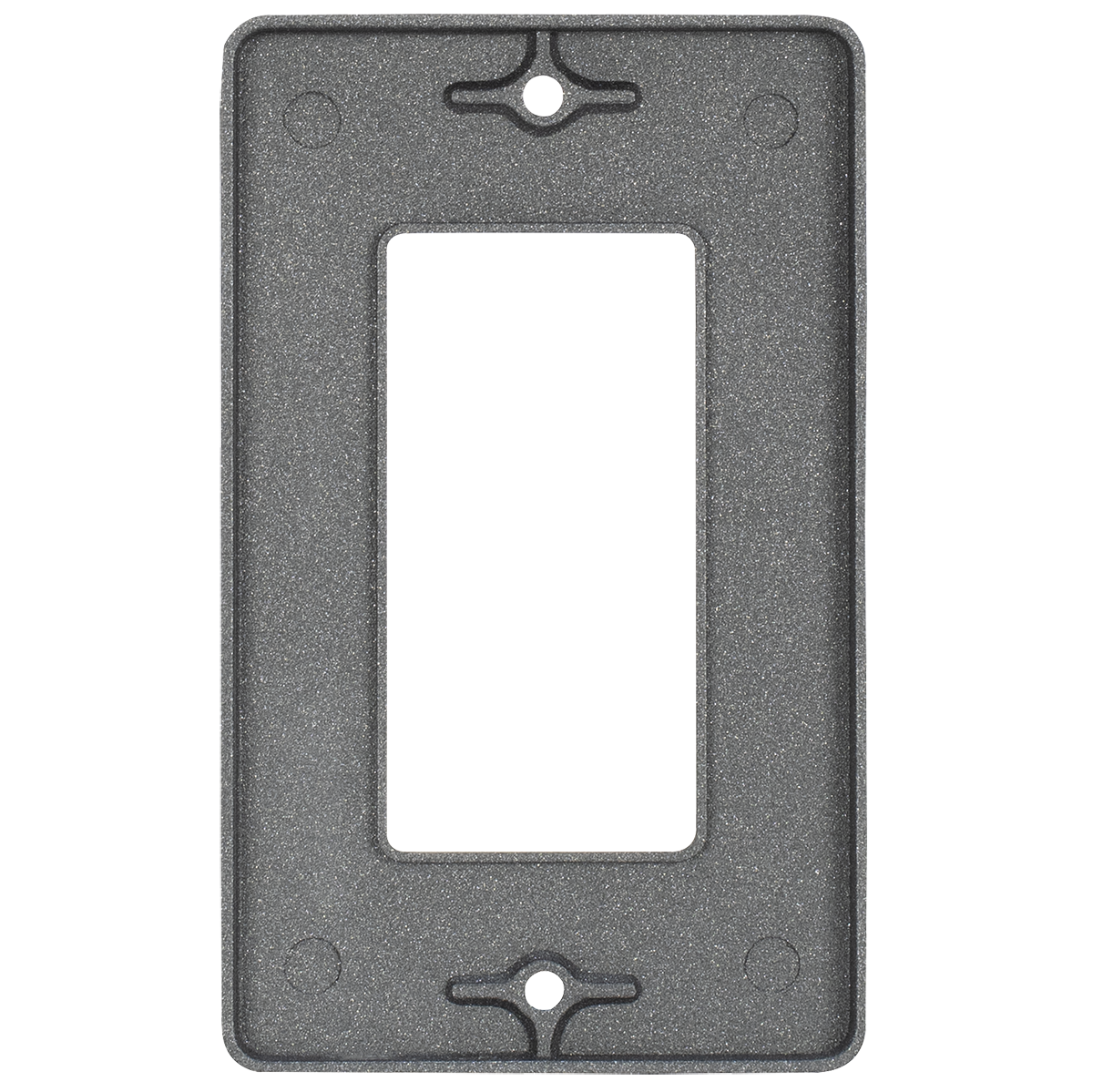

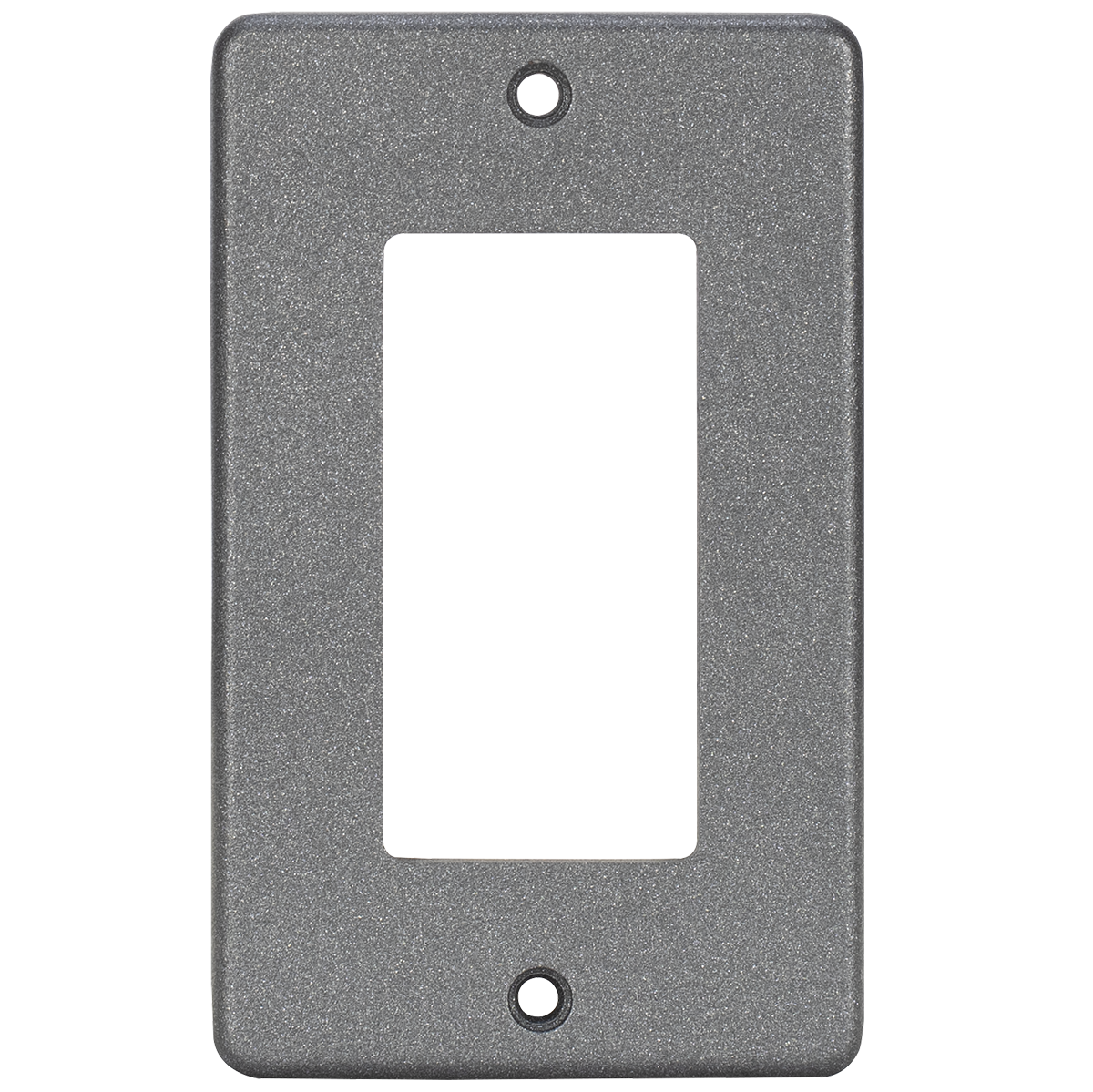

A matching NETRON Decora wall plate is included for a seamless and clean installation.
- 1-Gang DMX Output connector

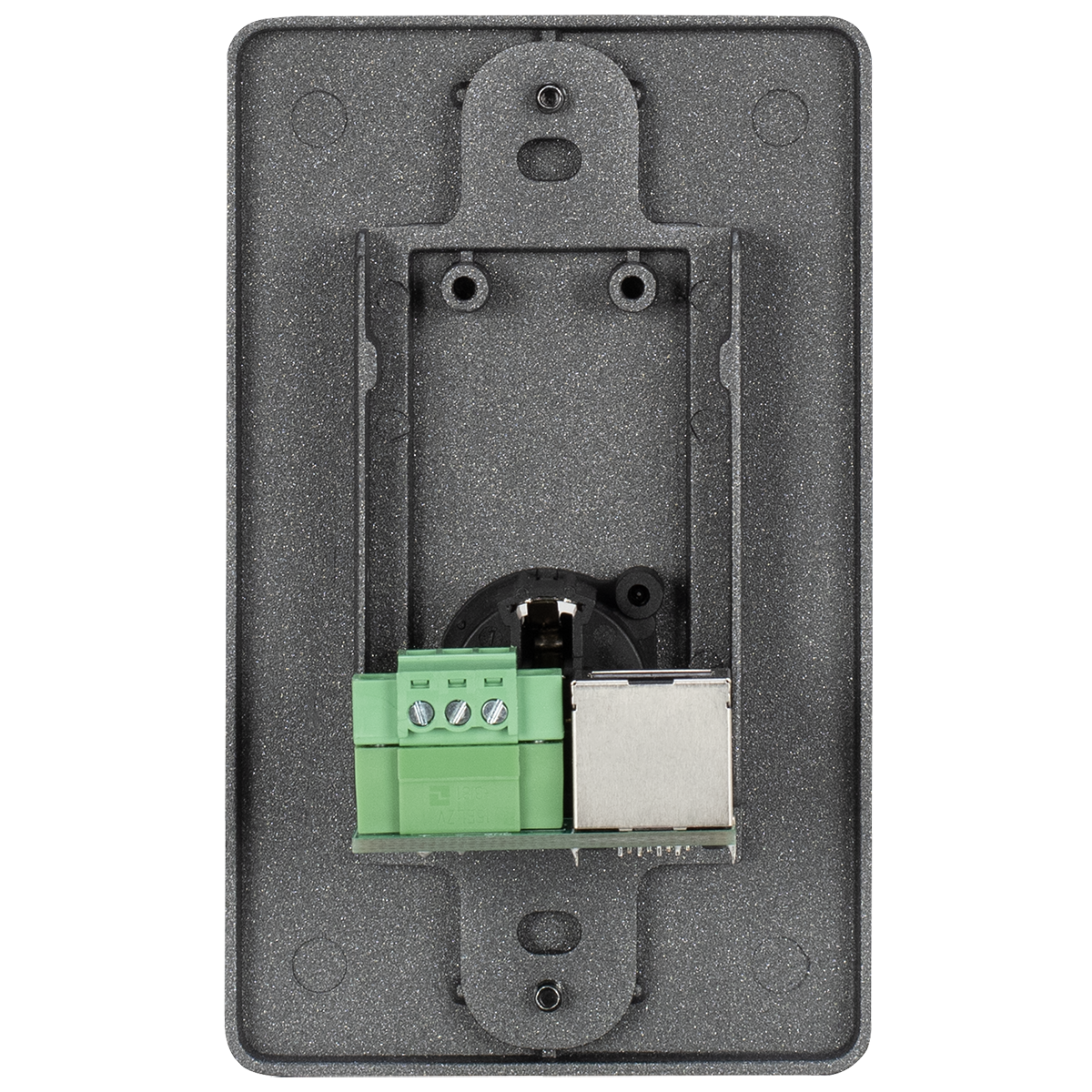

- Terminal and RJ45 DMX input
- Powder-coated aluminum
Specifications
Mounting
- In-Wall 1-Gang (US)
Connections
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
Specifications
- Length: 2.3 in. (60mm)
- Width: 1.64 in. (34.8mm)
- Height: 4.3 in. (108.5mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
Ordering
- Netron Decora 1-Gang wall plate
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- US #: NWP001
- In-Wall 1-Gang (US)
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
- Length: 2.3 in. (60mm)
- Width: 1.64 in. (34.8mm)
- Height: 4.3 in. (108.5mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
- Netron Decora 1-Gang wall plate
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- US #: NWP001
Downloads
| Filename | Document type | File type |
|---|---|---|
| WP1DO - Installation Guide | Installation Guide |
