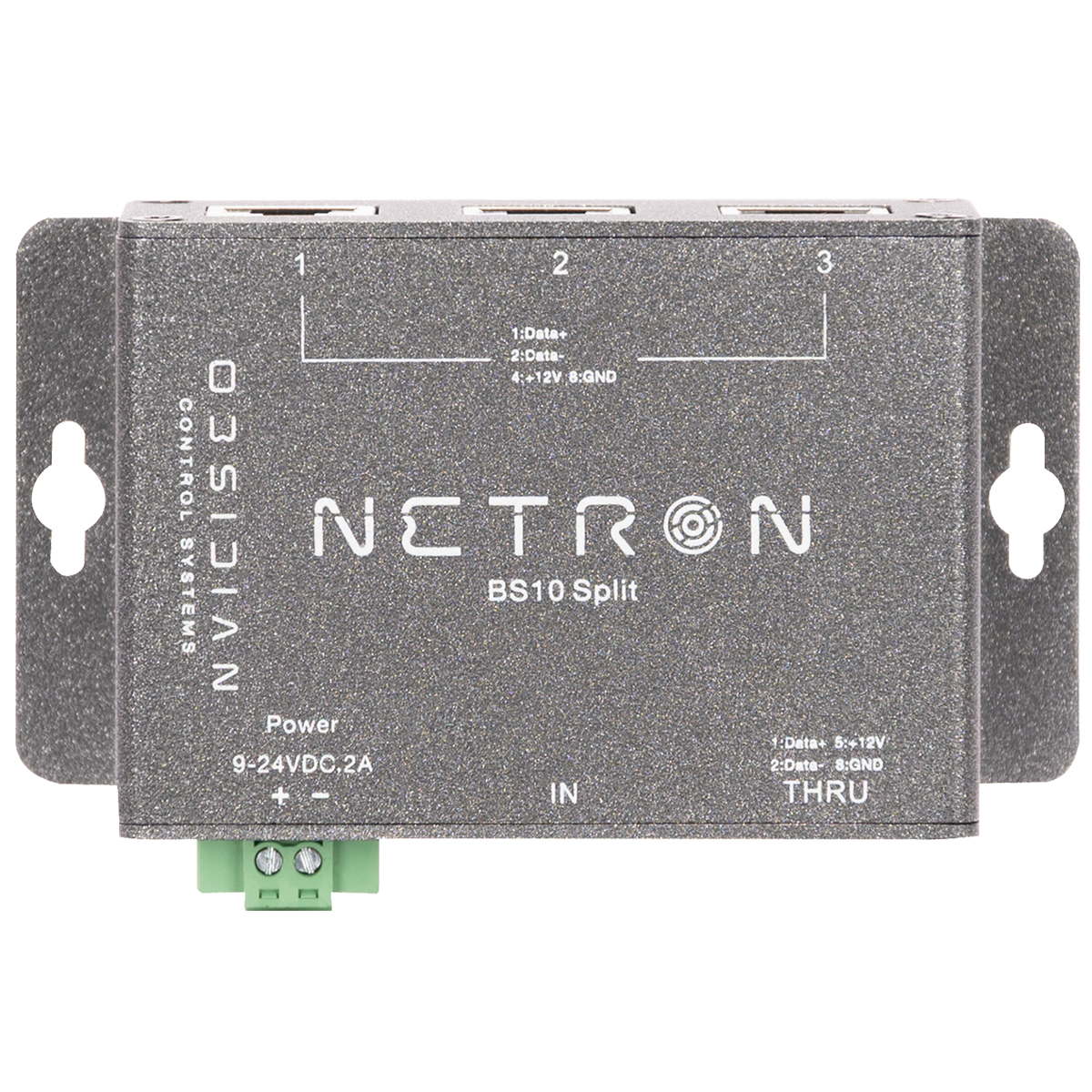

BS10 Split
The NETRON BS10 Split is a compact accessory to expand the NETRON BS10 button station from one to multiple devices and longer distances.
Simple wiring using RJ45 connections is compatible with the EN12i and BS10, allowing a maximum of ten BS10 devices to recall cues and presets in a synchronized manner.
Simple wiring using RJ45 connections is compatible with the EN12i and BS10, allowing a maximum of ten BS10 devices to recall cues and presets in a synchronized manner.
BS10 Split
Sale price$0.00
BS10 Split
The NETRON BS10 Split is a compact accessory to expand the NETRON BS10 button station from one to multiple devices and longer distances.Simple wiring using RJ45 connections is compatible with the EN12i and BS10, allowing a maximum of ten BS10 devices to recall cues and presets in a synchronized manner.
- Power Injector and Data Splitter for BS10 button stations
- 3 Outputs
- Data IN and THRU supporting NETRON EN12i and BS10 Split daisy chain
- RJ45 connections
Specifications

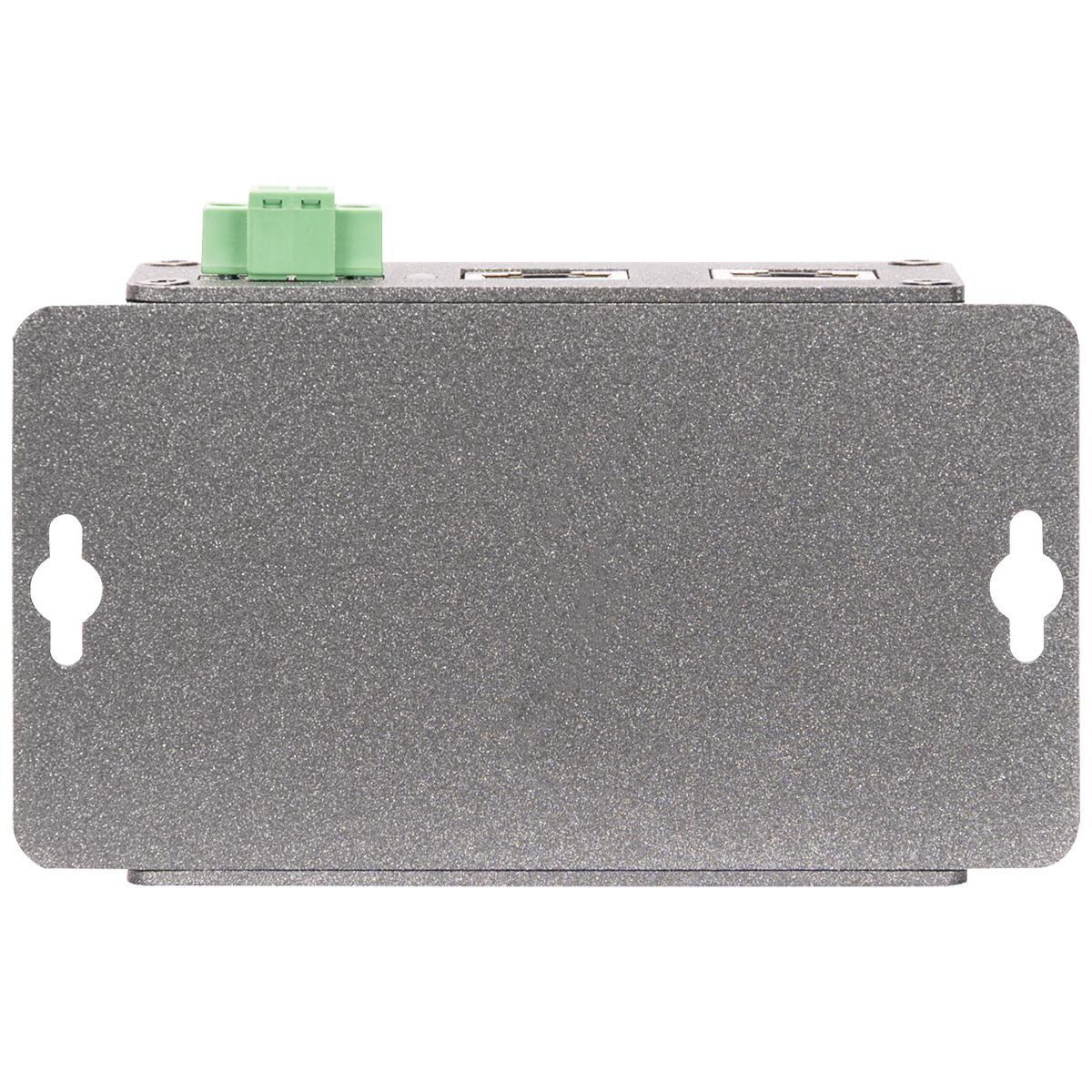

Mounting
- Wallmount

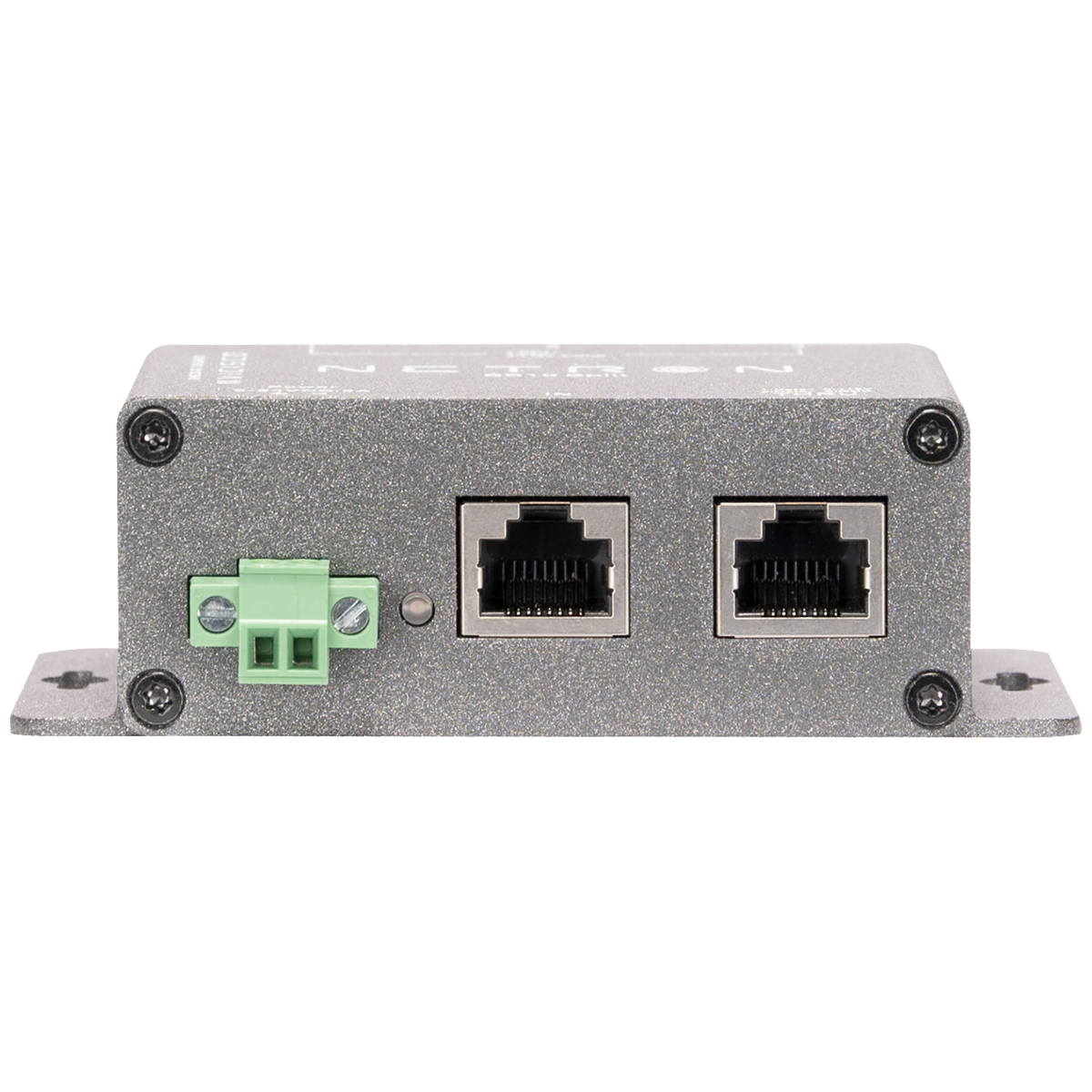

Connections
- (2) RJ45 Data In/Thru
- DC In (2pin Terminal Block)

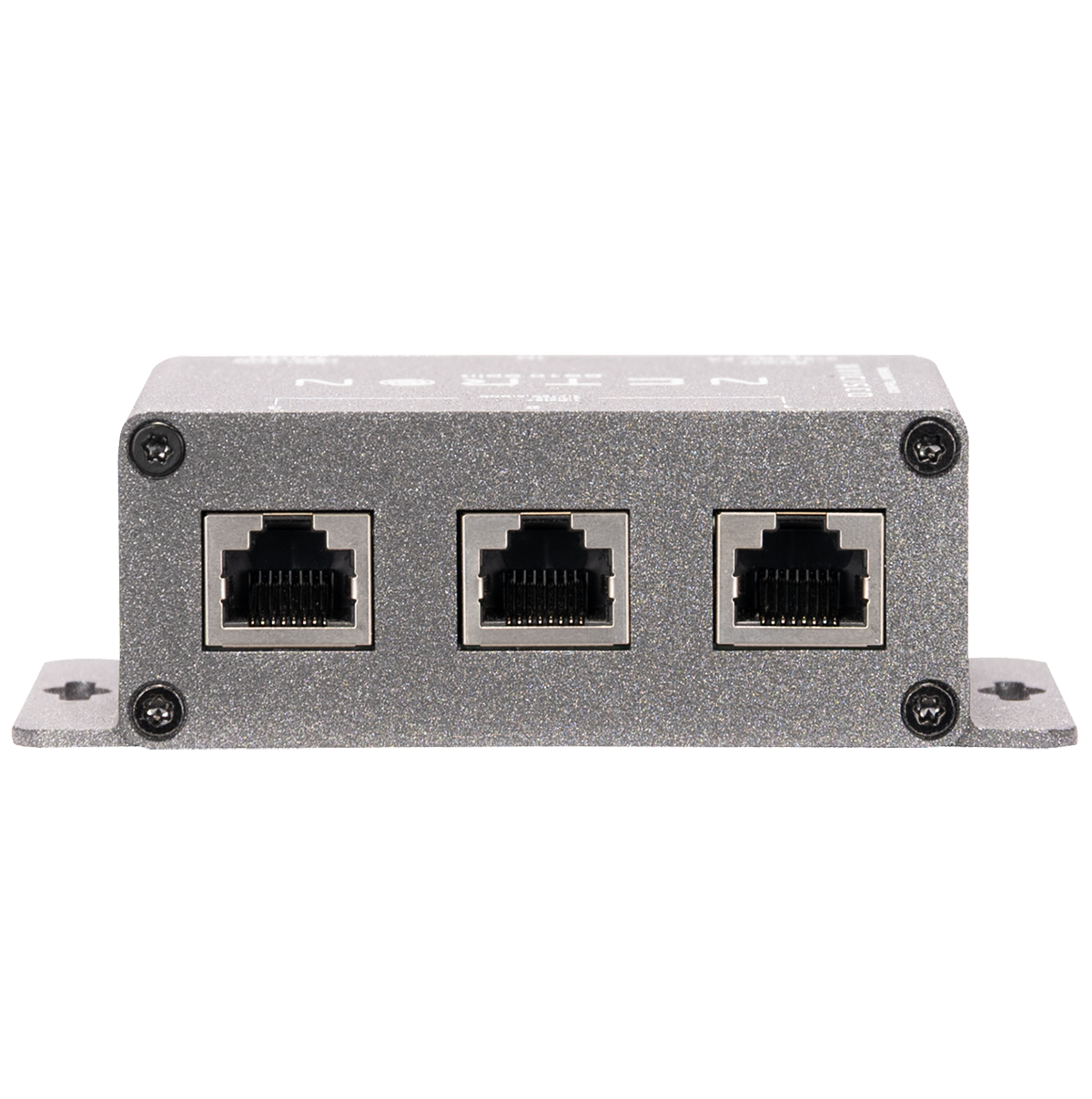

- (3) RJ45 - BS10 Out
Specifications
- Length: 4.1 in. (105mm)
- Width: 2.3 in. (59mmmm)
- Height: 1.3in. (32mm)
- Weight: 0.31lbs. (0.14kg)
-
DC 9-12V / 2A (Power Supply not included)
CAT5e up to 300ft (100m) combined length
- CE / cETLus / FCC
Ordering
- US #:NBS127
- EU #:1330000098
- Wallmount
- (2) RJ45 Data In/Thru
- DC In (2pin Terminal Block)
- (3) RJ45 - BS10 Out
- Length: 4.1 in. (105mm)
- Width: 2.3 in. (59mmmm)
- Height: 1.3in. (32mm)
- Weight: 0.31lbs. (0.14kg)
-
DC 9-12V / 2A (Power Supply not included)
CAT5e up to 300ft (100m) combined length
- CE / cETLus / FCC
- US #:NBS127
- EU #:1330000098
Downloads
| Filename | Document type | File type |
|---|---|---|
| BS10 - Installation Guide | Installation Guide |
