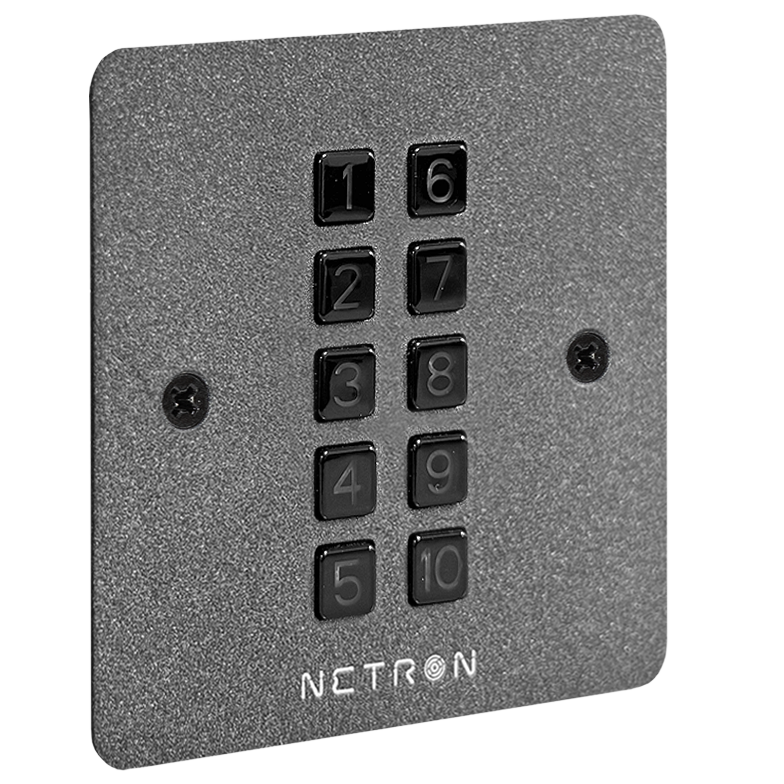

BS10-EU
The NETRON BS10-EU is an elegant wall station for cue or preset recall from the EN12i EtherDMX Node. It is compatible with EU 50mm in-wall boxes and provided with a square cover plate.

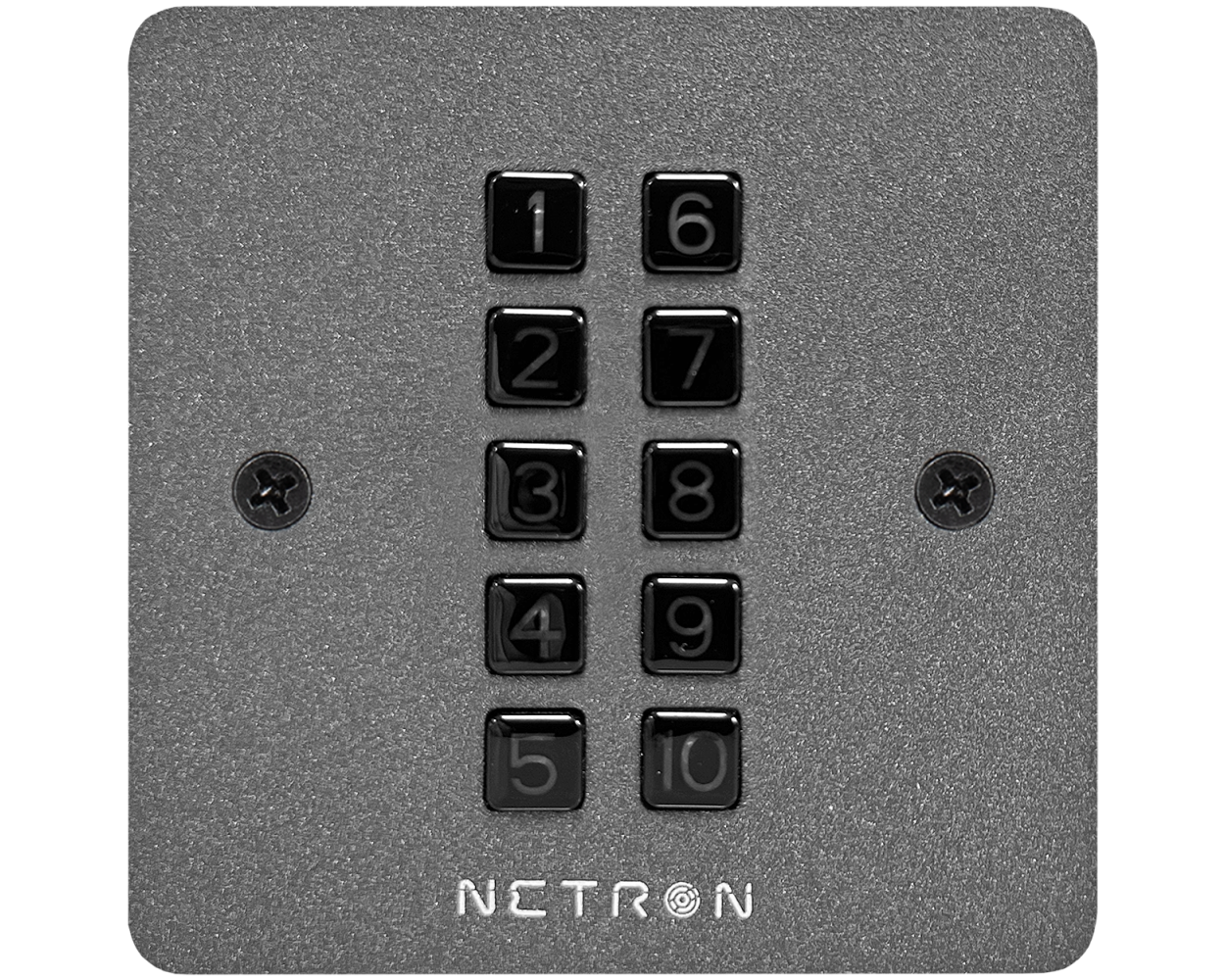

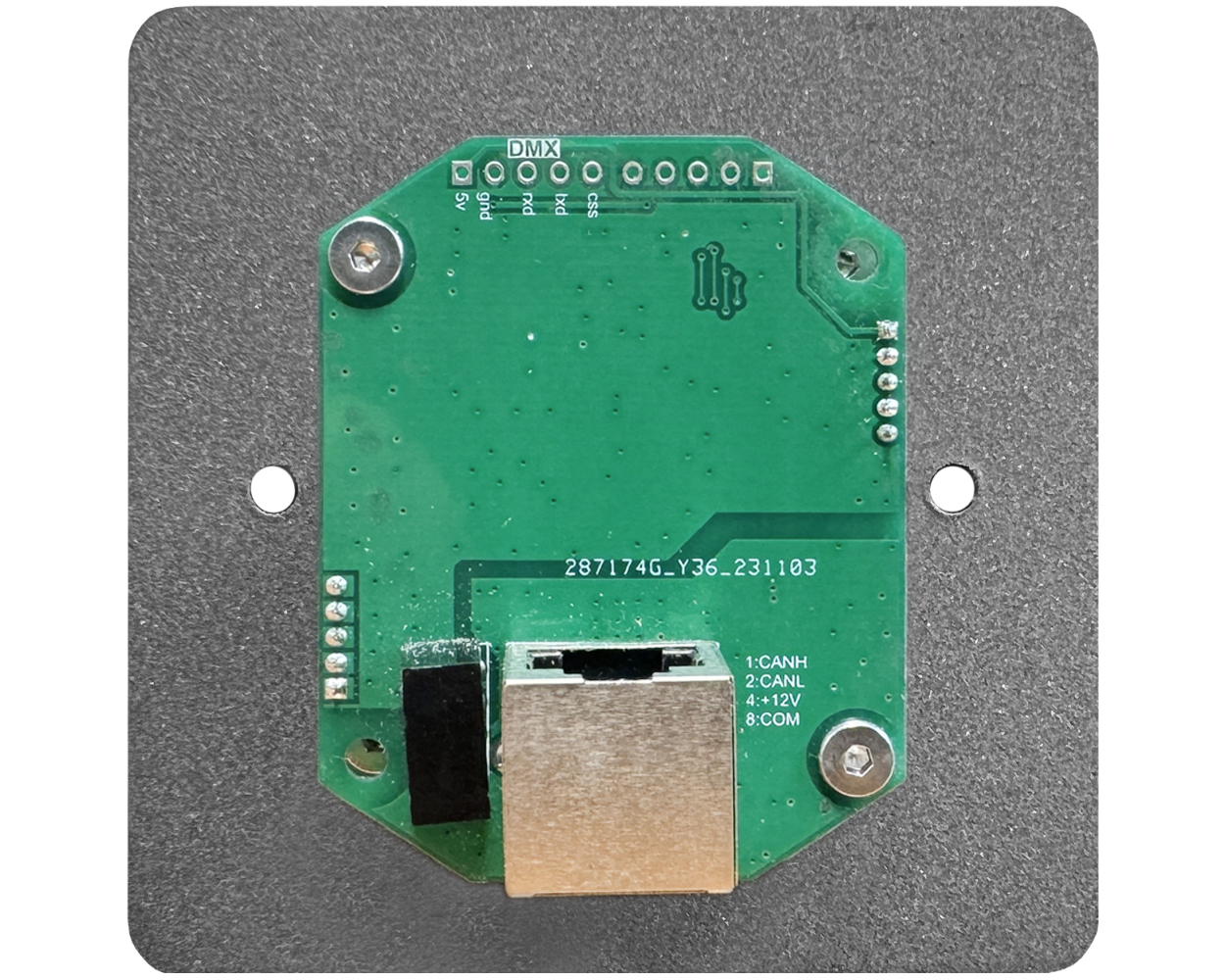

10 Backlit and numbered buttons provide easy feedback, and the RJ45 connection combines power and data for simple and efficient connectivity to the NETRON node over standard CAT5 wiring.
10 Backlit and numbered buttons provide easy feedback, and the RJ45 connection combines power and data for simple and efficient connectivity to the NETRON node over standard CAT5 wiring.
BS10-EU
Sale price$0.00
BS10-EU
The NETRON BS10 is an elegant wall station for cue or preset recall from the EN12i EtherDMX Node. It is compatible with EU 50mm in-wall boxes and provided with a square cover plate.10 Backlit and numbered buttons provide easy feedback, and the RJ45 connection combines power and data for simple and efficient connectivity to the NETRON node over standard CAT5 wiring.
Key Features
Specifications
Connections
- RJ45
- CAT5e up to 300ft (100m)
Requirements
- Compatible with NETRON EN12i
Specifications
Physical
- Length: 1.34 in. (34mm)
- Width: 3.39 in. (86mm)
- Height: 3.39 in. (86mm)
Electrical
- 12V (from EN12i)
Ordering
SKU
- EU #: 1330000095
Downloads
| Filename | Document type | File type |
|---|---|---|
| EN12i, BS10 Split, BS10 Diagram | Installation Guide | |
| BS10-EU - Installation Guide | Installation Guide | |
| EN12i & BS10 Diagram | Installation Guide |
