BS10

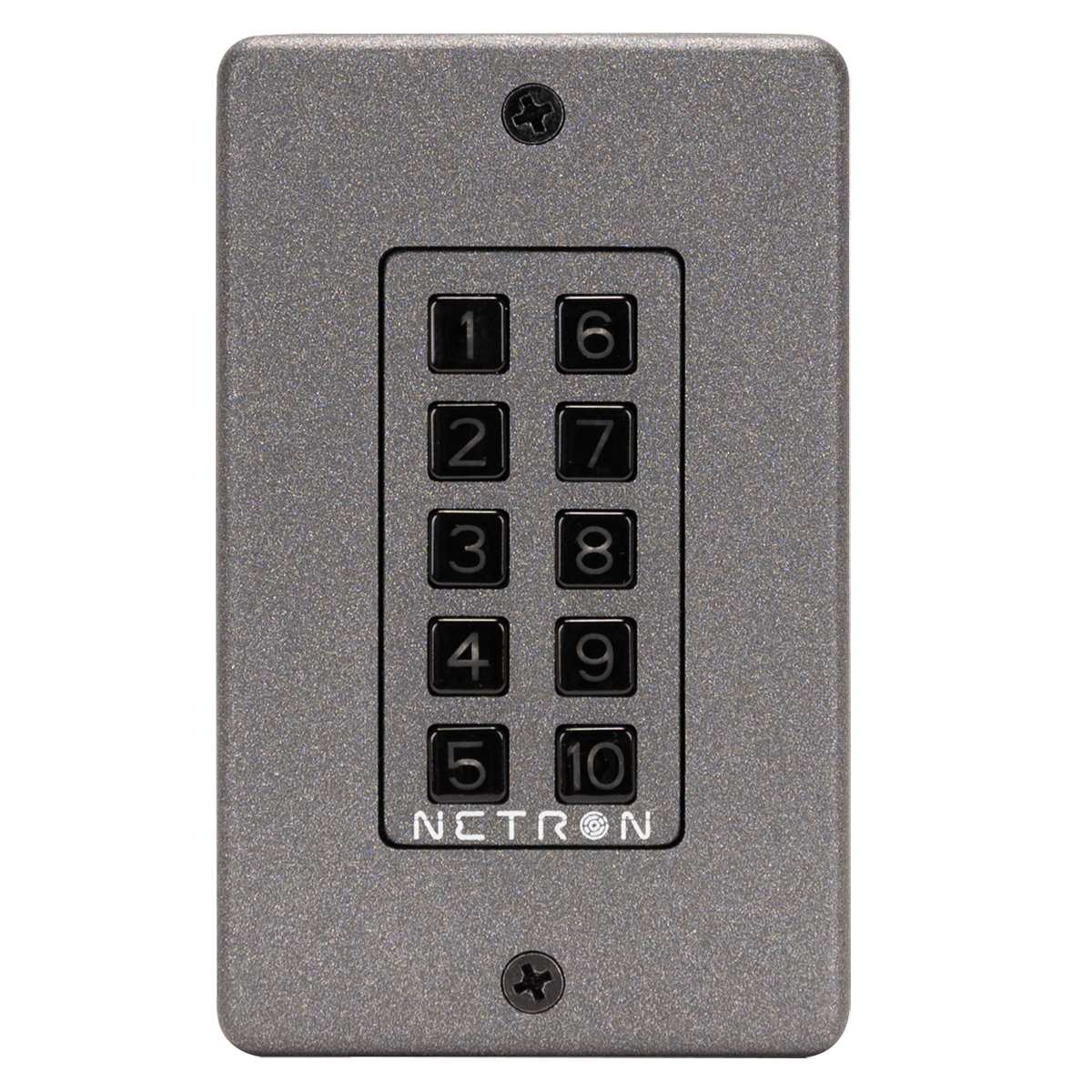

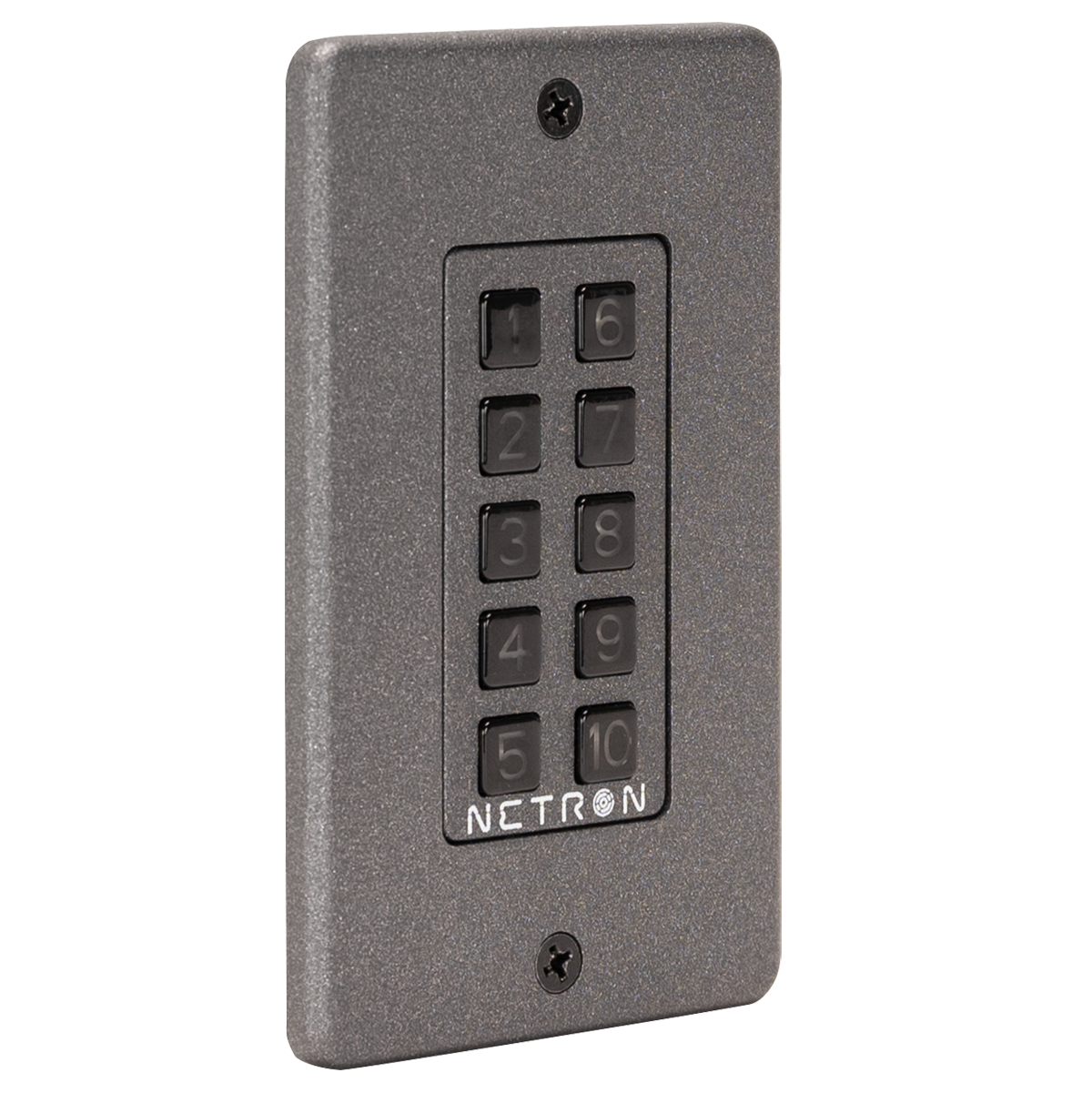

The NETRON BS10 is an elegant wall station for cue or preset recall from the EN12i EtherDMX Node.
10 Backlit and numbered buttons provide easy feedback, and the RJ45 connection combines power and data for simple and efficient connectivity to the NETRON node over standard CAT5 wiring.
BS10
Sale price$0.00
BS10
The NETRON BS10 is an elegant wall station for cue or preset recall from the EN12i EtherDMX Node.10 Backlit and numbered buttons provide easy feedback, and the#160; RJ45 connection combines power and data for simple and efficient connectivity to the NETRON node over standard CAT5 wiring.
- 10 Button Remote for EN12i
- 10 Red / Blue Backlit Buttons
- Cue or Preset Recall
- US or EU Cover Plate
Specifications
Connections
- RJ45
- CAT5e up to 300ft (100m)
Requirements
- Compatible with NETRON EN12i
Specifications
- Length: 1.3 in. (35mm)
- Width: 2.7 in. (70mm)
- Height: 4.5 in. (114mm)
- 12V (from EN12i)
Ordering
- Netron Decora 1-Gang wall plate
- US #: NBS110
- RJ45
- CAT5e up to 300ft (100m)
- Compatible with NETRON EN12i
- Length: 1.3 in. (35mm)
- Width: 2.7 in. (70mm)
- Height: 4.5 in. (114mm)
- 12V (from EN12i)
- Netron Decora 1-Gang wall plate
- US #: NBS110
Downloads
| Filename | Document type | File type |
|---|---|---|
| BS10 - 3D Cad | CAD Drawing | DWG |
| EN12i_BS10_WiringDiagram | Other | |
| EN12i_BS10Split_BS10_WiringDiagram | Other | |
| BS10 - Installation Guide | Installation Guide | |
| Obsidian Netron BS10 - 2D CAD | CAD Drawing | DWG |
| Obsidian Netron BS10 - Dimensional Drawing | Dimensional Drawings | |
| OBSIDIAN NETRON BS10 - INSTALLATION GUIDE | Installation Guide | |
| BS10 - Installation Guide | Installation Guide |
