NX Wing

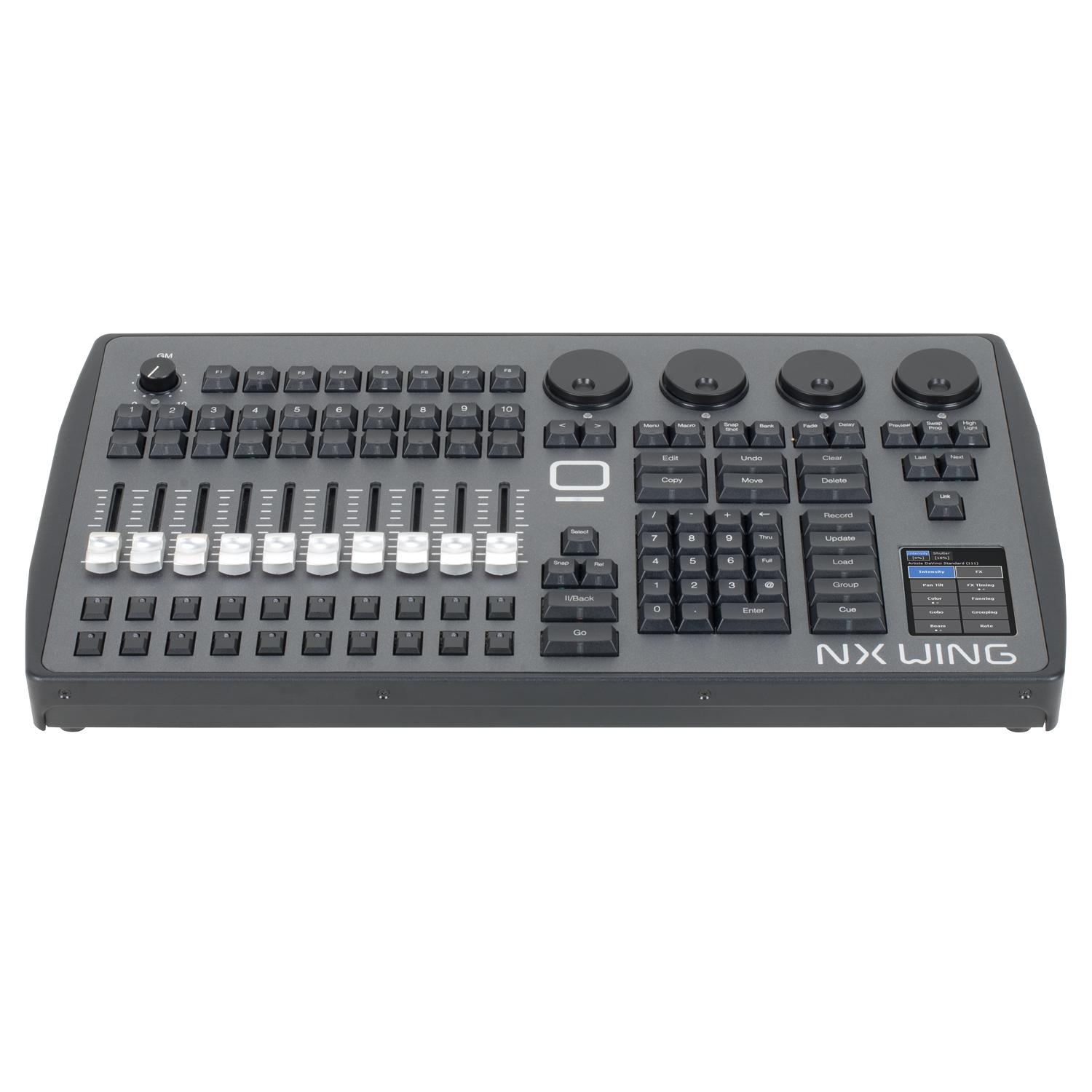

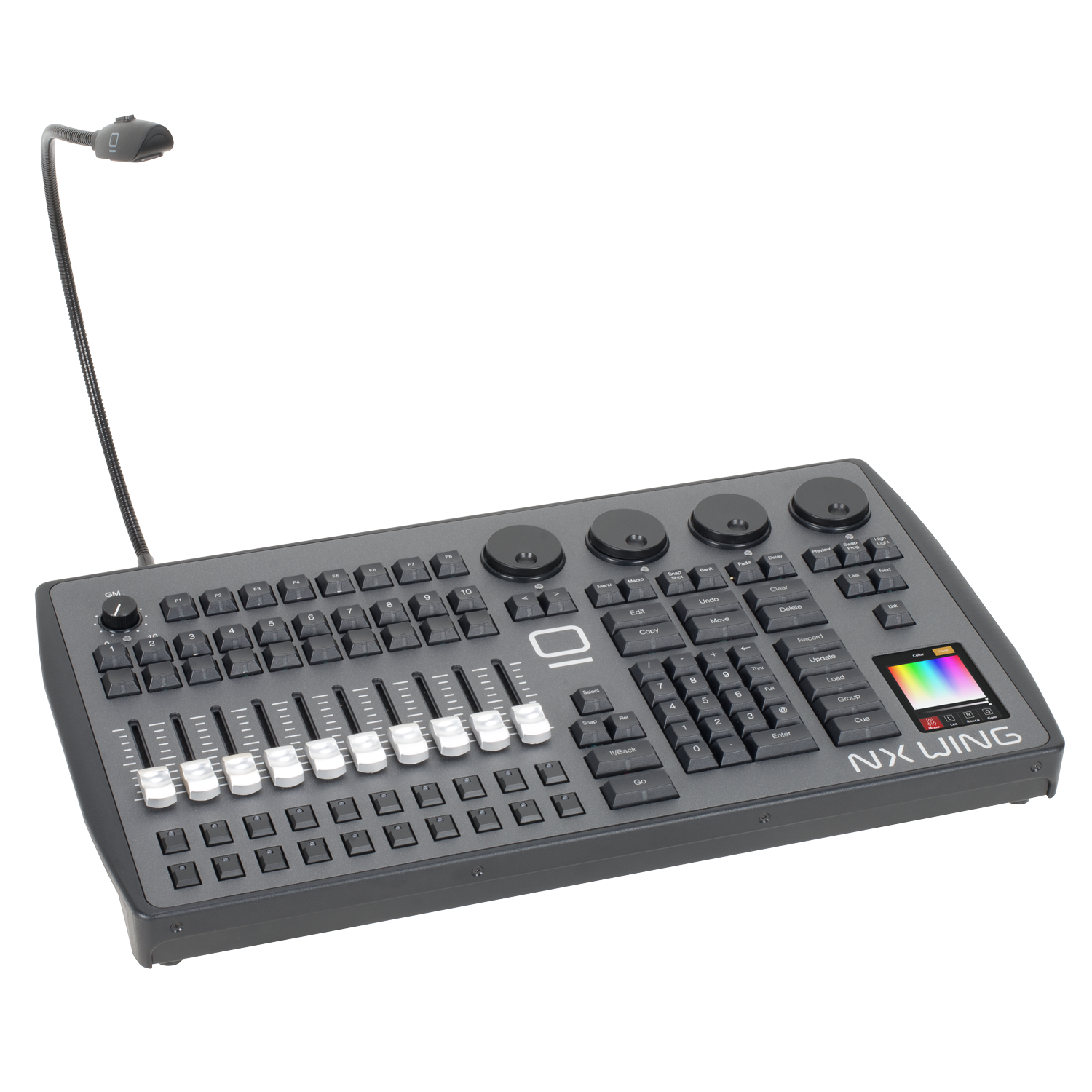

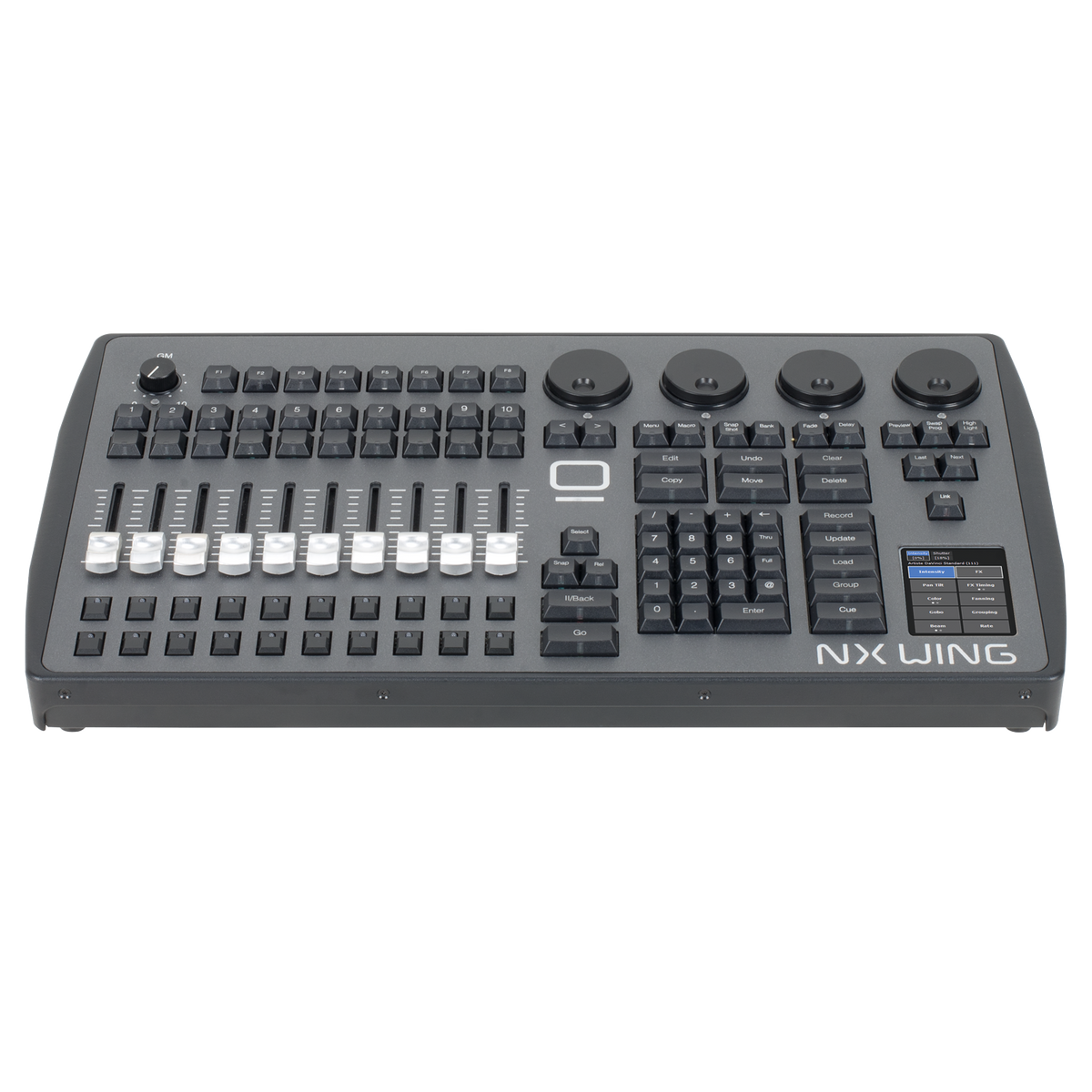

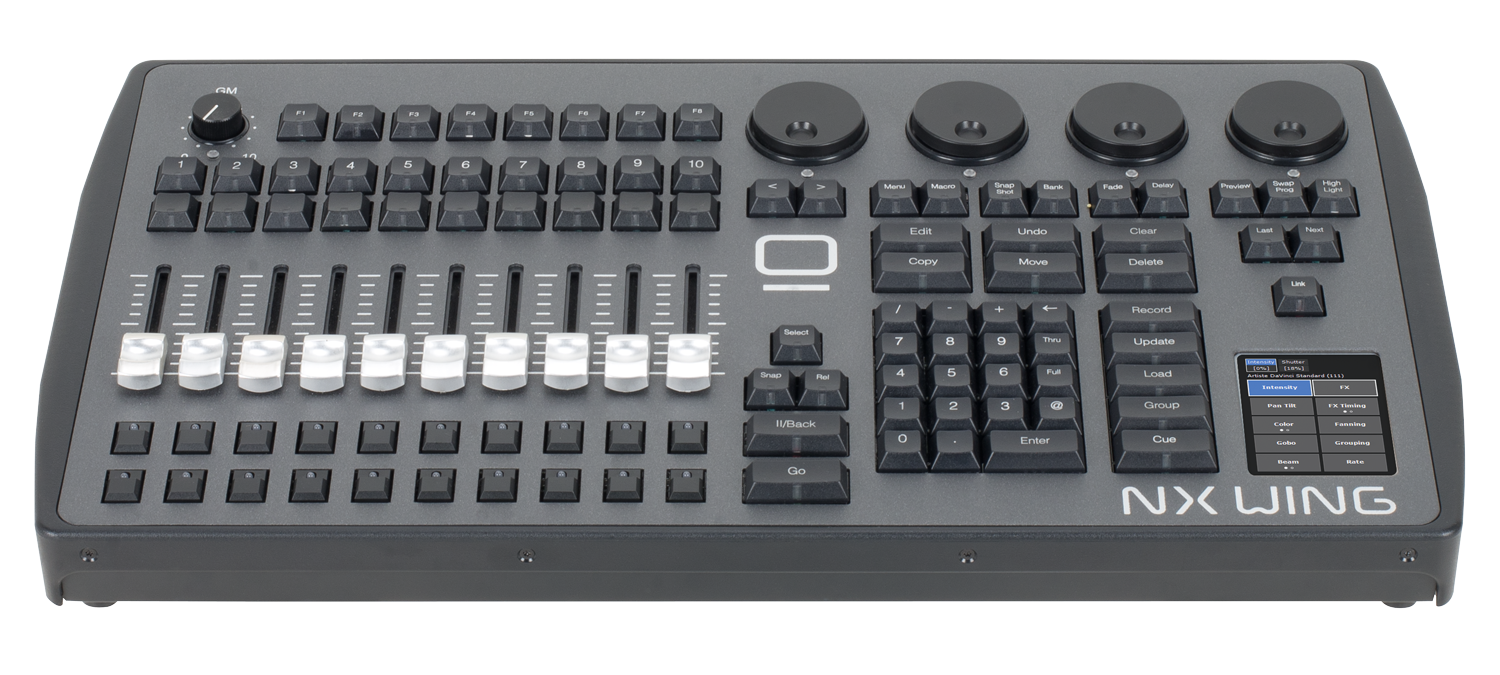

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout.
NX Wing

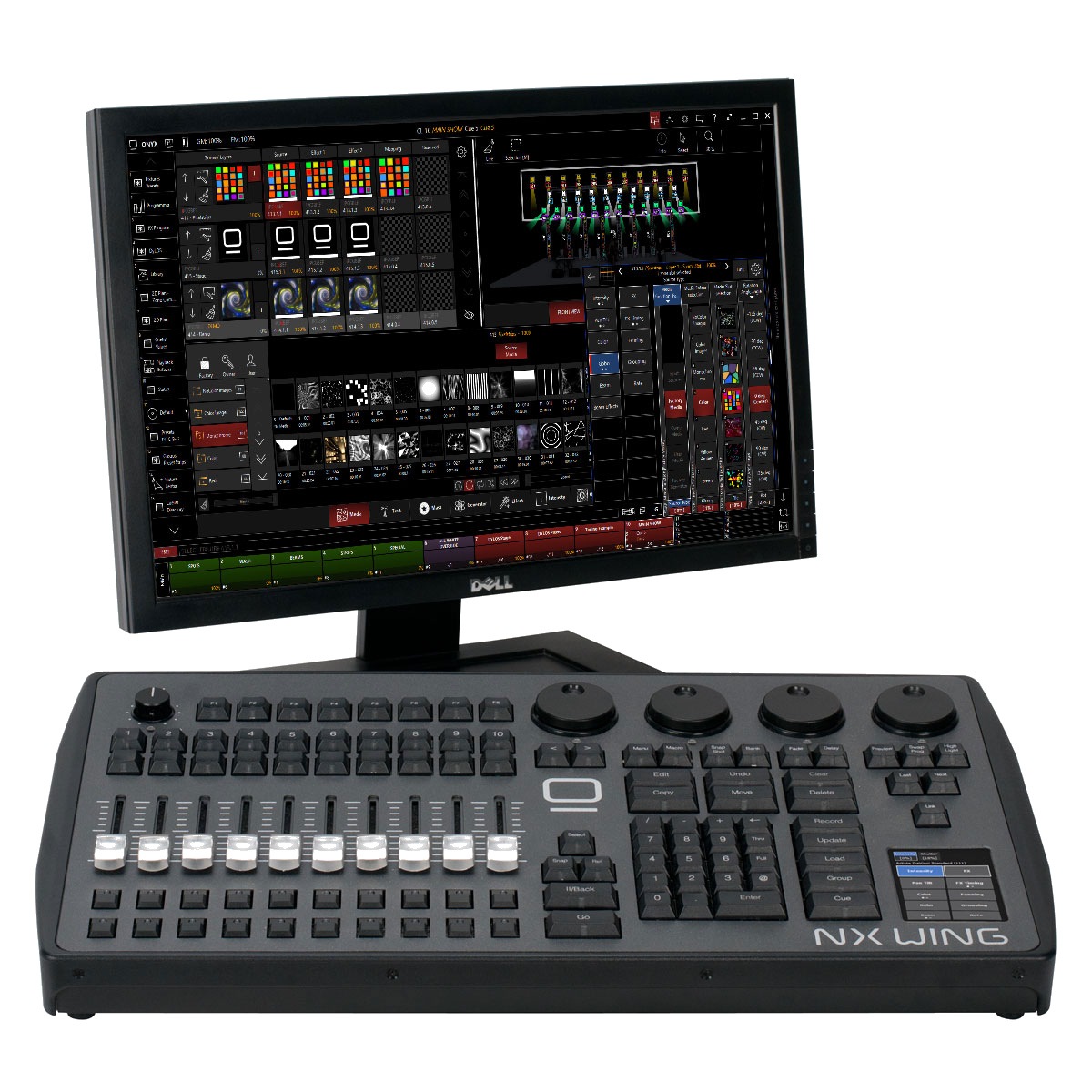

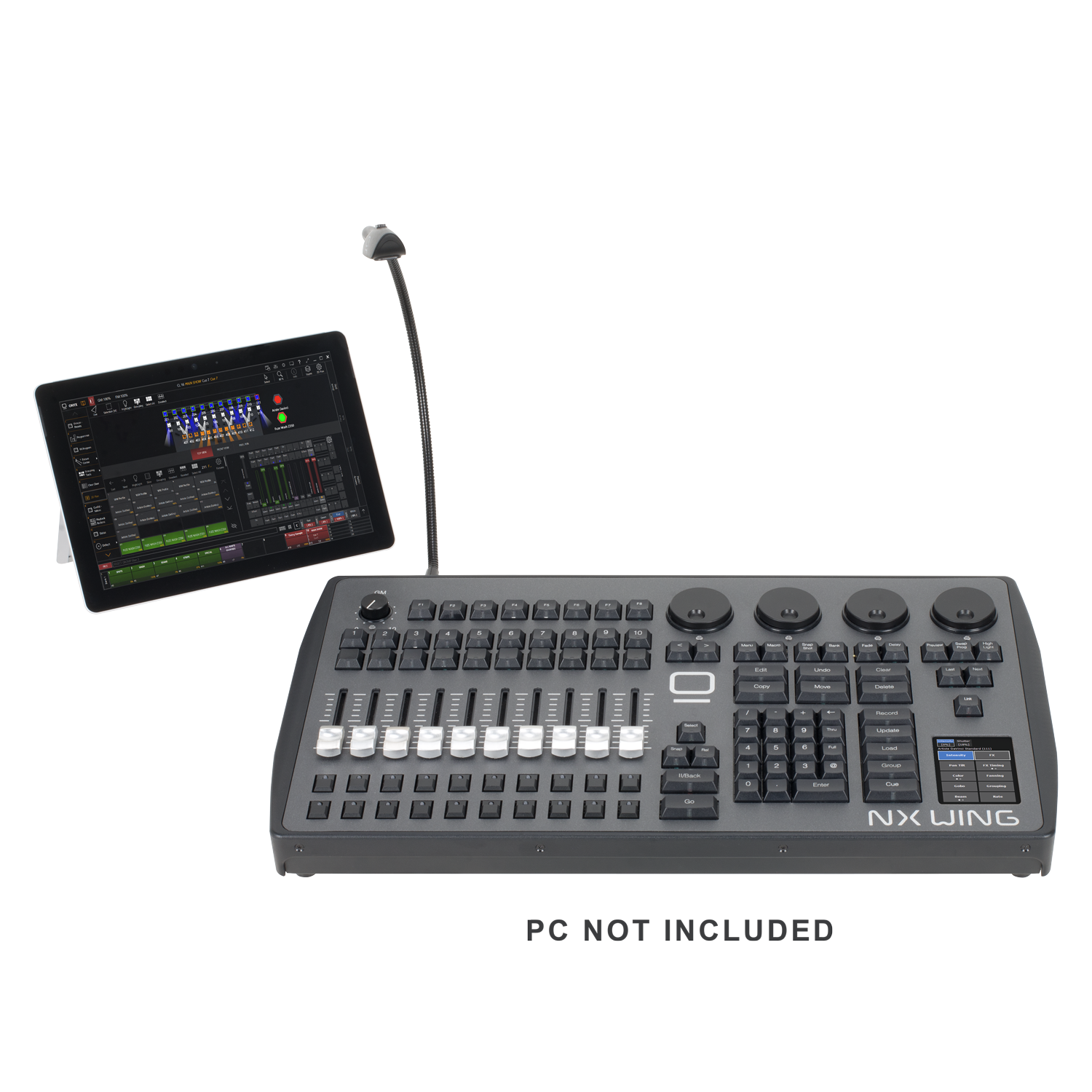

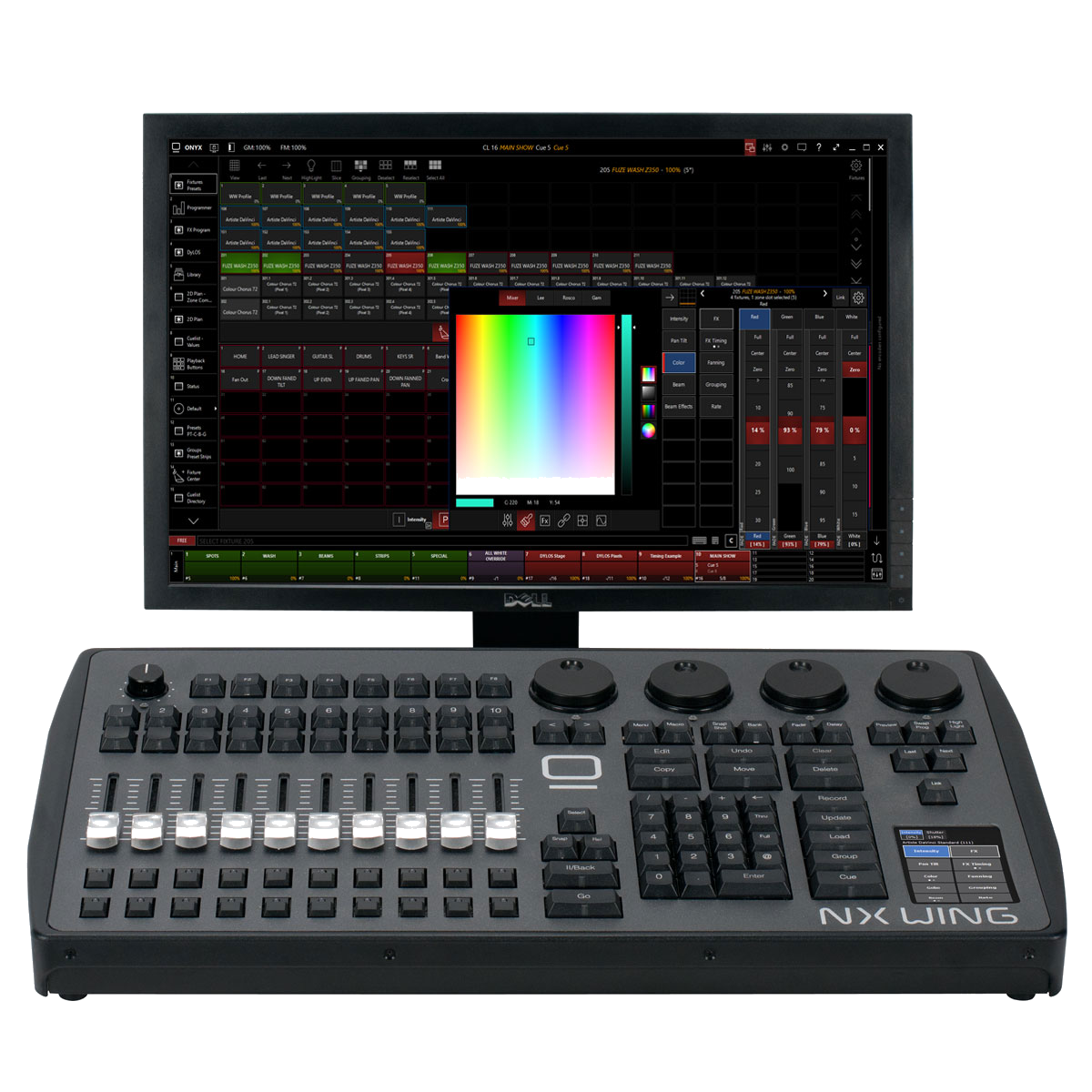

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.
NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC.
- Fully featured control surface, portable and lightweight
- 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen
- DMX, Timecode and Midi Connectivity
- ONYX Premier 64 Universe License
- Plug and Play USB device for any PC with ONYX
Specifications
Surface
- 10x 60 mm playback faders, each with 4x function-assignable buttons
- 8x customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap and Release
- 4x digital rotary encoders with push function and status LED for fixture parameter control
- 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
- Grand master rotary fader and button
- Blind/HighLight/Last/Next buttons
- Full numerical keypad and command keys
Connections

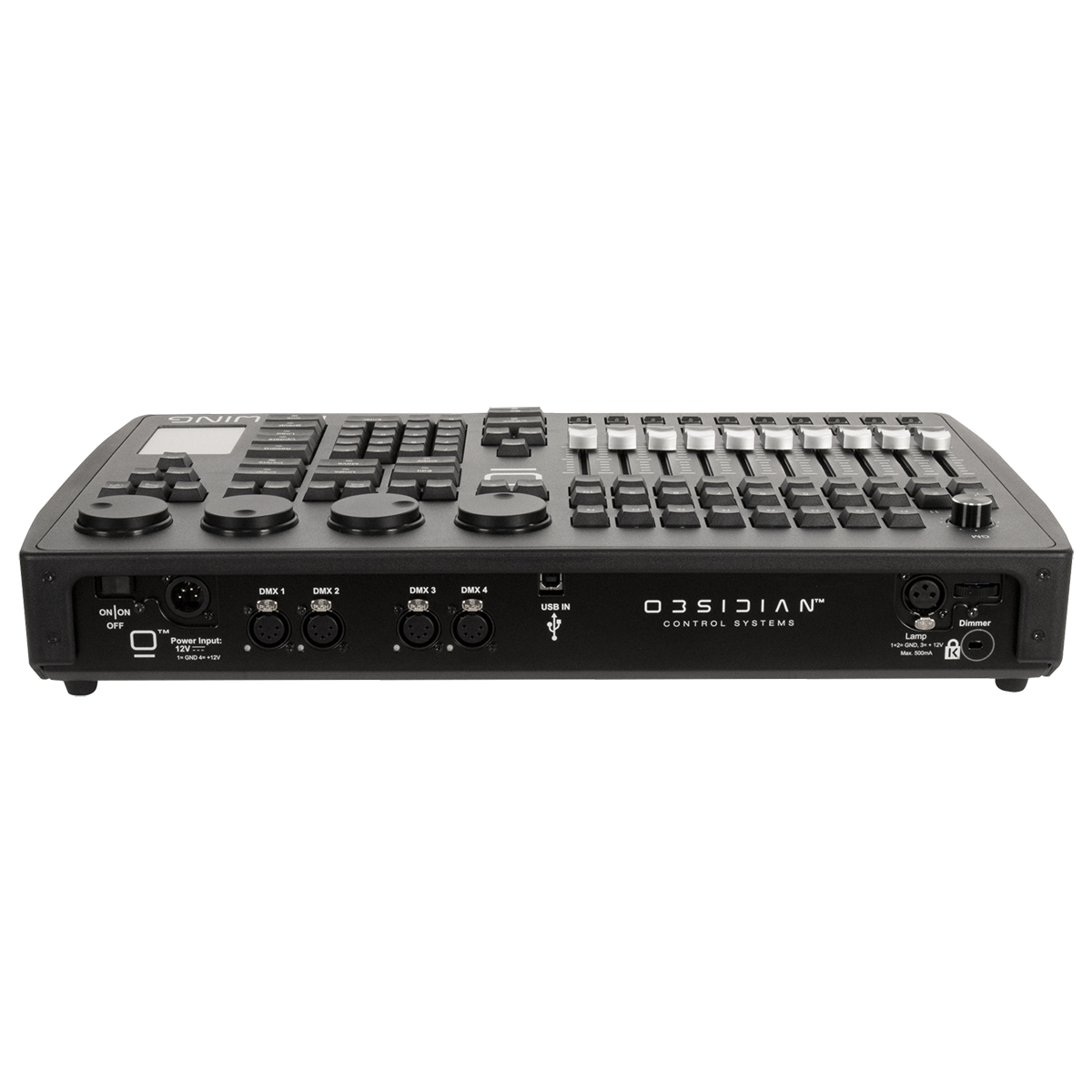

- 4x DMX / RDM Universe In/Out: 5pin locking XLR

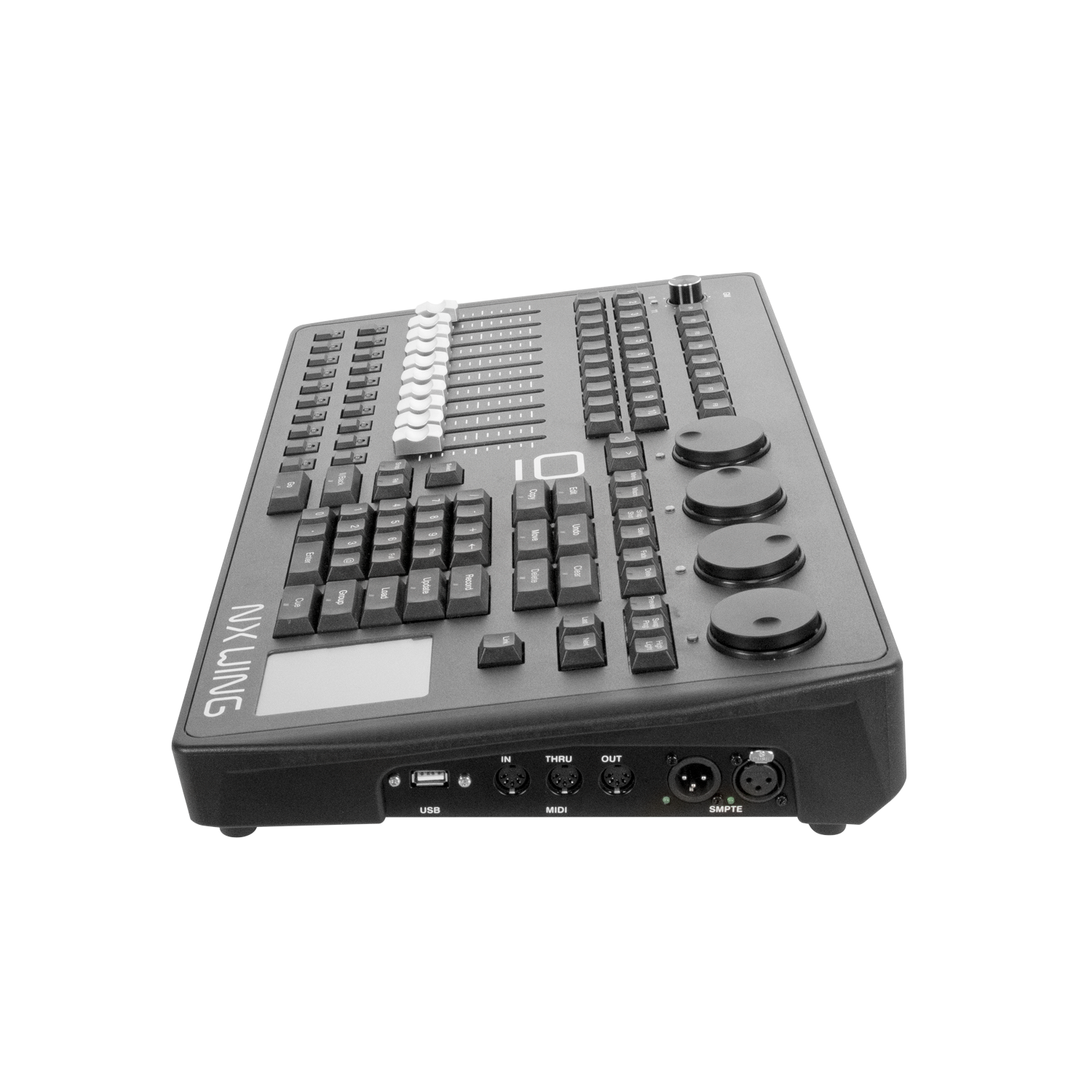

- MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
- SMPTE Timecode In/Out: 3pin XLR
- 12 VDC power supply input: 4pin XLR
- Desk lamp: XLR 12V
- USB In: USB 2.0 B
Requirements
- Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
- Intel Core i3 processor 6th Generation+ (or other comparable multi-core processor)
- 8 GB RAM
- SSD storage drive
- 40 GB available disk space for software, DYLOS factory content and storage
- Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
- USB 2.0 port
- 10/100 Ethernet port for Art-Net DMX output
- 100/1000 Ethernet port for X-Net, Remote operation and sACN
Specifications
- Length: 300 mm (11.9 in.)
- Width: 540 mm (21.3 in.)
- Height: 99 mm (3.9 in.)
- Weight: 4.6 kg (10.2 lbs.)
- AC mains power to 12VDC external PSU (included):
- 100-240V nominal, 50/60 Hz
- Maximum current: 3A
- 12VDC output: 11A, 132W max.
Ordering
- RGB LED Desk Lamp, angular XLR connector, 13"
- Dust Cover
- Obsidian USB Cable
- External PSU (12V 11A)
- 1.5 m power cable, 3-pin IEC
- US #: NXW884
- EU #: 1330000046
- 10x 60 mm playback faders, each with 4x function-assignable buttons
- 8x customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap and Release
- 4x digital rotary encoders with push function and status LED for fixture parameter control
- 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
- Grand master rotary fader and button
- Blind/HighLight/Last/Next buttons
- Full numerical keypad and command keys
- 4x DMX / RDM Universe In/Out: 5pin locking XLR
- MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
- SMPTE Timecode In/Out: 3pin XLR
- 12 VDC power supply input: 4pin XLR
- Desk lamp: XLR 12V
- USB In: USB 2.0 B
- Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
- Intel Core i3 processor 6th Generation+ (or other comparable multi-core processor)
- 8 GB RAM
- SSD storage drive
- 40 GB available disk space for software, DYLOS factory content and storage
- Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
- USB 2.0 port
- 10/100 Ethernet port for Art-Net DMX output
- 100/1000 Ethernet port for X-Net, Remote operation and sACN
- Length: 300 mm (11.9 in.)
- Width: 540 mm (21.3 in.)
- Height: 99 mm (3.9 in.)
- Weight: 4.6 kg (10.2 lbs.)
- AC mains power to 12VDC external PSU (included):
- 100-240V nominal, 50/60 Hz
- Maximum current: 3A
- 12VDC output: 11A, 132W max.
- RGB LED Desk Lamp, angular XLR connector, 13"
- Dust Cover
- Obsidian USB Cable
- External PSU (12V 11A)
- 1.5 m power cable, 3-pin IEC
- US #: NXW884
- EU #: 1330000046
Downloads
| Filename | Document type | File type |
|---|---|---|
| NX Wing Dimensional Drawing | Dimensional Drawings | |
| NX Wing Specification Sheet | Specification Sheet | |
| NX2 NX Wing Installation Guide | Installation Guide | |
| ONYX Catalog | Brochure | |
| ONYX SMPTE MIDI Installation | Installation Guide |
