NX W
NX W is the powerful complementary USB control surface to Obsidian Control Systems ONYX platform. The NX W utilizes a comparable ergonomic layout to the NX K and NX P.
NX W

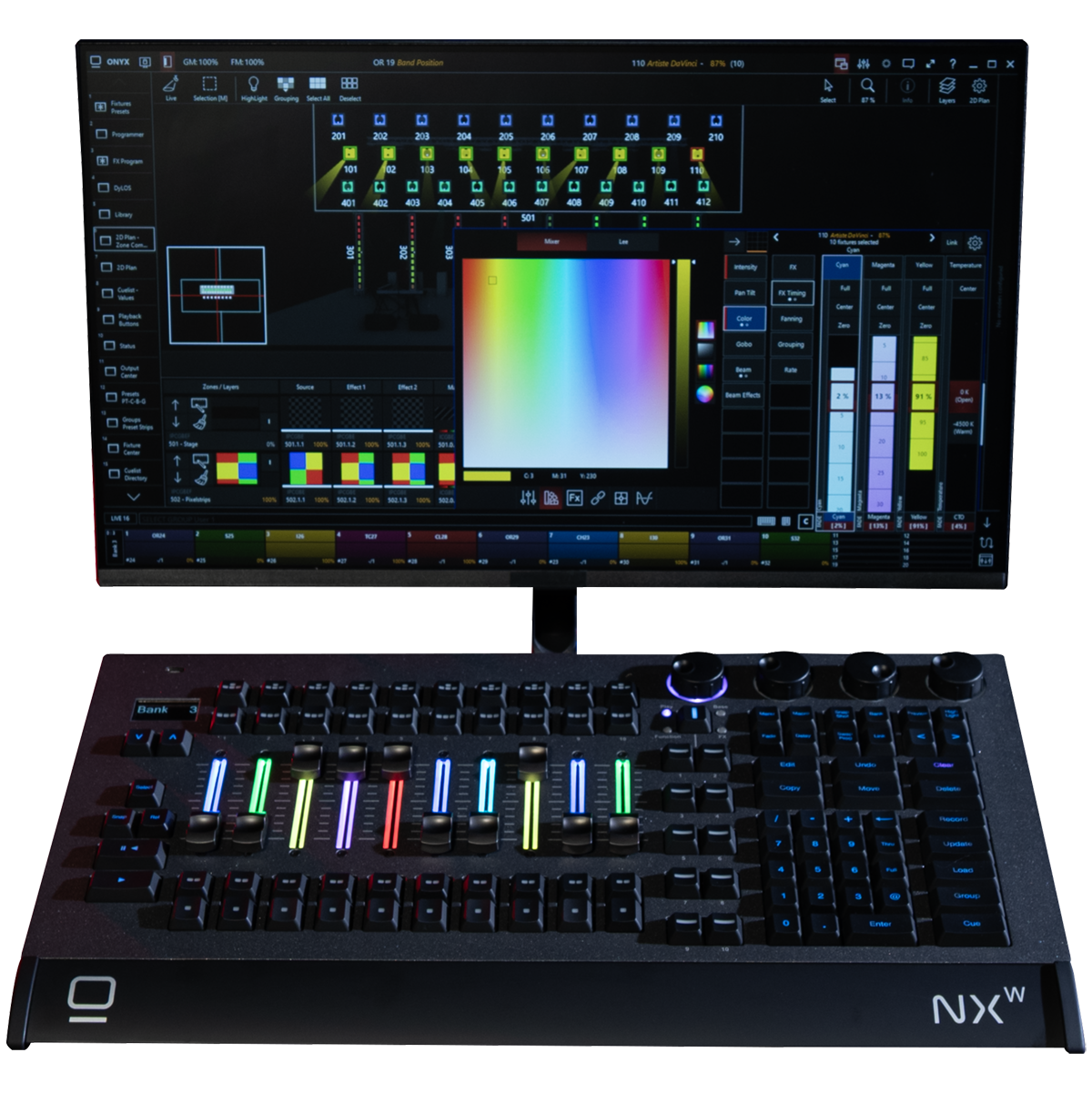

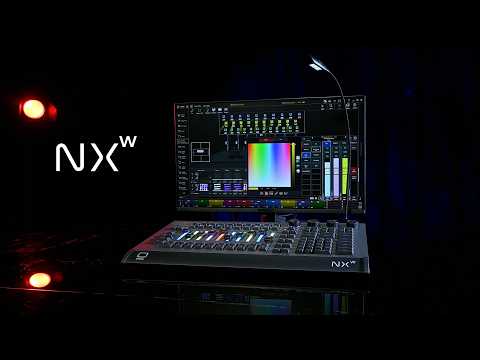

NX W is the complementary USB control surface to Obsidian Control Systems ONYX platform, utilizing a comparable ergonomic layout to the NX K and NX P. Through its USB-C connection the NX W provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX W and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.
NX W provides extensive connectivity with 4 DMX/RDM ports, Gigabit Ethernet Output for X-NET and streaming DMX data while unlocking 16 Universes of control when connected to ONYX on a PC. A protected USB slot allows the installation of an ONYX License Key to expand the system up to 128 Universes.
The NX W has been designed for accuracy and speed with two types of optical keys that are optimized for playback performance and fast keypad entry, with smooth RGB backlighting and perfect angle to avoid missed cues and mistyped commands. Custom designed motorized faders are outlined with LED illumination that allow the user to clearly identify the playback type and status at any time, even in dark environments.
Key Features
Specifications
Specifications
- 10x 60 mm motorized RGB-backlit playback faders, each with 4x function-assignable buttons
- 10x customizable multi-function keys
- Master Go section with Go, Pause, Snap and Release
- 4x digital rotary encoders with push function and RGB status LED for fixture parameter control
- Blind / HighLight / Last / Next buttons
- Full numerical keypad and command keys
- All buttons are high-speed optical with RGB backlight

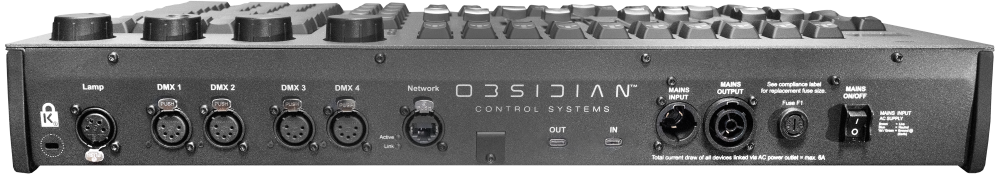

Connections
- 4x DMX / RDM Universe In/Out: 5-pin locking XLR
- Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
- Locking Power In / Thru
- USB-A expansion slot for ONYX License Keys
- USB-C input to PC
Requirements
- Windows 10/11 64-bit, Home / Pro / Enterprise
- 8th-generation Intel Core processor or newer, or comparable AMD processor*
- 16 GB RAM
- SSD storage drive
- 40 GB+ available disk space for software, DyLOS factory content and storage
- Widescreen monitor, minimum 1280 x 768 resolution (1920x1080 or greater recommended); capacitive multi-touchscreen recommended
- USB-C
Physical
- Length: 310 mm / 12.2 in.
- Width: 540 mm / 21.3 in.
- Height: 80 mm / 3.15 in.
- Weight: 6 kg / 13.2 lbs.
Electrical
- 100–240 V nominal, 50/60 Hz, 30 W
Included Items
- ONYX NX-W Wing
- RGB LED desk lamp, angular XLR connector
- Dust cover
- Magnetic USB-C cable
- USB-A to USB-C adapter
- USB-B to USB-C adapter
- USB-A / USB-C combo recovery key with lanyard
- 1.5 m locking power cable
Ordering
| US SKU | EU SKU | |
| NXW888 | 1330000104 | NX-W (16 Universe base) |
| NXW032 | N/A | NX-W w/ 32 Universe Key |
| NXW064 | N/A | NX-W w/ 64 Universe Key |
| NXW128 | N/A | NX-W w/ 128 Universe Key |
* For EU orders, an additional license key must be ordered separately
** Please note that Onyx Licensing is not additive; the highest license attached to a system will be used. For more information, please visitOnyx License Support
Downloads
| Filename | Document type | File type |
|---|---|---|
| NX W - Specification Sheet | Specification Sheet | |
| NX W - Installation Guide | Installation Guide |
