WP1CAT6-EU

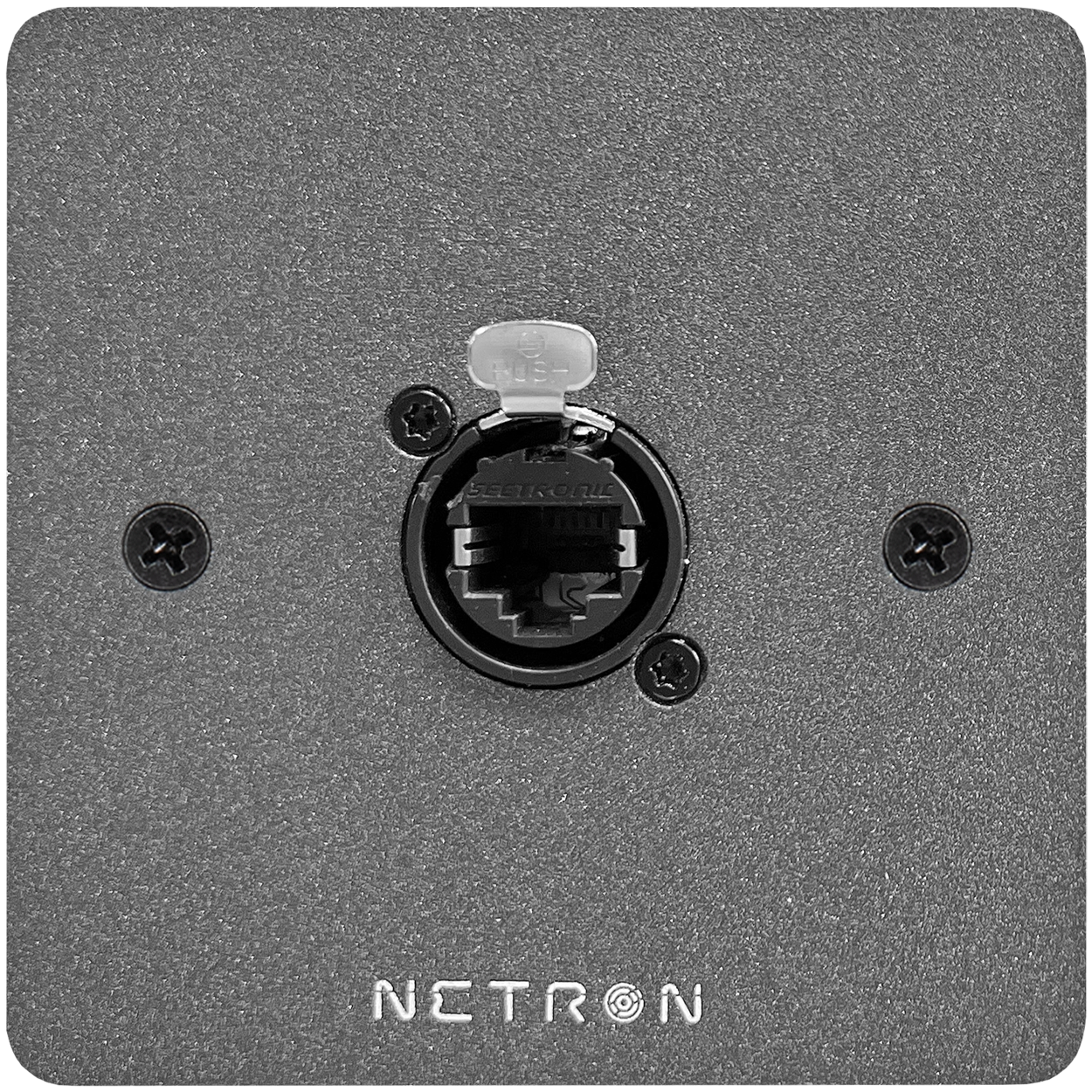

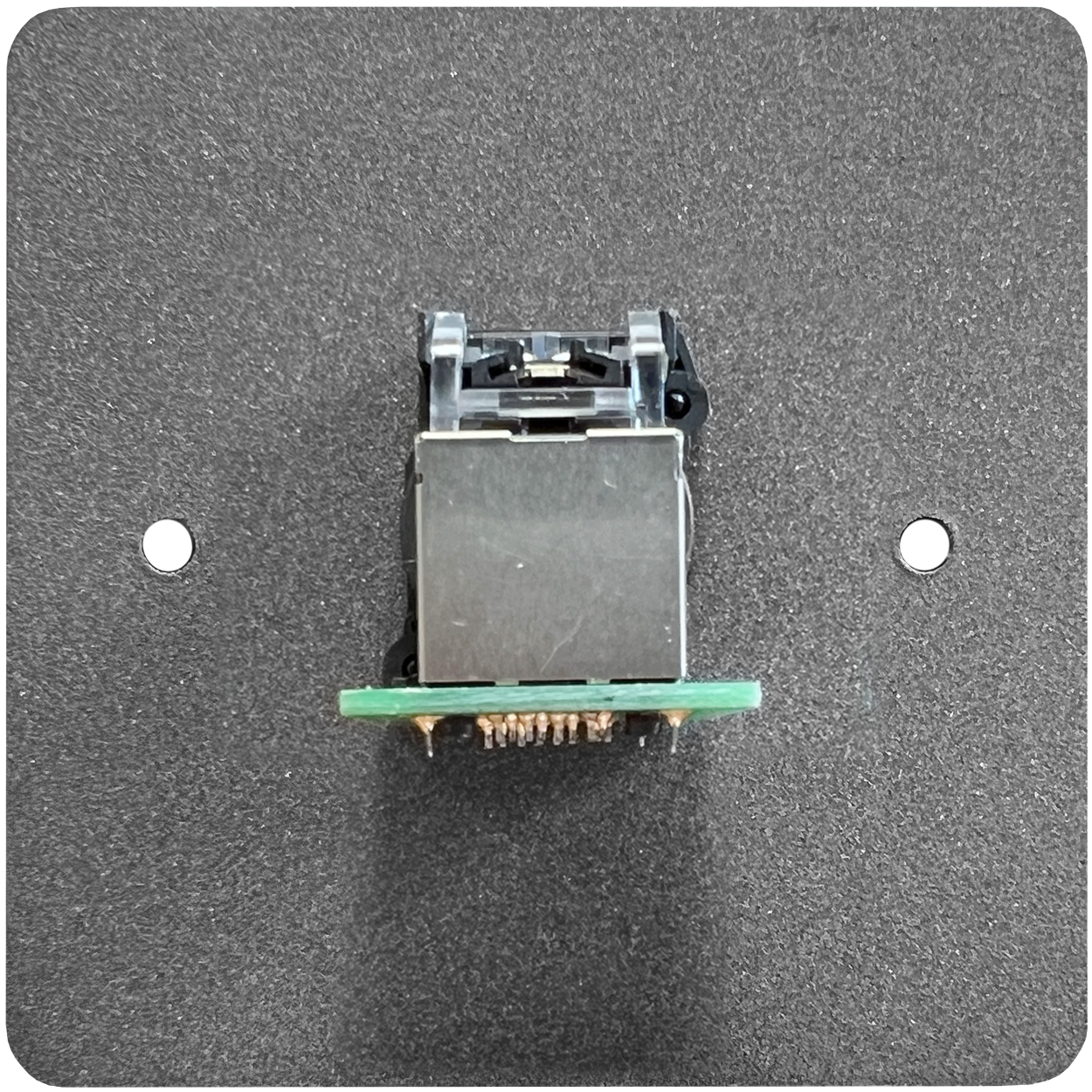

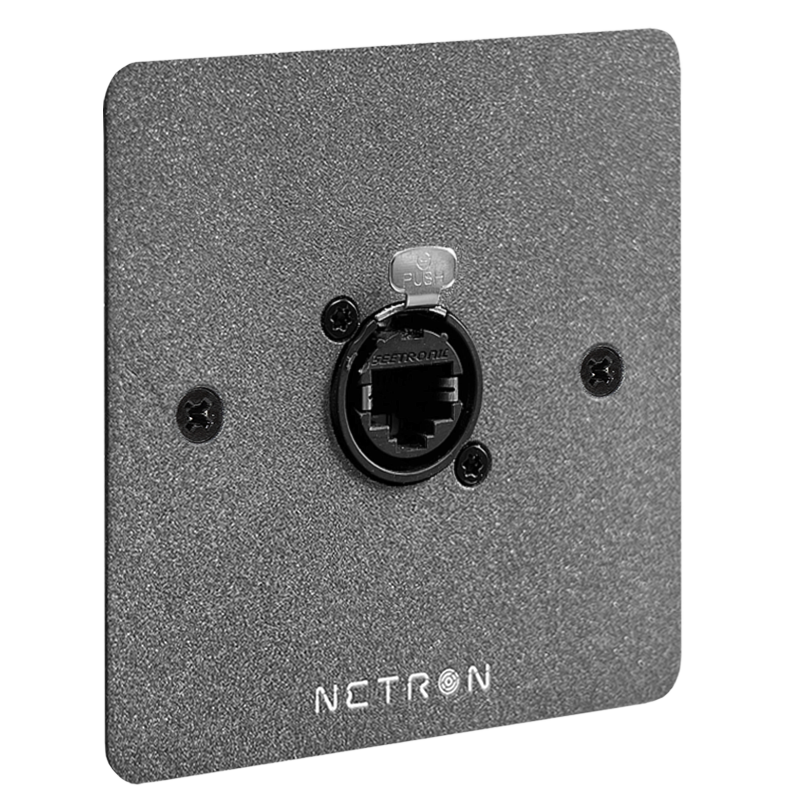

The NETRON WP1CAT6-EU provides a CAT6A compliant locking RJ45 connector with a square cover plate, compatible with EU 50mm in-wall boxes.
WP1CAT6-EU
Sale price$0.00
WP1CAT6-EU
The NETRON WP1CAT6-EU provides a CAT6A compliant locking RJ45 connector with a square cover plate, compatible with EU 50mm in-wall boxes.
Designed as a simple RJ45 passthrough it is easy to integrate into any Ethernet or DMX infrastructure.
- 1-Gang locking RJ45 CAT6A connector
- RJ45 CAT6A Input
- Powder-coated aluminum
Specifications
Mounting
- In-Wall 50mm (EU)
Connections
- (1) Locking RJ45 CAT6A
- (1) RJ45 CAT6A
Specifications
- Length: 1.34 in. (34mm)
- Width: 3.39 in. (86mm)
- Height: 3.39 in. (86mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
Ordering
- US #: 1330000094
- In-Wall 50mm (EU)
- (1) Locking RJ45 CAT6A
- (1) RJ45 CAT6A
- Length: 1.34 in. (34mm)
- Width: 3.39 in. (86mm)
- Height: 3.39 in. (86mm)
- Weight: 0.22 lbs. (0.1kg)
- CE / cETLus / UKCA / IP20
- US #: 1330000094
Downloads
| Filename | Document type | File type |
|---|---|---|
| WP1CAT6 - Installation Guide | Installation Guide |
