RDM6 IP

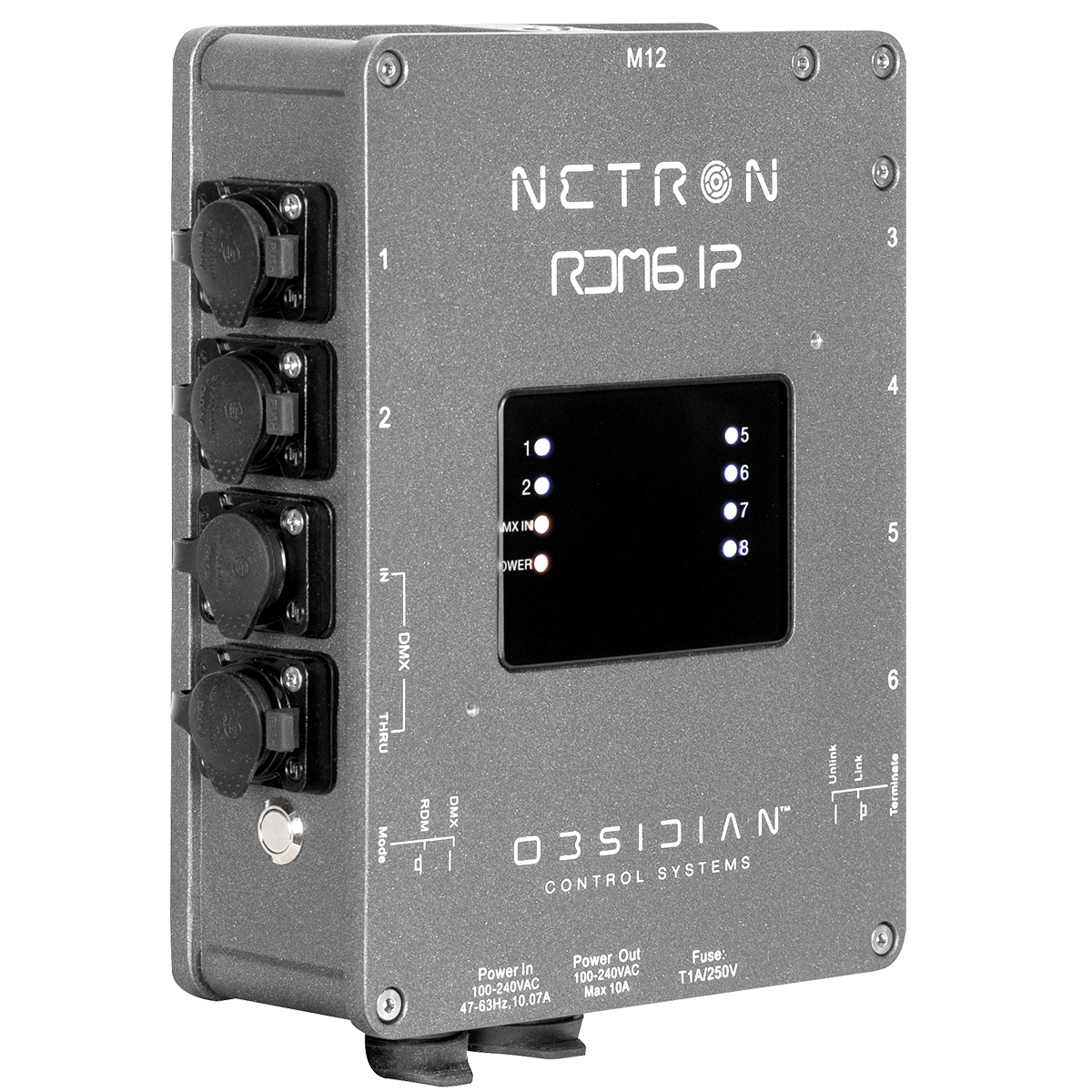

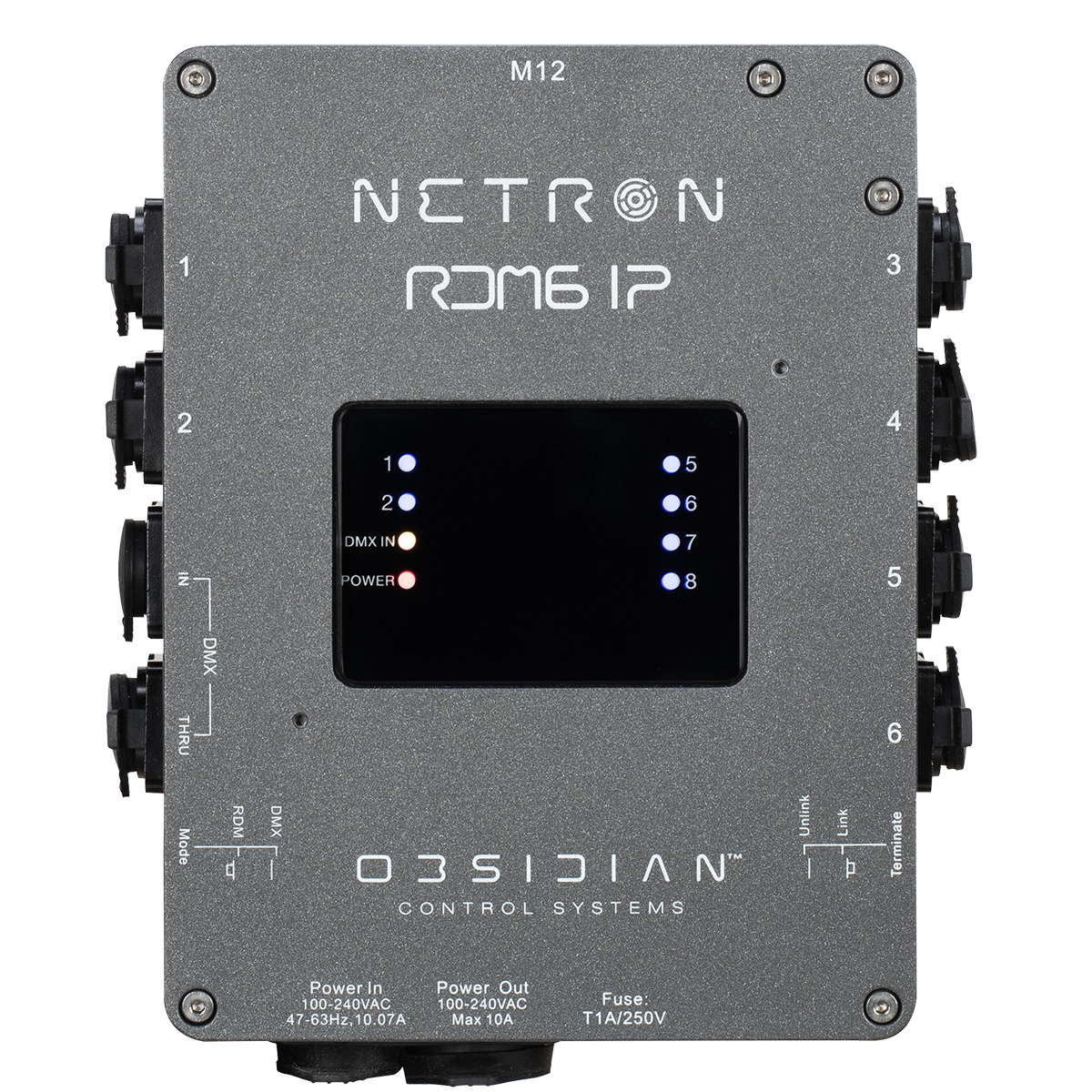

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
RDM6 IP
Sale price$0.00
RDM6 IP
The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
- IP66 DMX Data Splitter
- (6) XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Thru connectors
- Powder-coated aluminum chassis
Specifications
Mounting
- Standalone

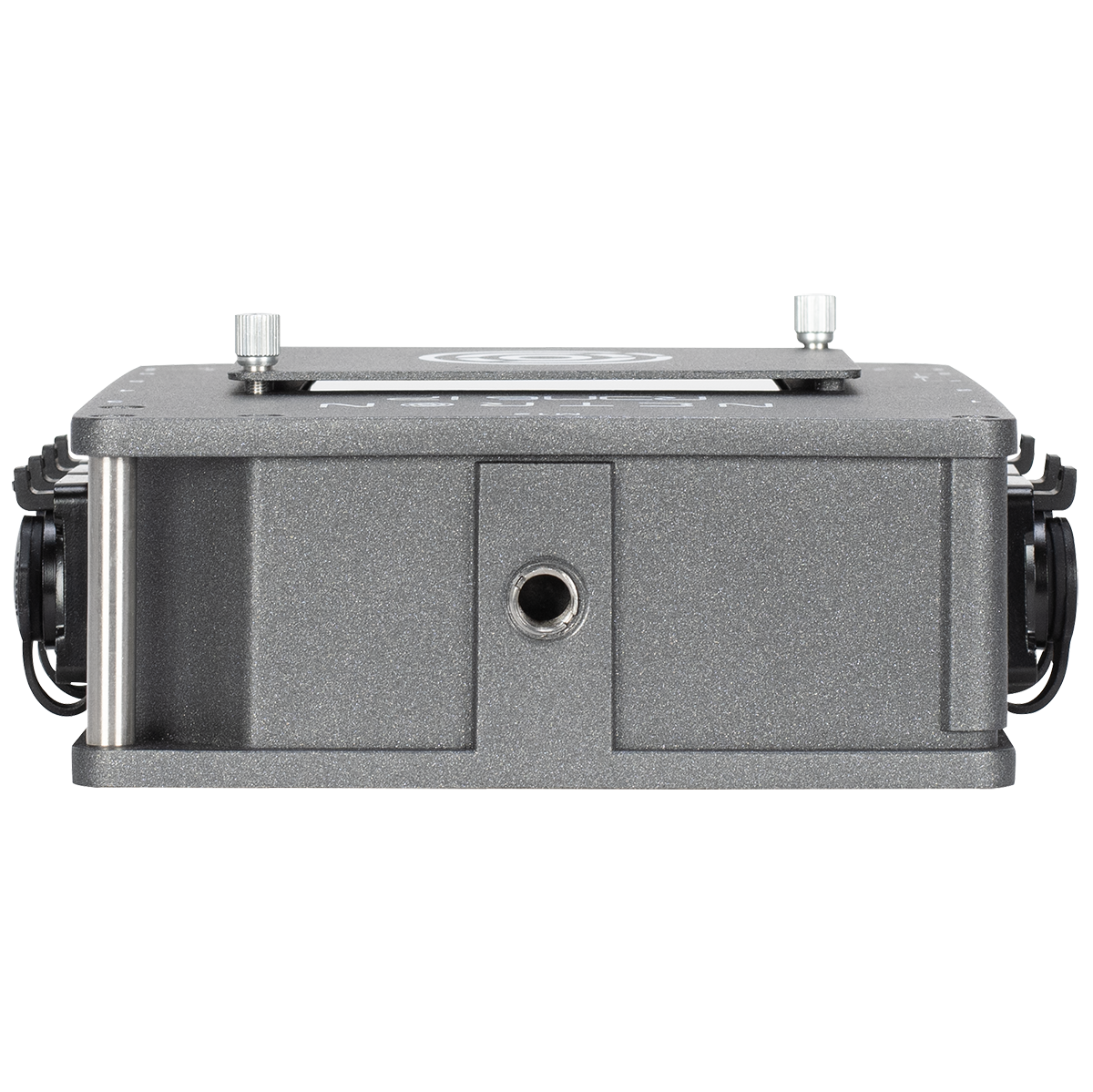

- Truss-mount (M10 or M12)
- Wall-mount
Connections
- (1) 5pin IP66 DMX In
- (1) 5pin IP66 DMX Thru

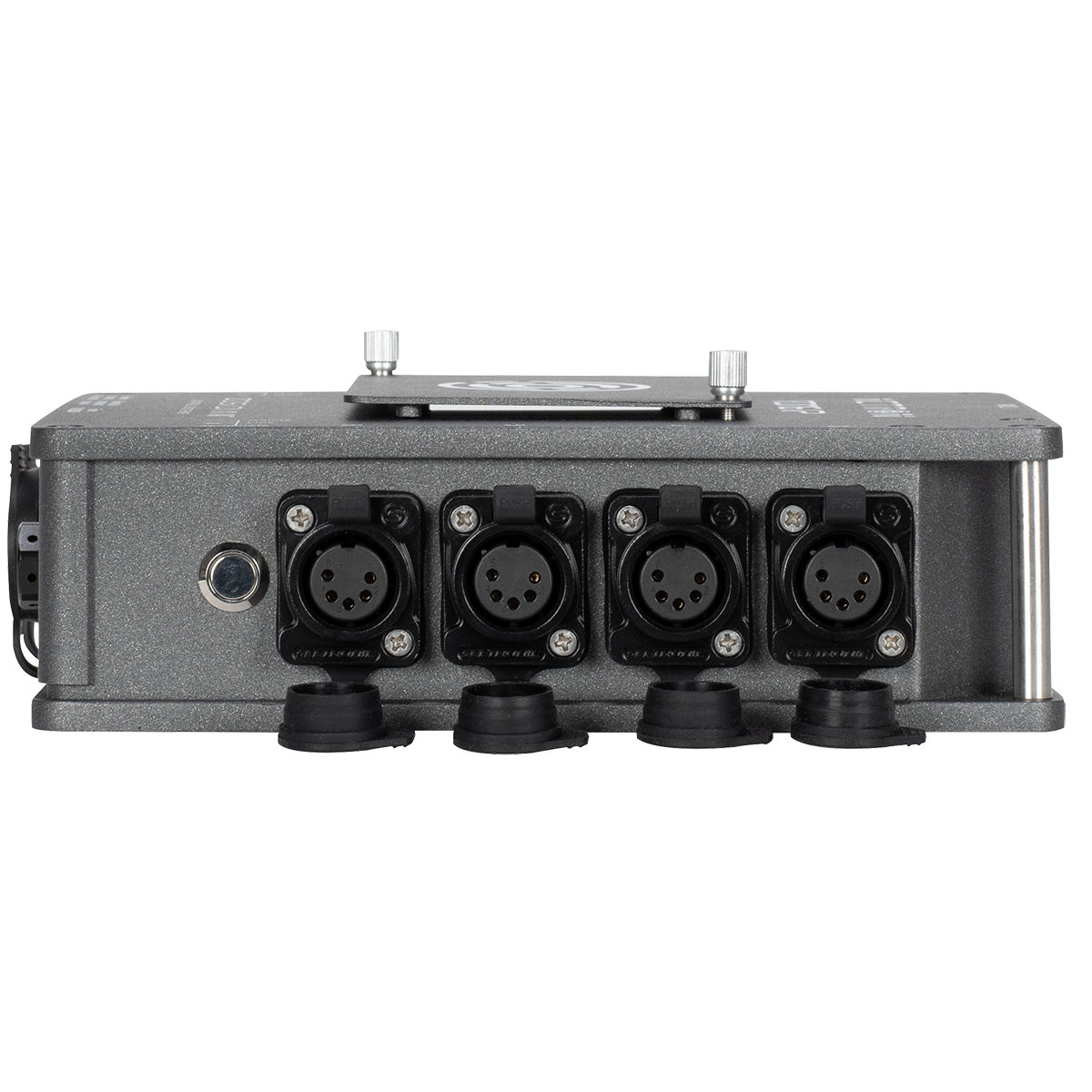

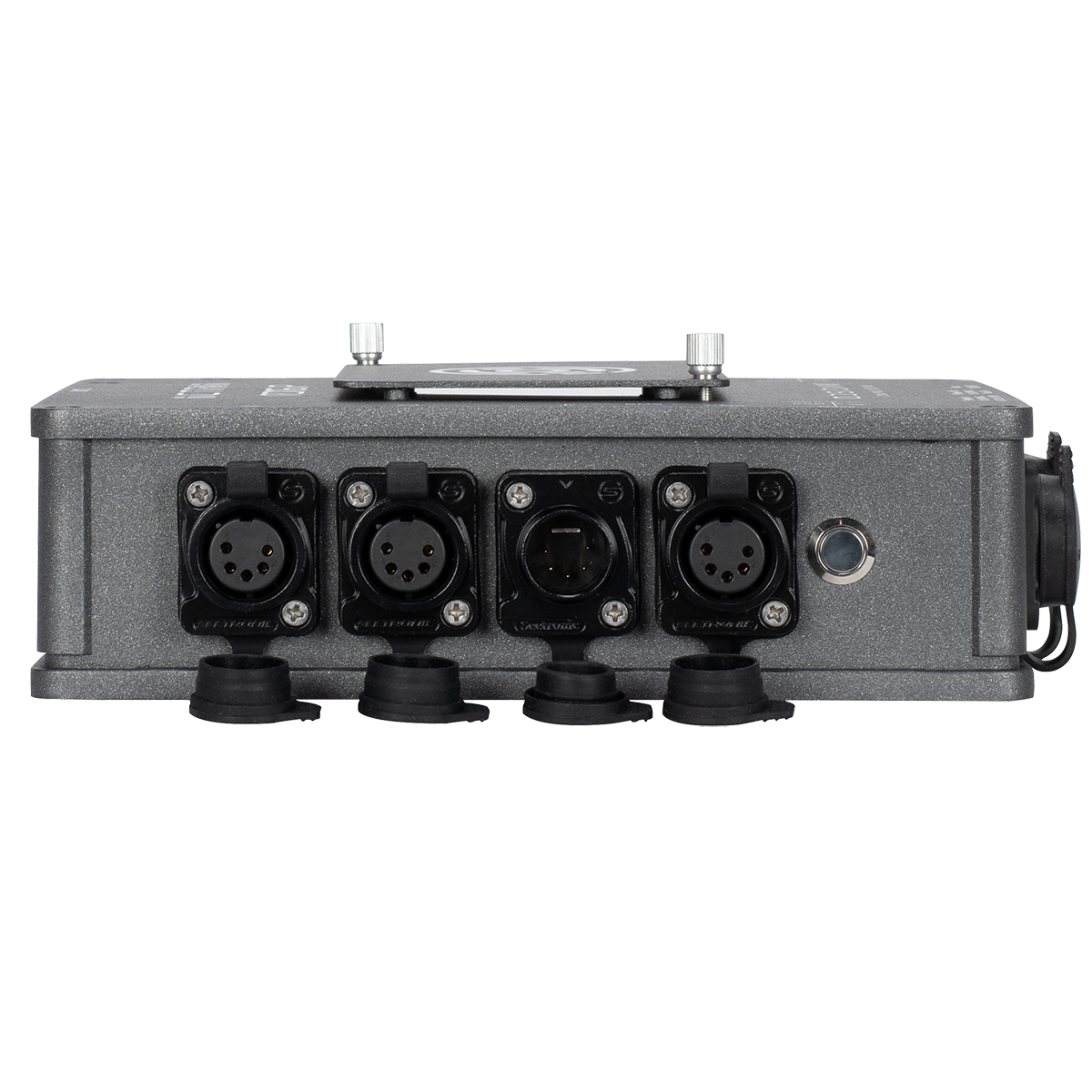

- (6) 5pin IP66 DMX/RDM optically isolated ports
- DMX Termination Button
- RDM Enable / Disable Button

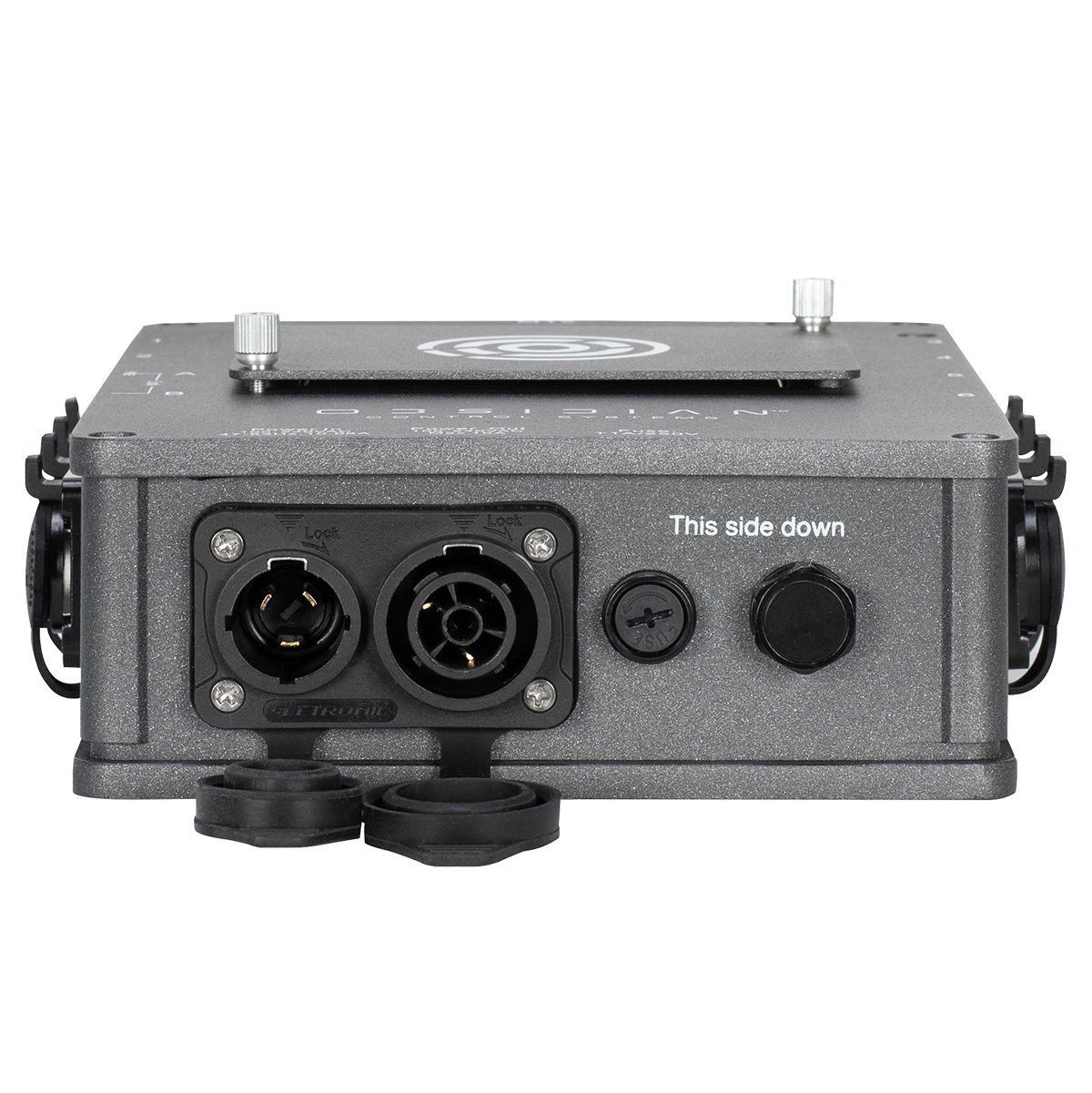

- Locking IP66 Power In/Thru
- LED Port Feedback
Specifications
- Length: 242mm (9.5 in.)
- Width: 183mm (7.2 in.)
- Height: 82mm (3.2 in.)
- Weight: 2 kg (4.41 lbs)
- 100-240 V nominal, 50/60 Hz, 5W
- cETLus / CE / UKCA / IP66
Ordering
- 1.5m IP65 locking power cable (EU or US version)
- (2) Wallmount brackets
- M10 to M12 adapter

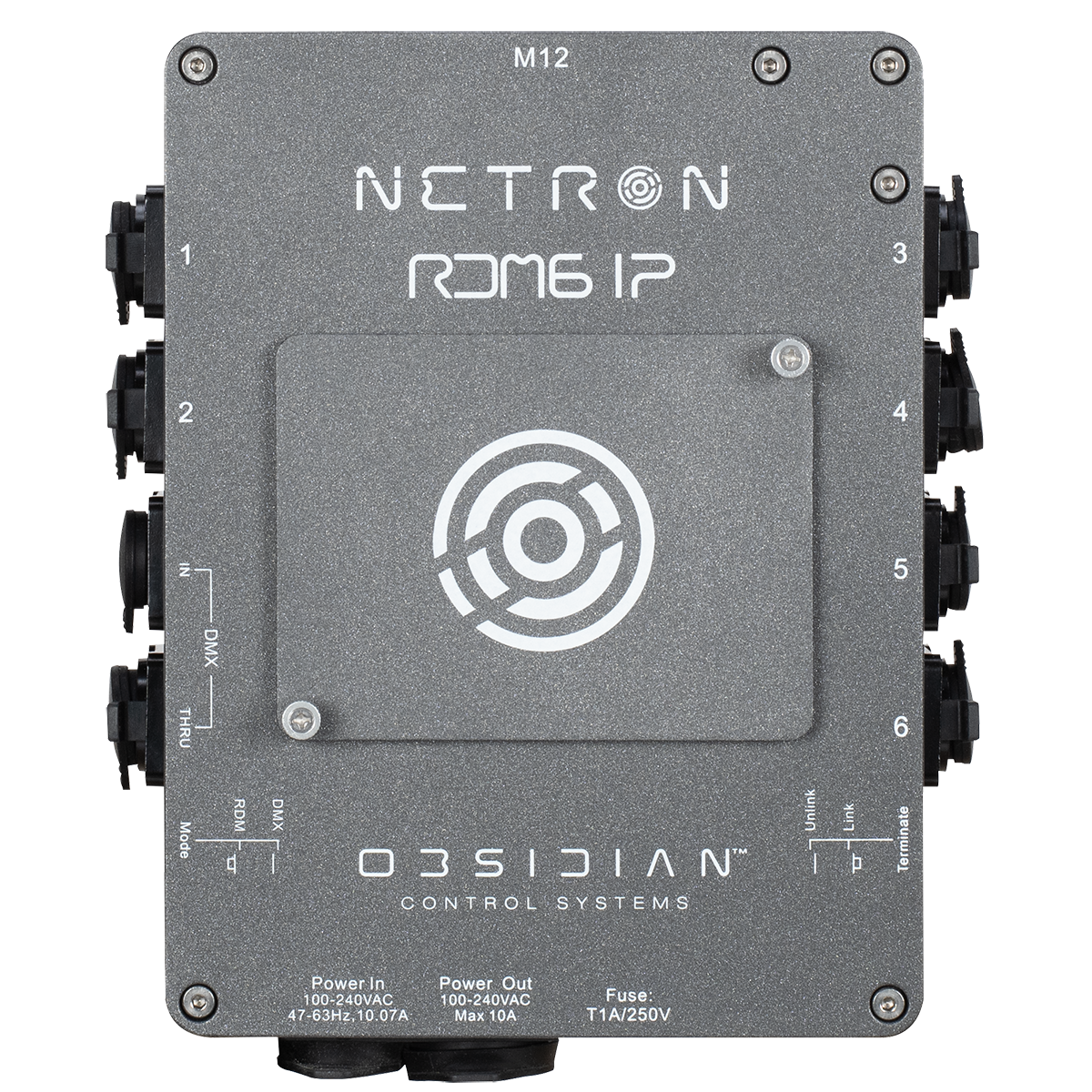

- Metal display protection cover
- US #: NIP101
- EU #: 1330000086
- Standalone
- Truss-mount (M10 or M12)
- Wall-mount
- (1) 5pin IP66 DMX In
- (1) 5pin IP66 DMX Thru
- (6) 5pin IP66 DMX/RDM optically isolated ports
- DMX Termination Button
- RDM Enable / Disable Button
- Locking IP66 Power In/Thru
- LED Port Feedback
- Length: 242mm (9.5 in.)
- Width: 183mm (7.2 in.)
- Height: 82mm (3.2 in.)
- Weight: 2 kg (4.41 lbs)
- 100-240 V nominal, 50/60 Hz, 5W
- cETLus / CE / UKCA / IP66
- 1.5m IP65 locking power cable (EU or US version)
- (2) Wallmount brackets
- M10 to M12 adapter
- Metal display protection cover
- US #: NIP101
- EU #: 1330000086
Downloads
| Filename | Document type | File type |
|---|---|---|
| RDM6 IP - 2D Cad Drawing | CAD Drawing | DWG |
| RDM6 IP - Dimensional Drawing | Dimensional Drawings | |
| RDM6 IP - User Manual | User Manual | |
| RDM6 IP - Specification Sheet | Specification Sheet |
