PCB5P

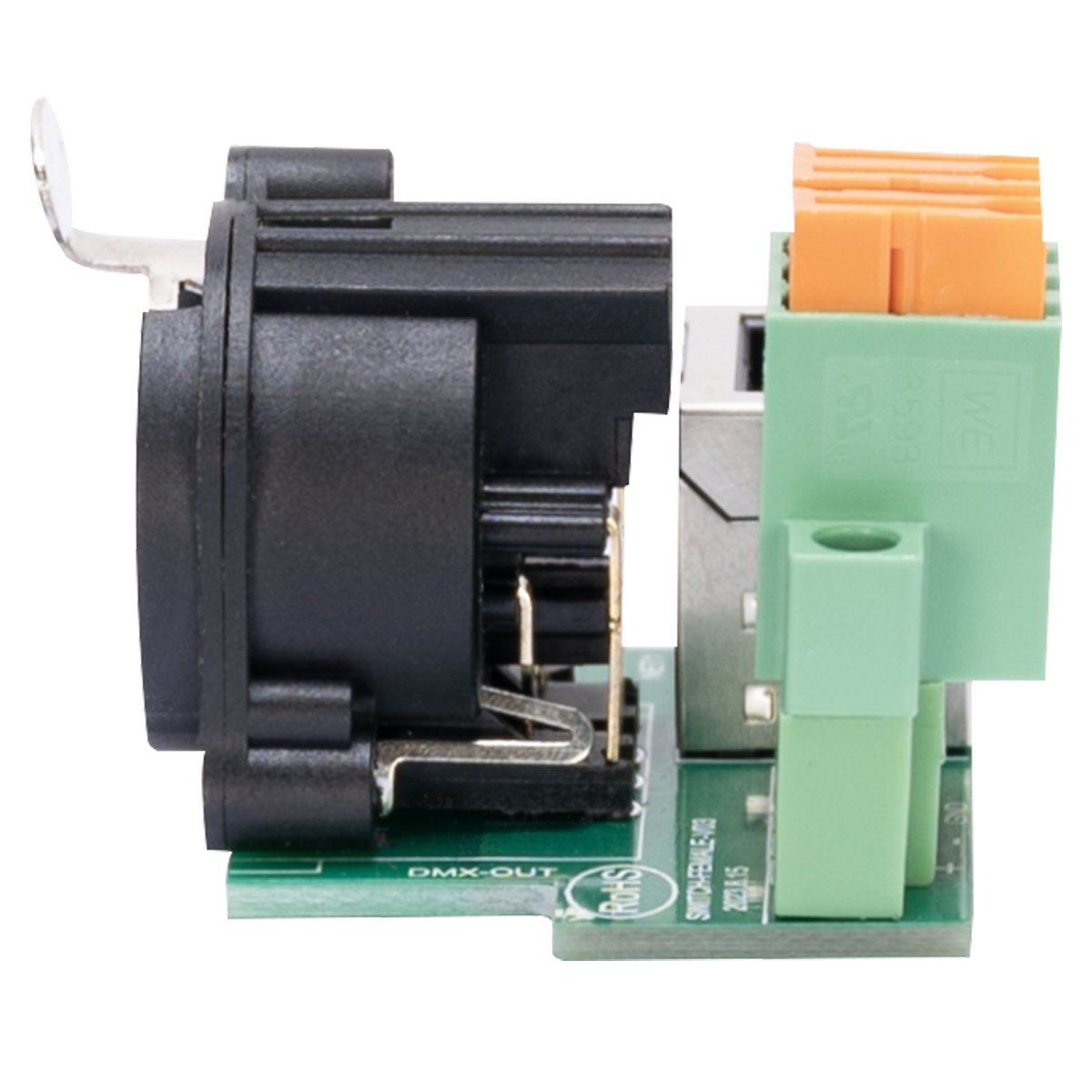

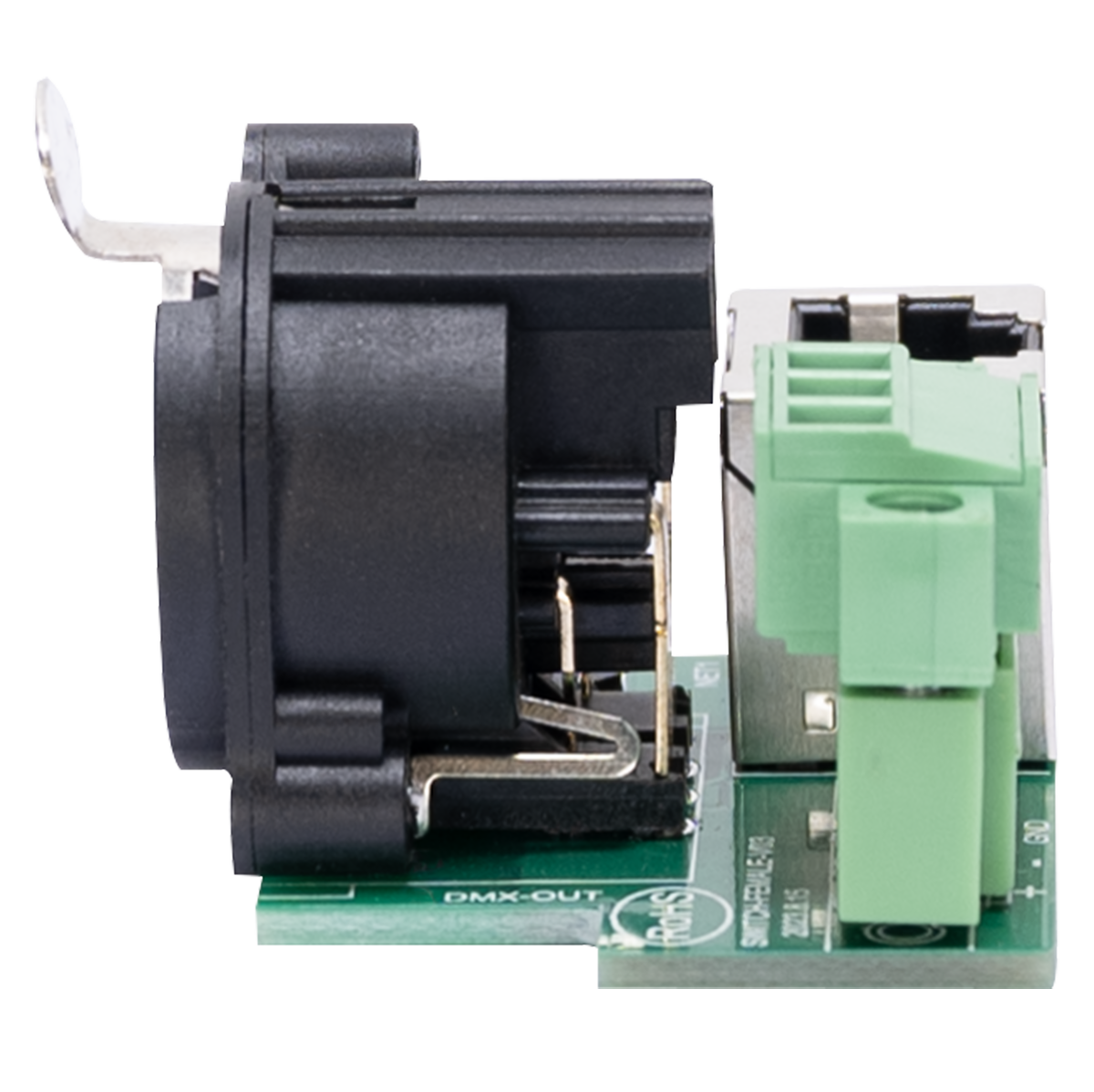

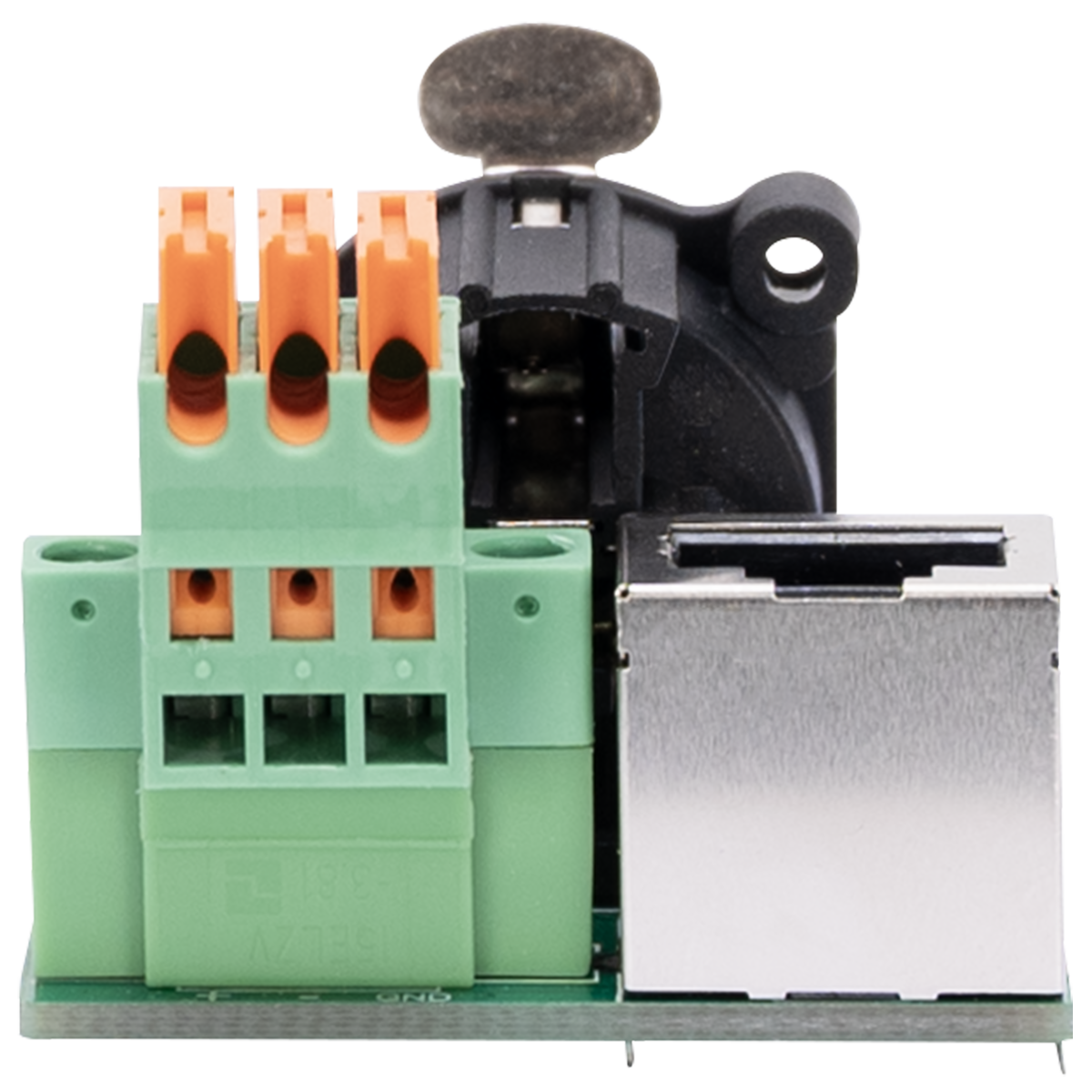

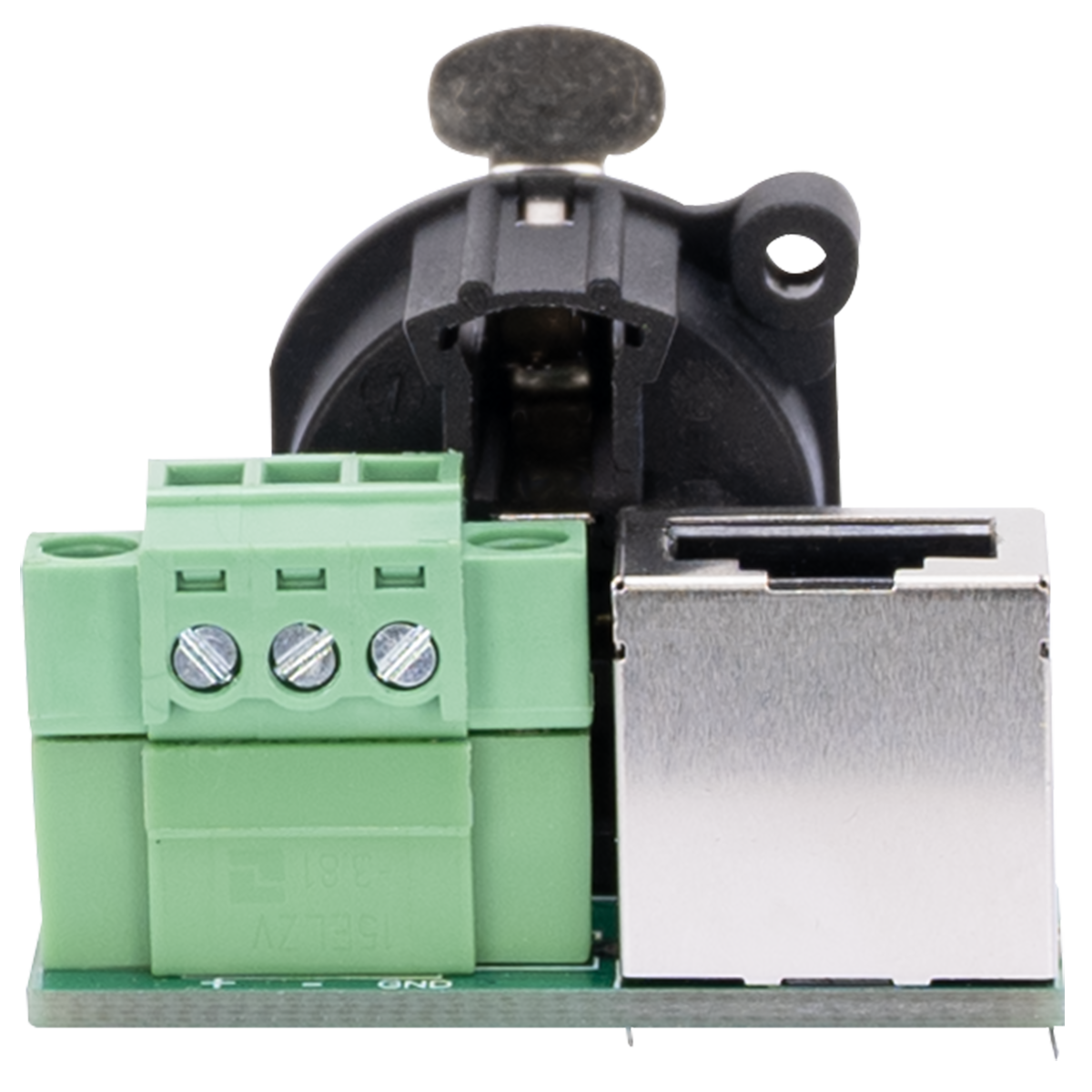

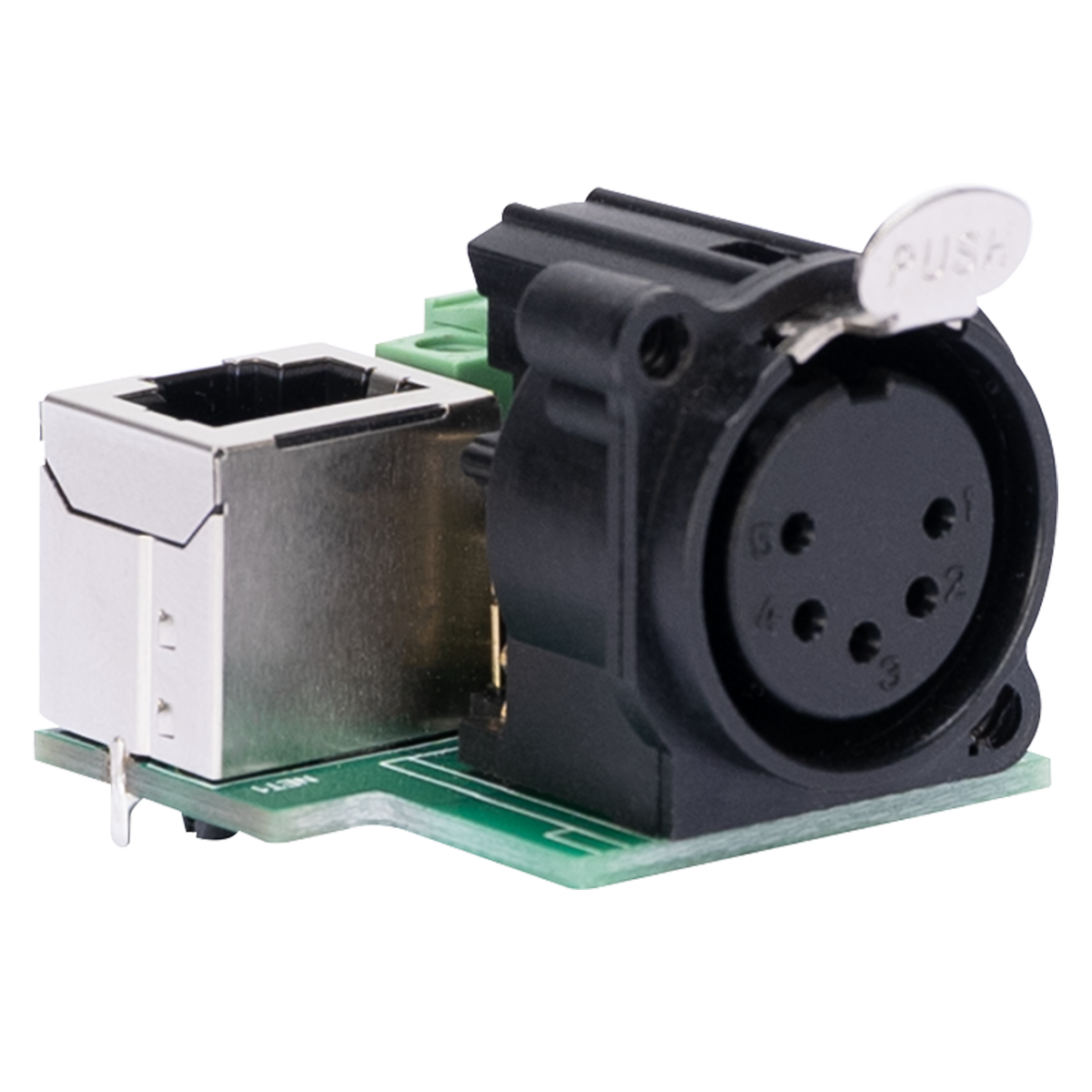

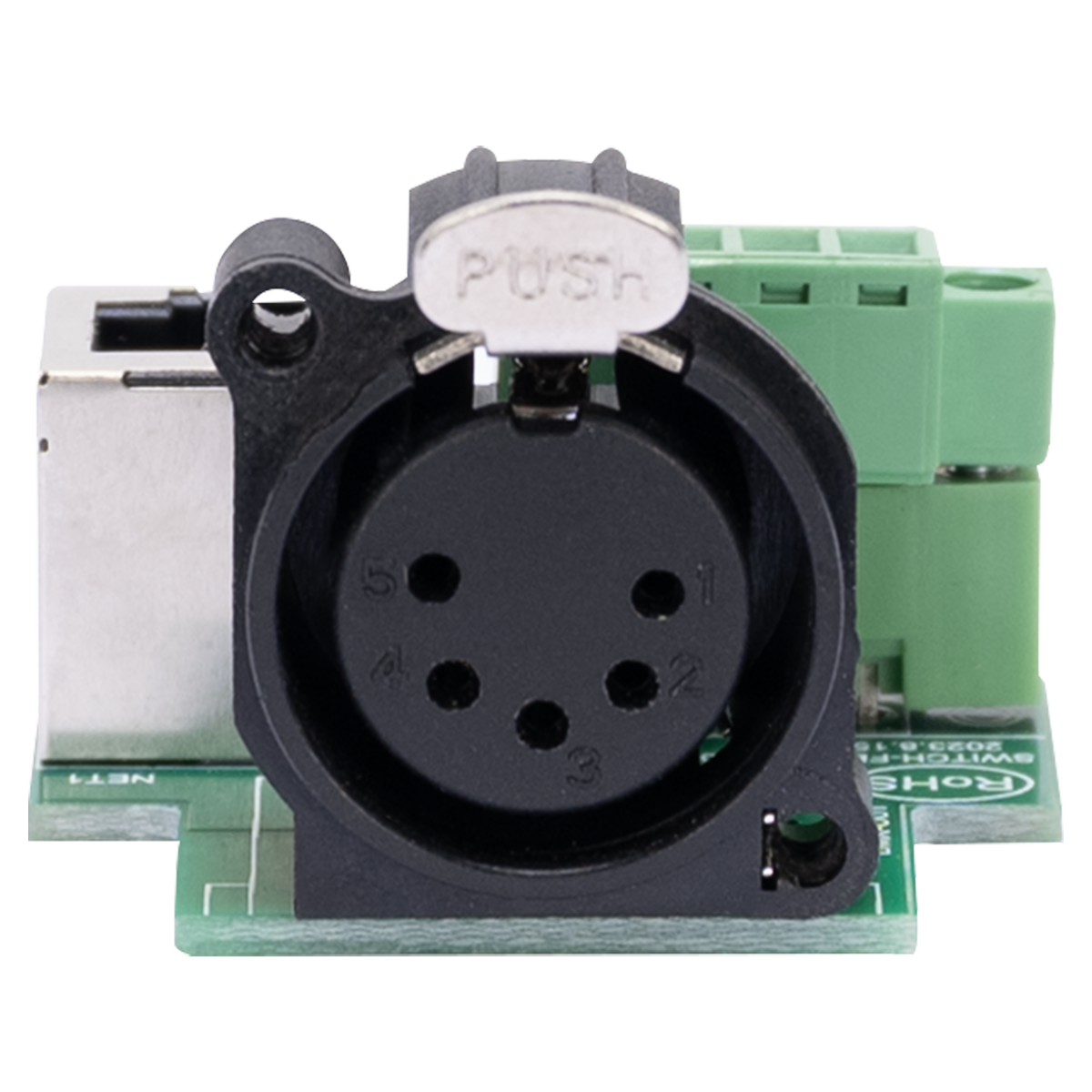

The NETRON PCB5P provides a standard A-Size DMX Output connector on a small PCB. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX input are all provided to offer the most flexibility to system integrators.
PCB5P
Sale price$0.00
PCB5P
The NETRON PCB5P provides a standard A-Size DMX Output connector on a small PCB. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX input are all provided to offer the most flexibility to system integrators.
Useful for custom wall plates or other custom integration, it is ideally suited to work with the NETRON NET Plate which provides 14 pre-machined positions.
- A-Size 5pin DMX Output connector
- Terminal and RJ45 DMX input
Specifications
Mounting
- A-Size panel mount
Connections
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
Specifications
- Length: 1.02 in. (26mm)
- Width: 1.64 in. (34.8mm)
- Height: 1.22 in. (31mm)
- CE / CETLUS / UKCA / IP20
Ordering
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- US #: CON512
- Eu #: 1330000093
- A-Size panel mount
- (1) 5pin DMX Out
- (1) Terminal Block
- (1) RJ45 DMX
- Length: 1.02 in. (26mm)
- Width: 1.64 in. (34.8mm)
- Height: 1.22 in. (31mm)
- CE / CETLUS / UKCA / IP20
- (1) Screw Terminal with security screws
- (1) IDC Connector with security screws
- US #: CON512
- Eu #: 1330000093
