ONYX KEY
ONYX Key is offered in various licenses of 8, 16, 32, 64 or 128 ONYX Universes and unlocks OSC, MIDI and Timecode features for PC Systems.
ONYX KEY
Sale price$960.00
Regular price$1,200.00
ONYX KEY
ONYX Key is offered in various licenses of 8, 16, 32, 64 or 128 ONYX Universes and unlocks OSC, MIDI and Timecode features for PC Systems.

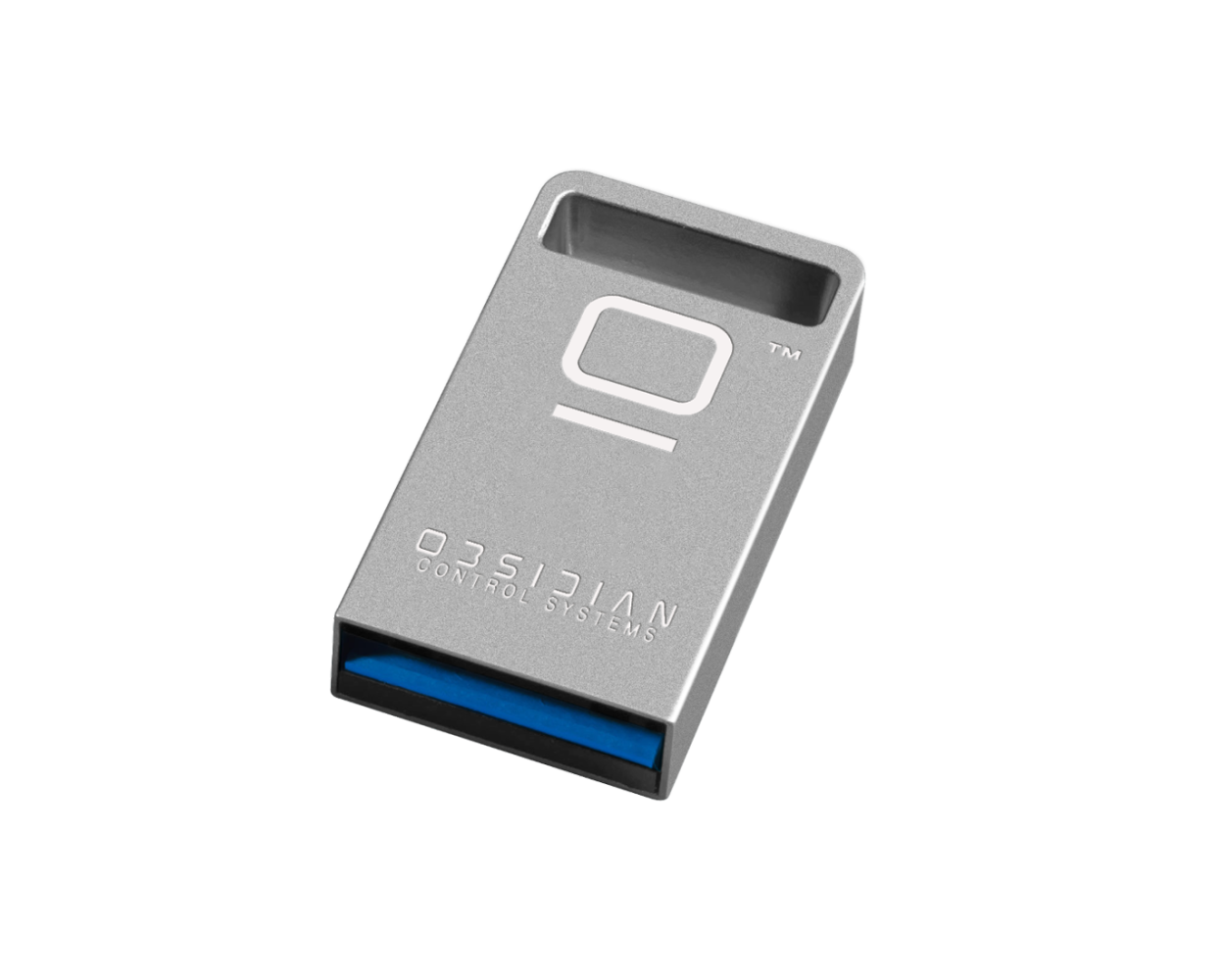

This compact key carries an ONYX license that is instantly recognized by the ONYX software. No online connectivity or activation is required. Different license levels are available to suit the size of the show.
The ONYX KEY can be used on any PC and is not registered to a specific hardware. Drivers are pre-installed with ONYX, making this key plug and play.
The ONYX Key is a great solution for users on the go, as a backup systems or to build powerful PC systems for architainment applications.
Key Features
- Flexible ONYX license
- 8, 16, 32, 64 or 128 Universes
- USB 2.0 compact housing with security loop
- Plug and Play, no additional drivers required
Specifications
Connections
- USB: USB 2.0 (Type A)
Specifications
Details
- Up to 128 Universes
- Up to 5 DyLOS Zones
- OSC, MID and Timecode Unlock
- Encrypted USB 2.0 device
Electrical
- 5V over USB
- Maximum current: 20 mA
Requirements
- Windows 11 64bit (Home/Pro/Enterprise)
- 8th generation Intel Core Processor or newer (or comparable AMD processor)*
- 16 GB RAM
- SSD Drive
- 40 GB available disk space
- Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
- USB 2.0 port
- 10/100 Ethernet port for Art-Net DMX output
- 100/1000 Ethernet port for X-Net, Remote operation and sACN
Ordering

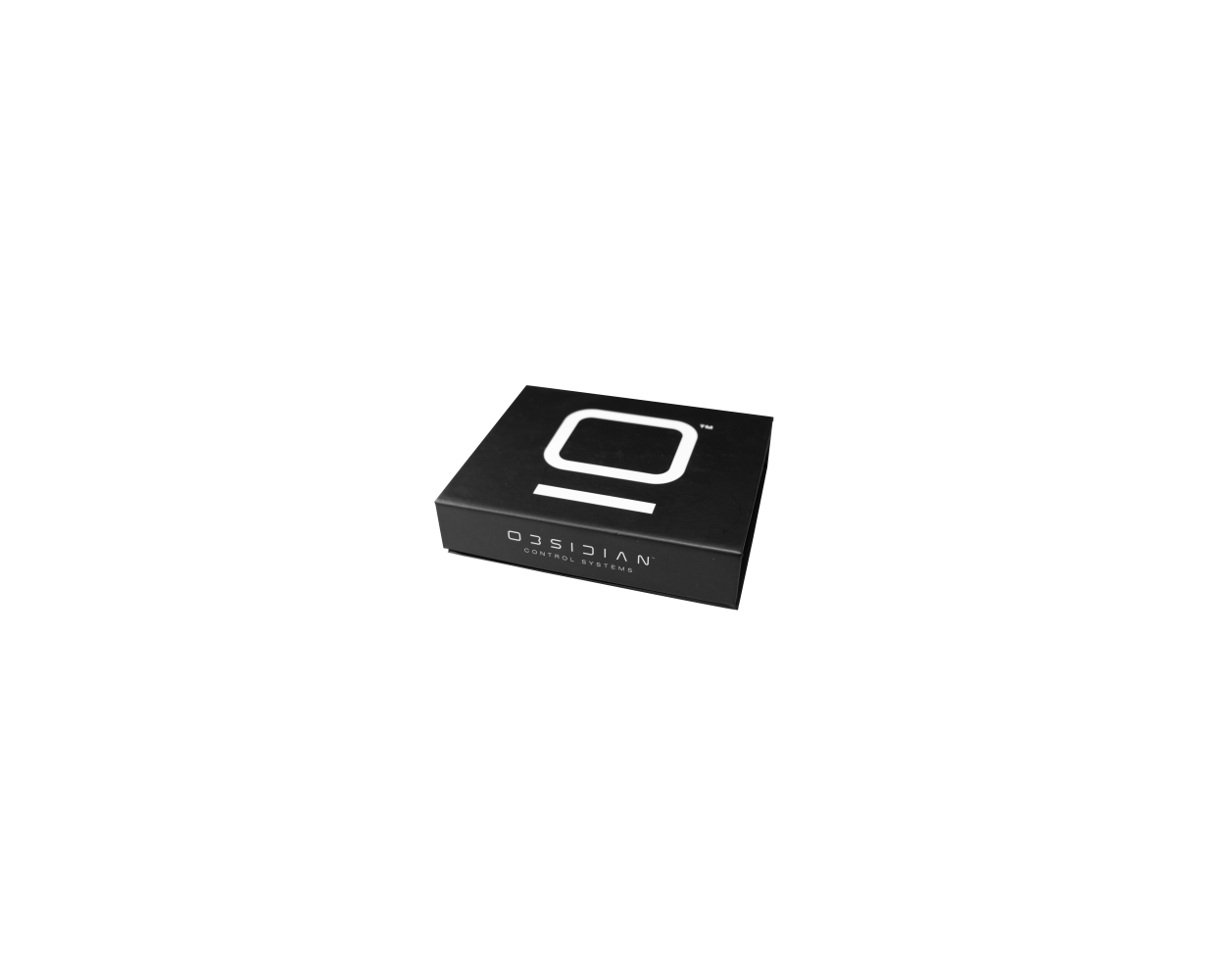

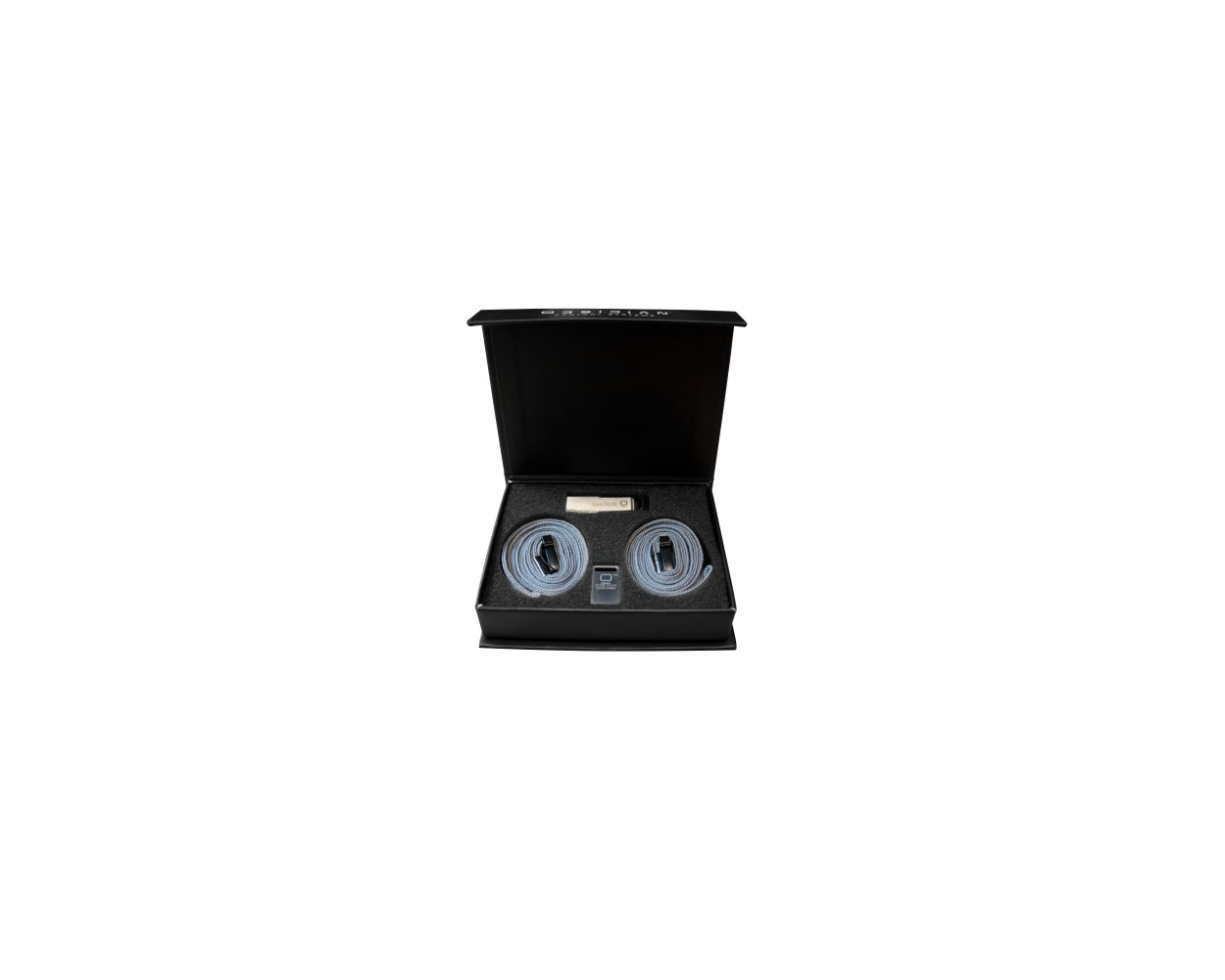

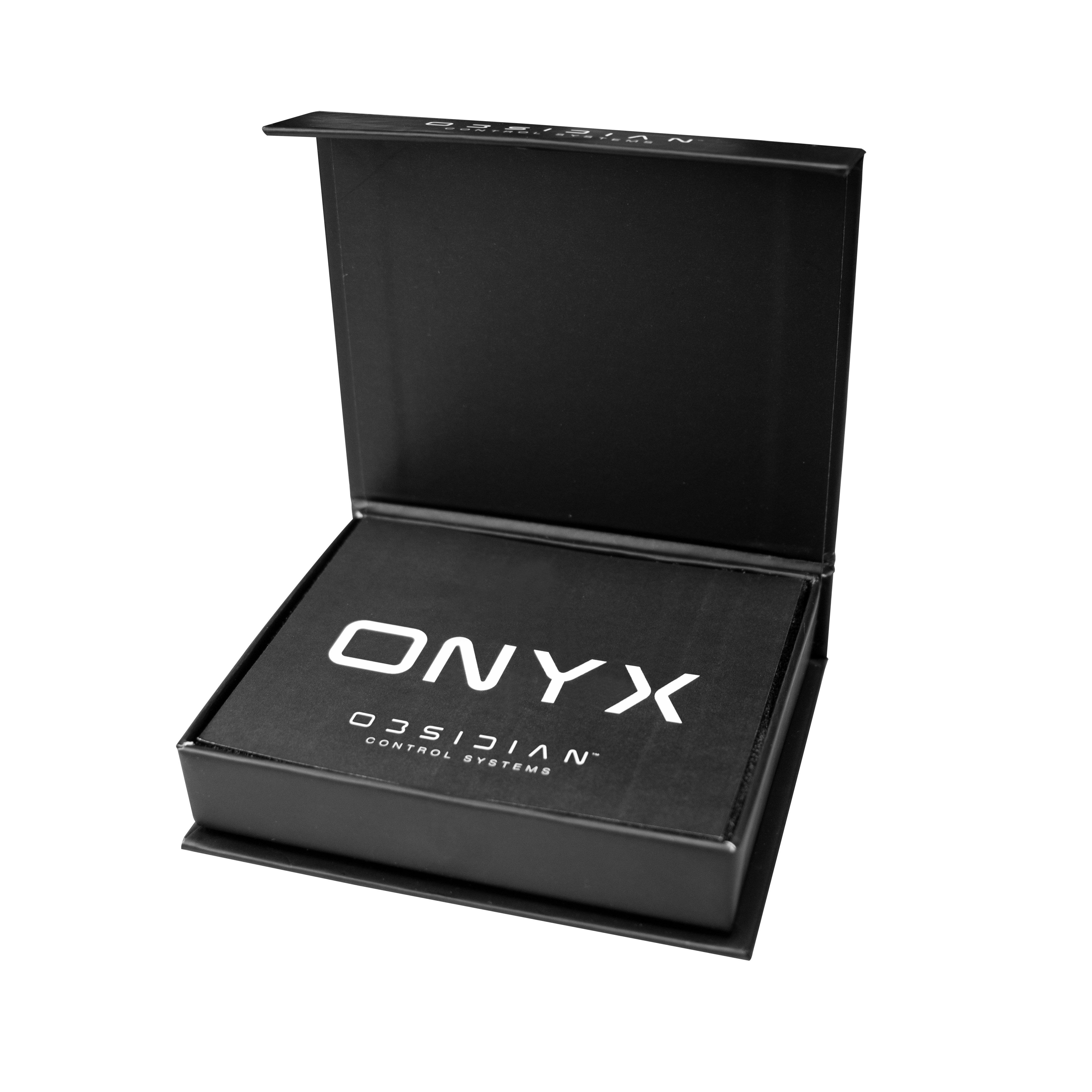

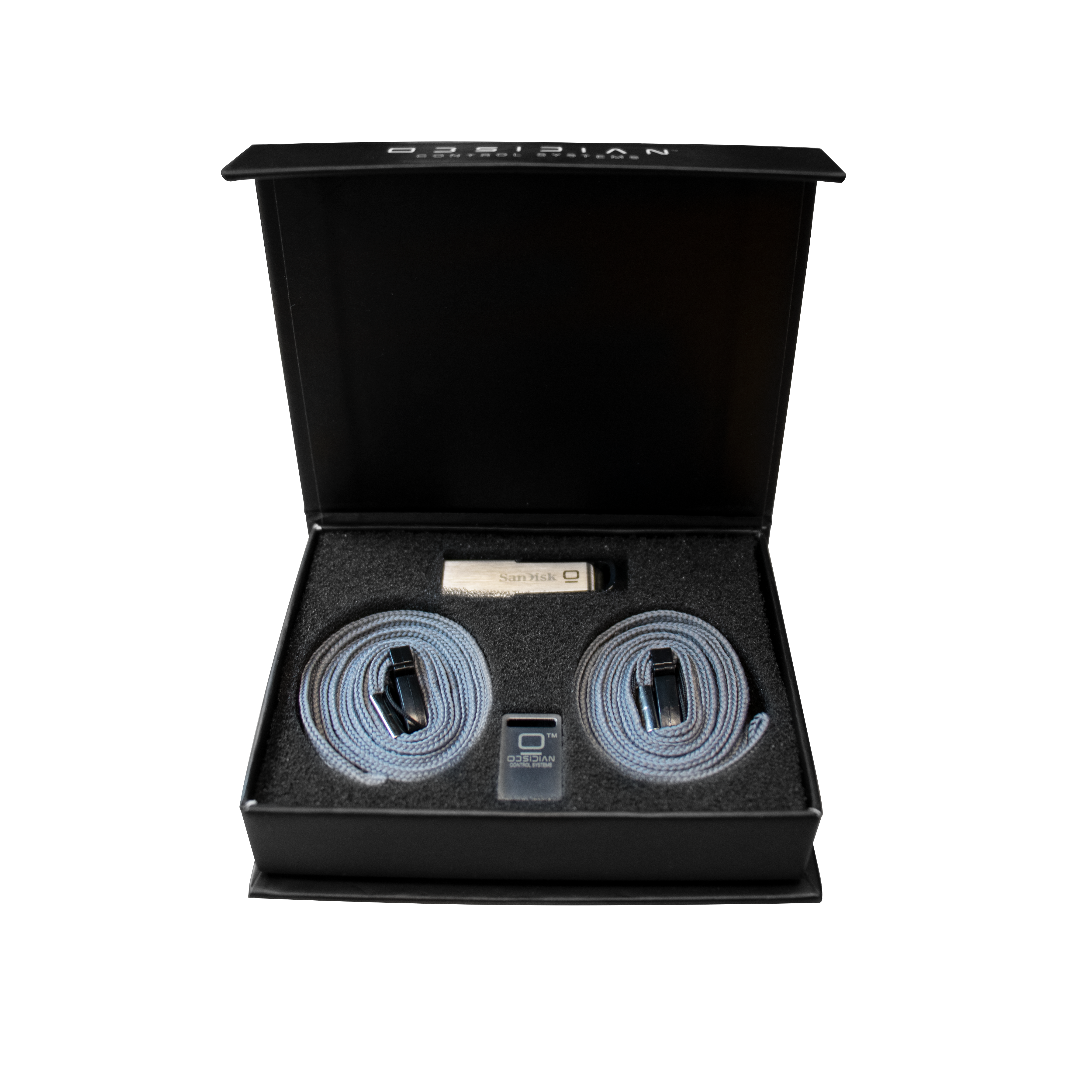

Included Items
- ONYX KEY
- USB Flash Drive with ONYX Software, DYLOS Content
- 2x ONYX USB Lanyard
SKU
| Model | Universes/ DyLOS | SKU US | SKU EU |

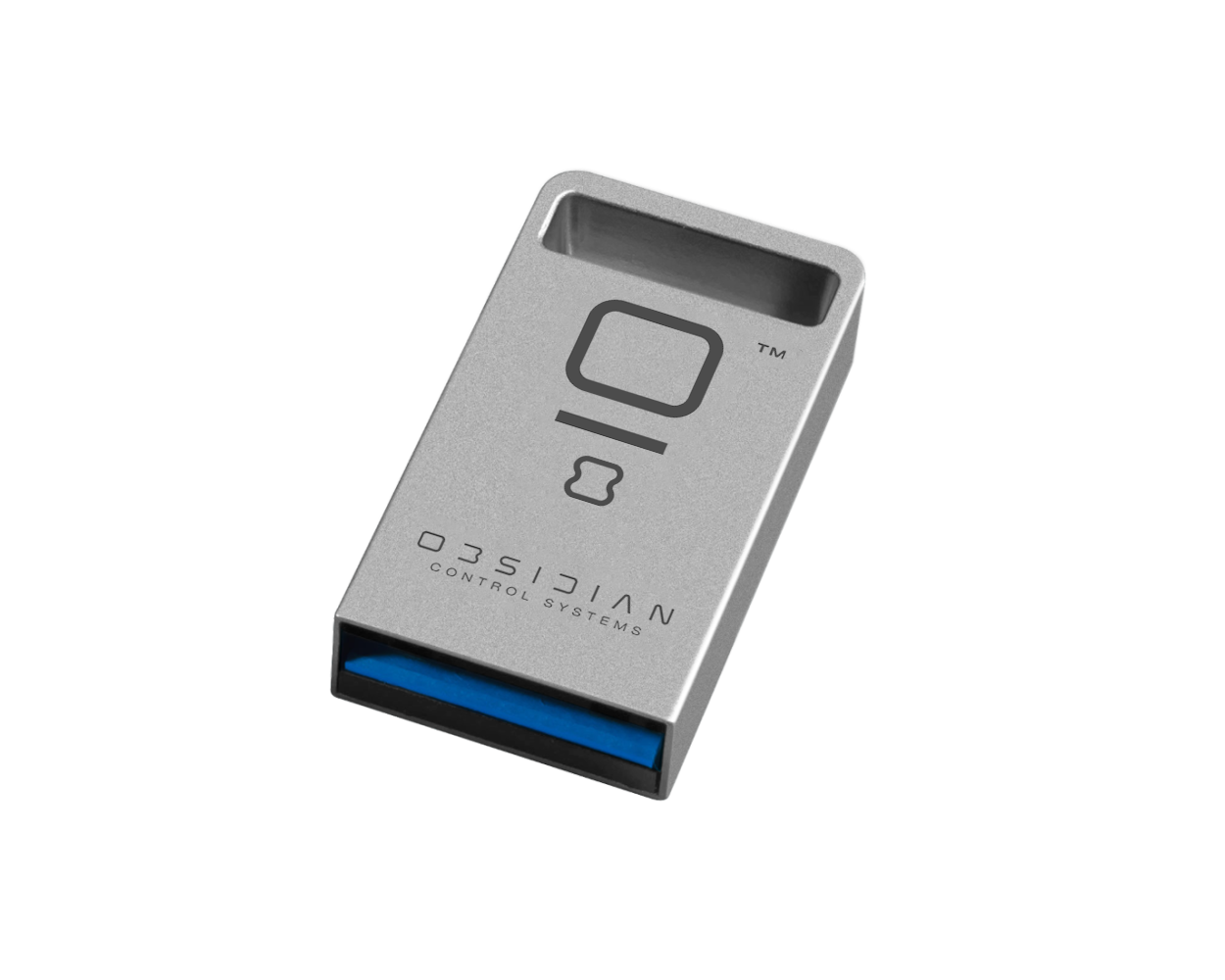

| Onyx Key 8 | 8 Unv / 2 Zones | ONY602 | 13330000099 |

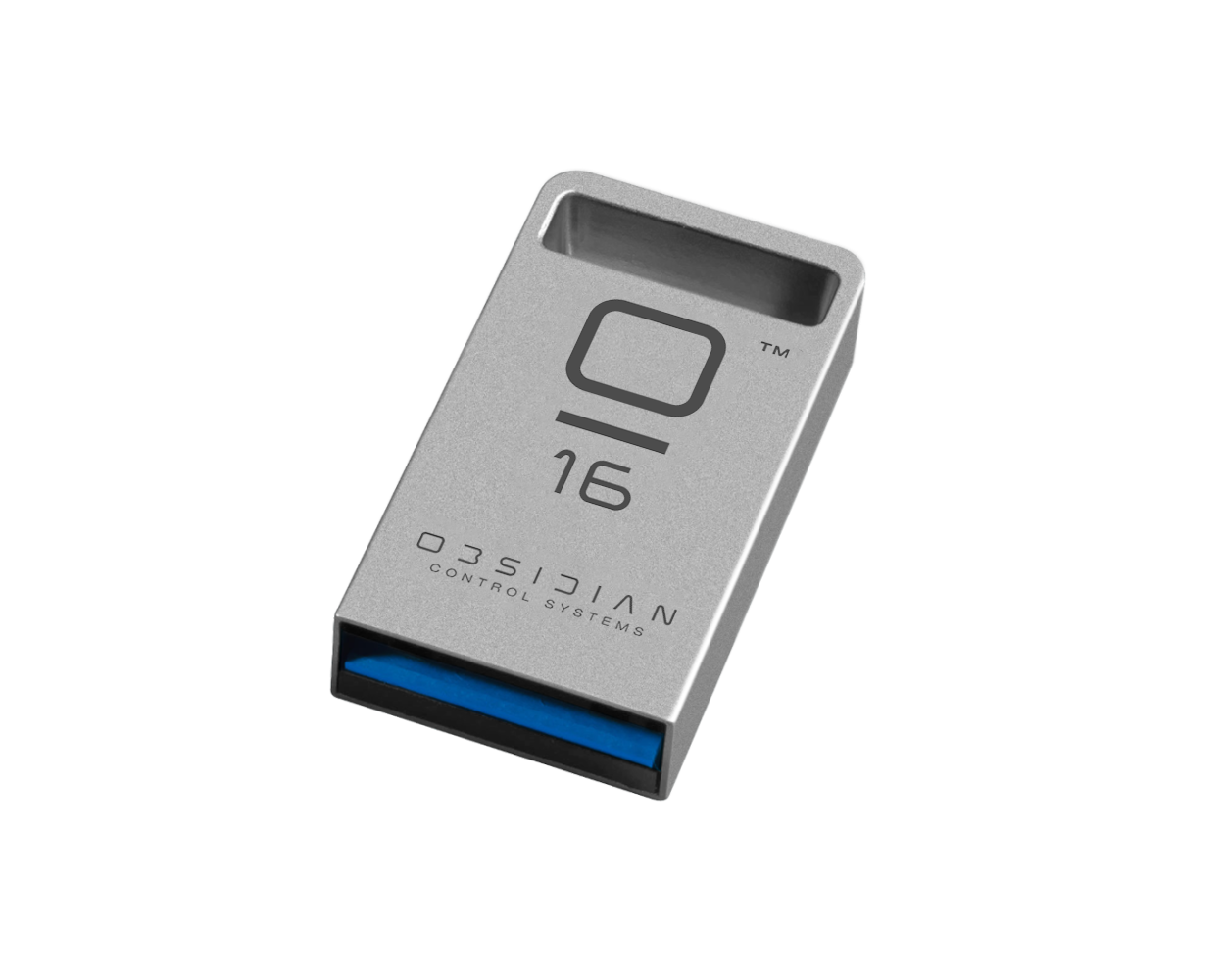

| Onyx Key 16 | 16 Unv / 5 Zones | ONY613 | 13330000100 |
| Onyx Key 32 | 32 Unv / 5 Zones | ONY624 | 13330000101 |

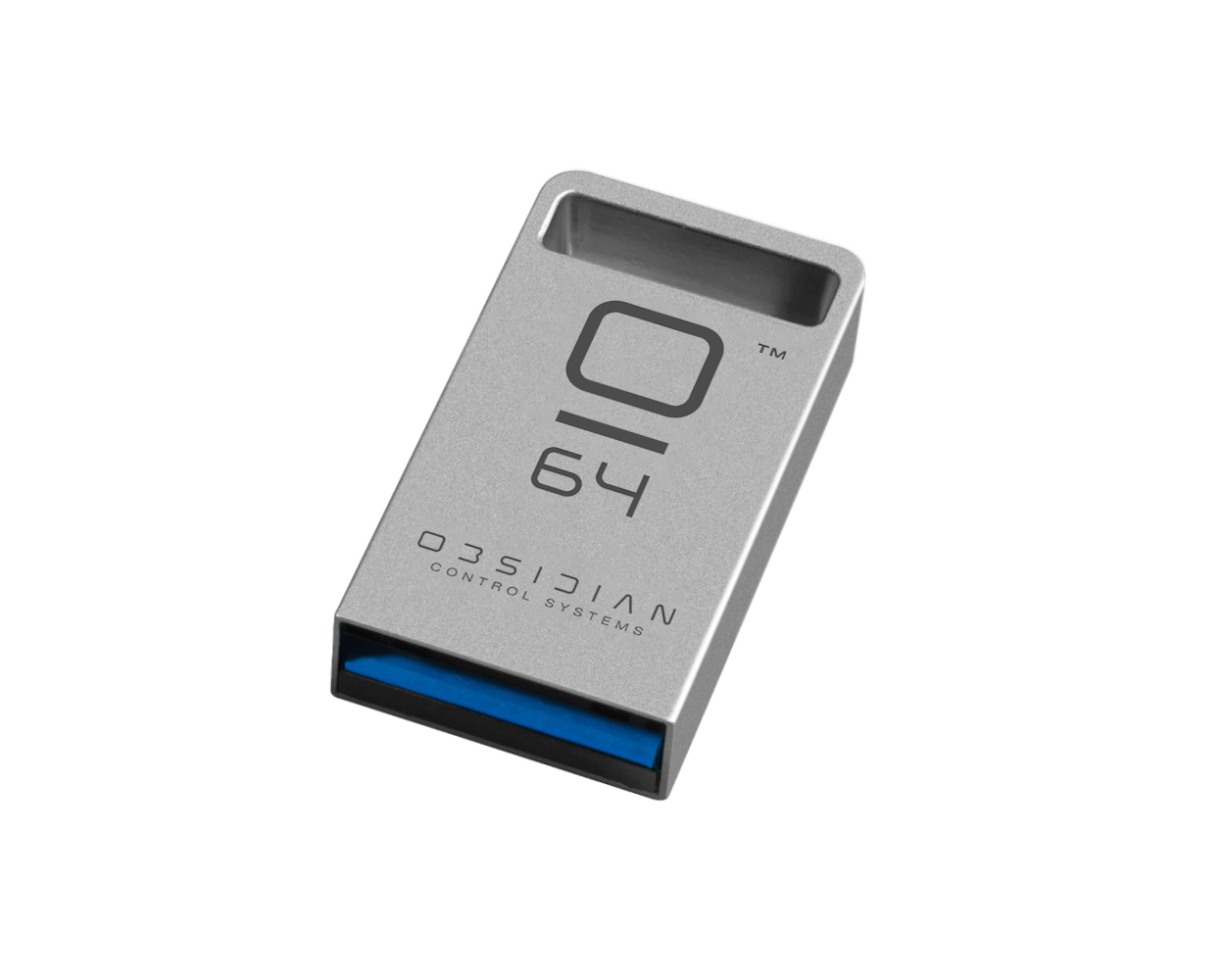

| Onyx Key 64 | 64 Unv / 5 Zones | ONY635 | 13330000102 |

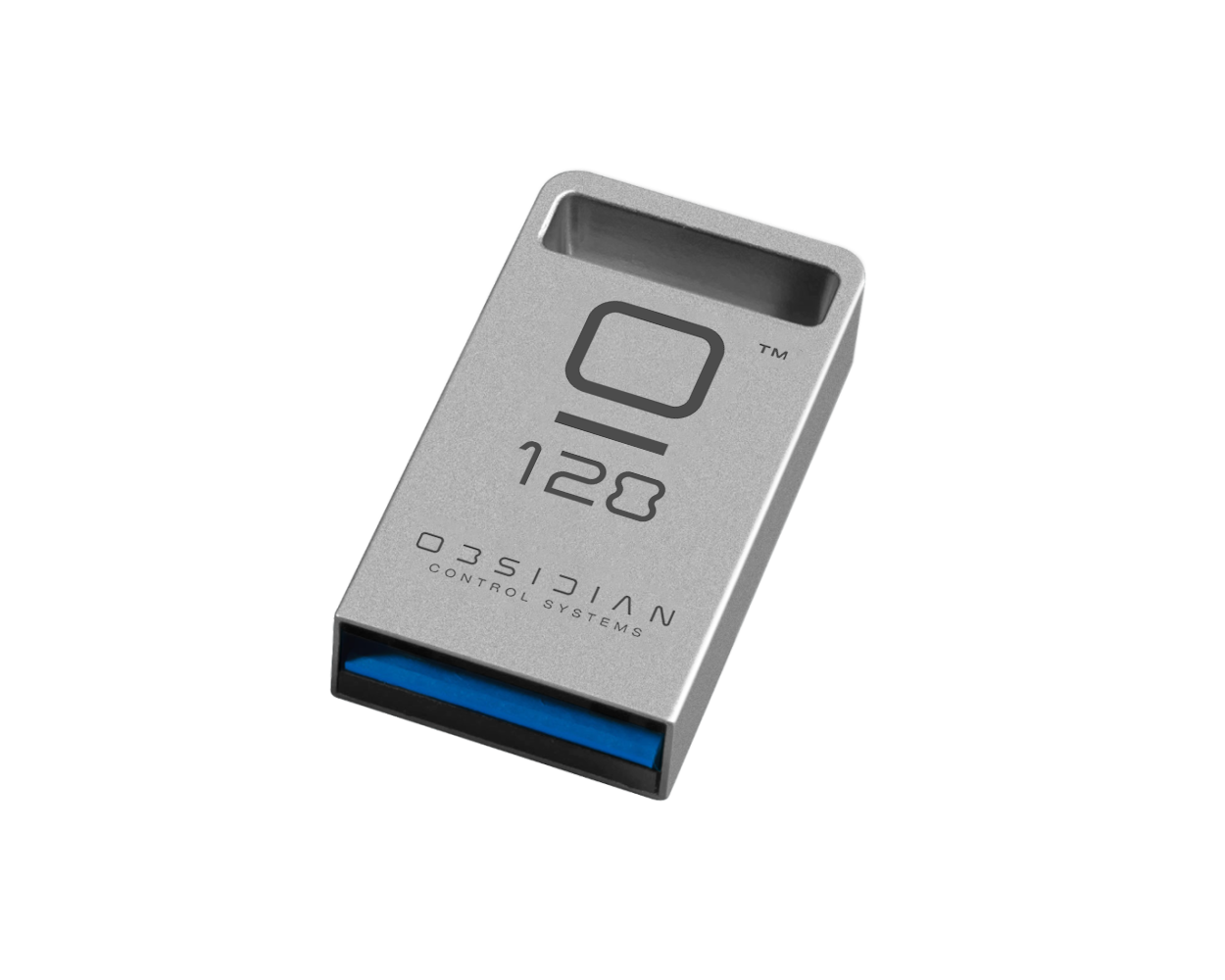

| Onyx Key 128 | 128 Unv / 5 Zones | ONY646 | 13330000103 |
