NX3

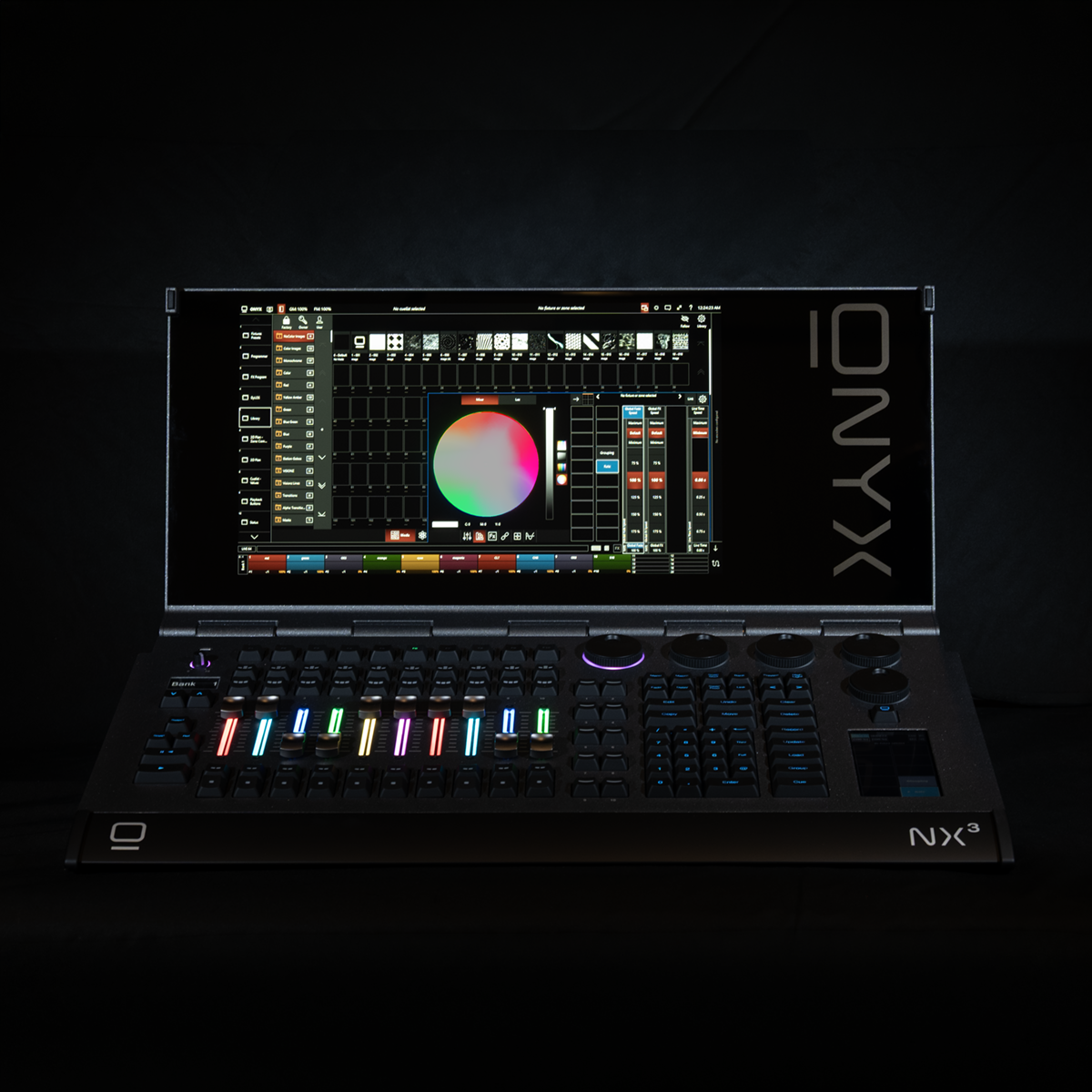

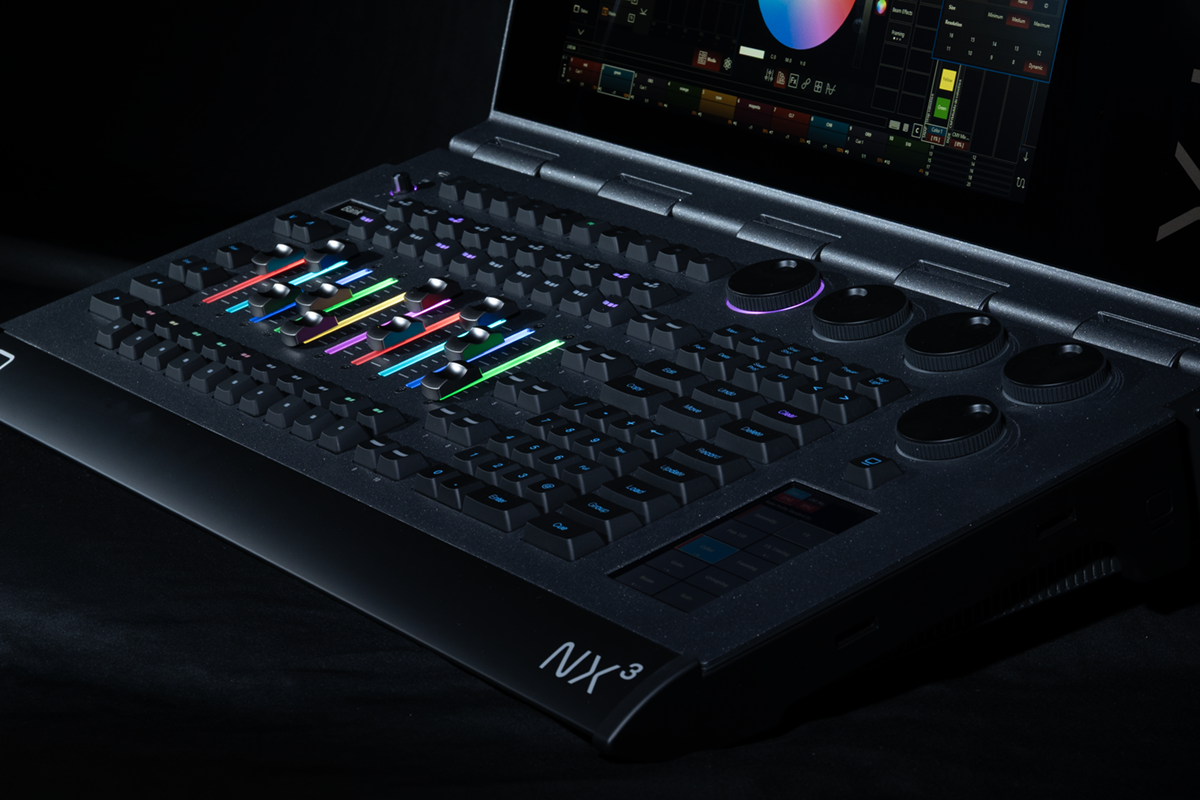

The ONYX NX3 lighting console was designed around how programmers actually work. Its intuitive control, refined ergonomics, and show-ready performance come together in a compact platform built for real productions. From faster workflows and long-session comfort to reliable performance as shows grow in scale and complexity, NX3 delivers the clarity and confidence programmers need for today and into what comes next.

NX3
Sale price$0.00
NX3
The NX3 lighting console was designed around how programmers actually work. With intuitive control, comfortable ergonomics, and professional scalability, NX3 supports everything from small shows to complex productions.
The NX3 UI makes programming intuitive from the moment you sit down. Hardware layouts align directly with on-screen workflows, while motorized faders provide tactile feedback that reflects active playbacks in real time. Customizable RGB-backlit keys, faders, and encoders deliver clear visual status, with color-coded feedback that minimizes guesswork and keeps programmers moving quickly and confidently.
NX3 is designed to feel precise and comfortable over long programming sessions. Tuned key response, stable controls, and refined tactile feedback support faster input with less fatigue, while premium materials and quieter operation help programmers stay focused behind the desk. Its low-profile form factor is optimized for real-world setups, supporting a more natural, comfortable working posture during extended sessions.
NX3 delivers show-ready performance in a compact footprint and is stress-tested for predictable performance under real show conditions. As demands increase, NX3 expands seamlessly through additional control surfaces, displays, and networking—supporting everything from smaller shows to complex productions on the same platform.
From long hours at the desk to complex, high-stakes productions, NX3 gives programmers the clarity, comfort, and reliability to stay in control today—and the confidence to take on what comes next.

Key Features
Specifications

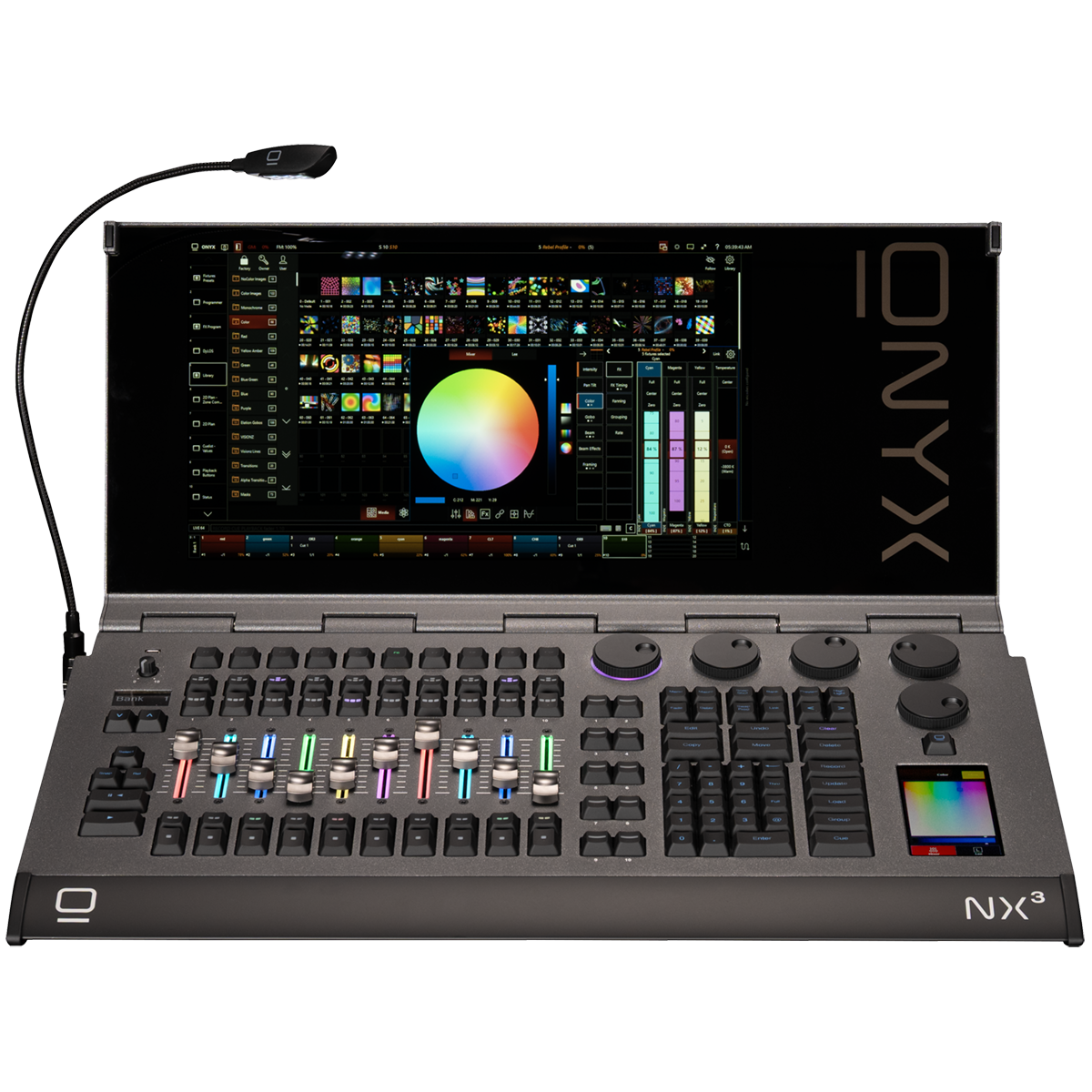

Hardware Interface
Playback:
- RGB backlighting on all controls

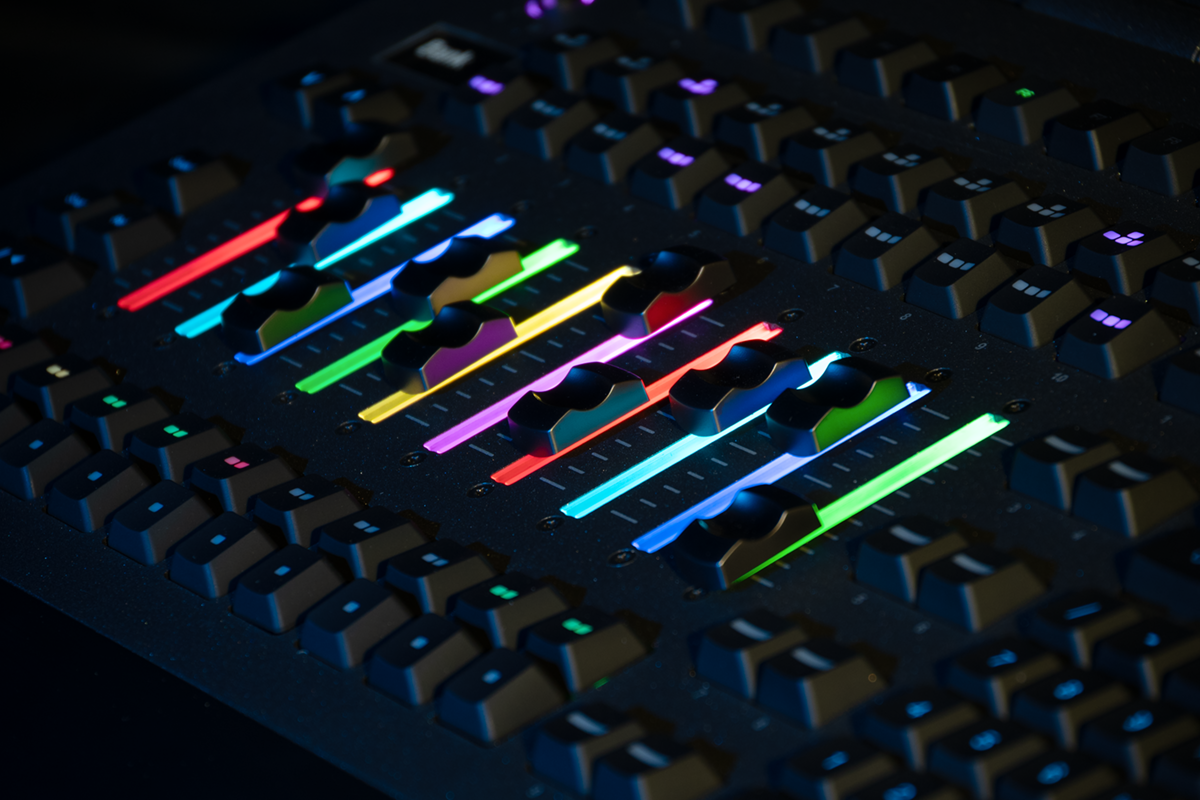

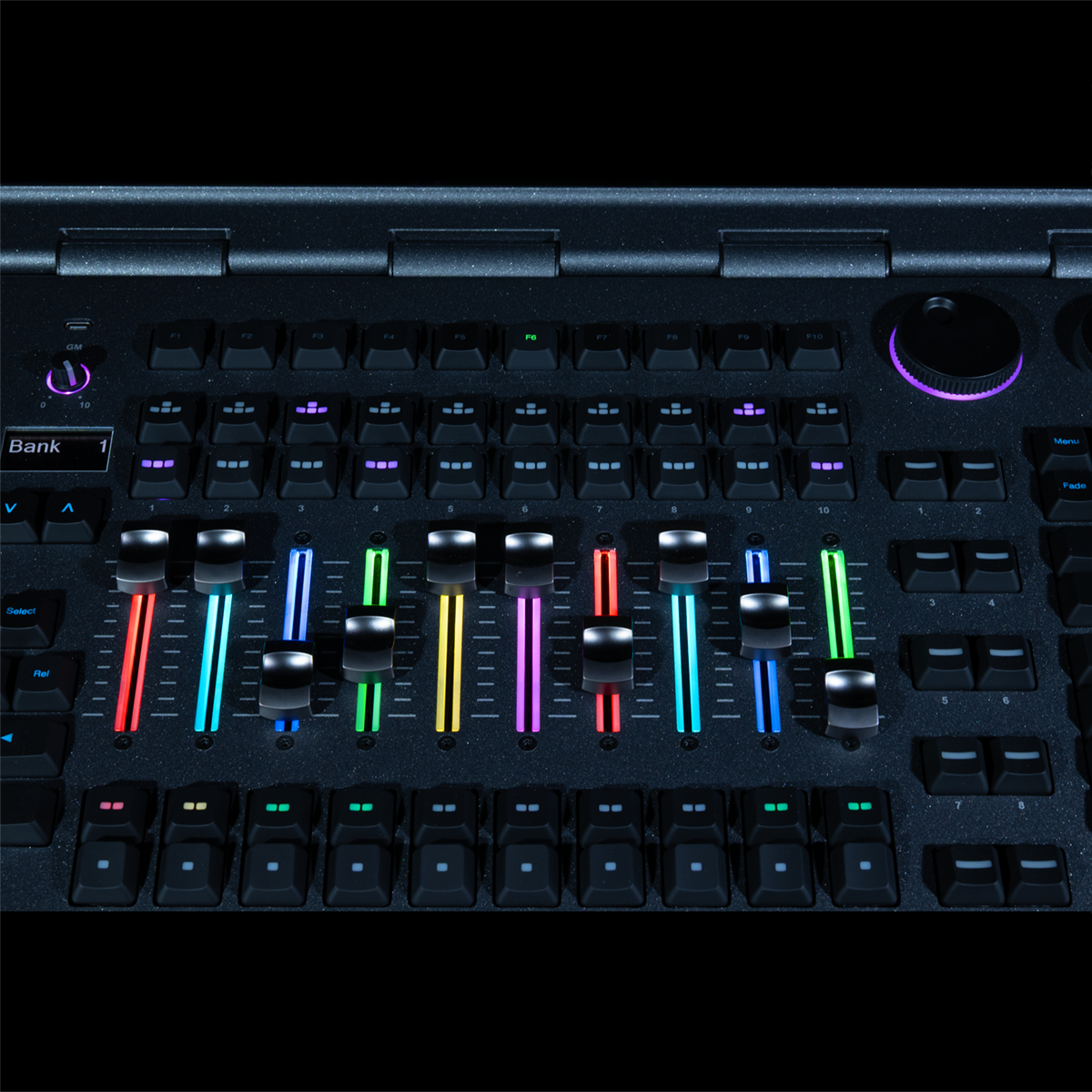

- 10x 60mm Motorized Faders
- 50x Optical Buttons
- Master Cuelist Controls
- Go Button
- Back/Pause Button
- Playback Selection Button
- Playback Release Button
- Rotary Grand Master w/ push
- Bank Selection Keys
- OLED Bank Indicator Display
Programmer:
- RGB backlighting on all controls

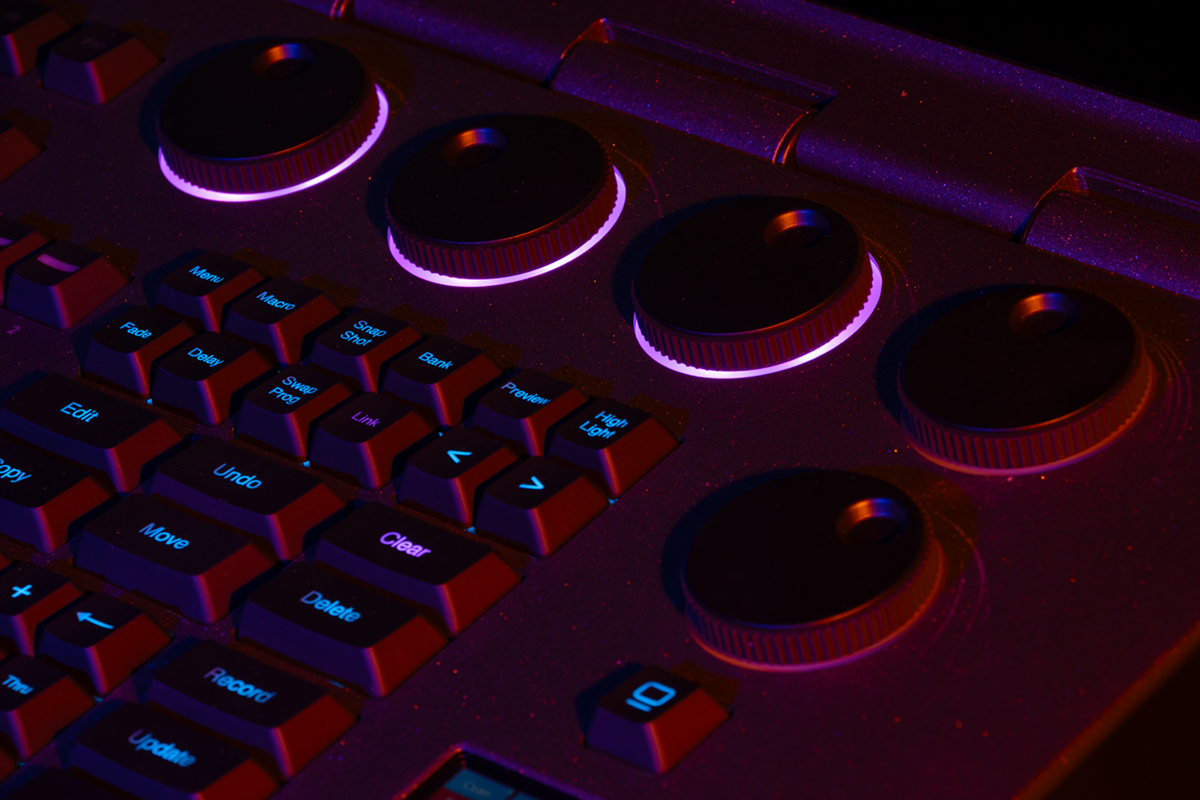

- 5x High resolution rotary encoders w/ push
- 4x Dynamic Mapping Parameter Controls
- 1x Dedicated Intensity Control

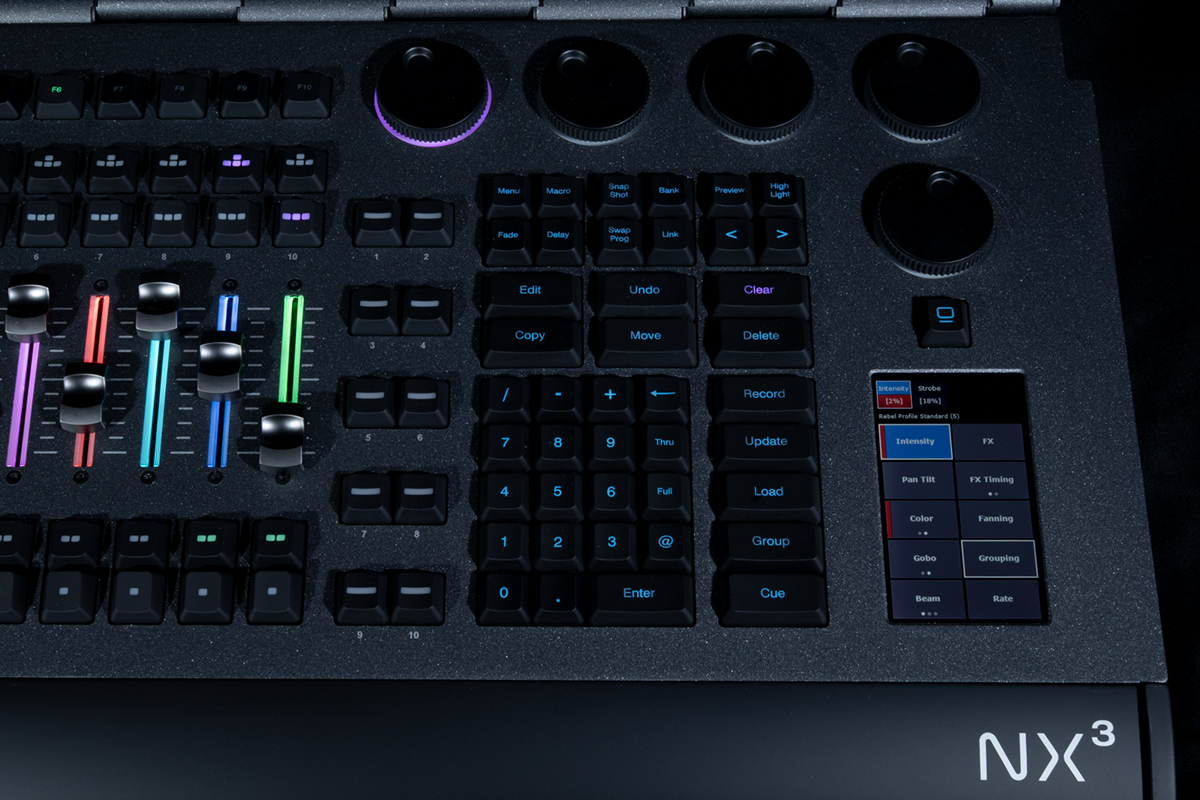

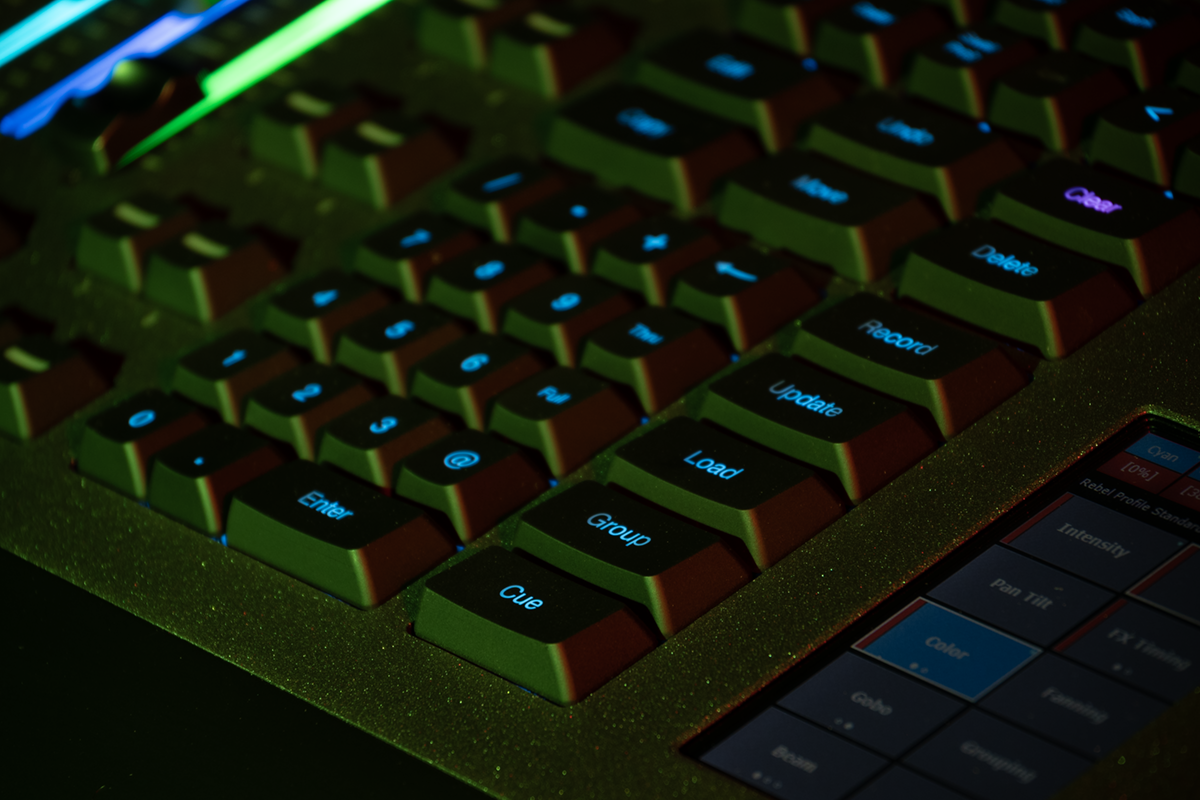

- Full numerical keypad
- Core Command Keys
- Highlight/Preview/Next/Last Keys
- 10x User assignable Function Keys (F-Key)
- ONYX Command Shift Key
Displays:

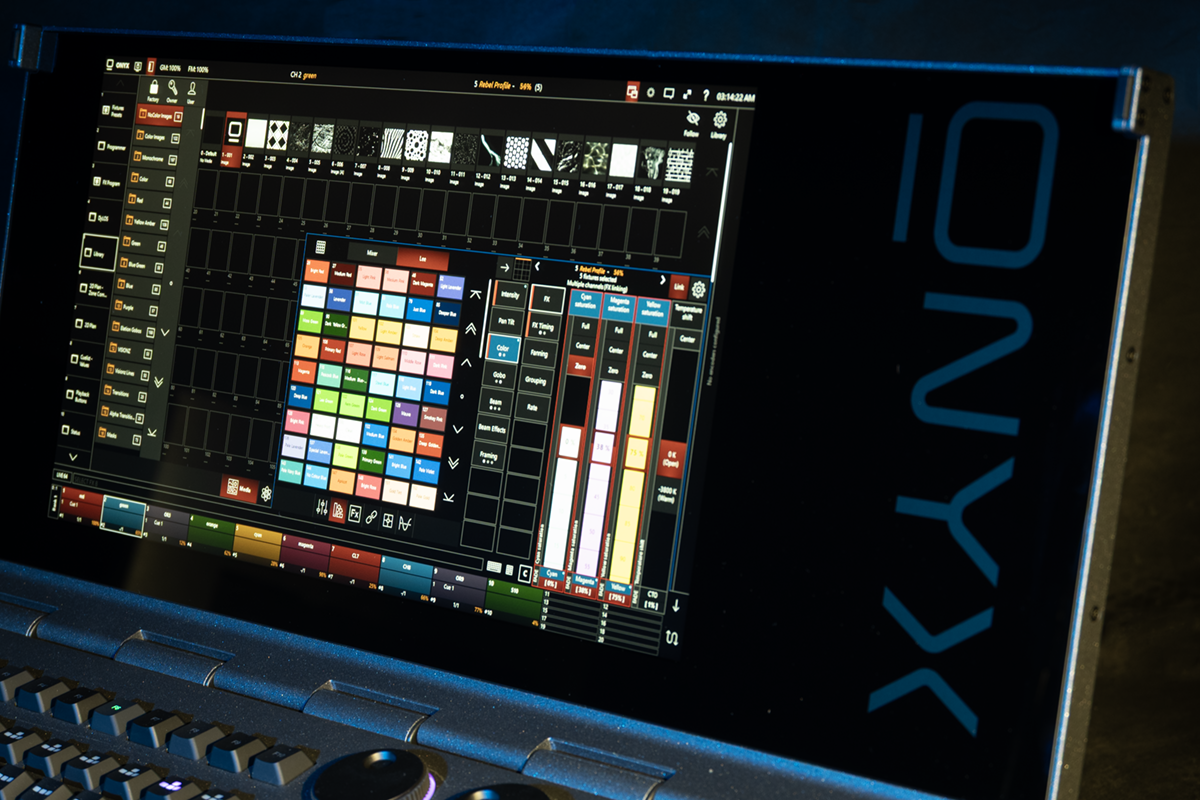

- Main Display: 17.3" Full HD Multi-Touch

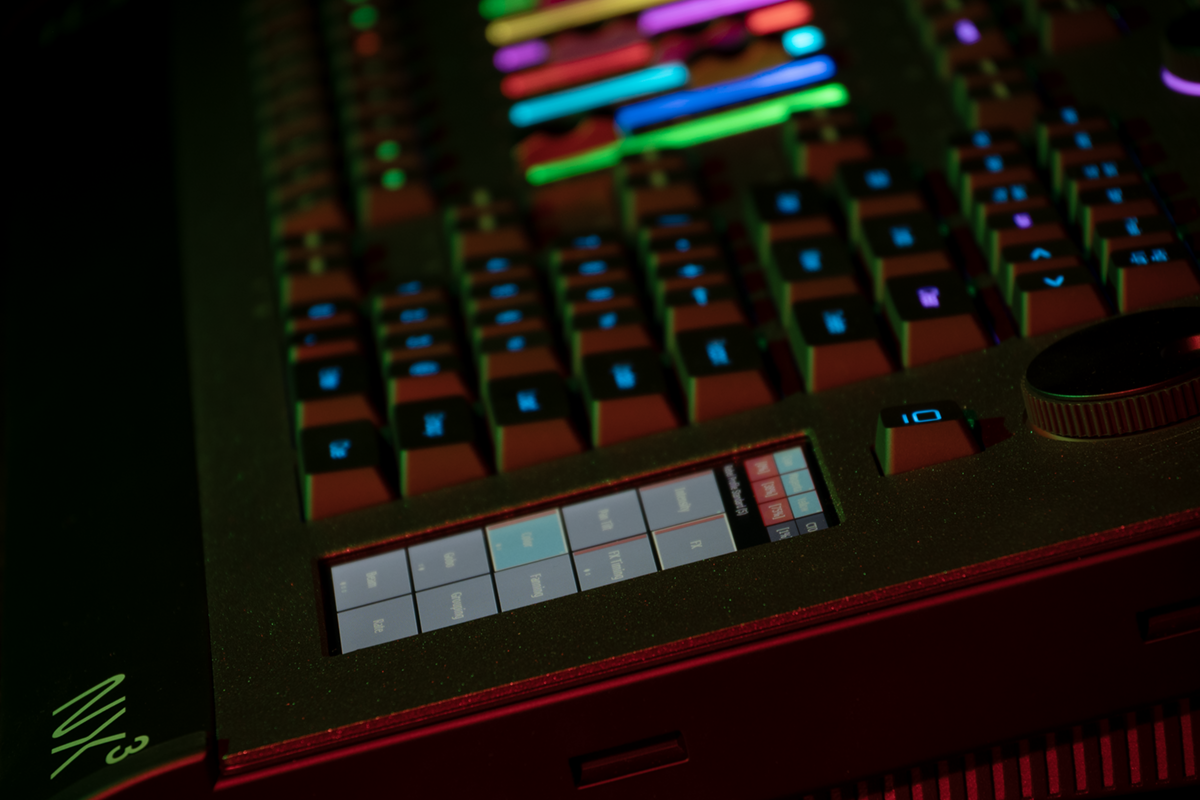

- Auxiliary: 4.5" Parameter Touch Display
- External Displays: Up to 3x 4k external displays w/ touch functionality

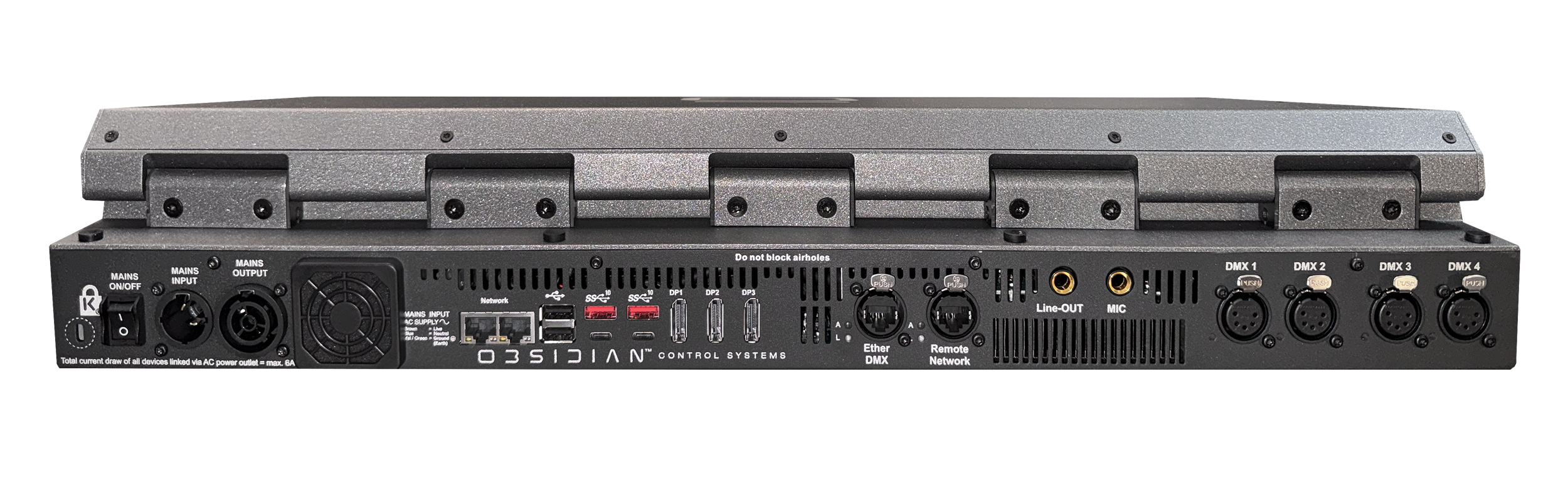

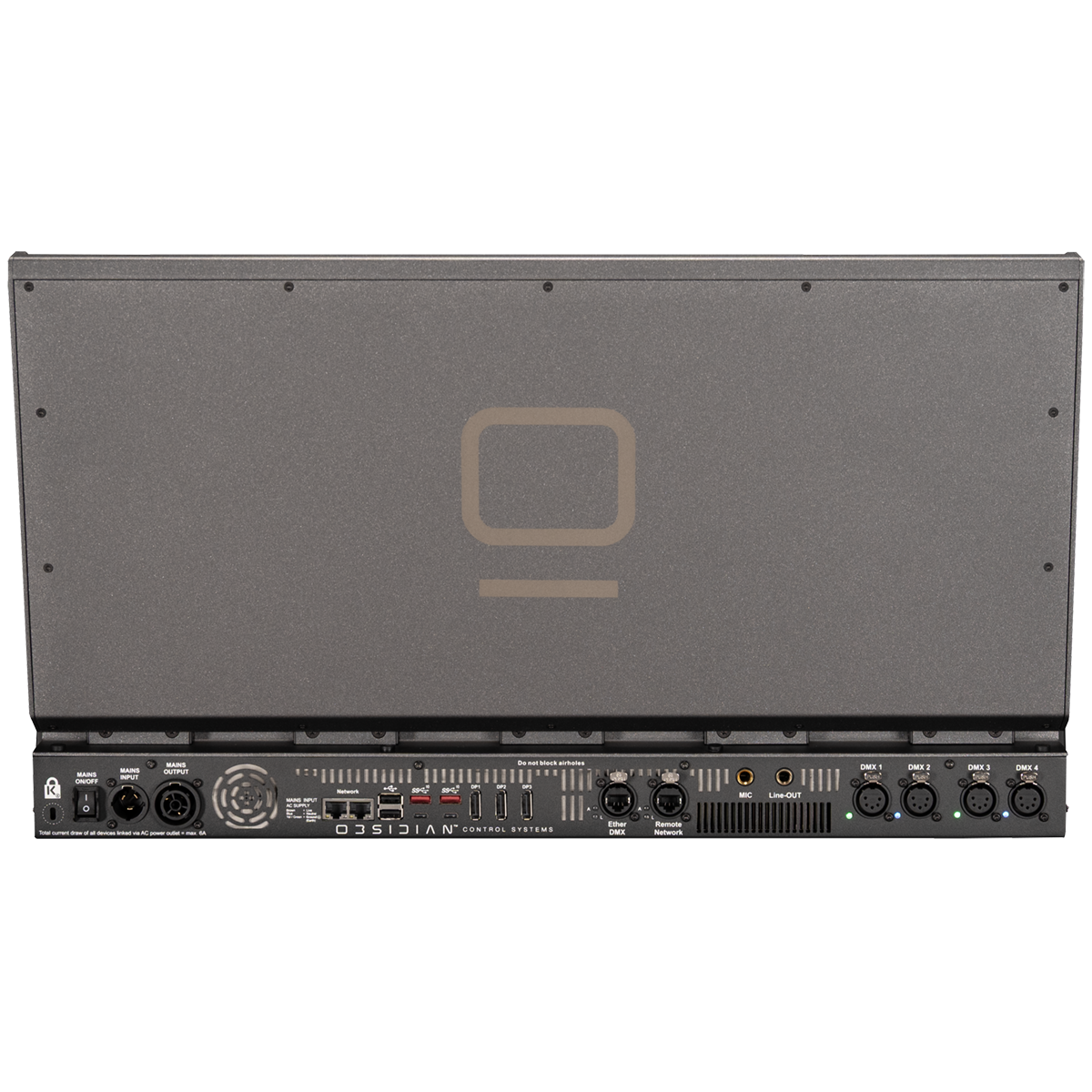

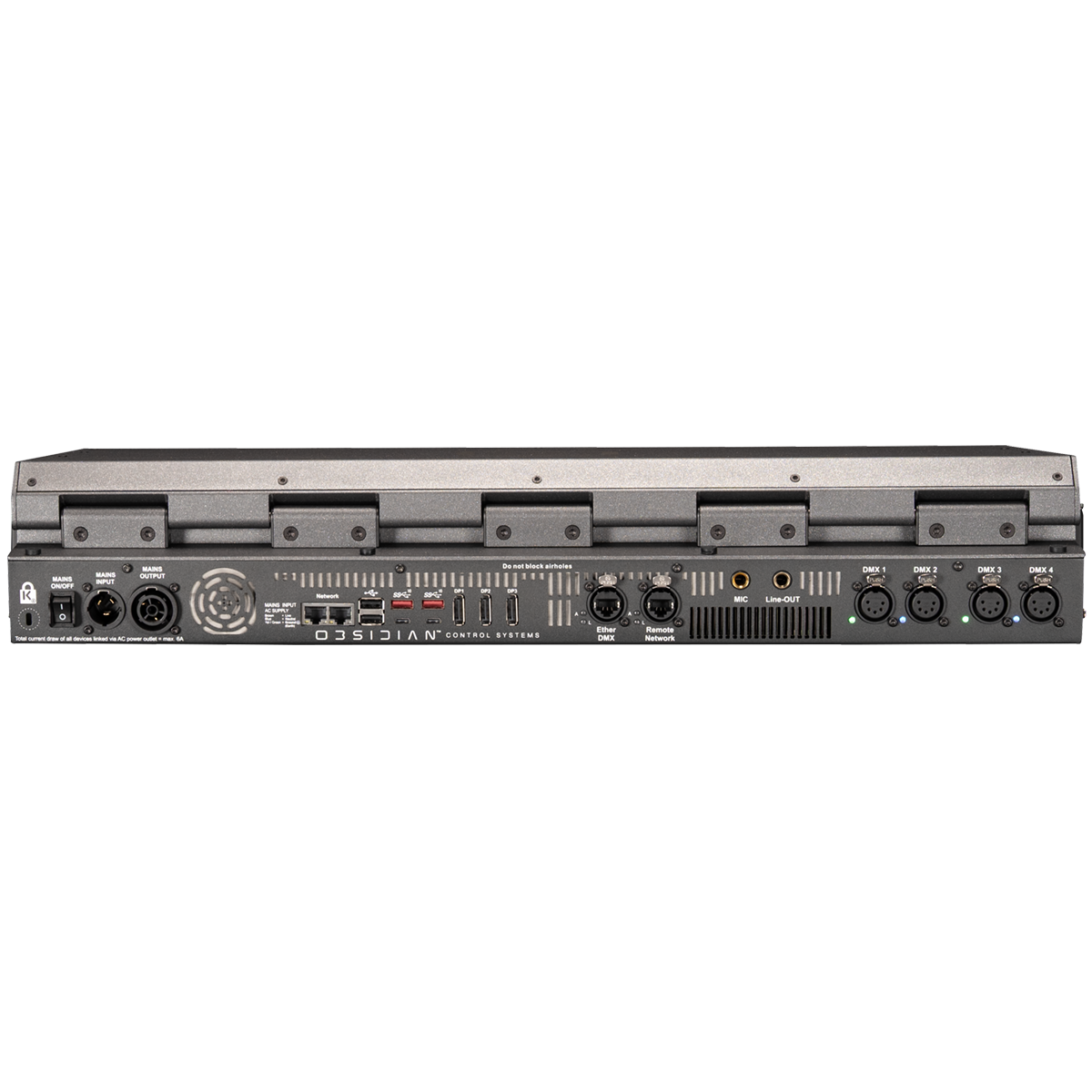

Connections
Power:
- Locking Power input w/ passthrough
Network:
- 4x Network Ports
- 2x 2.5GB RJ45
- 2x 1GB Locking RJ45
USB:
- 7x USB Ports
- 4x USB Type A
- 2x USB2.0
- 2x USB3.1 (10GB)
- 3x USB Type C
- 2x USB4 (w/ display support)
- 1x USB3.0 (Front Panel)
External Display:
- 3x DisplayPort
Audio:
- 2x 1/4" (6.35mm) Audio Port
- Input
- Timecode
- Audio Input Processor Source
- Output
- Audio Processor Monitoring
DMX:
- 4x DMX 5-Pin locking XLR
- DMX512 Output
- DMX512 Input
- RDM
MISC:
- 2x LED Desk lamp 4-Pin Locking XLR Port
Processing
Licensing:
- Embedded 64 Universe Onyx License
- 5 DYLOS Zones
- ONYX OS
- Timecode
- OSC
- MIDI
Processing:
- Universes: 64
- Channels: 32,768
- Fixtures: 32,768
Protocols:
- Onyx X-NET
- DMX512
- RDM
- sACN
- Art-Net
- OSC
- Telnet
- CITP
- NDI®

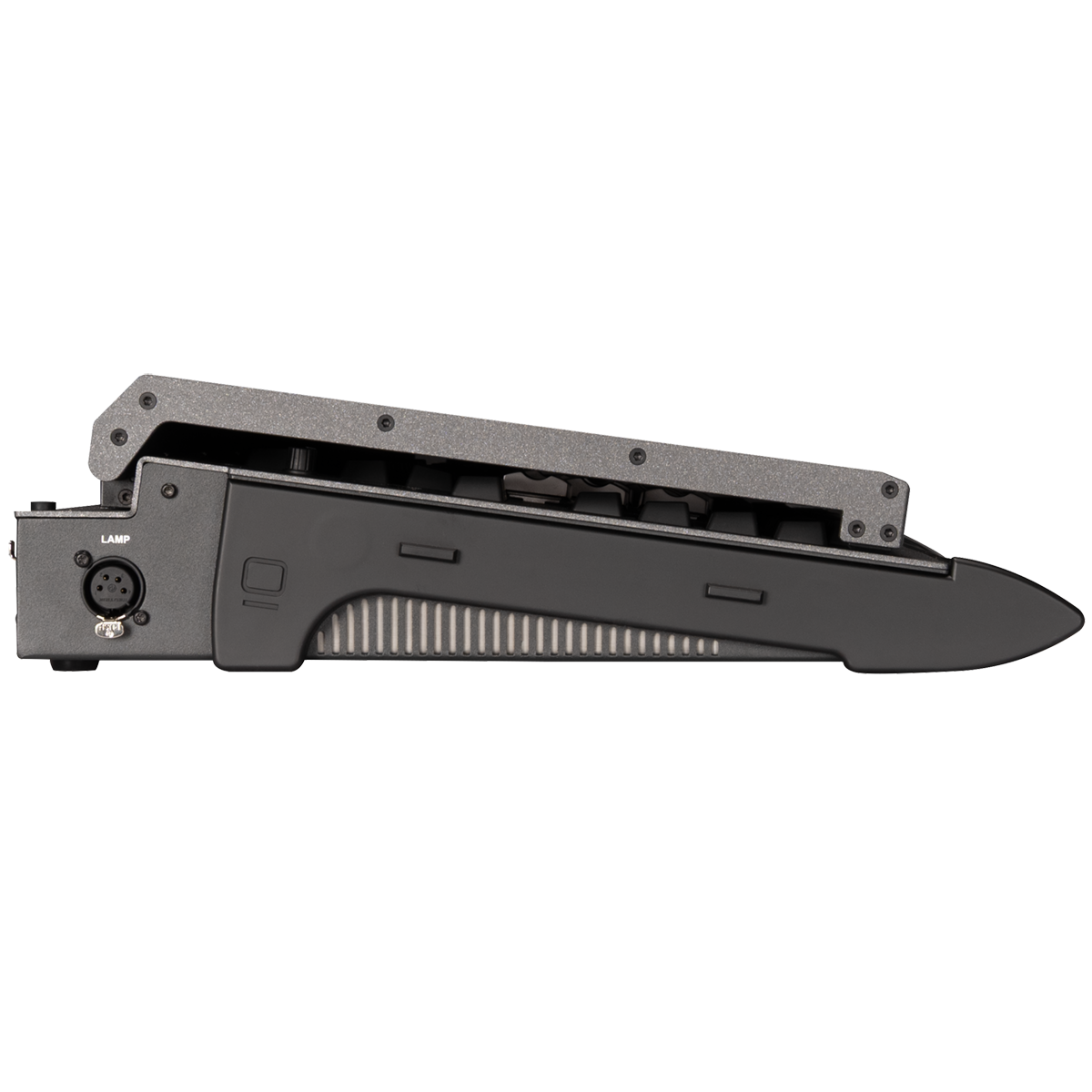

Physical
Physical:
- Depth: 14.5" (367mm)
- Width: 24.8" (630mm)

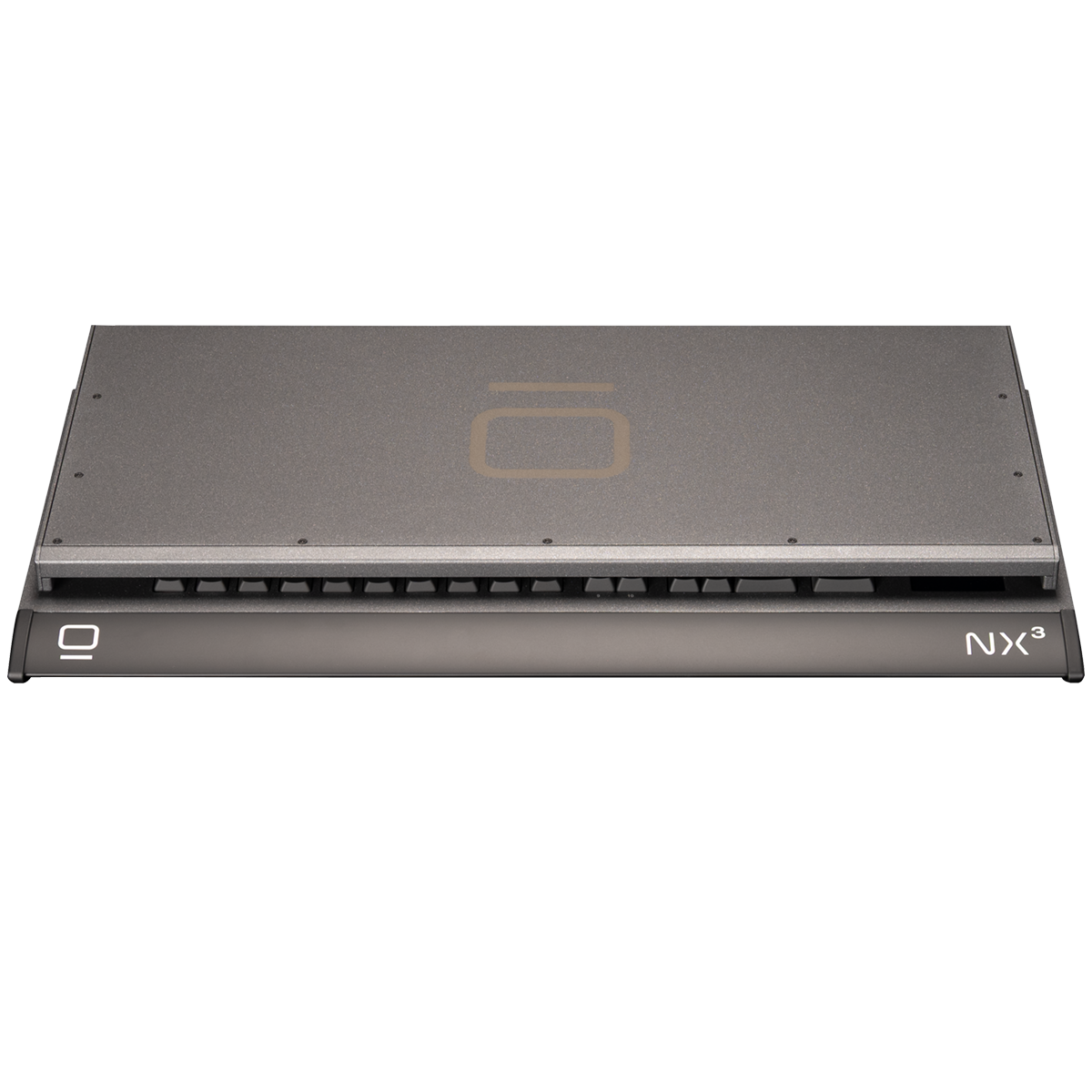

- Height:
- Closed: 4.0" (10.2mm)
- Open: 13.6" (35mm)
- Weight:30.4lb (13.8kg)
Electrical:
- Input Voltage Range: 100-240v nominal
- Frequency: 50/60Hz
- Max Power Draw: TBD
Ordering
SKU:
- US: NX3064
- EU: Pending
Included Items:
- ONYX NX3 Console

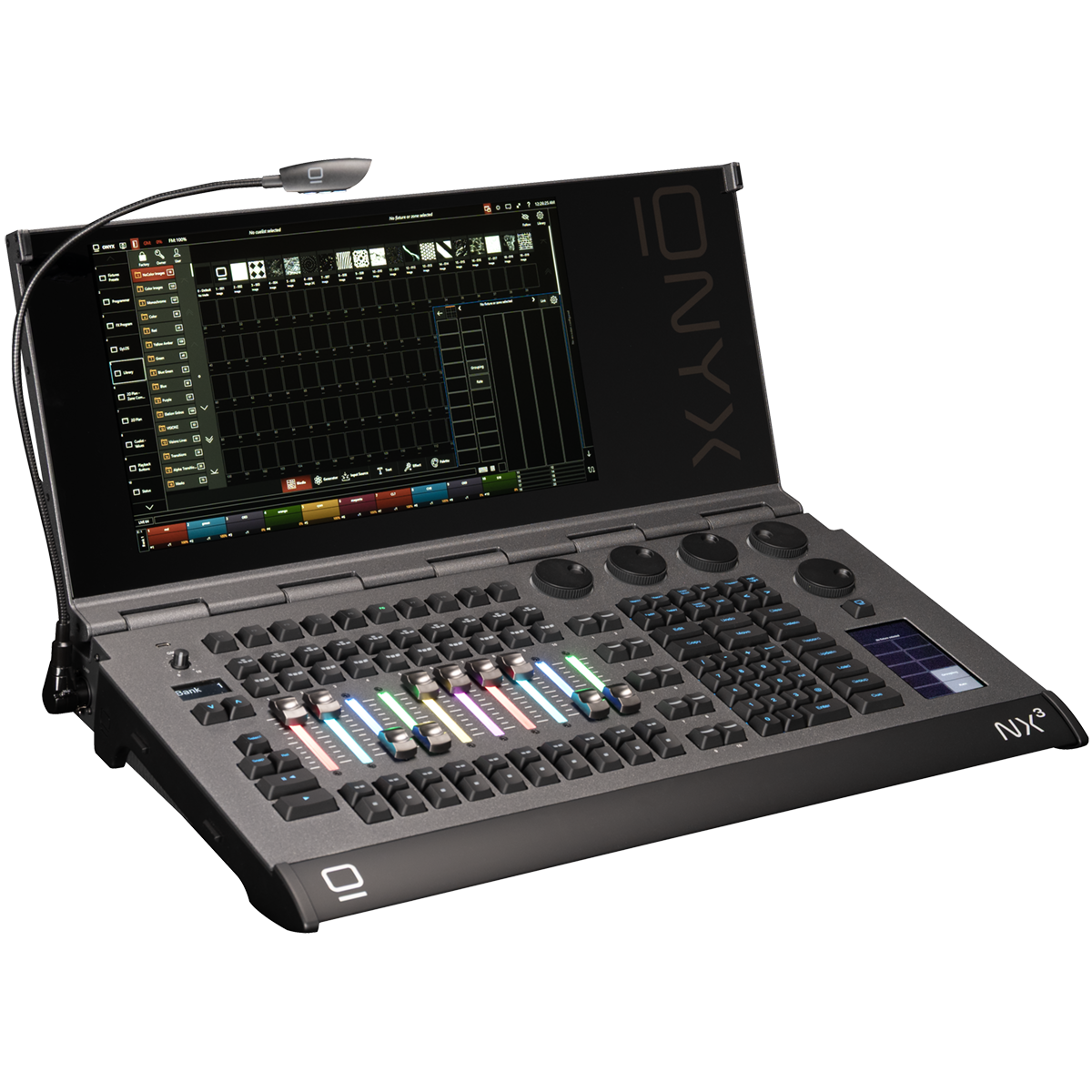

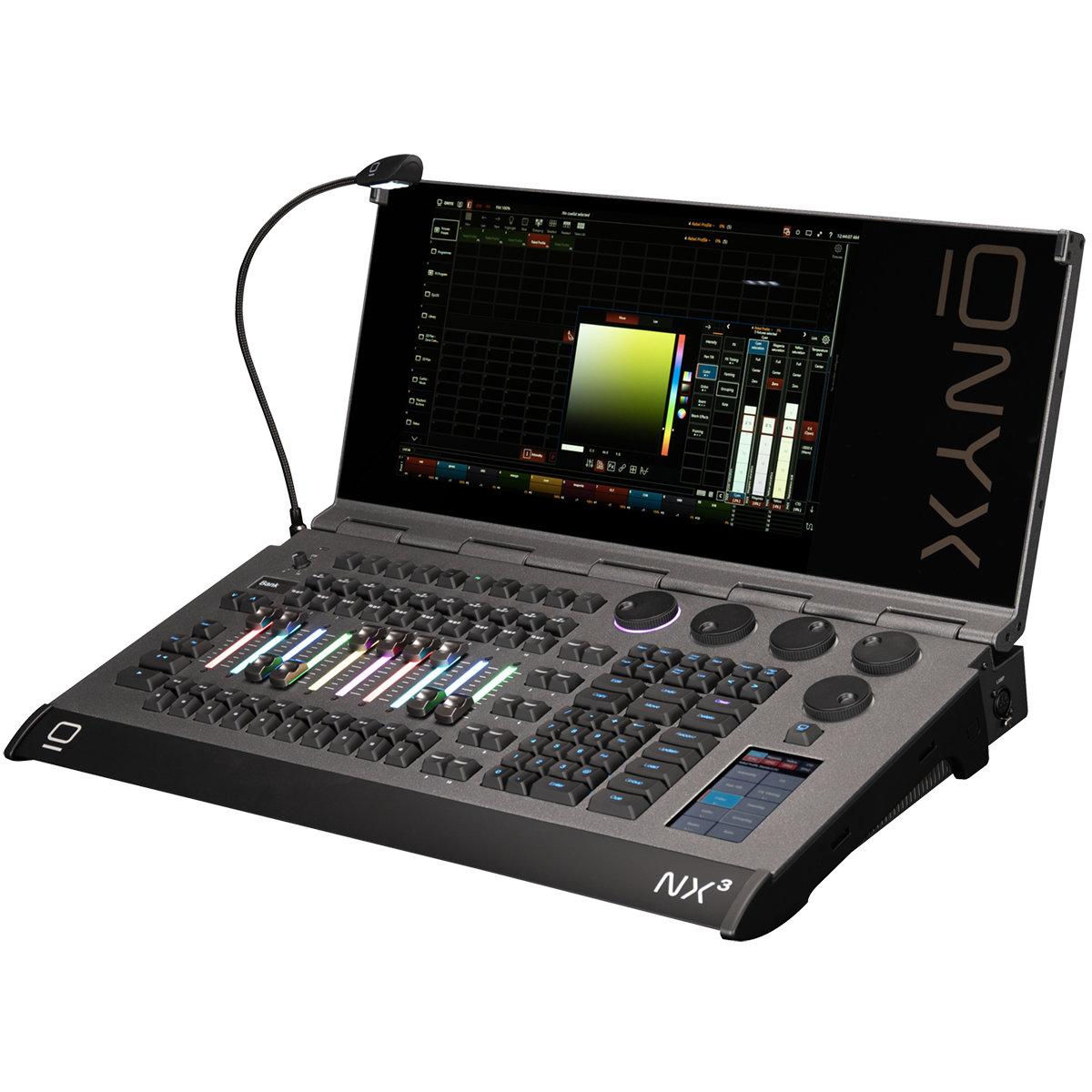

- Removable LED Desk Light w/ RGB

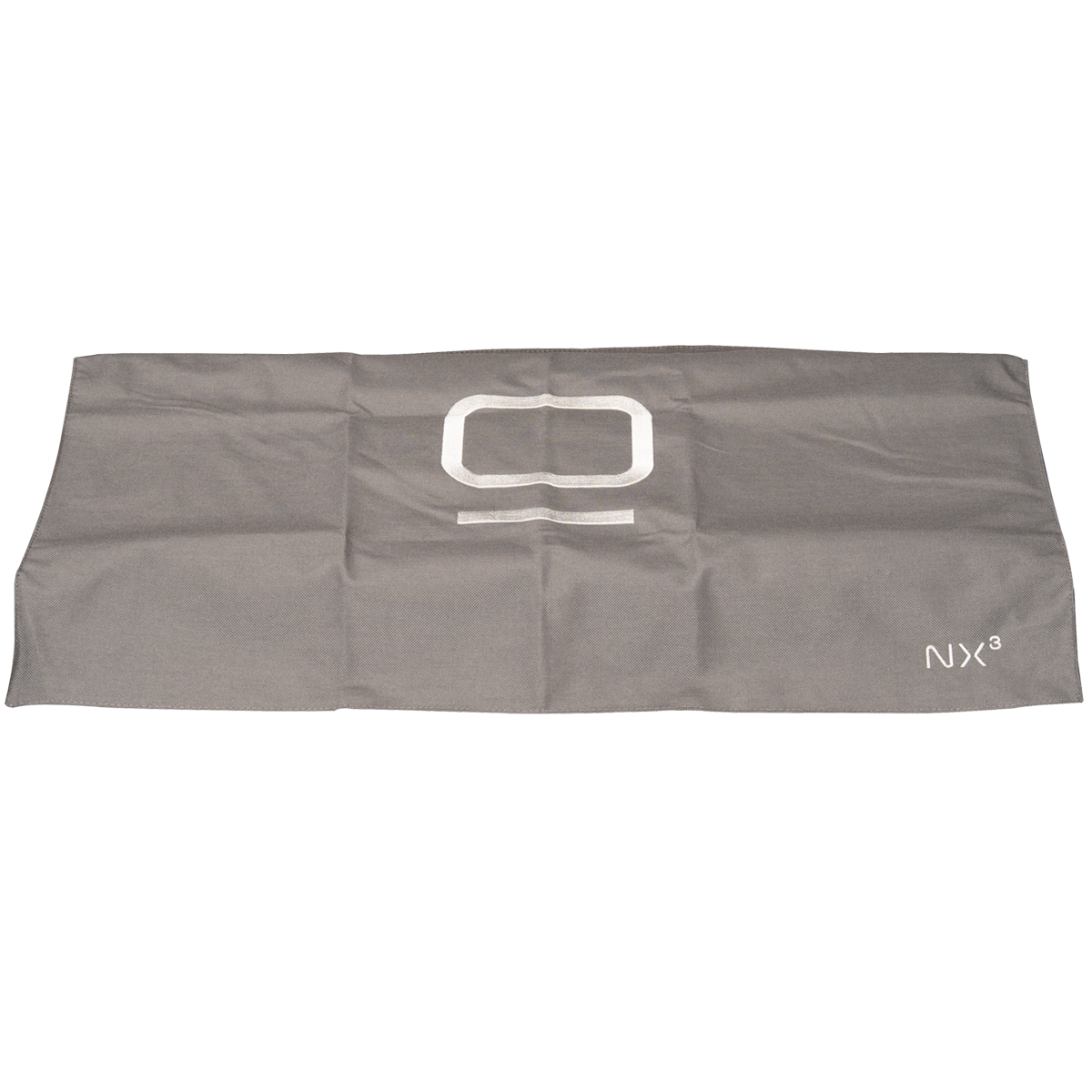

- Dust Cover
- 5ft (1.5m) power cable (US or EU version)
- USB Recovery Stick
