NETRON Test Tiles
Obsidian Control Systems have developed the NETRON RGB Test Tile and NETRON RDM Test Tile.
NETRON Test Tiles are designed for use only in laboratory or workshop environments. They should not be operated without supervision by qualified personnel. As a result, this device has no safety certifications and is for research and development purposes only.
NETRON Test Tiles

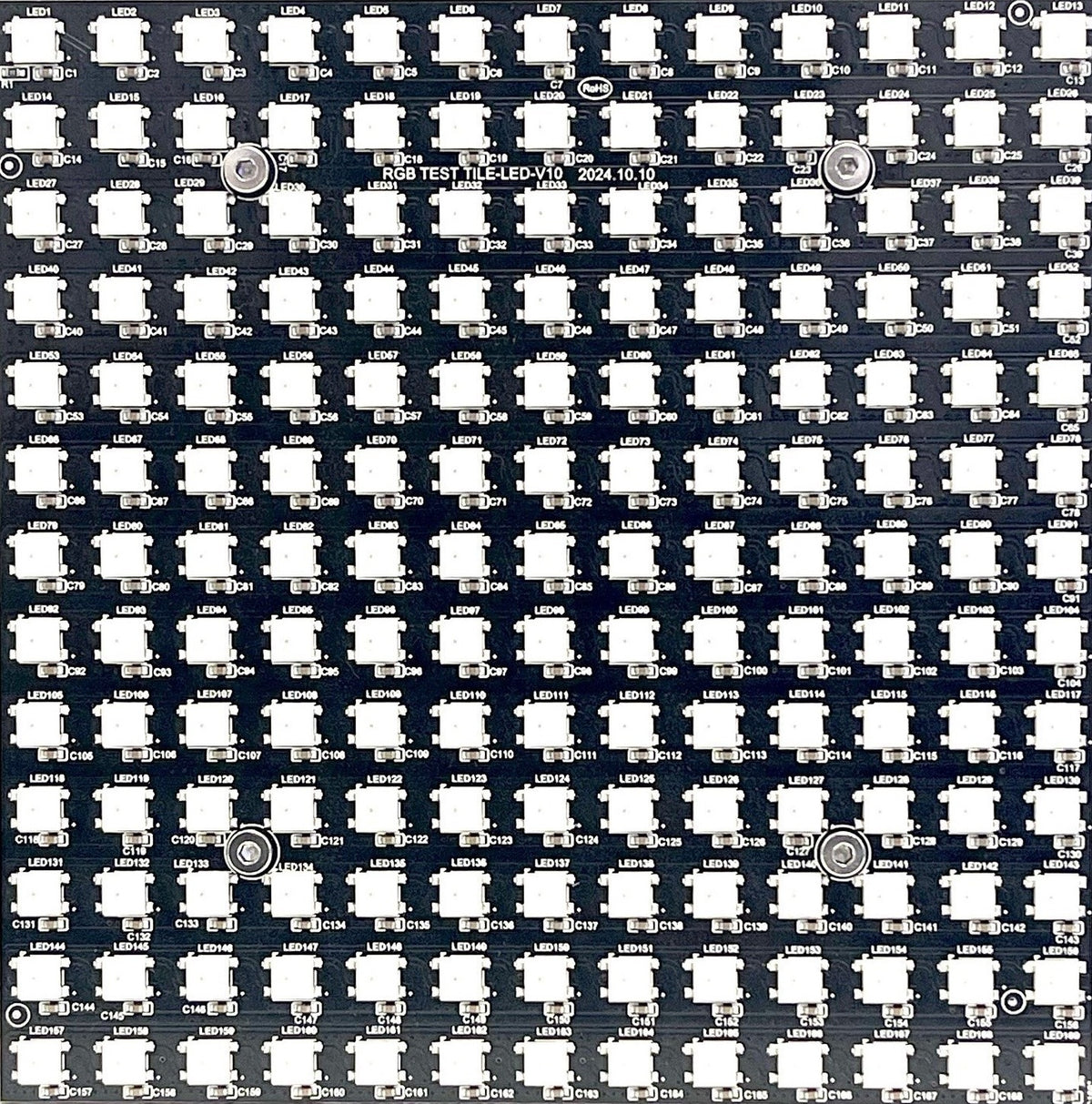

NETRON RGB Test Tile
The tile is divided into 169 RGB LEDs in a 13x13 grid, for a maximum of 169 RGB pixels in one link.

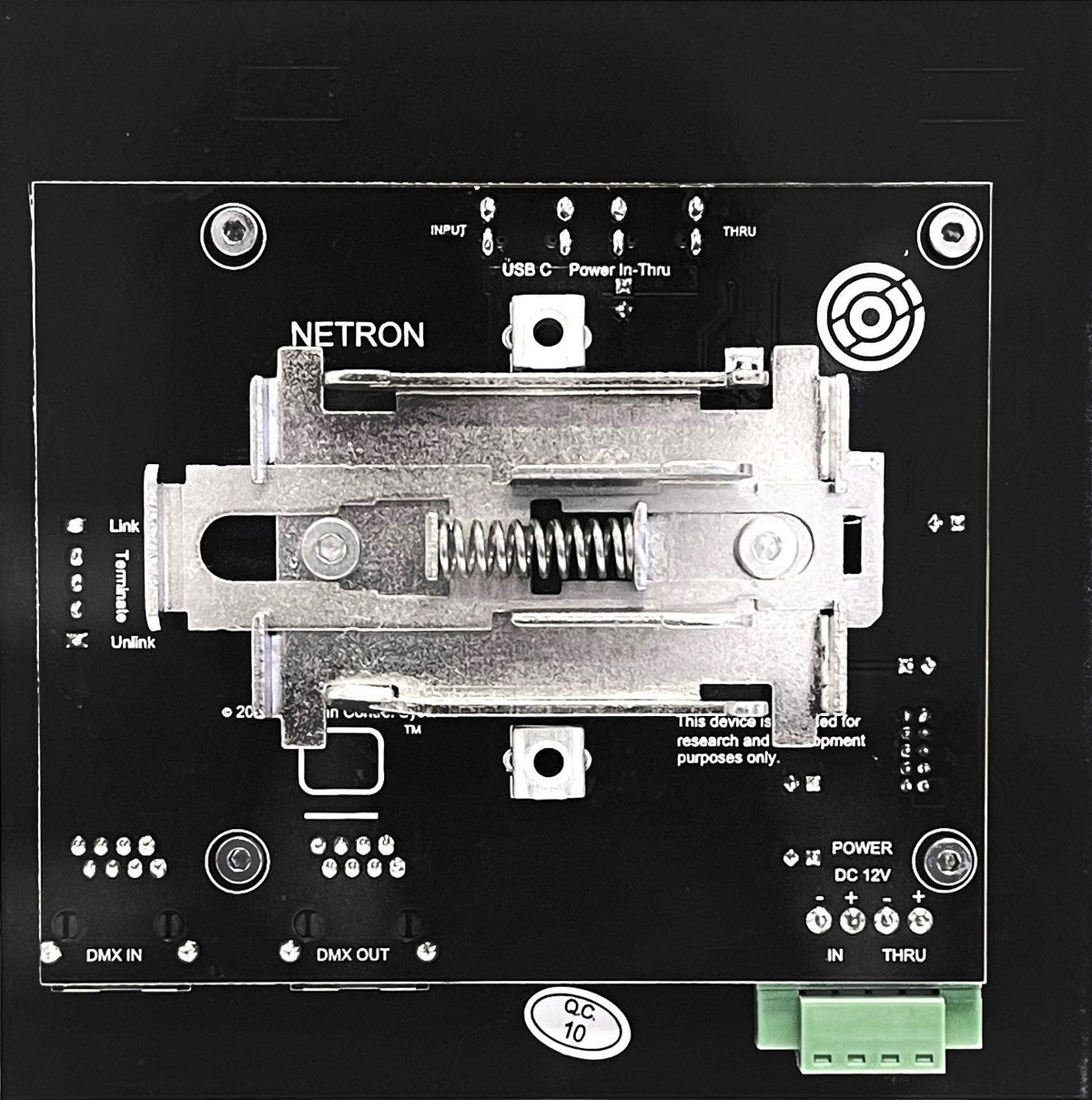

Power by USB-C allows simple linking with the included USB jumper cable. Alternatively, 12V DC power can be connected with the Phoenix connector.

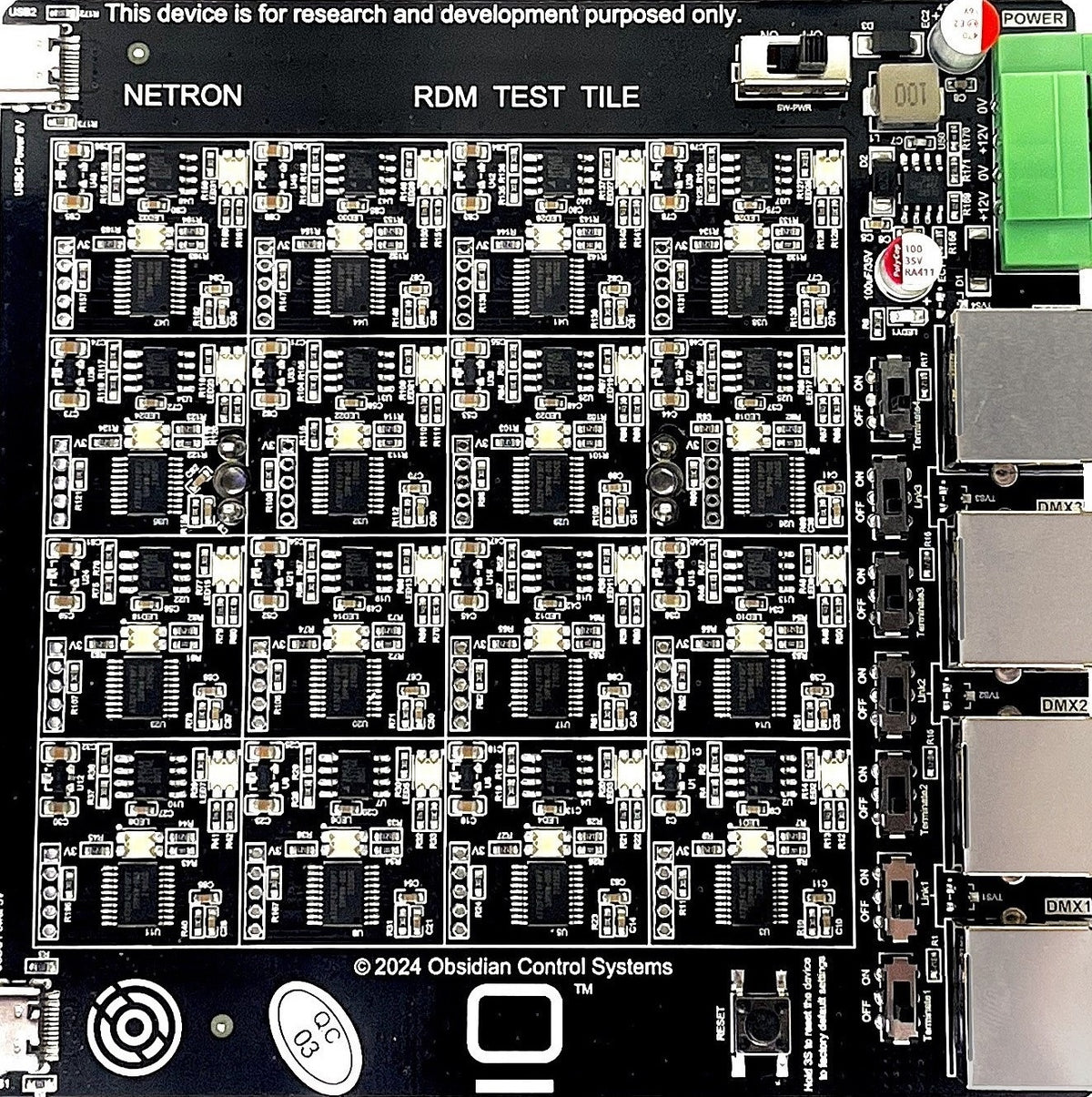

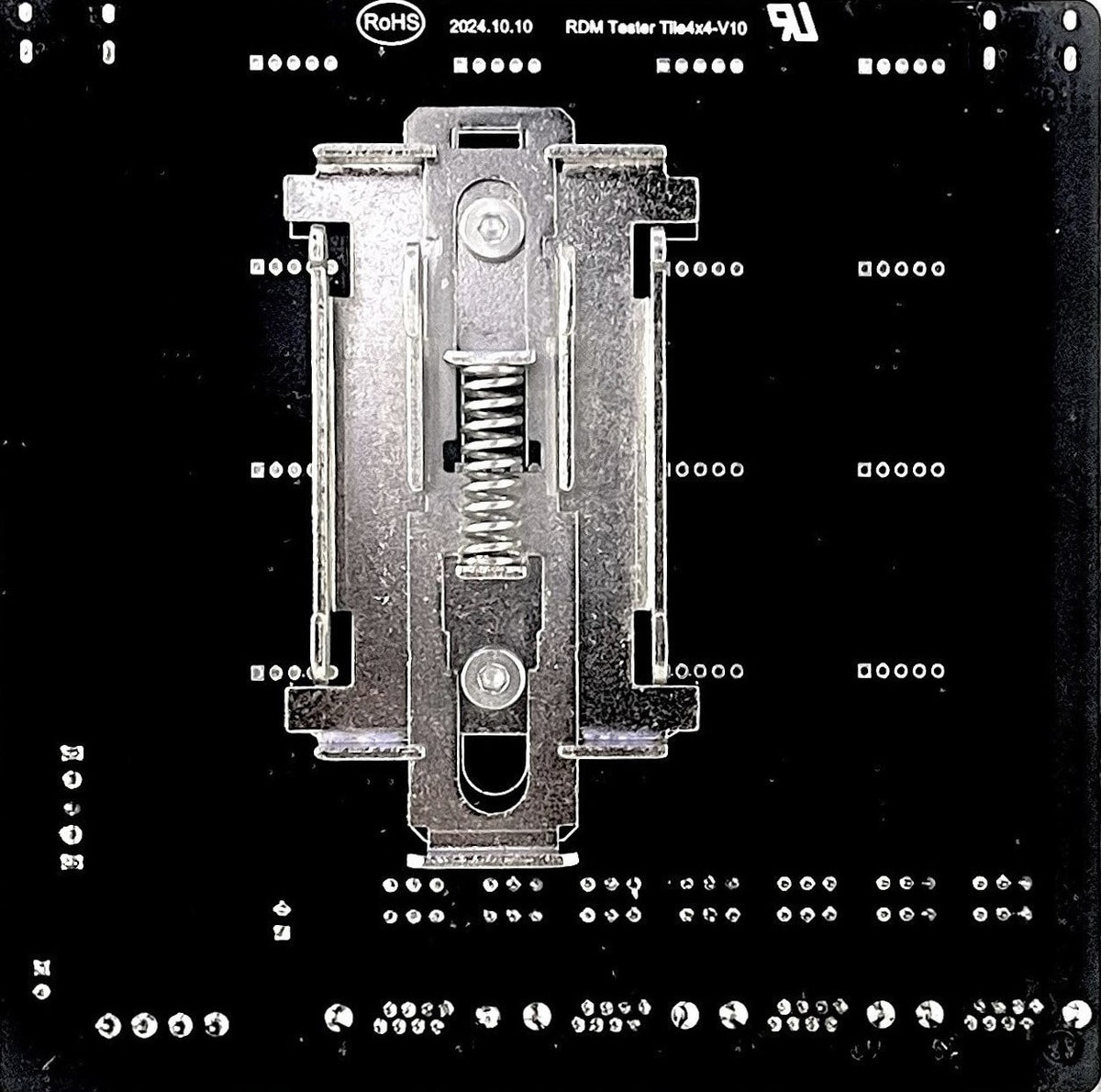

NETRON RDM Test Tile
The tile is divided into 4 rows of 4 RDM devices. Each row has RJ45 DMX In, and the next row can be linked with a switch or terminated with a 120 Ohm resistor. This allows the tile to have a maximum of 16 RDM devices in one link. Every device is represented by an RGB LED to emulate a fixture and a small LED for DMX and RDM traffic indication.
Power by USB-C allows simple linking with the included USB jumper cable. Alternatively, 12V DC power can be connected with the Phoenix connector.
A power switch allows a power cycle for test purposes or when not in use. The RESET button sets the tile back to factory default RDM labels and RGB DMX Mode.
Specifications
| NETRON RDM Test Tile US | CPQT398 |
| NETRON RGB Test Tile US | CPQT399 |
| NETRON RDM Test Tile EU | 9900027364 |
| NETRON RGB Test Tile EU | 9900027365 |
Downloads
| Filename | Document type | File type |
|---|---|---|
| NETRON RDM Test Tile | User Guide | |
| NETRON RGB Test Tile | User Guide |
