EP4
The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.
EP4
Sale price$0.00
EP4
The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

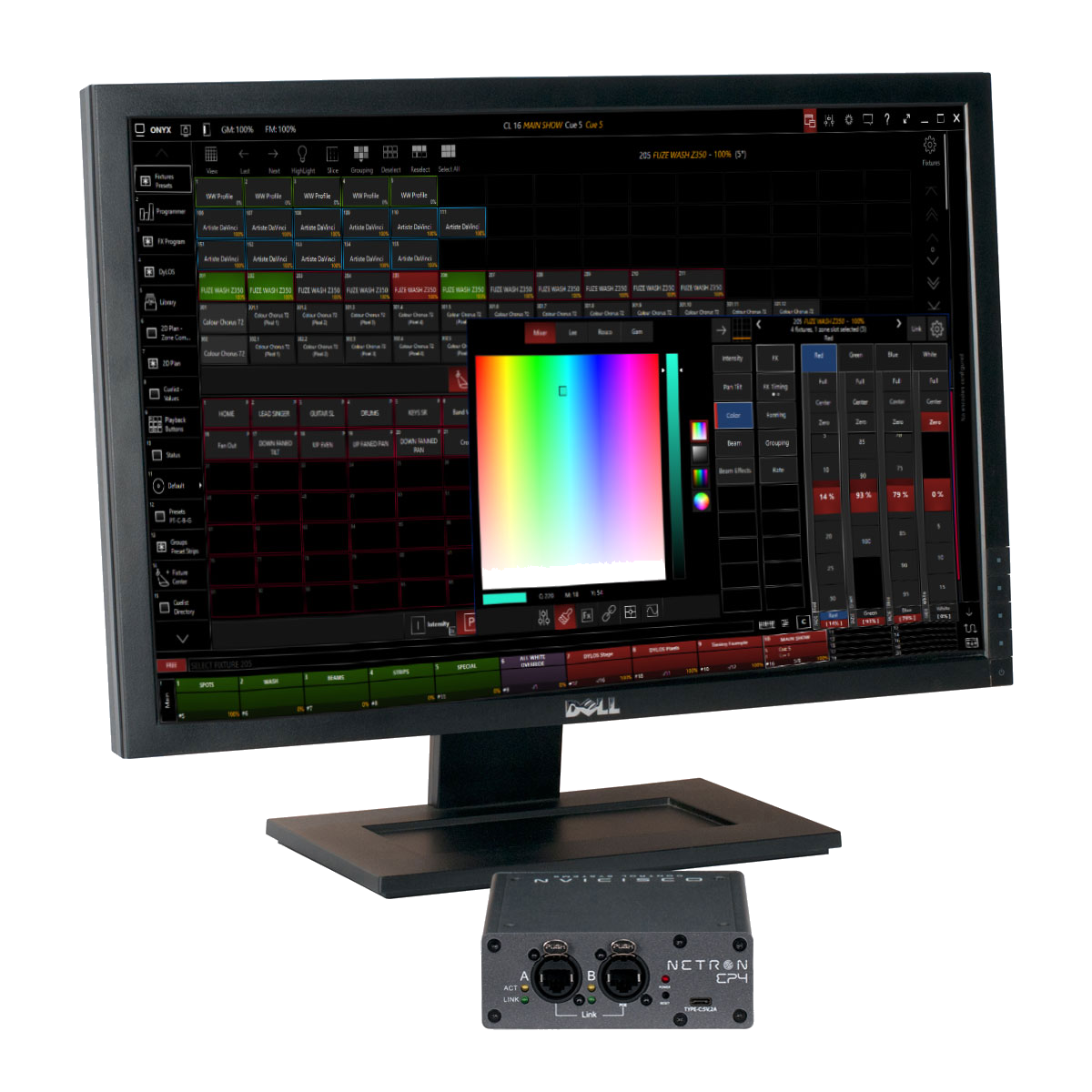

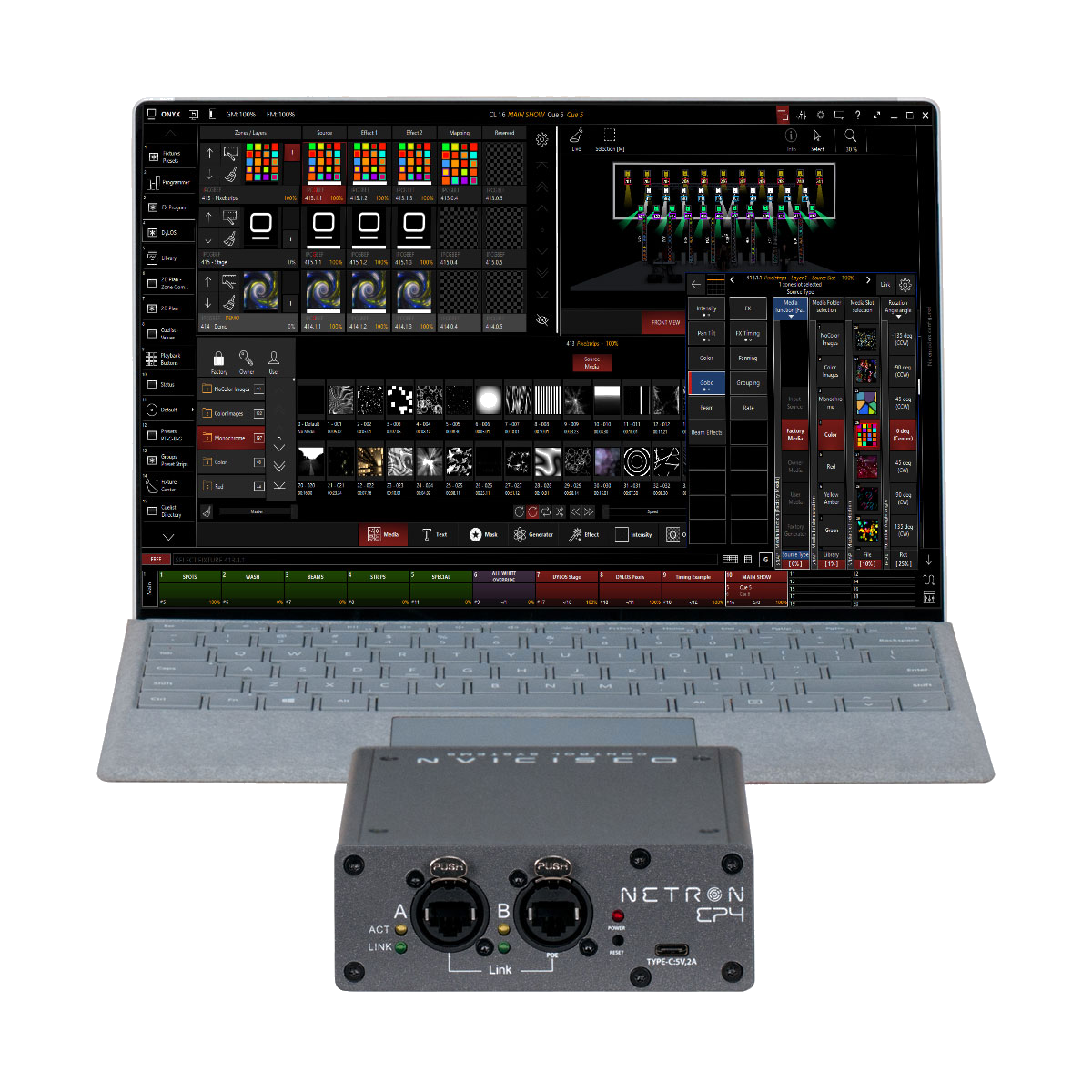

As a four Universe Node the EP4 is ideally suited for the powerful ONYX NOVA Edition.
- RDM, Art-Net and sACN support
- Factory and user presets for plug and play setups
- PoE or USB-C powered
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated compact aluminum housing
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting
- Standalone

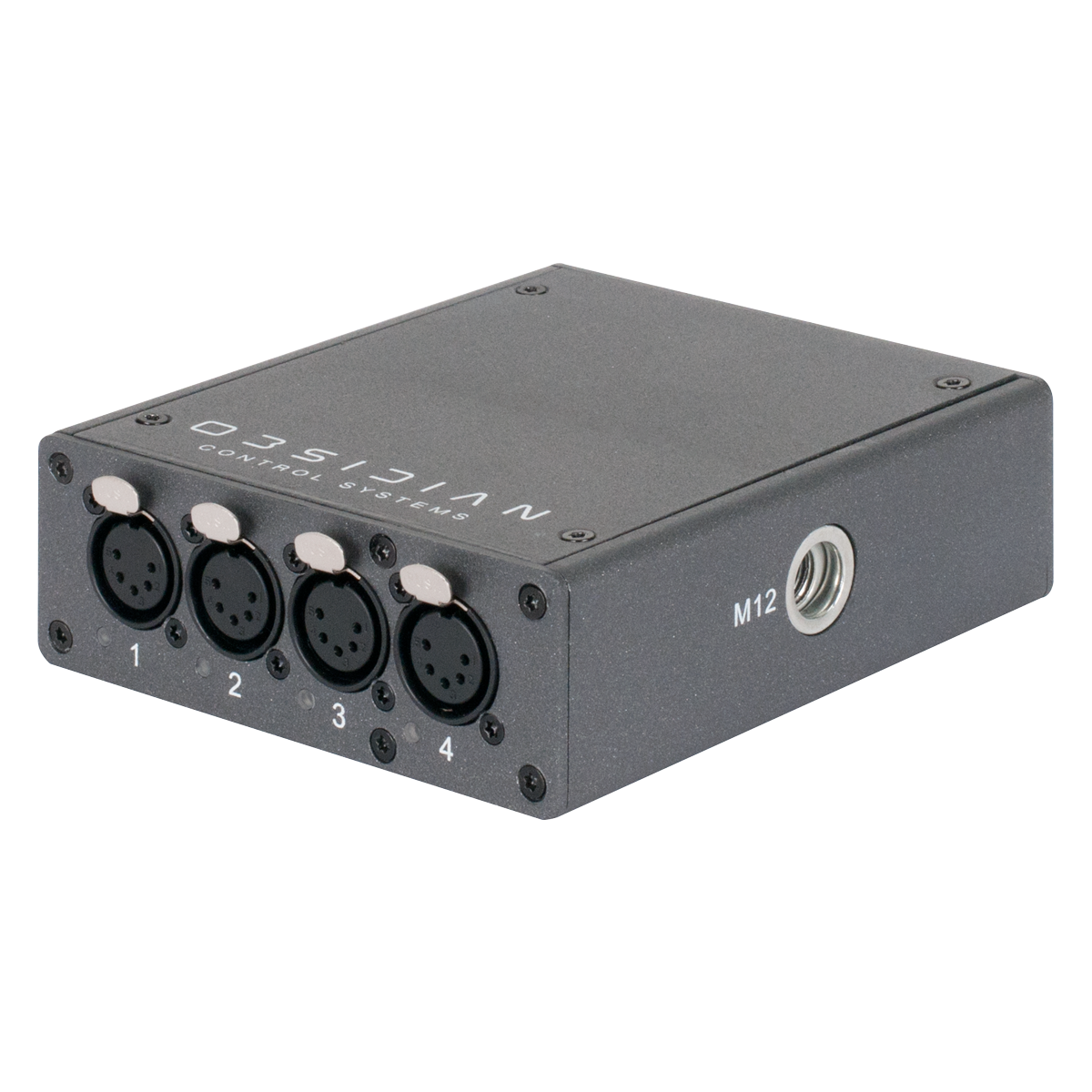

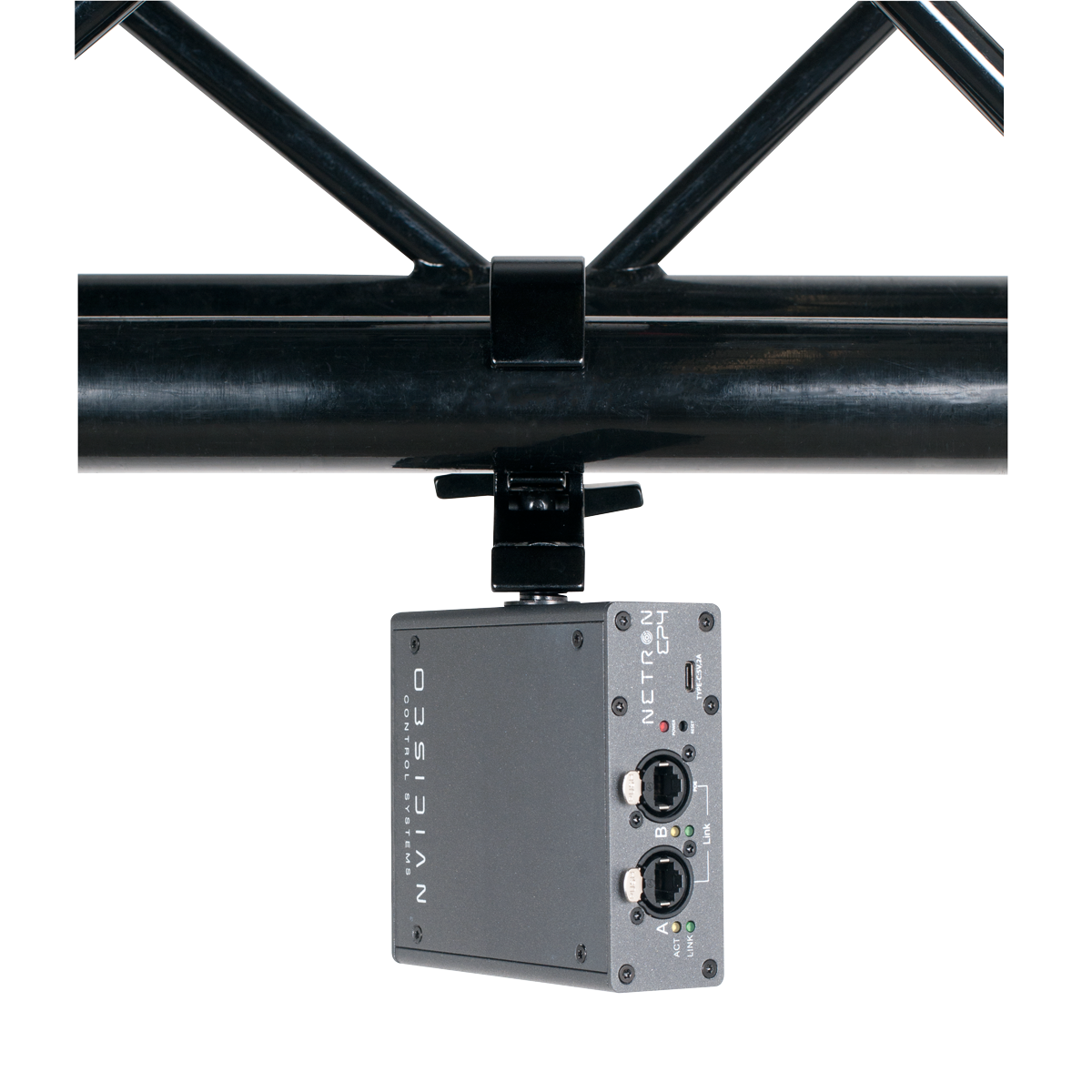

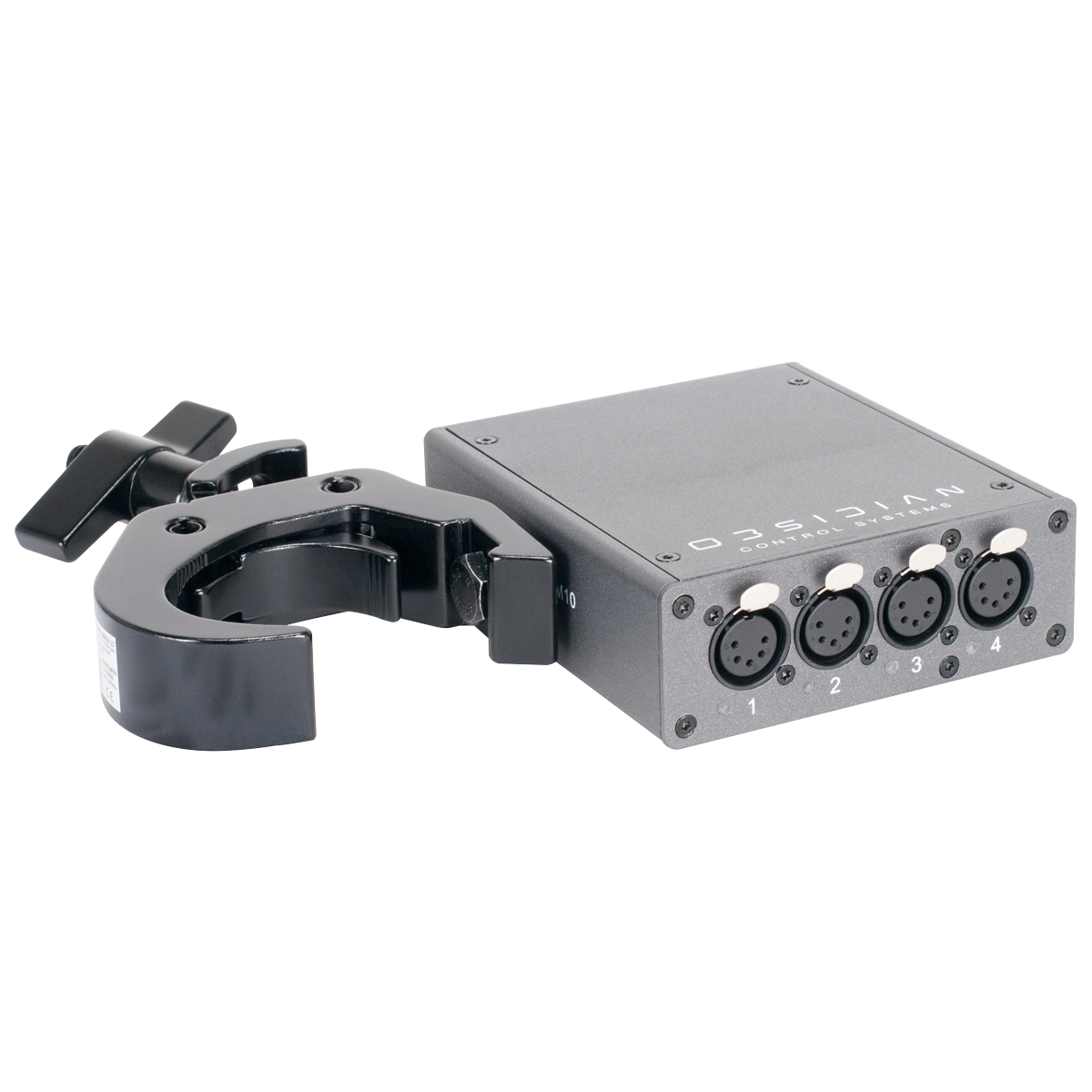

- Truss-mount (M10 or M12 mounting hole)

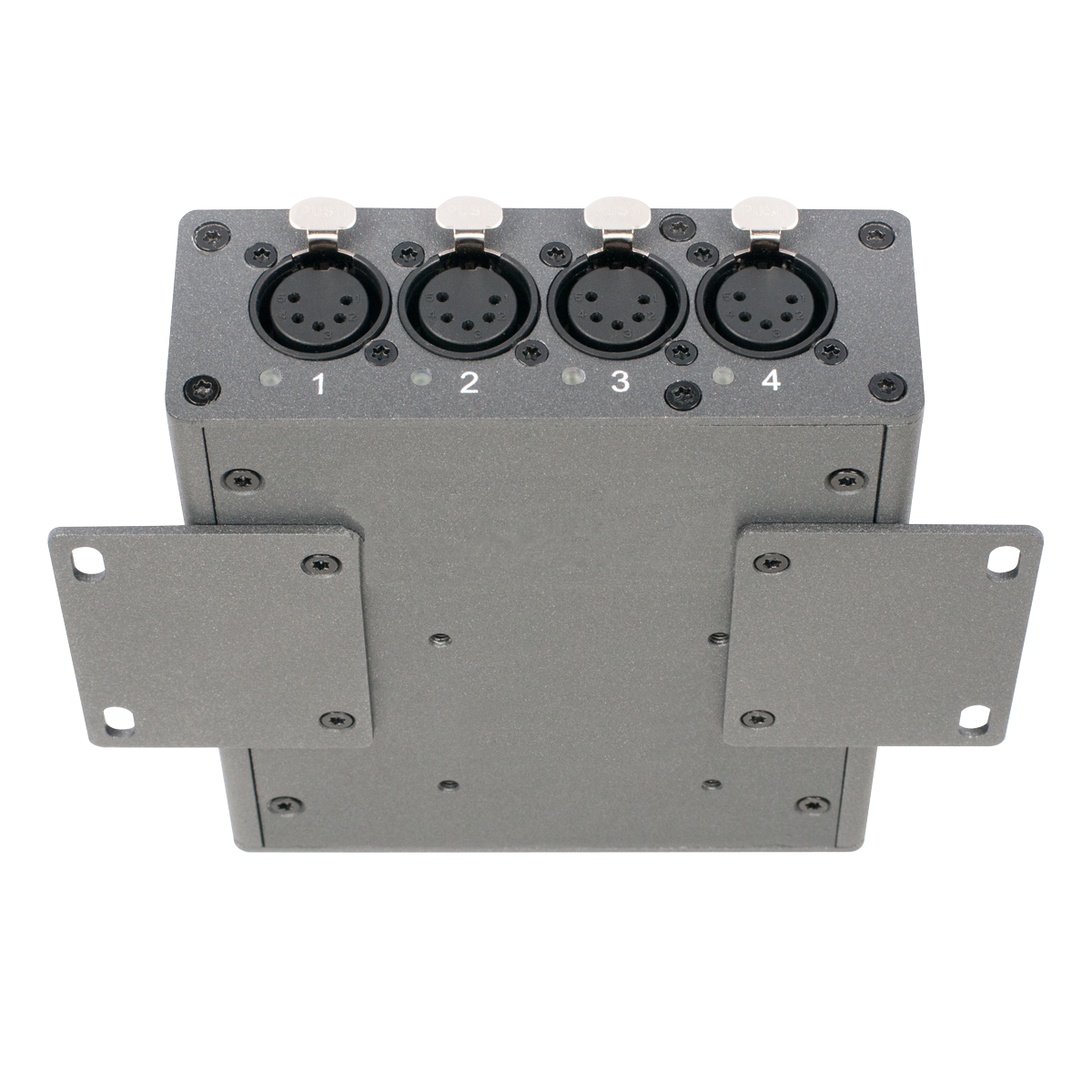

- Wall-mount horizontal or vertical (included)

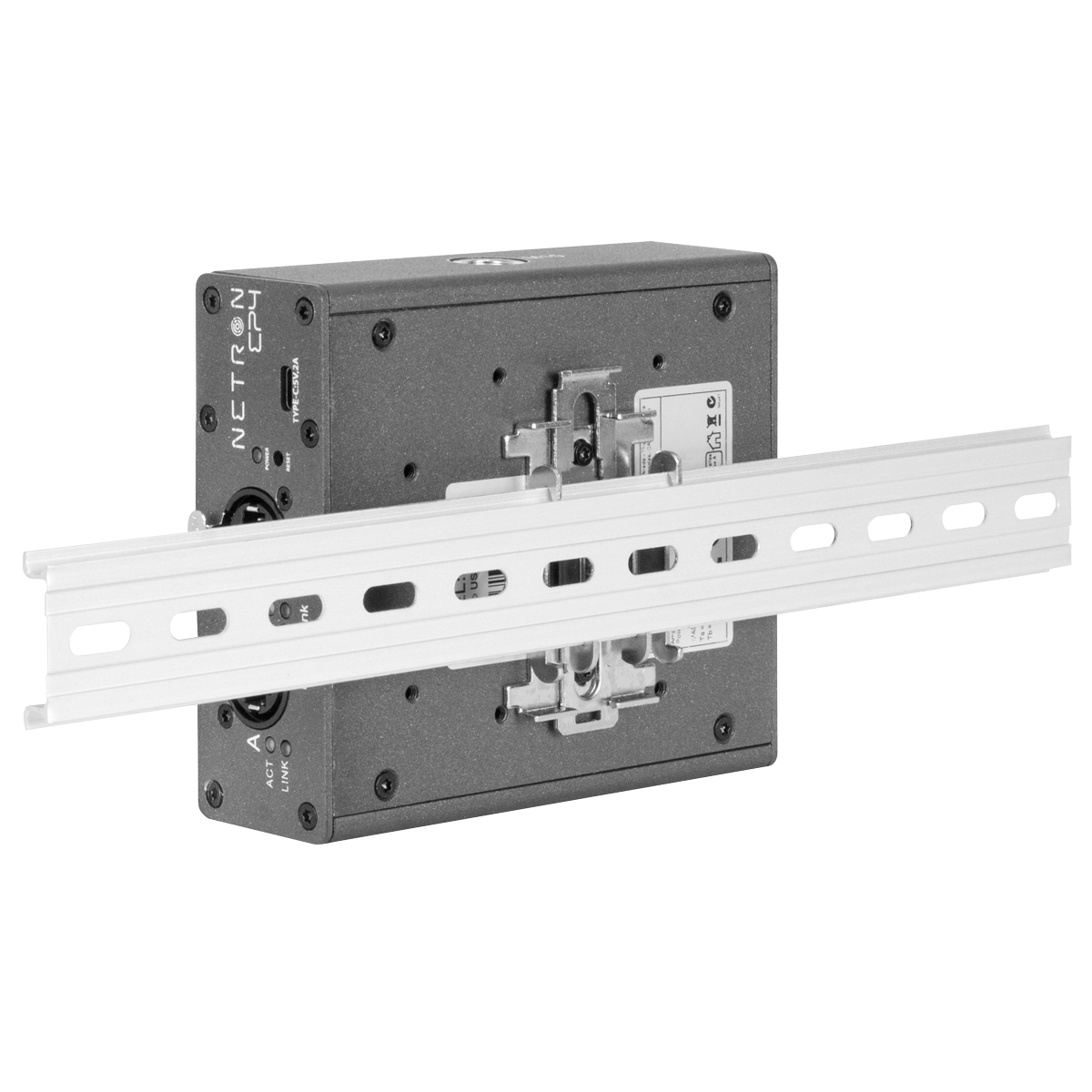

- DIN Rail horizontal or vertical (included)
Connections

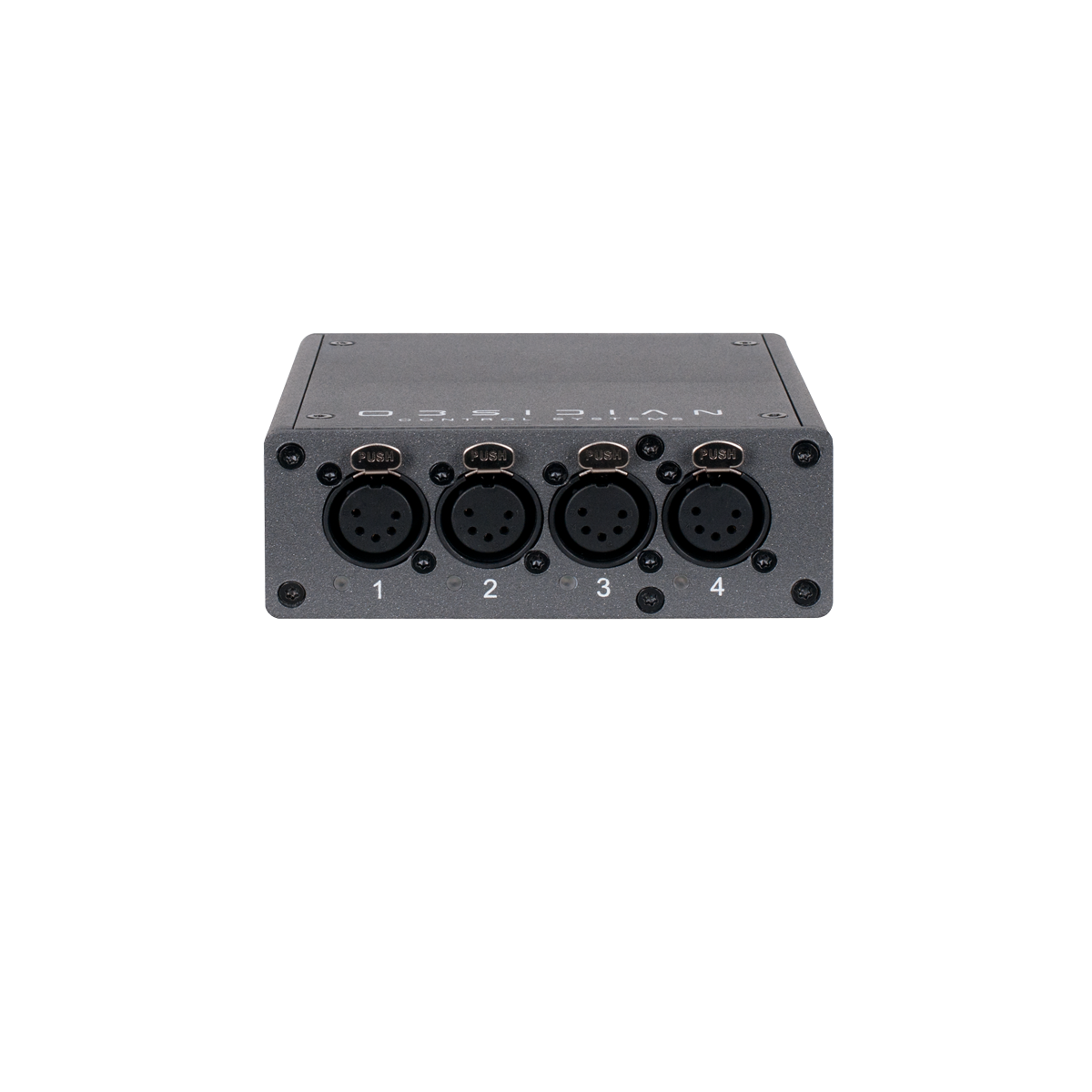

- (4) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output

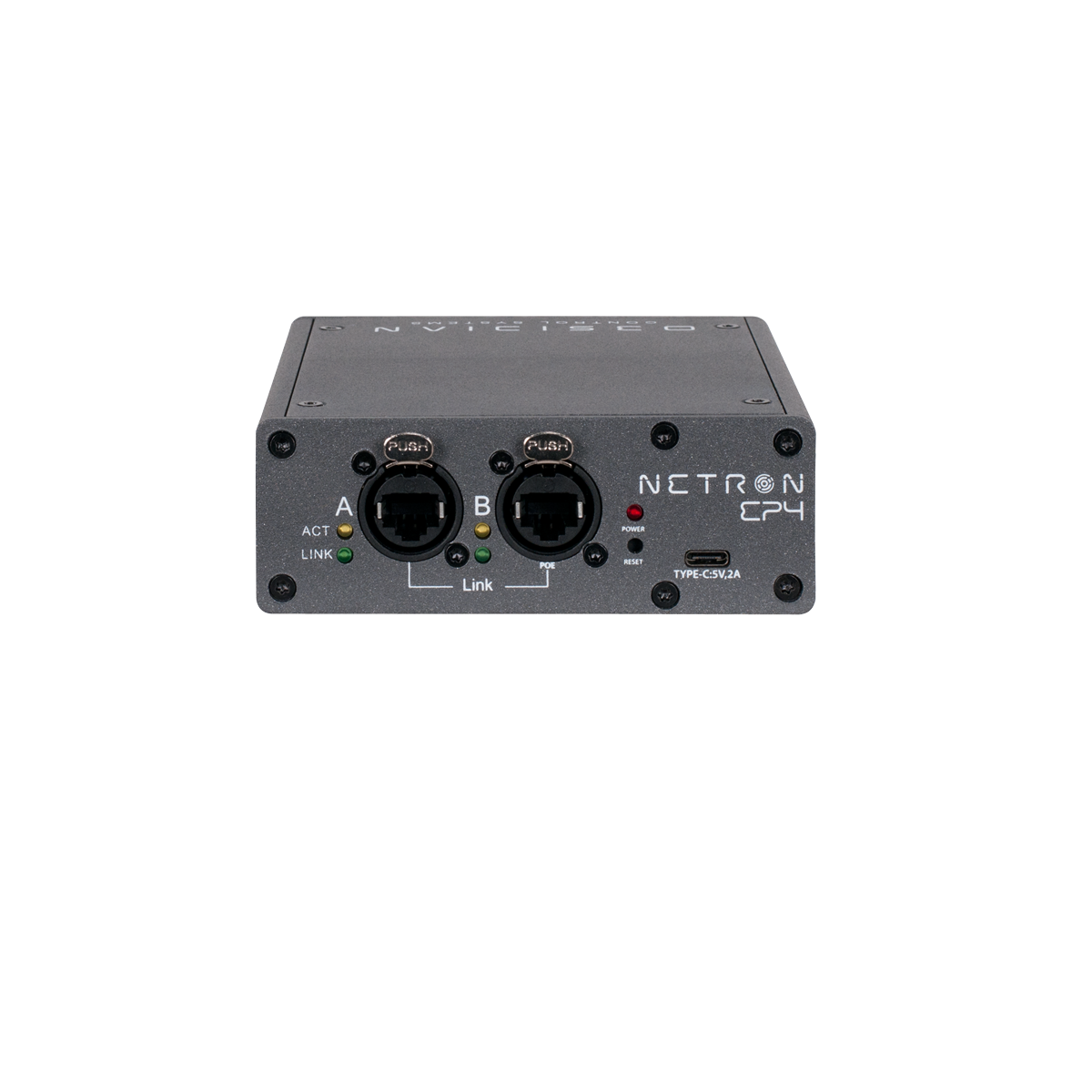

- (2) Locking RJ45 Ethernet network connections (1x POE)
- USB-C power option (5V, 2A)
Specifications
- Length: 133.5 mm (5.3 in.)
- Width: 118 mm (4.6 in.)
- Height: 42 mm (1.65 in.)
- Weight: 0.5 kg (1.1 lbs)
- USB-C 5V
- POE 802.3af
- Power Consumption: 3.8W
- CE / IP20
Ordering
- Universal 5V/2A USB Power Adapter (UK, US, Europe, AUS connectors), 100-240V
- 1.5m Obsidian USB-C cable
- (2) Wallmount plates
- DIN-Rail clamp
- US #: NRE023
- EU #: 1330000064
- Standalone
- Truss-mount (M10 or M12 mounting hole)
- Wall-mount horizontal or vertical (included)
- DIN Rail horizontal or vertical (included)
- (4) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (2) Locking RJ45 Ethernet network connections (1x POE)
- USB-C power option (5V, 2A)
- Length: 133.5 mm (5.3 in.)
- Width: 118 mm (4.6 in.)
- Height: 42 mm (1.65 in.)
- Weight: 0.5 kg (1.1 lbs)
- USB-C 5V
- POE 802.3af
- Power Consumption: 3.8W
- CE / IP20
- Universal 5V/2A USB Power Adapter (UK, US, Europe, AUS connectors), 100-240V
- 1.5m Obsidian USB-C cable
- (2) Wallmount plates
- DIN-Rail clamp
- US #: NRE023
- EU #: 1330000064
Downloads
| Filename | Document type | File type |
|---|---|---|
| NETRON Catalog Vol. 1 2021 | Brochure | |
| NETRON Catalog Vol. 1 2022 | Brochure | |
| EN12-45 User Guide | User Manual | |
| NETRON EP4 3D | CAD Drawing | DWG |
| NETRON EP4 Installation Guide | Installation Guide | |
| NETRON Firmware V2.8.2 | Software | ZIP |
| NETRON Firmware V2.9.2 TXT | Software | TXT |
| NETRON Firmware V2.9.2 | Software | ZIP |
| NETRON Release Notes V2.8 | Software | TXT |
| NETRON Release Notes V2.9.4 | Software | TXT |
| NETRON Version 2.9.4 | Software | ZIP |
| EP4 - Specification Sheet | Specification Sheet |
