EP2

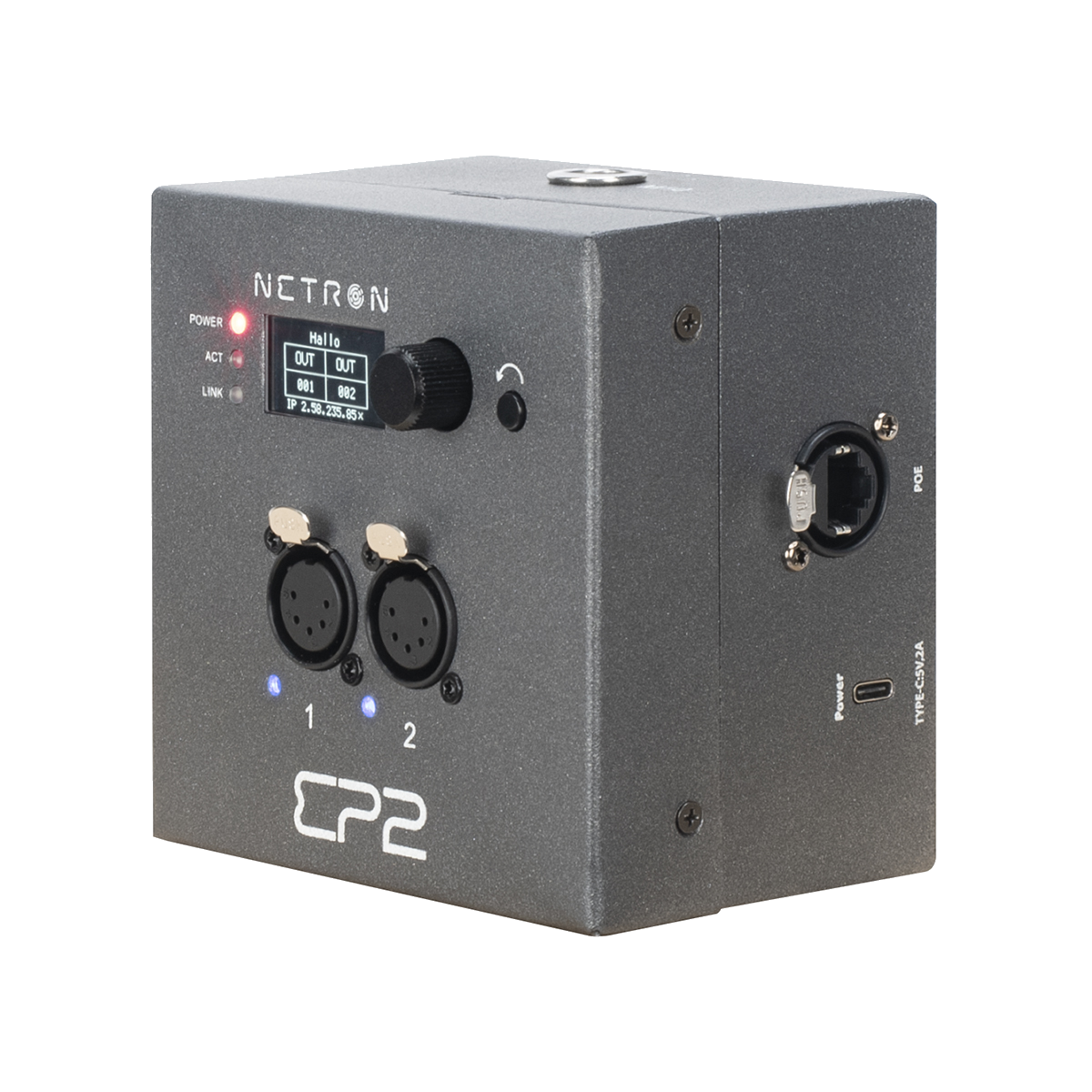

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.
It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.
EP2
Sale price$0.00
EP2
The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.
It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setups
- POE or USB-C powered

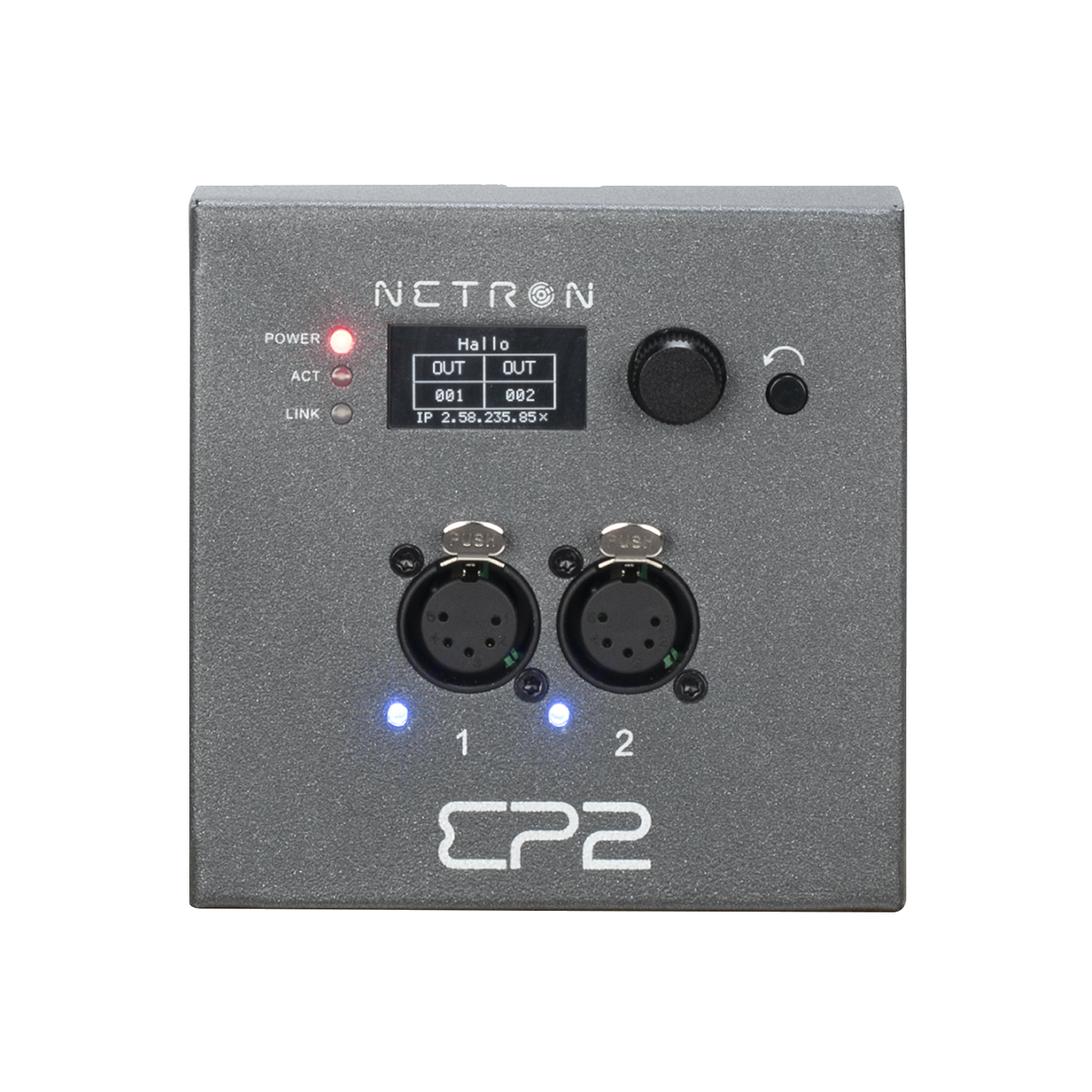

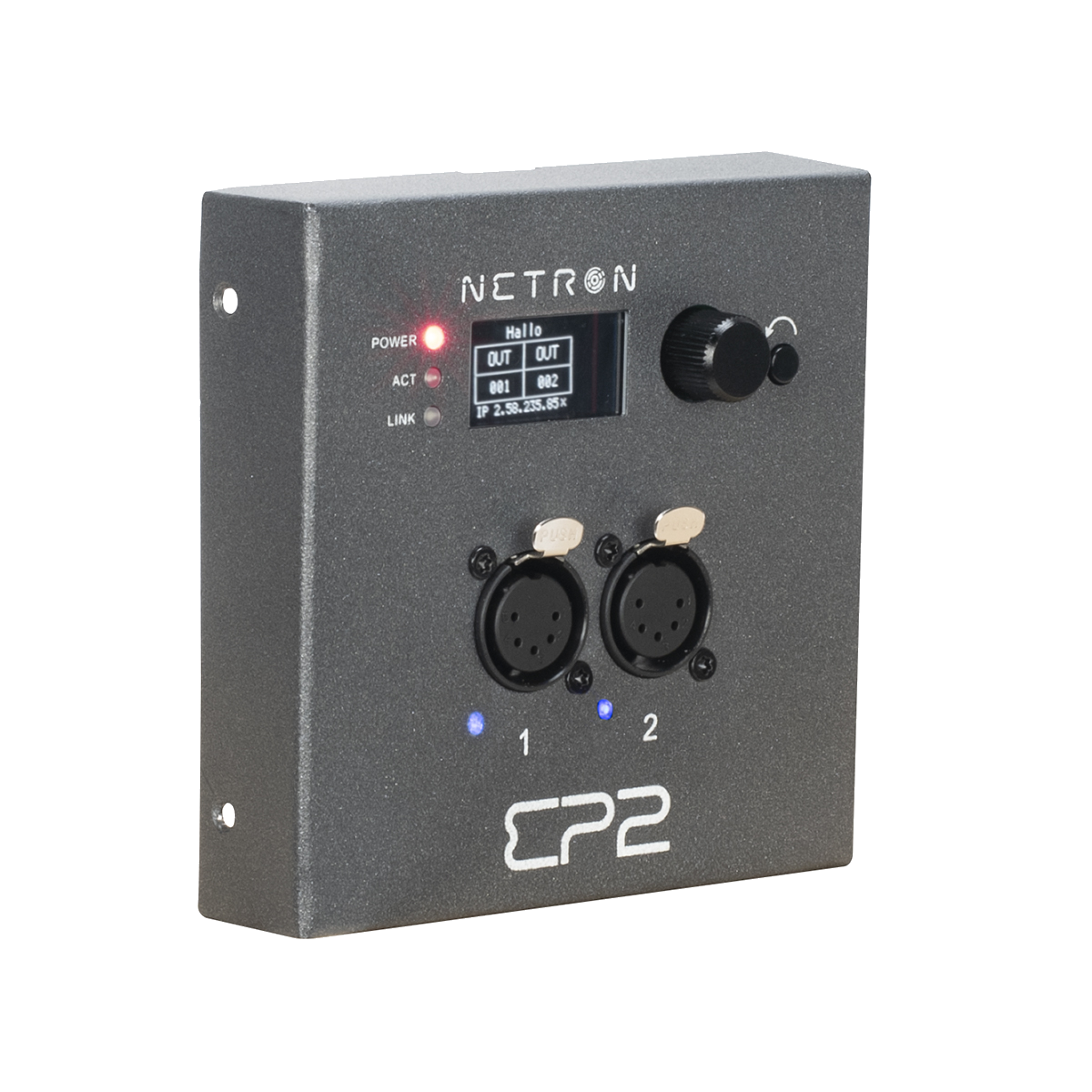

- 1.3” OLED Display with rotary knob
- Remote configuration via internal webpage
- Powder-coated compact metal housing
- Connect to ONYX PC for a full four Universe Solution

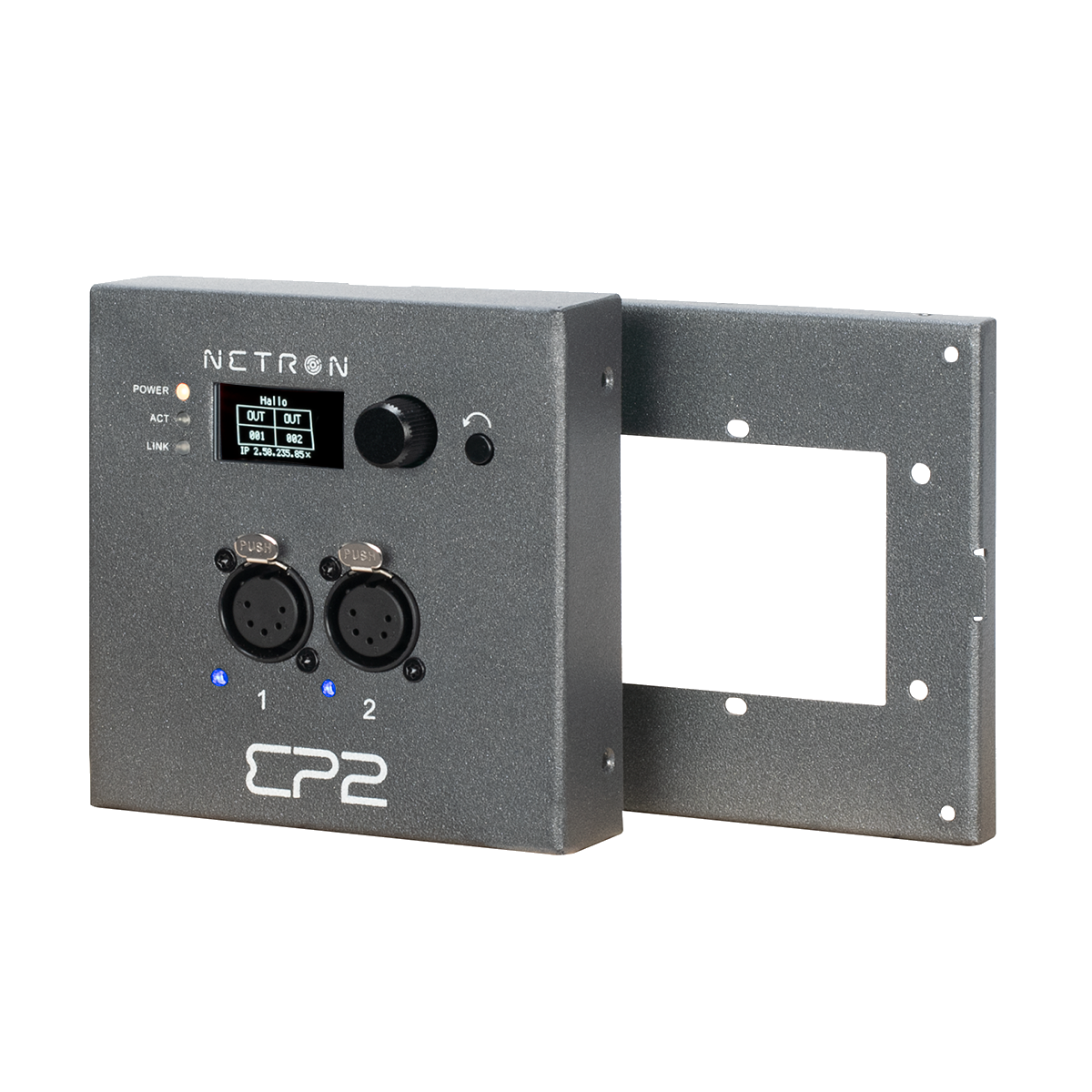

- In-wall, On-Wall, Truss and Standalone mounting
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting

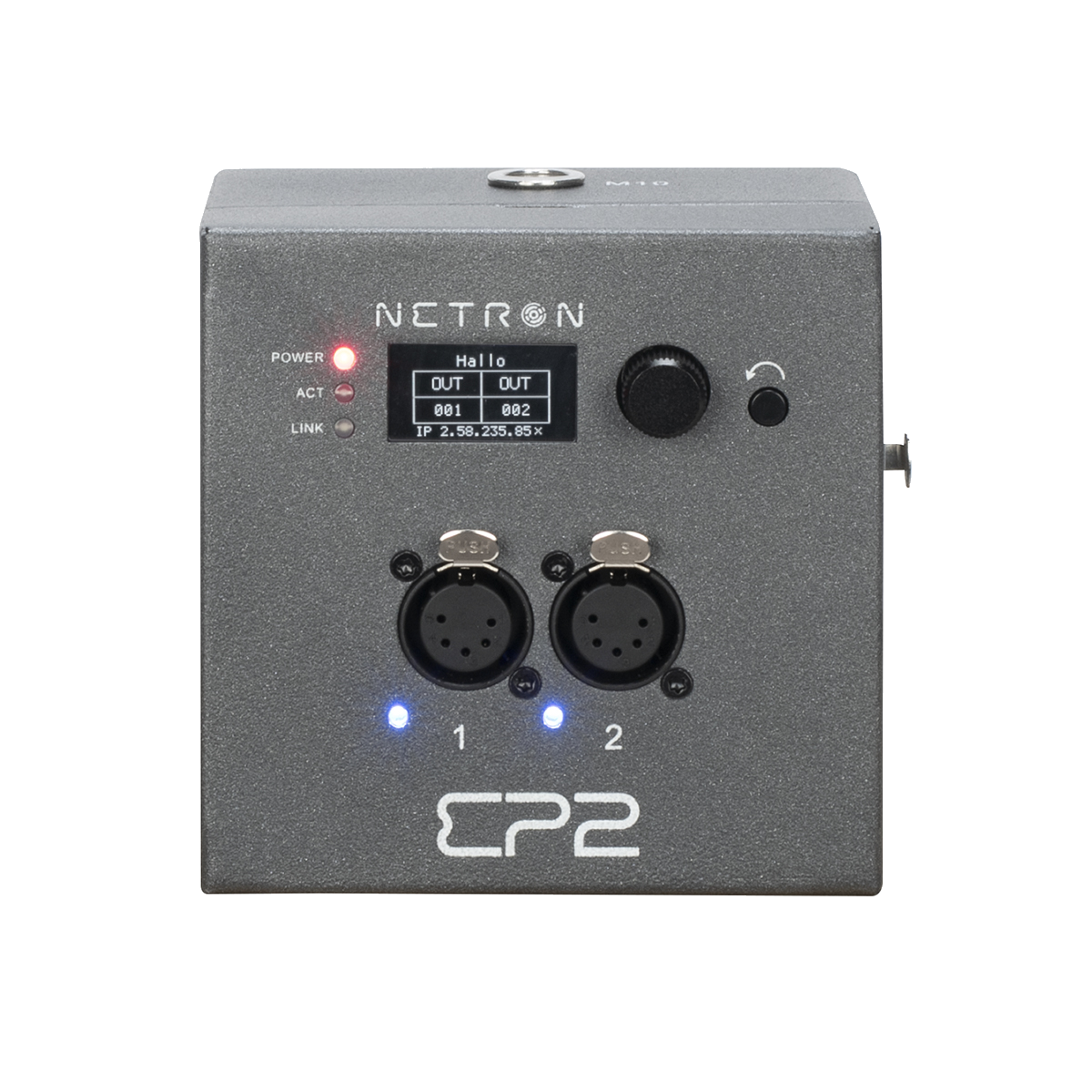

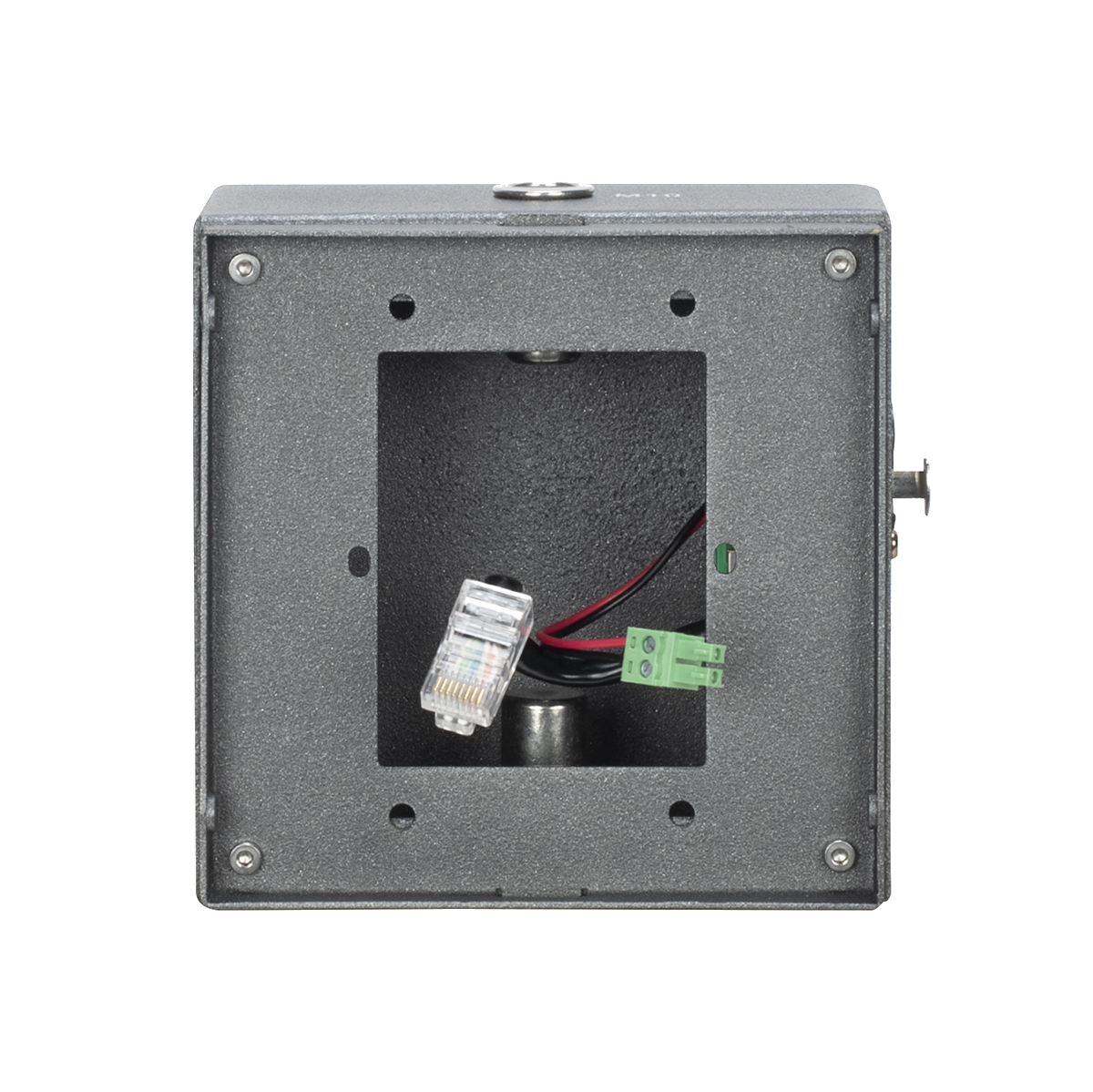

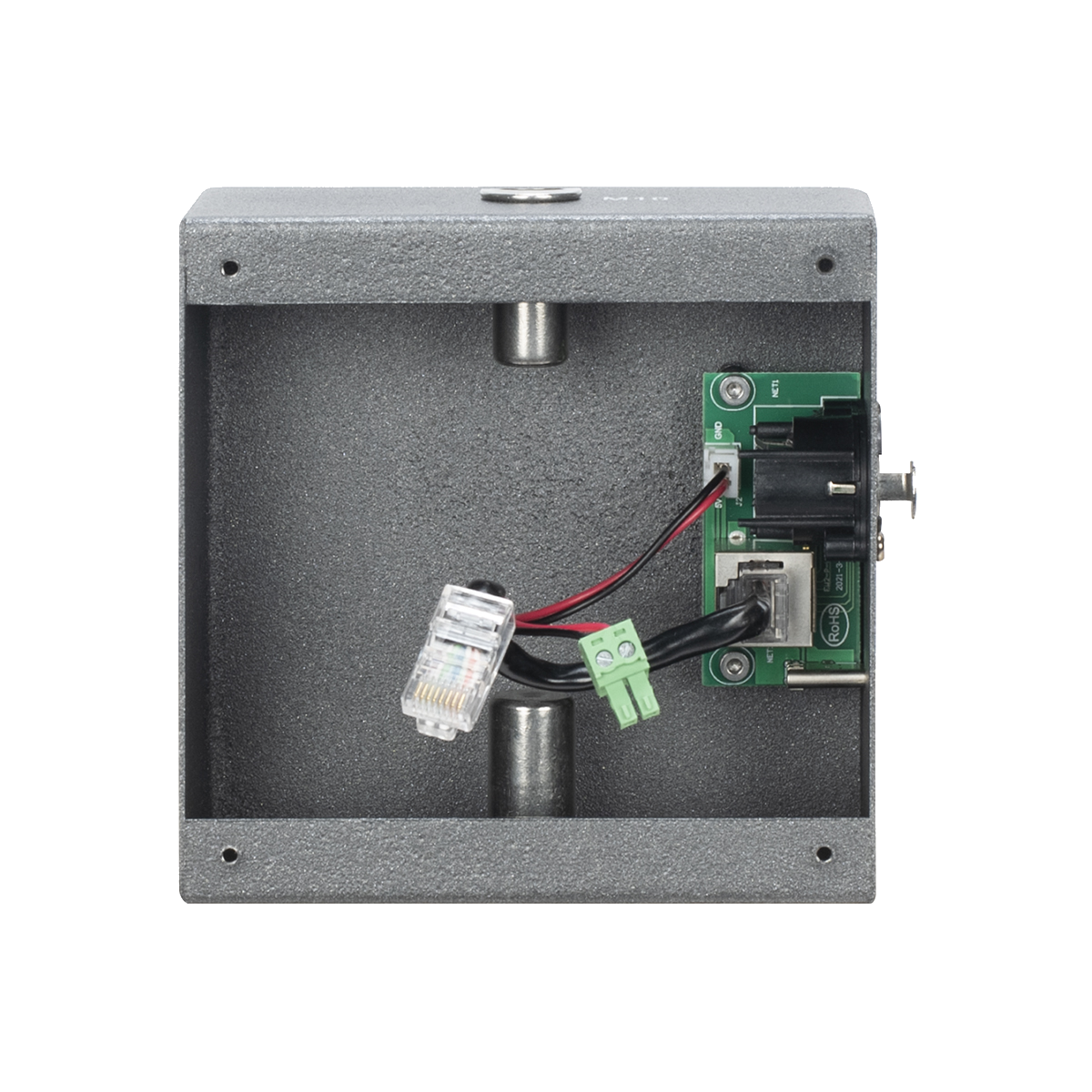

- Standalone (backbox included)
- Truss-mount (M10 + M12 mounting hole)
- In or On-wall 2-Gang (US) or 50mm round (EU)
Connections
- (2) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (1) Locking RJ45 Ethernet network connections (POE)
- USB-C power option (5V, 2A)
Specifications
- Length: 4.6 in. (117.6mm)
- Width: 4.5 in. (114.0mm)
- Height: 3.5 in. (89.1mm)
- Weight: 1.76lbs. (0.8kg)
- USB-C 5V
- POE 802.3af
- Power Consumption: 2.8W
- CE / UKCA / IP20
Ordering
- Universal 5V/2A USB Power Adapter (UK, US, Europe, AUS connectors), 100-240V
- 1.5m Obsidian USB-C cable
- Wallmount Enclosure

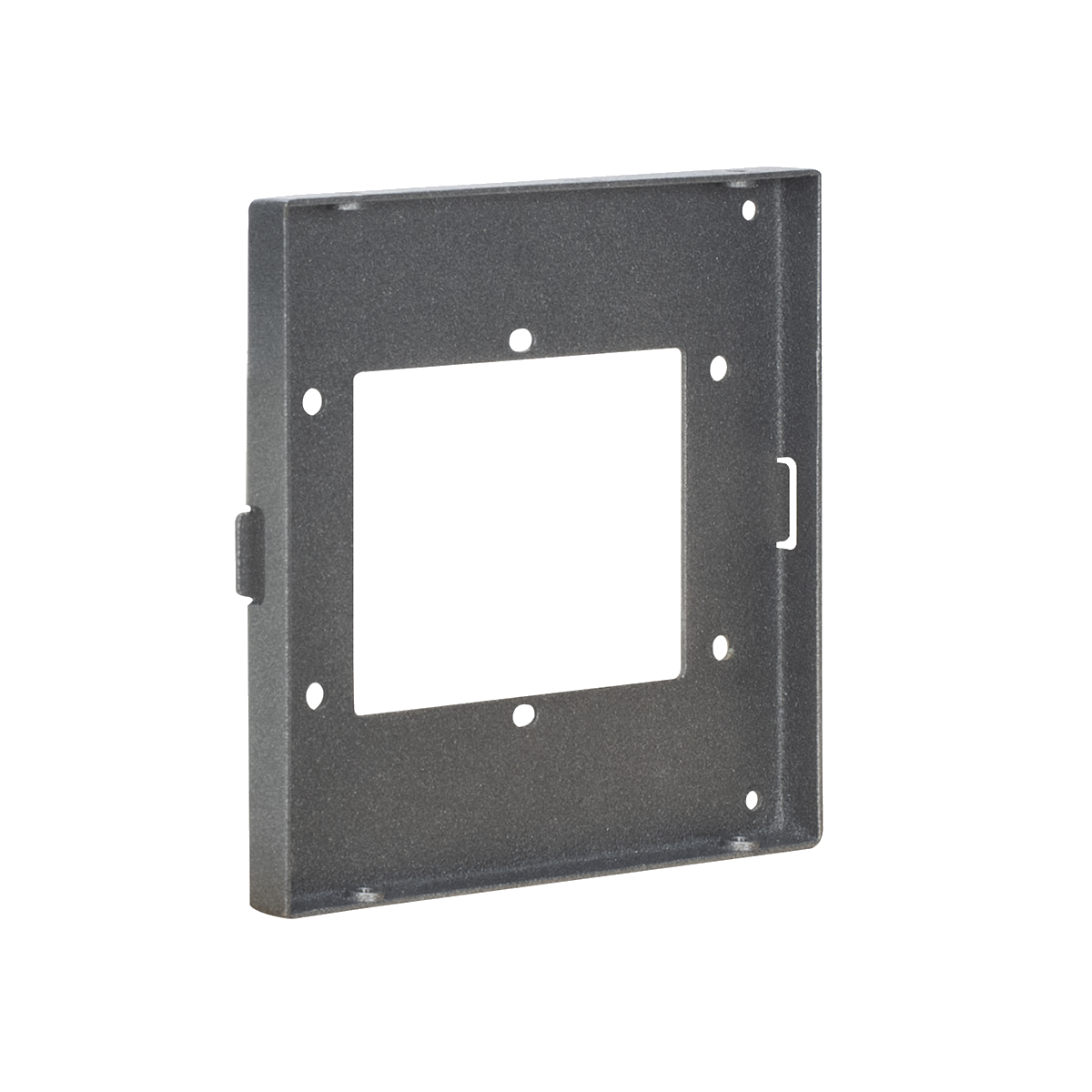

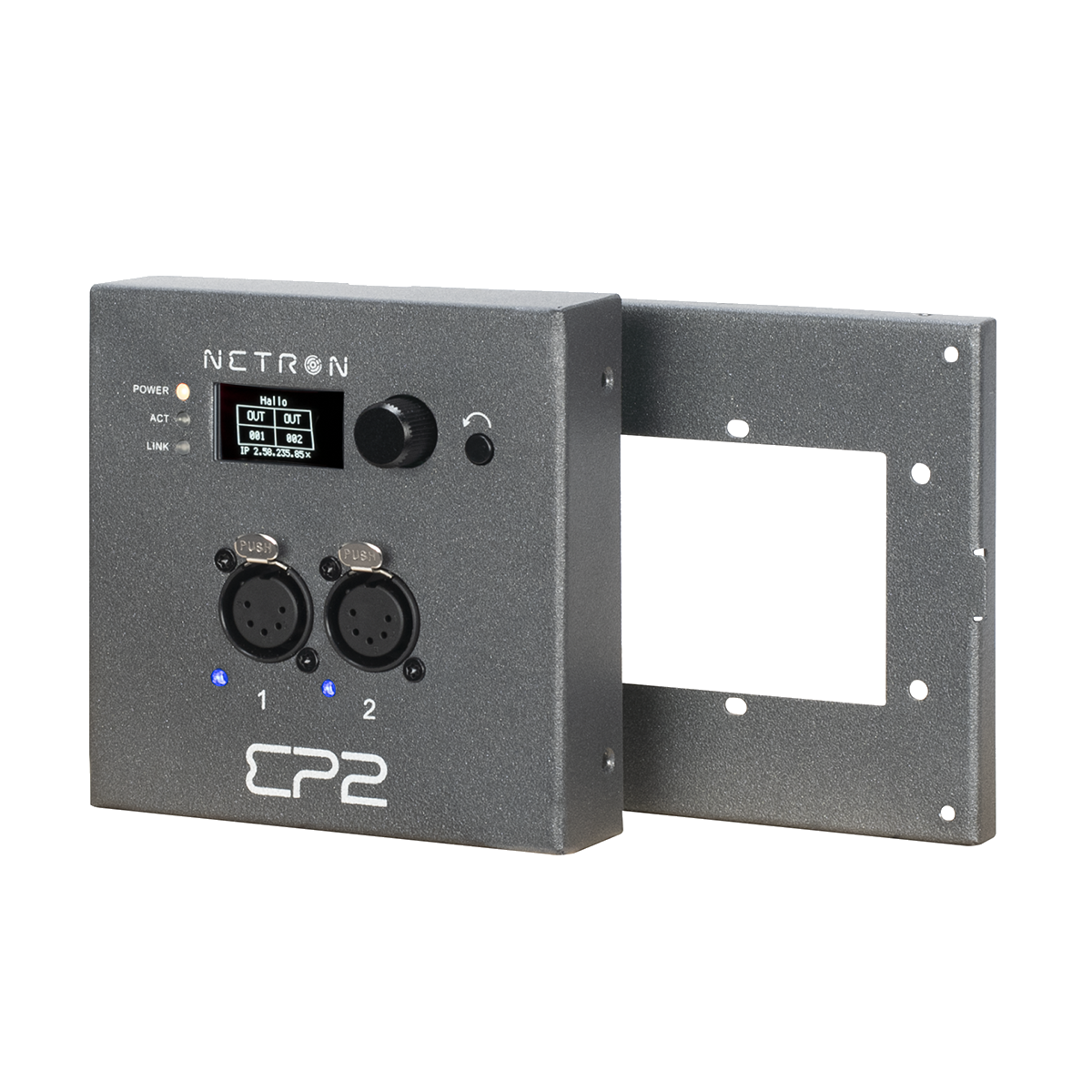

- In-wall mounting ring
- US #: NRE034
- EU #: 1330000072
- Standalone (backbox included)
- Truss-mount (M10 + M12 mounting hole)
- In or On-wall 2-Gang (US) or 50mm round (EU)
- (2) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (1) Locking RJ45 Ethernet network connections (POE)
- USB-C power option (5V, 2A)
- Length: 4.6 in. (117.6mm)
- Width: 4.5 in. (114.0mm)
- Height: 3.5 in. (89.1mm)
- Weight: 1.76lbs. (0.8kg)
- USB-C 5V
- POE 802.3af
- Power Consumption: 2.8W
- CE / UKCA / IP20
- Universal 5V/2A USB Power Adapter (UK, US, Europe, AUS connectors), 100-240V
- 1.5m Obsidian USB-C cable
- Wallmount Enclosure
- In-wall mounting ring
- US #: NRE034
- EU #: 1330000072
Downloads
| Filename | Document type | File type |
|---|---|---|
| EP2 - 3D CAD | CAD Drawing | DWG |
| EP2 - 2D CAD | CAD Drawing | DWG |
| EP2 - DIMENSIONS | Dimensional Drawings | |
| EP2 - Drilling Guide | Installation Guide | |
| EP2 Installation Guide | Installation Guide | |
| EP2 - SPEC SHEET | Specification Sheet | |
| EP2 - User Guide | User Guide | |
| NETRON Firmware V2.9.2 TXT | Software | TXT |
| NETRON Firmware V2.9.2 | Software | ZIP |
| NETRON Release Notes V2.9.4 | Software | TXT |
| NETRON Version 2.9.4 | Software | ZIP |
