EP1
The NETRON EP1 is a compact Ethernet to DMX gateway with a single RDM compatible port designed for single gang wall mount, truss mount and standalone installations.
EP1
Sale price$0.00
EP1
The NETRON EP1 is a compact Ethernet to DMX gateway with a single RDM compatible port designed for single gang wall mount, truss mount and standalone installations.
It is configurable via the integrated OLED display and encoder, or the internal web remote. EP1 is powered over Ethernet or via the convenient USB-C connection.The internal network switch allows the NETRON EP1 to pass incoming network traffic, for example to place an adjacent sACN RJ45 port in a wall outlet.EP1 is a powerful and convenient single port node that is ideally suited to distribute sACN and Art-Net traffic throughout any type of facility or across different stage locations, from floor pockets to lighting pipes and trusses.
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setup
- POE or USB-C powered

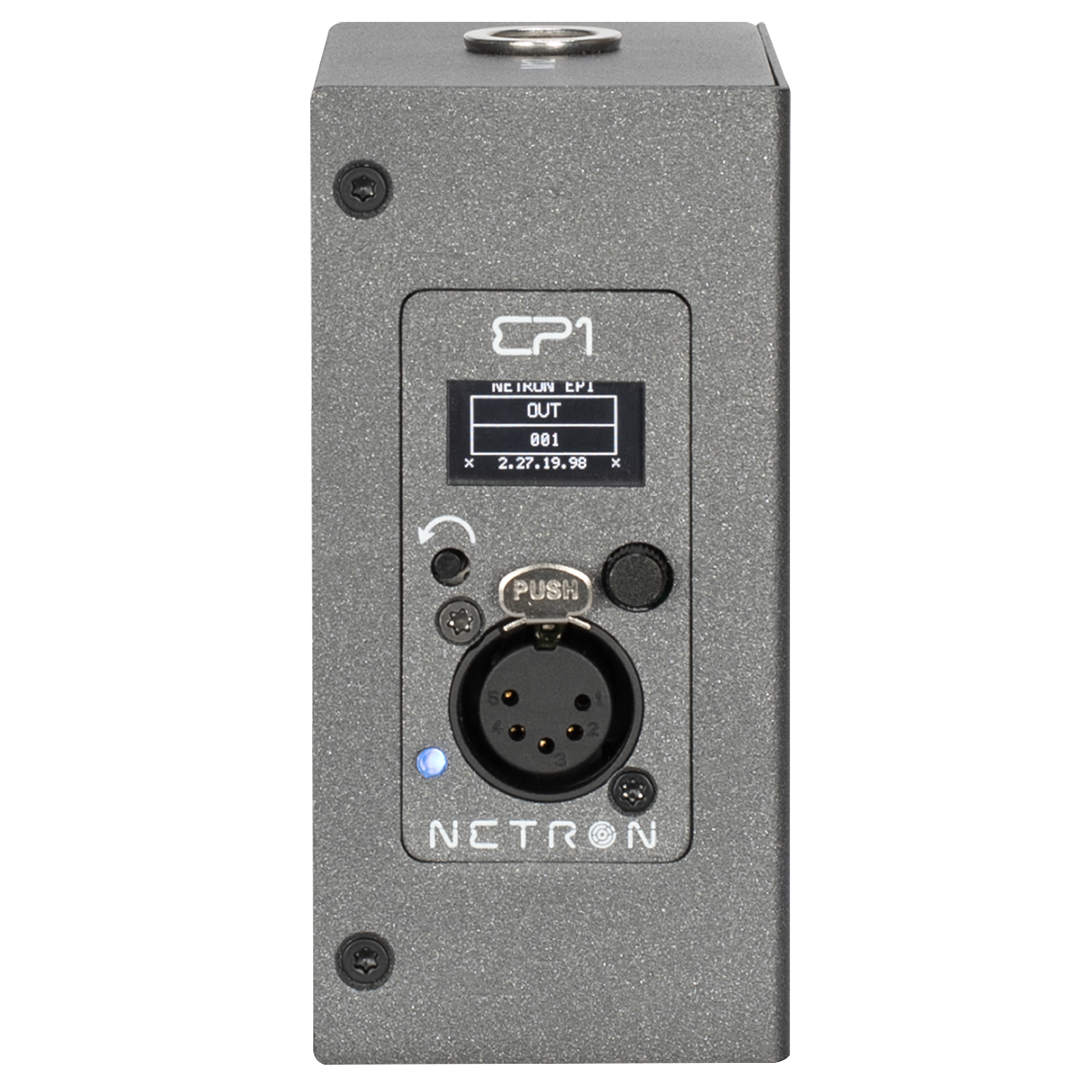

- 1.3” OLED Display with rotary knob
- Remote configuration via internal webpage

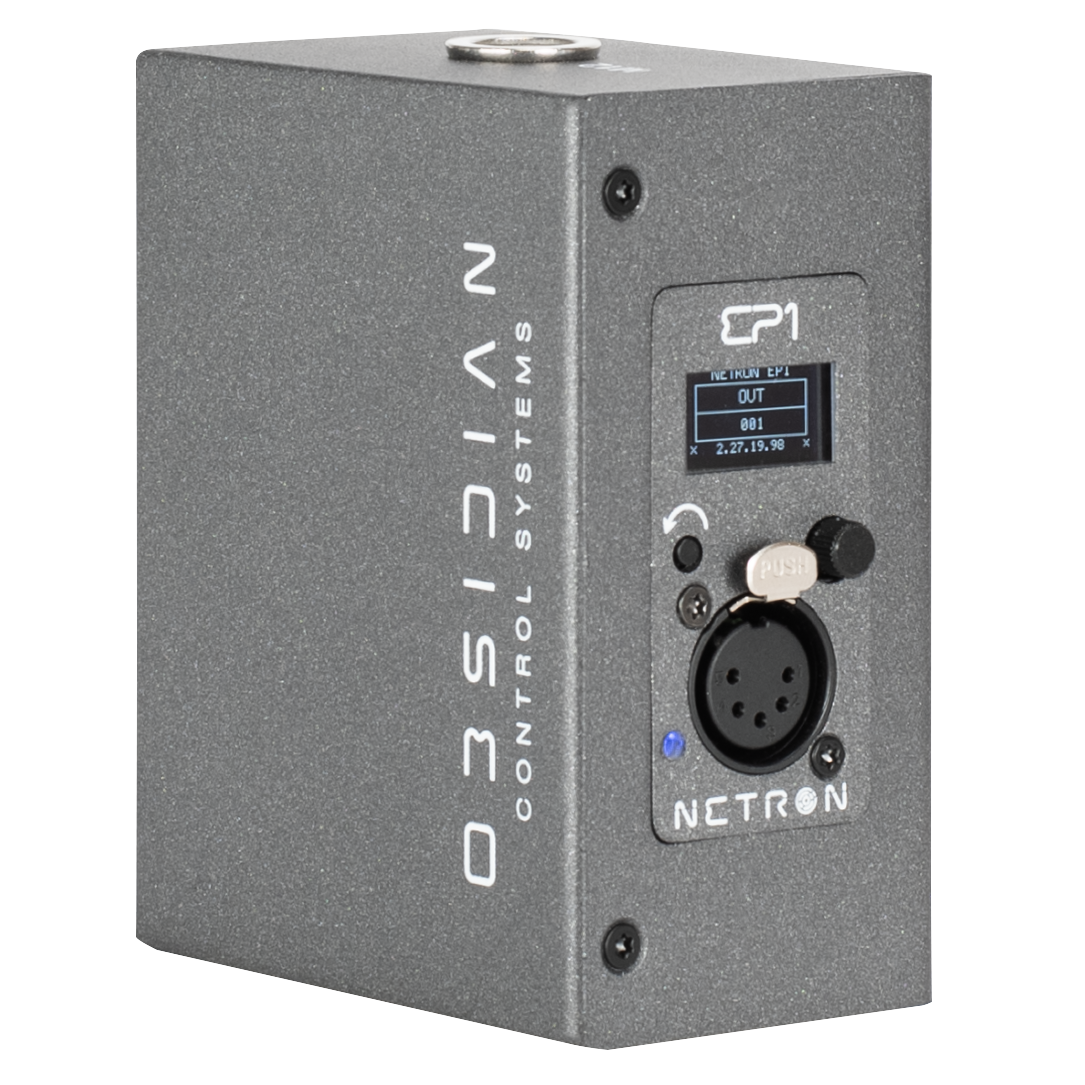

- Powder-coated compact metal housing
- In-wall, Truss and Standalone mounting
- Unlocks ONYX NOVA 4-Universe License
Specifications
Mounting
- Standalone (backbox included)

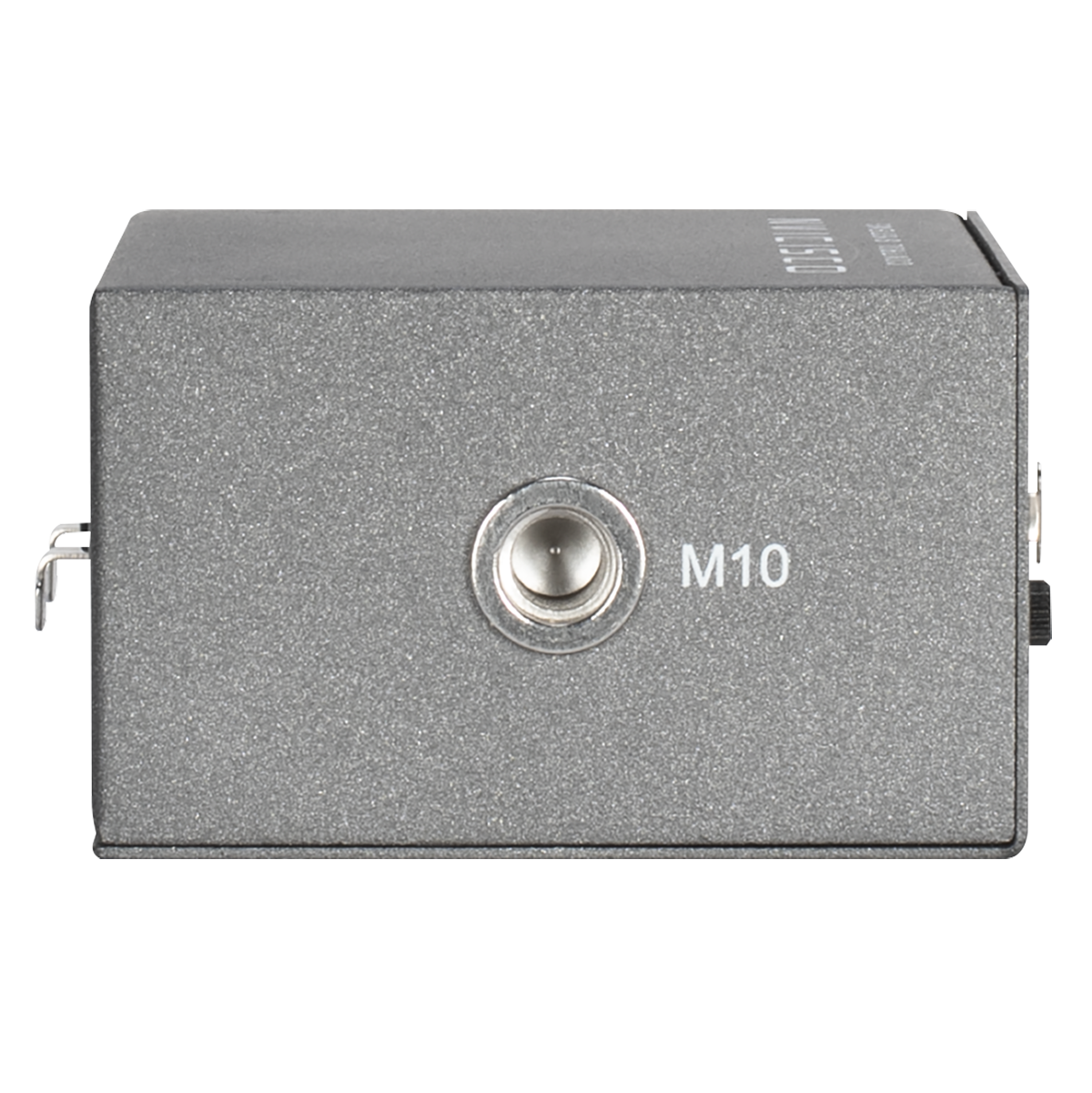

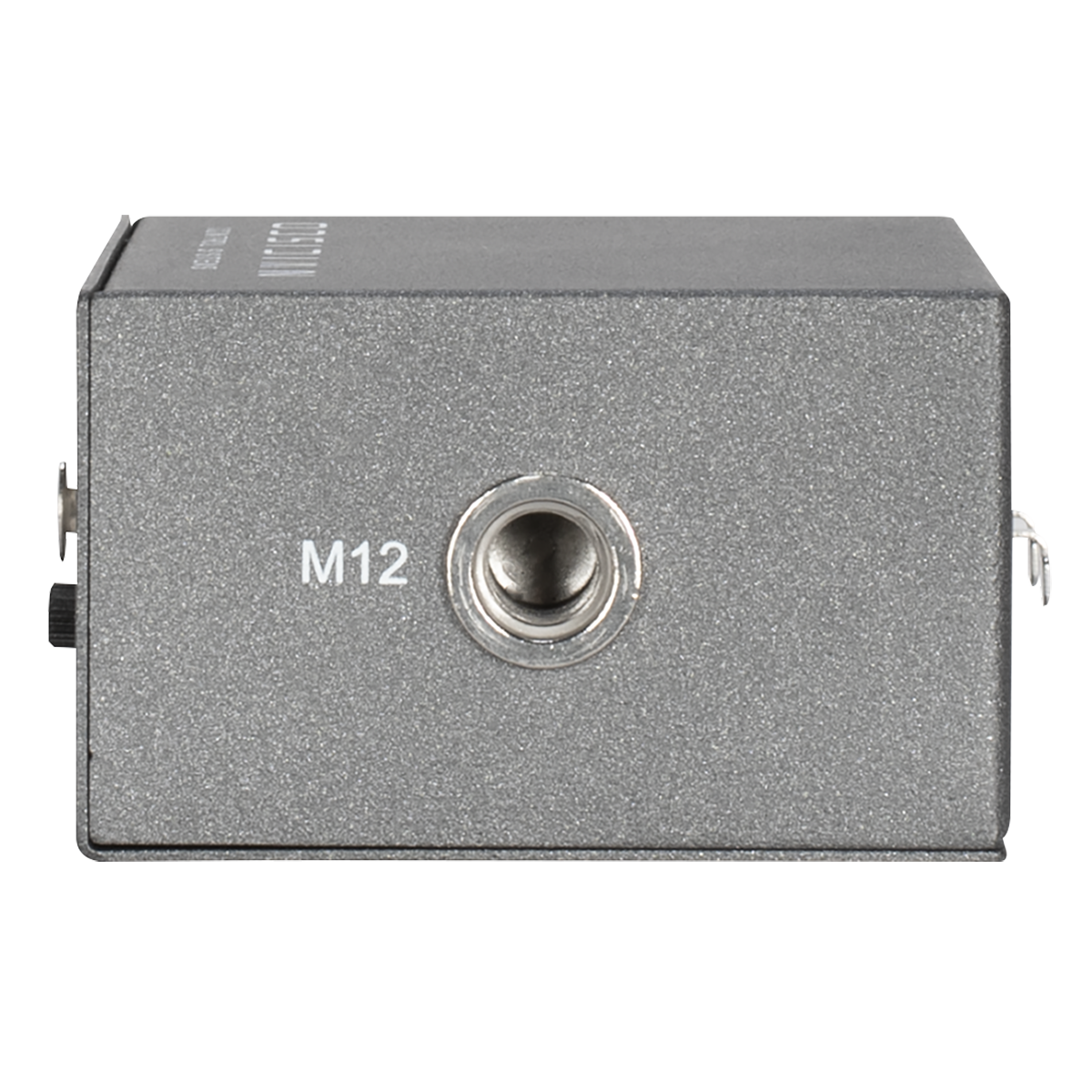

- Truss-mount (M10 + M12 mounting hole)
- In-Wall 1-Gang (US)
Connections
- (1) 5pin DMX/RDM optically isolated port
- Bidirectional for DMX In and Output

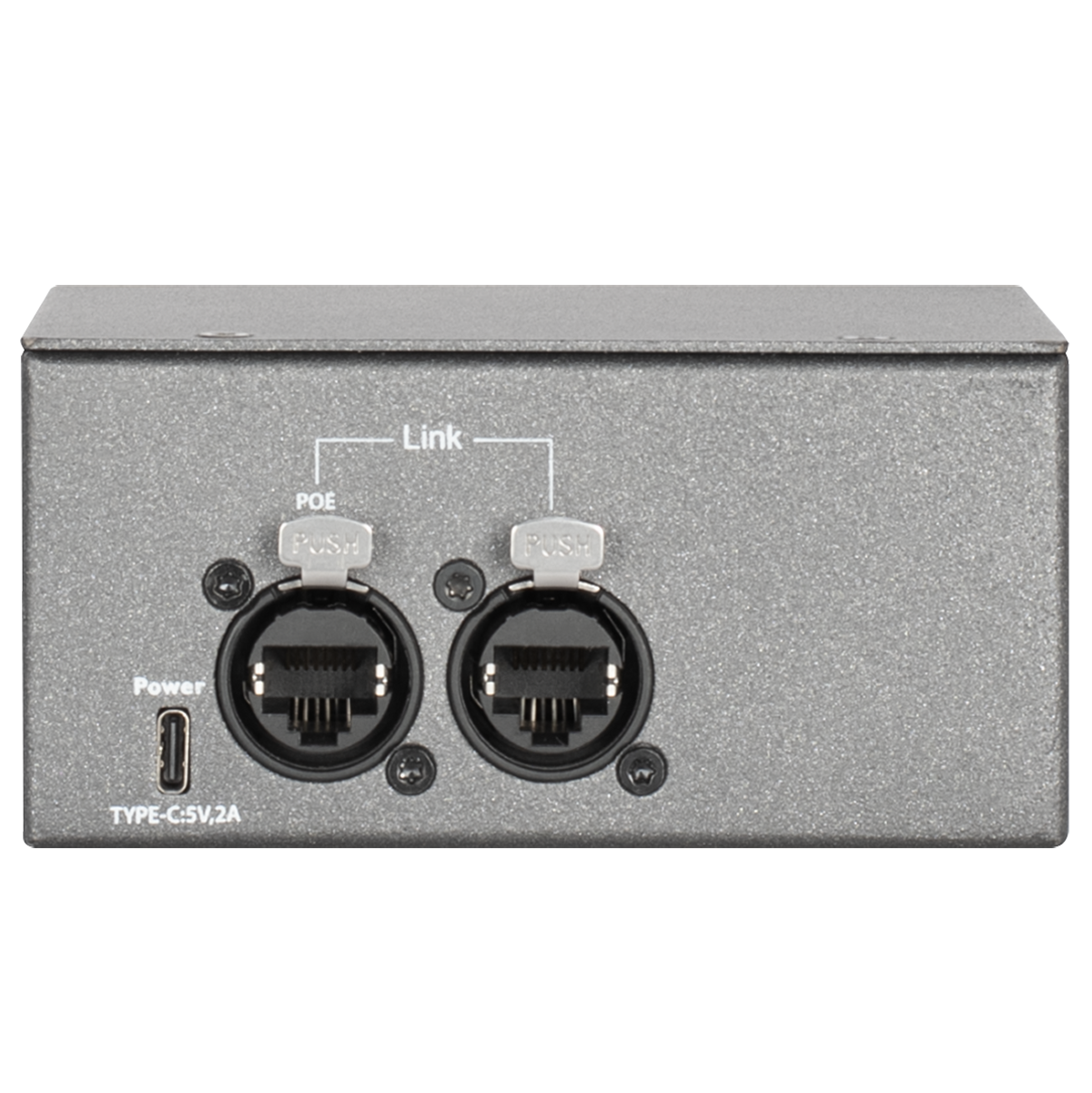

- (2) Locking RJ45 Gigabit Ethernet (1xPOE)
- USB-C power option (5V, 2A)
Specifications
- Length: 3.5 in. (90mm)
- Width: 2.2 in. (55mm)
- Height: 4.5 in. (114mm)
- Weight: 1.54 lbs. (0.7kg)
- Length: 3.96 in. (100.5mm)
- Width: 2.2 in. (54.8mm)
- Height: 4.63 in. (117.6mm)
- Weight: 1.3 lbs. (0.6kg)
- USB-C 5V
- POE 802.3af
- Power Consumption: 2.8W
- CE / CETLUS / UKCA / IP20
Ordering
- 1.5m Obsidian USB-C cable
- Standalone Enclosure (M10 or M12 bolt hole)
- Netron Decora 1-Gang wall plate
- US #: NRE125
- EU #: 1330000081
- Standalone (backbox included)
- Truss-mount (M10 + M12 mounting hole)
- In-Wall 1-Gang (US)
- (1) 5pin DMX/RDM optically isolated port
- Bidirectional for DMX In and Output
- (2) Locking RJ45 Gigabit Ethernet (1xPOE)
- USB-C power option (5V, 2A)
- Length: 3.5 in. (90mm)
- Width: 2.2 in. (55mm)
- Height: 4.5 in. (114mm)
- Weight: 1.54 lbs. (0.7kg)
- Length: 3.96 in. (100.5mm)
- Width: 2.2 in. (54.8mm)
- Height: 4.63 in. (117.6mm)
- Weight: 1.3 lbs. (0.6kg)
- USB-C 5V
- POE 802.3af
- Power Consumption: 2.8W
- CE / CETLUS / UKCA / IP20
- 1.5m Obsidian USB-C cable
- Standalone Enclosure (M10 or M12 bolt hole)
- Netron Decora 1-Gang wall plate
- US #: NRE125
- EU #: 1330000081
Downloads
| Filename | Document type | File type |
|---|---|---|
| EP1 - 3D Cad | CAD Drawing | DWG |
| EP1 - User Guide | User Guide | |
| EP1 - Specification Sheet | Specification Sheet |
