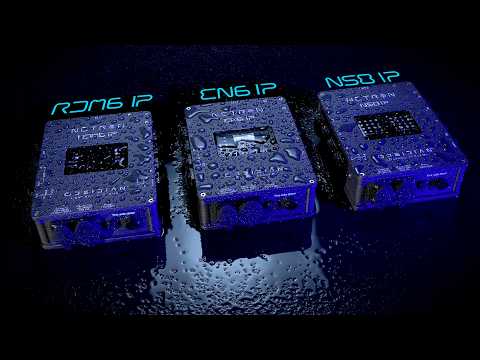

EN6 IP

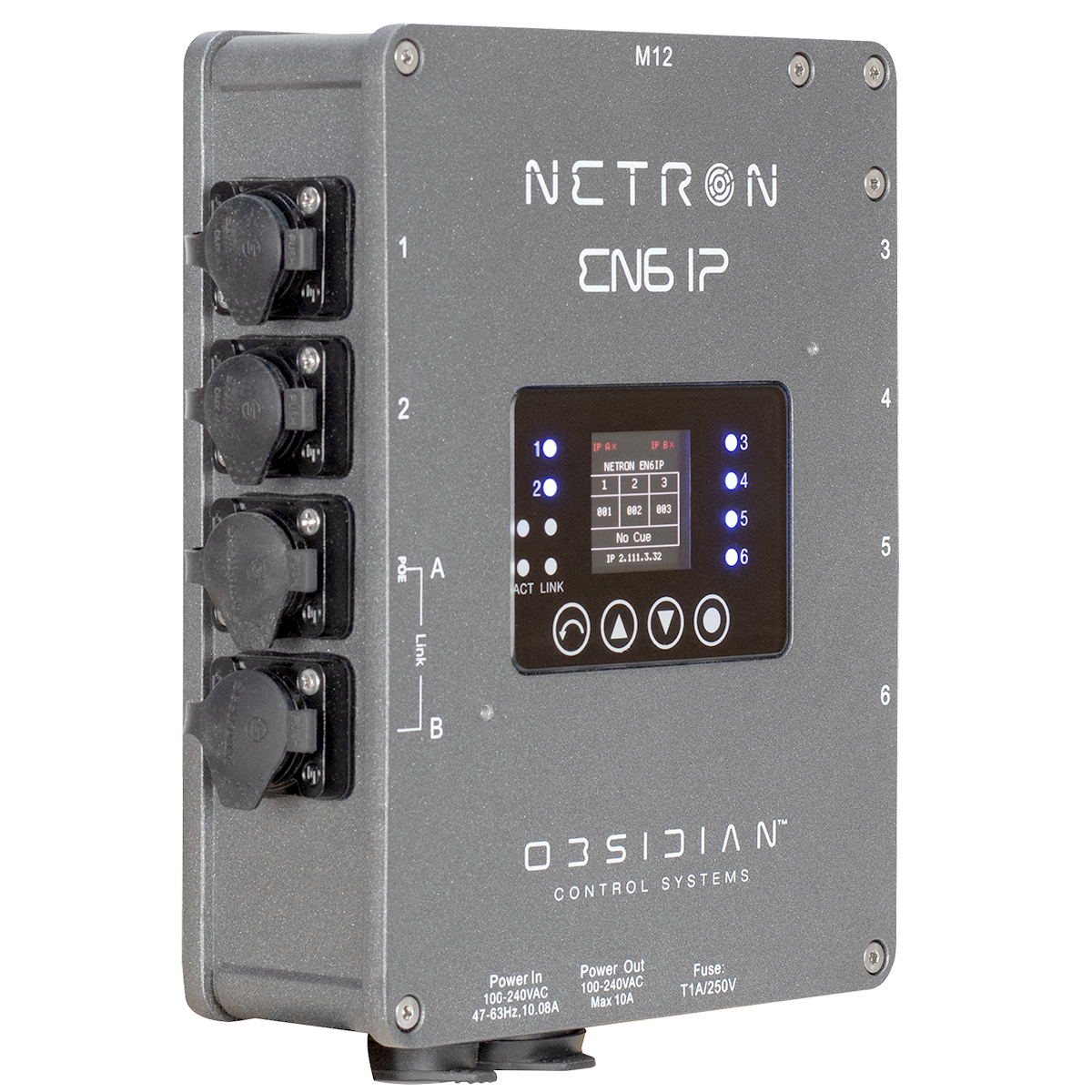

The Netron EN6 IP is a powerful Art-Net and sACN to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
The EN6 IP unlocks the four Universe ONYX NOVA Edition.
EN6 IP
Sale price$0.00
EN6 IP
The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
The EN6 IP unlocks the four Universe ONYX NOVA Edition.
- IP66 Ethernet to DMX Gateway
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered

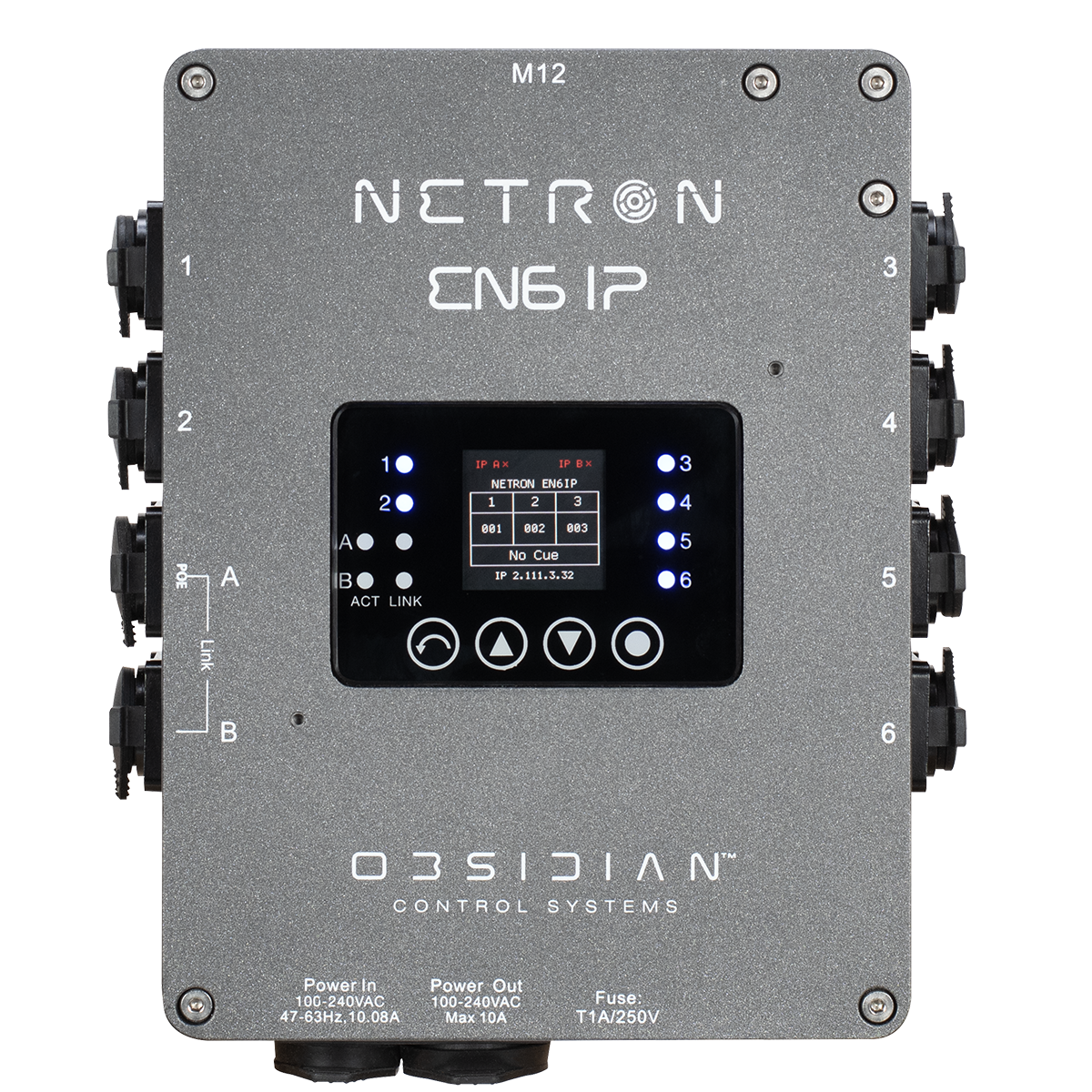

- 1.8” OLED Display and waterproof touch buttons
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum chassis
- Unlocks ONYX NOVA 4-Universe License
Specifications
Mounting
- Standalone

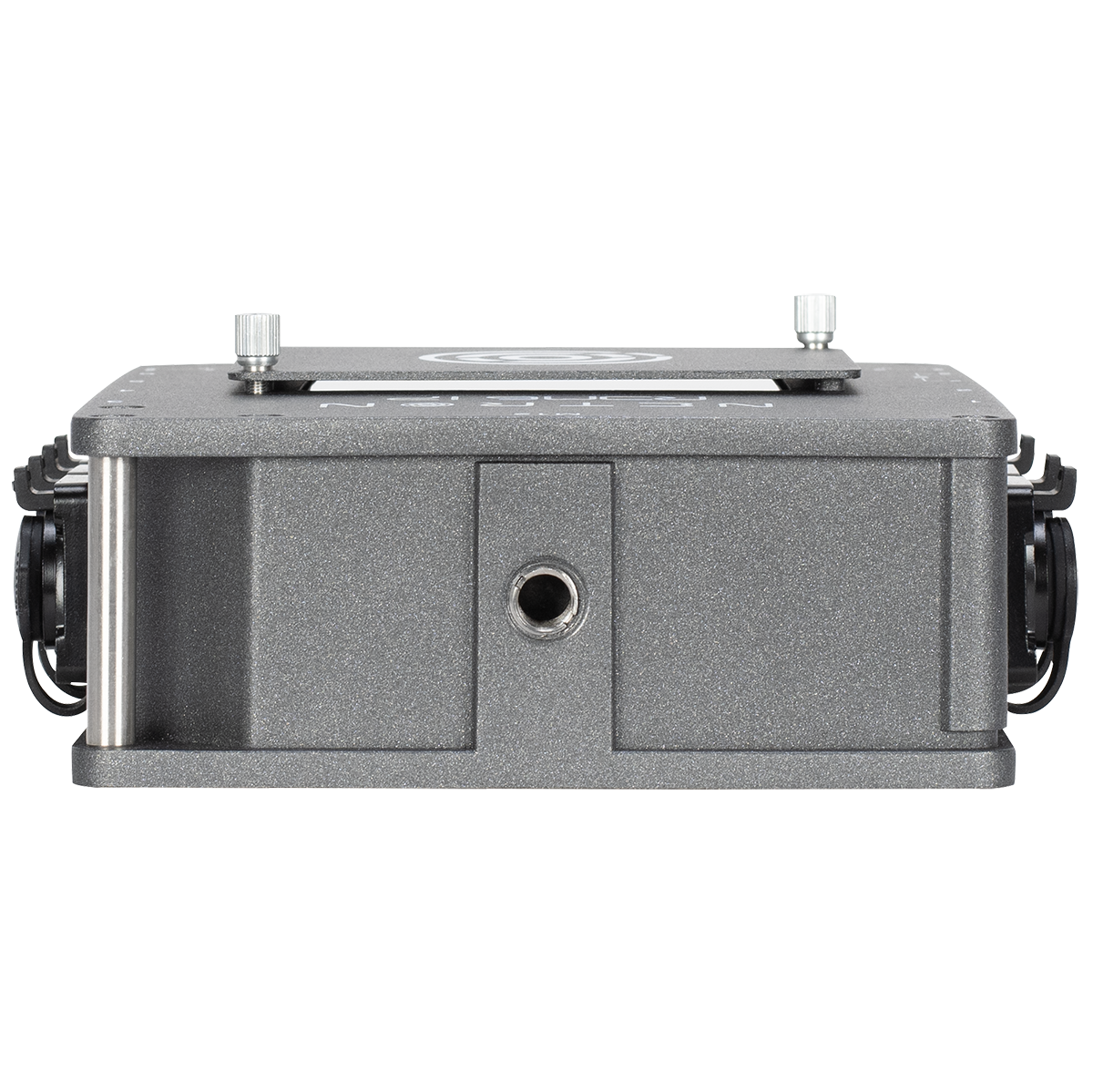

- Truss-mount (M10 or M12)
- Wall-mount
Connections

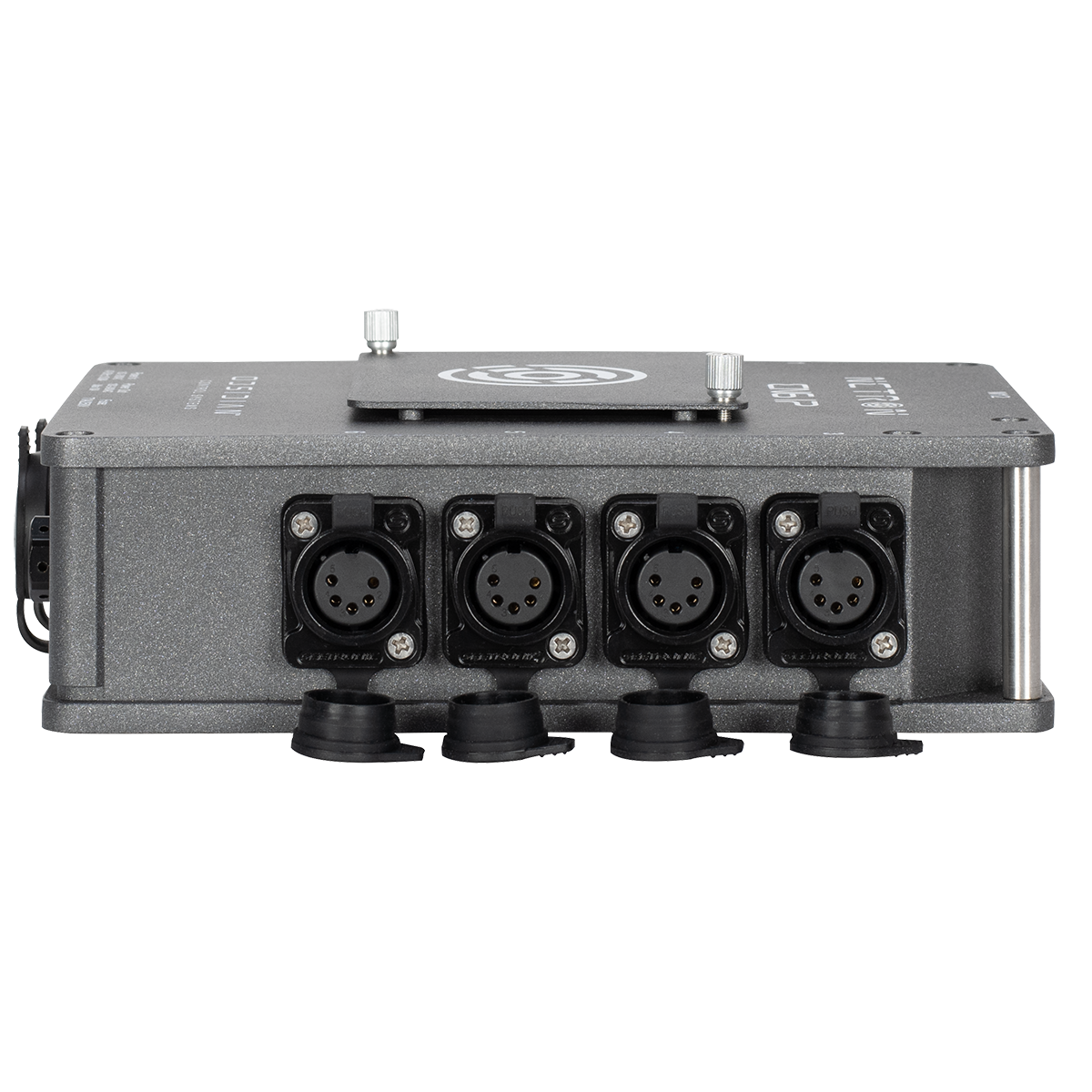

- (6) 5pin IP66 DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output

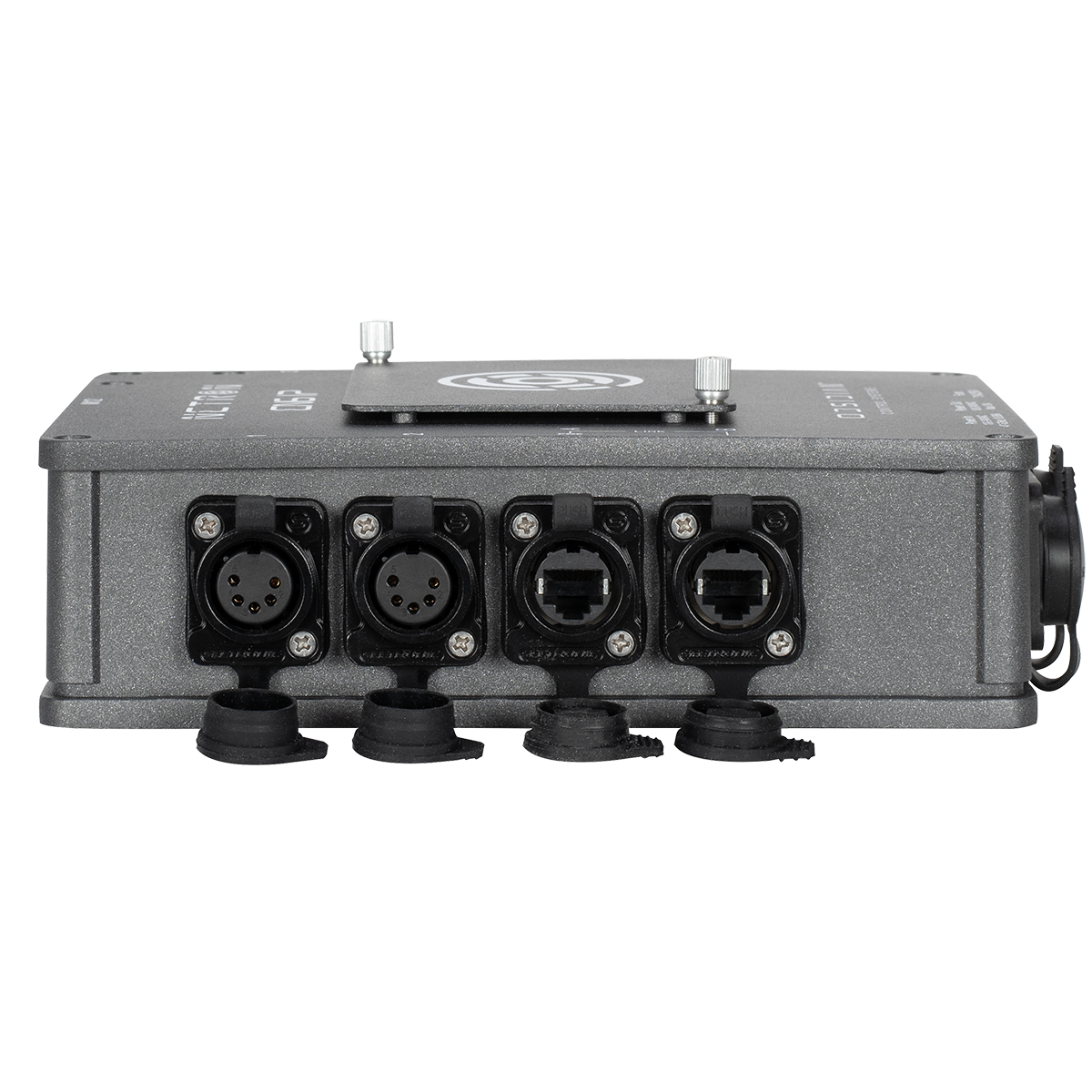

- (2) Locking IP66 RJ45 Ethernet network connections (1x POE)

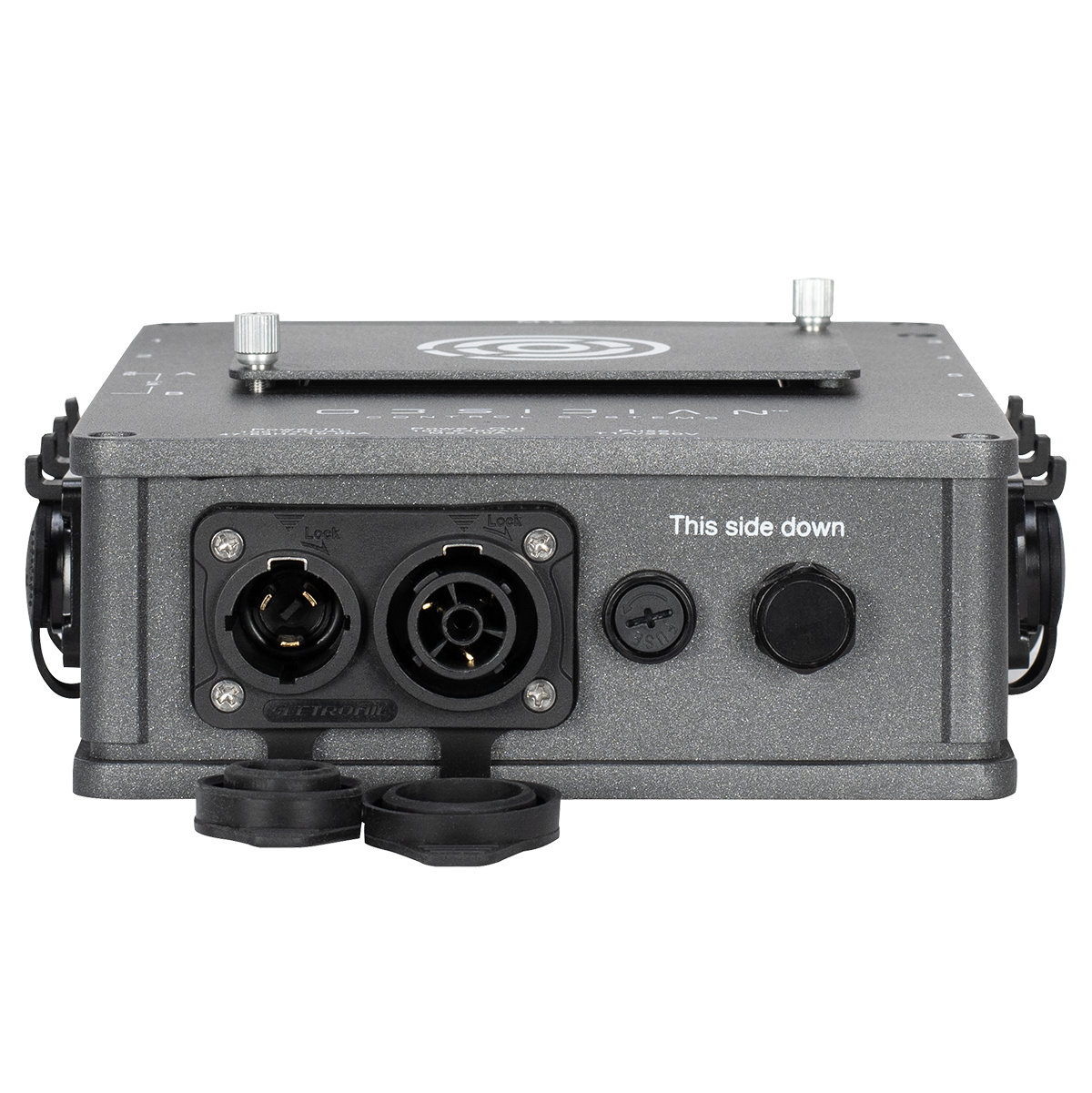

- Locking IP66 Power In/Thru
Specifications
- Length: 180mm (7.1 in.)
- Width: 242mm (9.5 in.)
- Height: 82mm (3.2 in.)
- Weight: 1.8 kg (4.0 lbs)
- 100-240V nominal, 50/60 Hz
- POE 802.3af
- Power Consumption: 6W
- cETLus / CE / UKCA / IP66
Ordering
- 1.5m IP66 locking power cable (EU or US version)
- (2) Wall Mount brackets
- M10 to M12 adapter

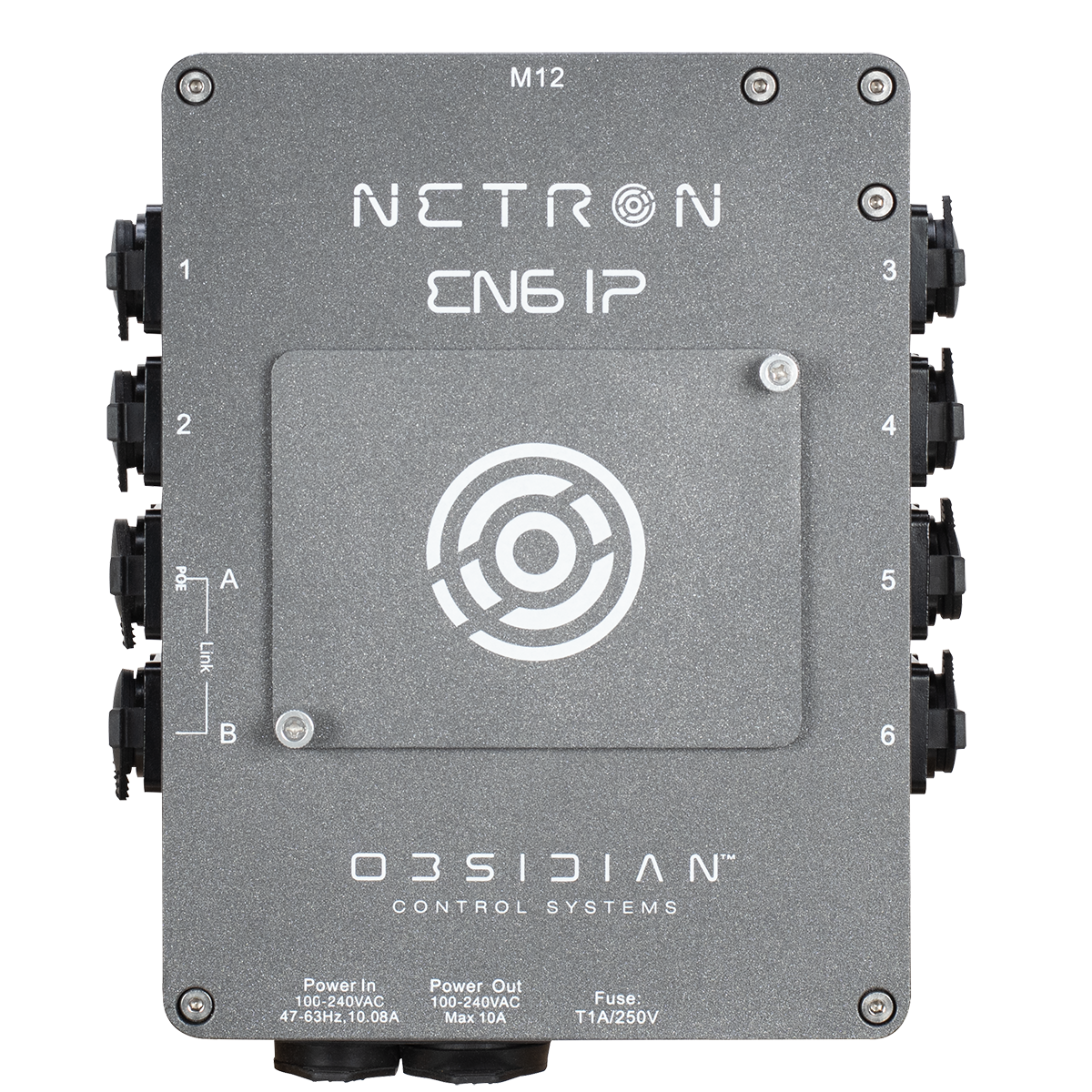

- Metal display protection cover
- US #: NIP013
- EU #: 1330000084
- Standalone
- Truss-mount (M10 or M12)
- Wall-mount
- (6) 5pin IP66 DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (2) Locking IP66 RJ45 Ethernet network connections (1x POE)
- Locking IP66 Power In/Thru
- Length: 180mm (7.1 in.)
- Width: 242mm (9.5 in.)
- Height: 82mm (3.2 in.)
- Weight: 1.8 kg (4.0 lbs)
- 100-240V nominal, 50/60 Hz
- POE 802.3af
- Power Consumption: 6W
- cETLus / CE / UKCA / IP66
- 1.5m IP66 locking power cable (EU or US version)
- (2) Wall Mount brackets
- M10 to M12 adapter
- Metal display protection cover
- US #: NIP013
- EU #: 1330000084
Downloads
| Filename | Document type | File type |
|---|---|---|
| EN6 IP - 2D Cad Drawing | CAD Drawing | DWG |
| EN6 IP - Dimensional Drawing | Dimensional Drawings | |
| EN6 IP - Installation Guide | Installation Guide |
