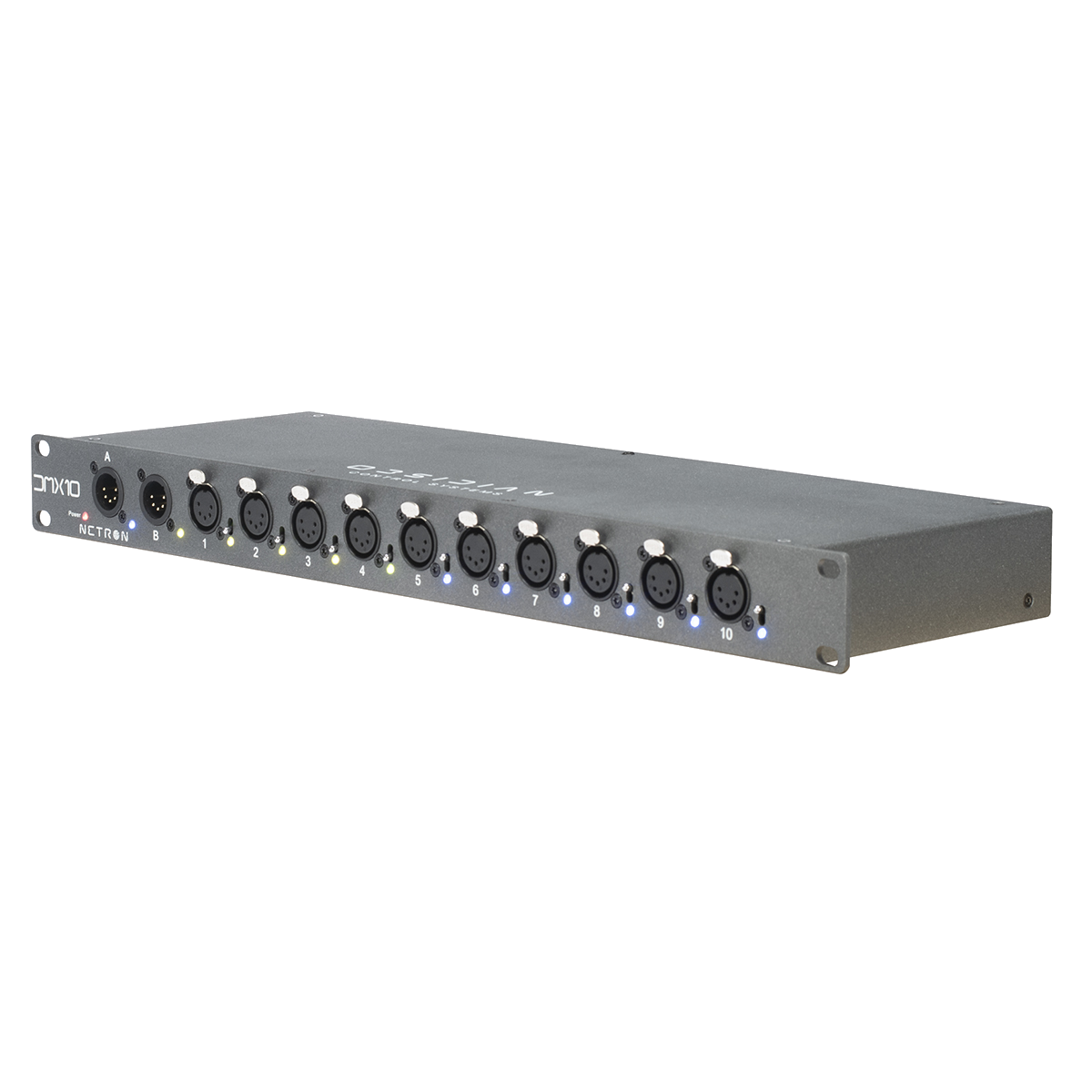

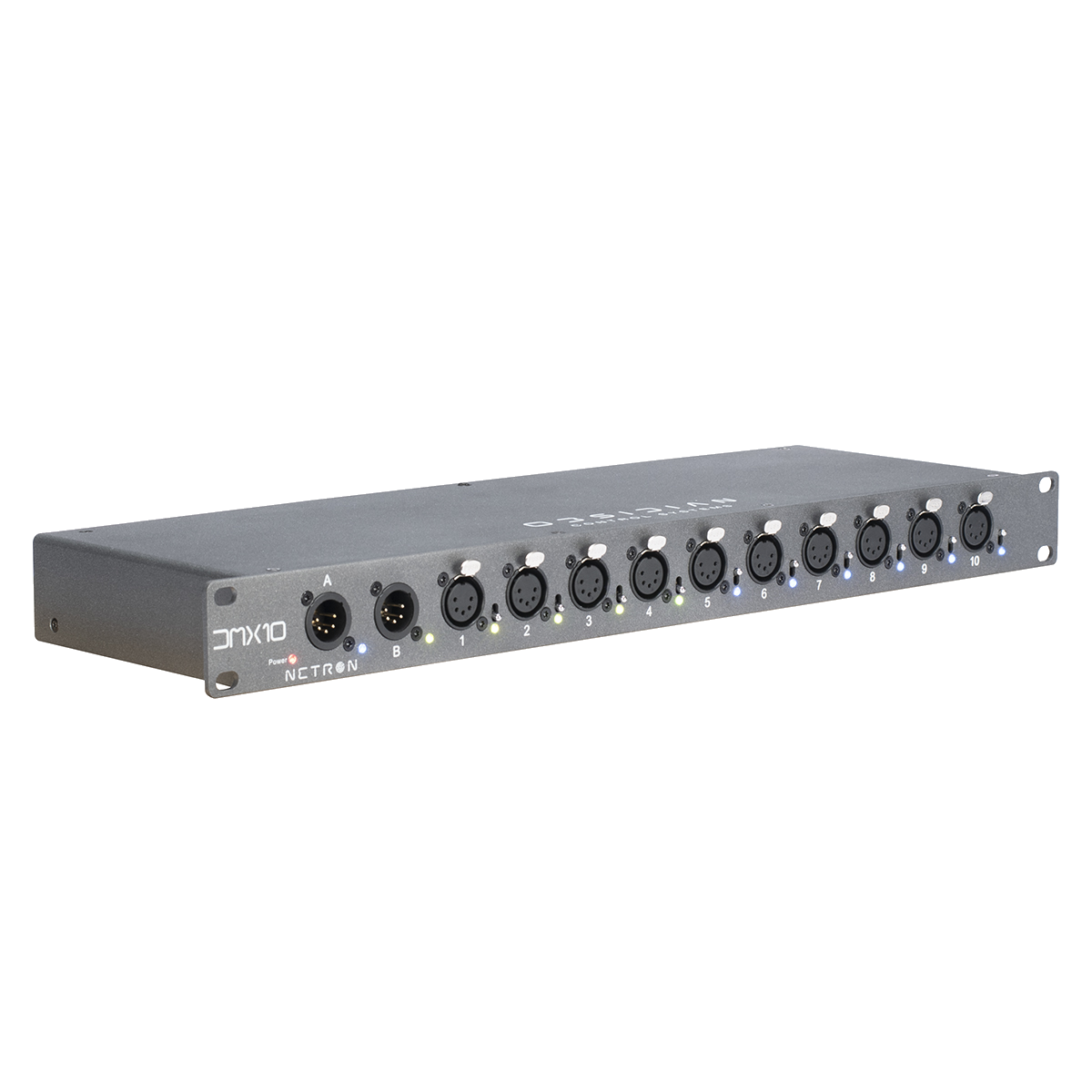

The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
UPC: 810008262726SKU: DMX105

DMX 10-5

The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.

Key Features

  • Dual A/B 5pin XLR DMX Input
  • 10 isolated 5pin XLR DMX Outputs
  • A/B routing per output port
  • LED feedback for In/Out/A/B/Power
  • Industrial strength powder-coated finish
  • Lightweight and rugged rackmount housing

Specifications

Mounting
  • Rackmount


Connections

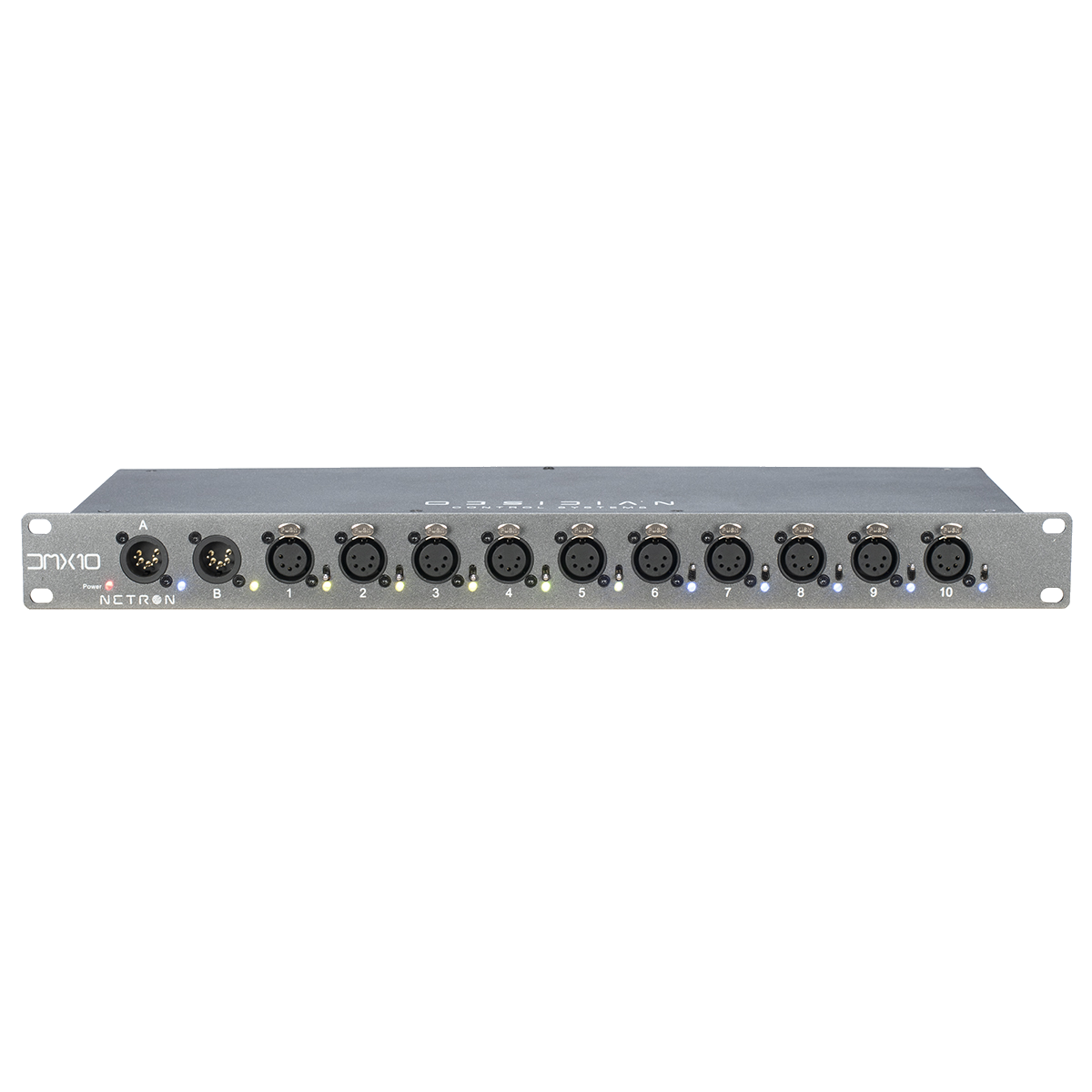

Front

  • (2) 5pin DMX Input
  • (10) 5pin Opto-Isolated DMX Outputs

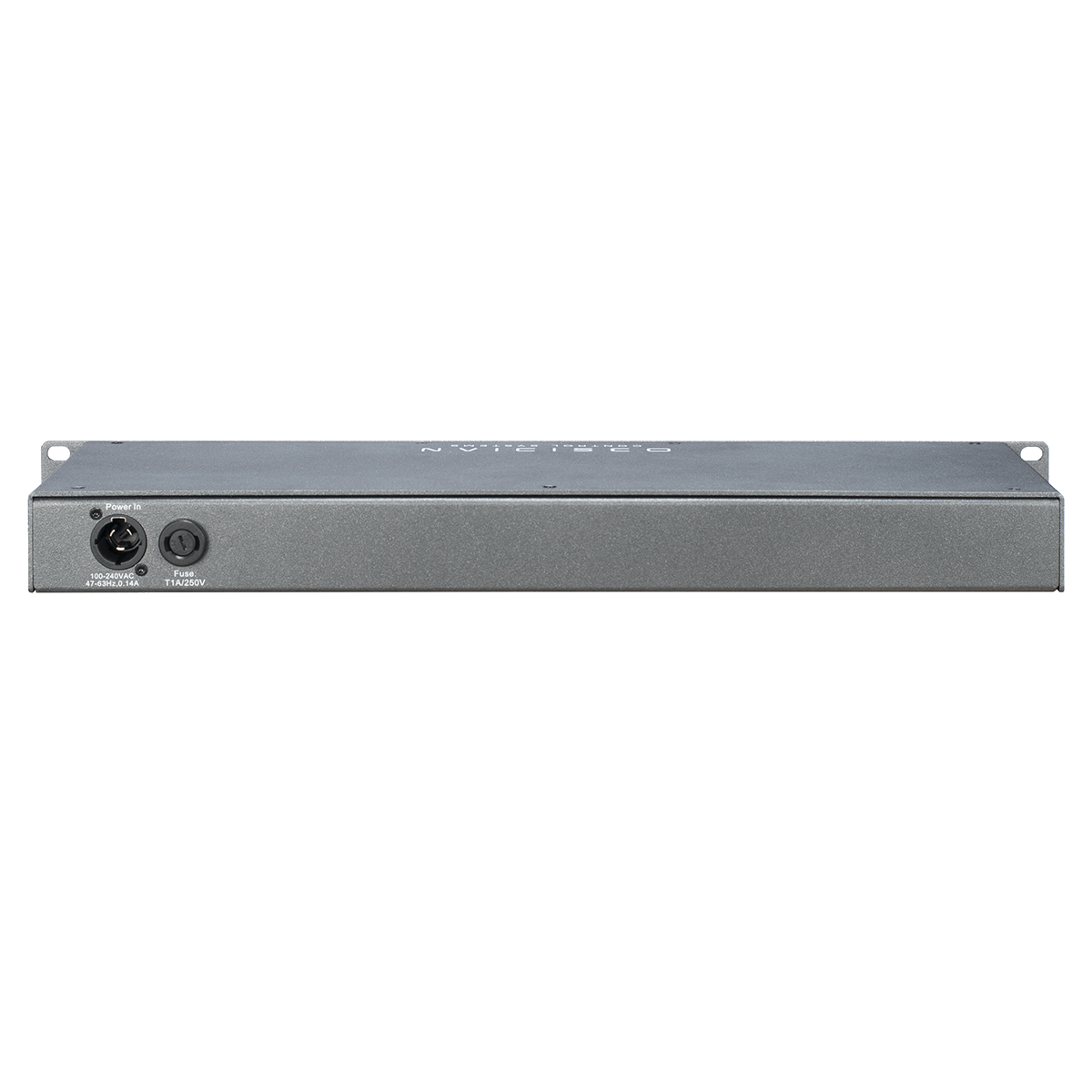

Back
  • Locking Power In

Specifications
Physical

  • Length: 482.0 mm (19 in.)
  • Width: 155.9 mm (6.1 in.)
  • Height: 44 mm (1.7 in.)
  • Weight: 1.50kg ( 3.31 lbs)
Electrical

  • 100-240 V nominal, 50/60 Hz
Approvals / Ratings
  • cETLus / CE / UKCA / IP20 (pending)

Ordering
Included Items

  • 1.5m Locking power cable (EU or US version)

SKU

  • US # DMX105
  • EU #: 1330000071

Downloads

Filename Document type File type
NETRON DMX10 - Installation Guide User Guide PDF
NETRON DMX10 Specification Sheet Specification Sheet PDF
DMX10-5 Dimensional Drawing Dimensional Drawings PDF
DMX10-5 2D Cad Drawing CAD Drawing DWG
